Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

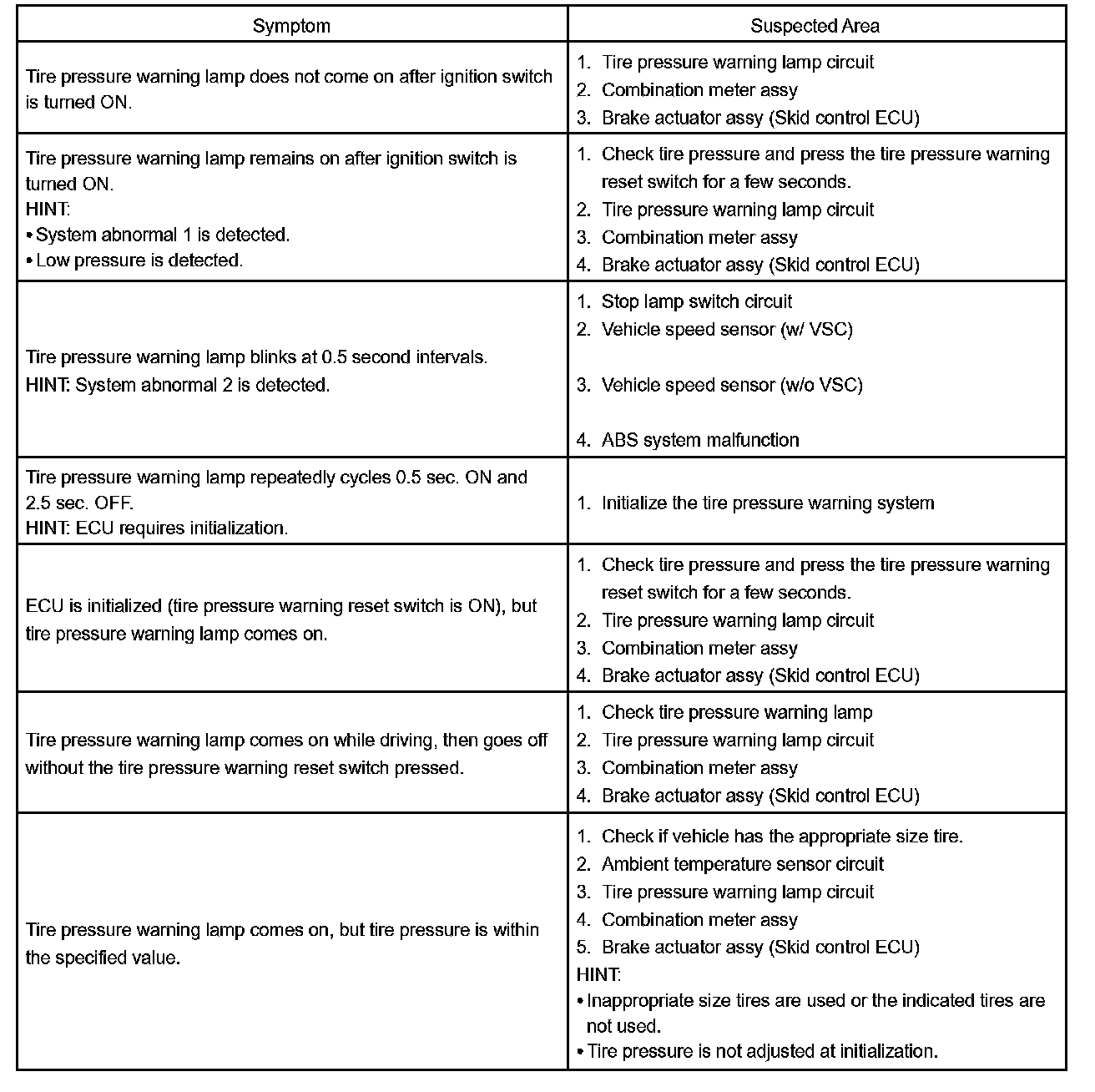

Problem Symptoms Table (Part 1):




Problem Symptoms Table (Part 2):




Check the circuits for each problem symptom in the order given in the table, and proceed to the relevant troubleshooting.

HINT:
- Inspect each circuit in numerical order for the corresponding symptom.
- If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the brake actuator assy.
- When a malfunction is found in the skid control ECU, replace the brake actuator assy.
- When the tire pressure warning lamp blinks and the ABS warning lamp comes on, check the ABS system first.
