Canada - Engine Control - ABS Light/ C/C Light Flashing A/C ino






Bulletin
TSB2987

Issue Date
March 31, 2008

Market
Canada

Title
ABS Light and/or Cruise Light Flashing and A/C Inoperative

Component
ENGINE MECHANICAL

Models
'05 - '08 Corolla & Matrix

INTRODUCTION:

Some 2005 - 2008 model year Corolla and Matrix vehicles equipped with a 1ZZ-FE engine may exhibit one or more of the following conditions:
- ABS light flashes during vehicle operation
- Cruise light flashes during vehicle operation
- A/C system is inoperative

Use the following procedure to repair the vehicle and address customer concerns.

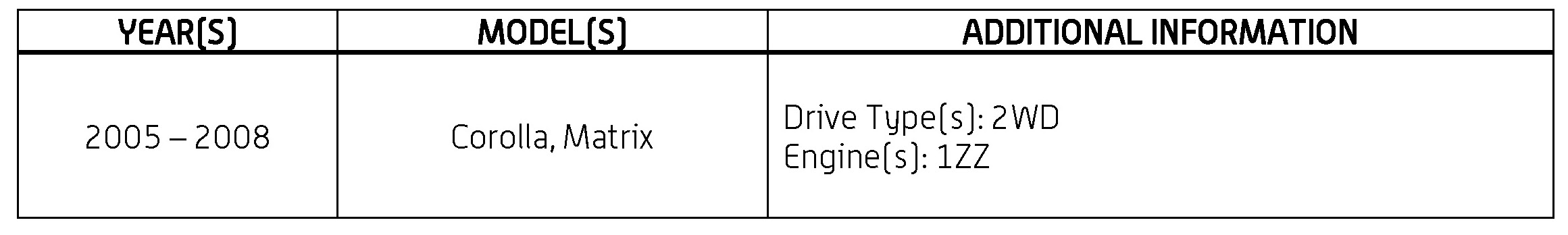

APPLICABLE VEHICLES:

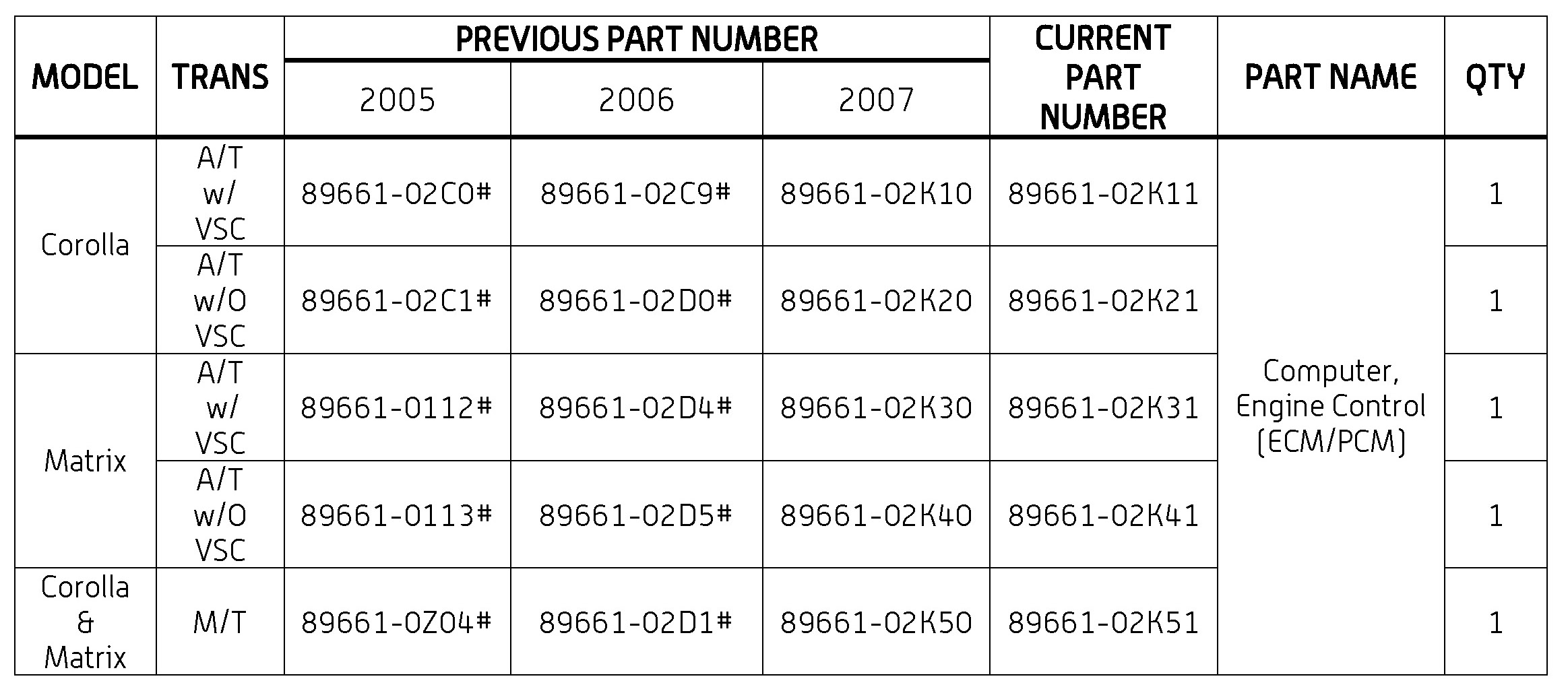

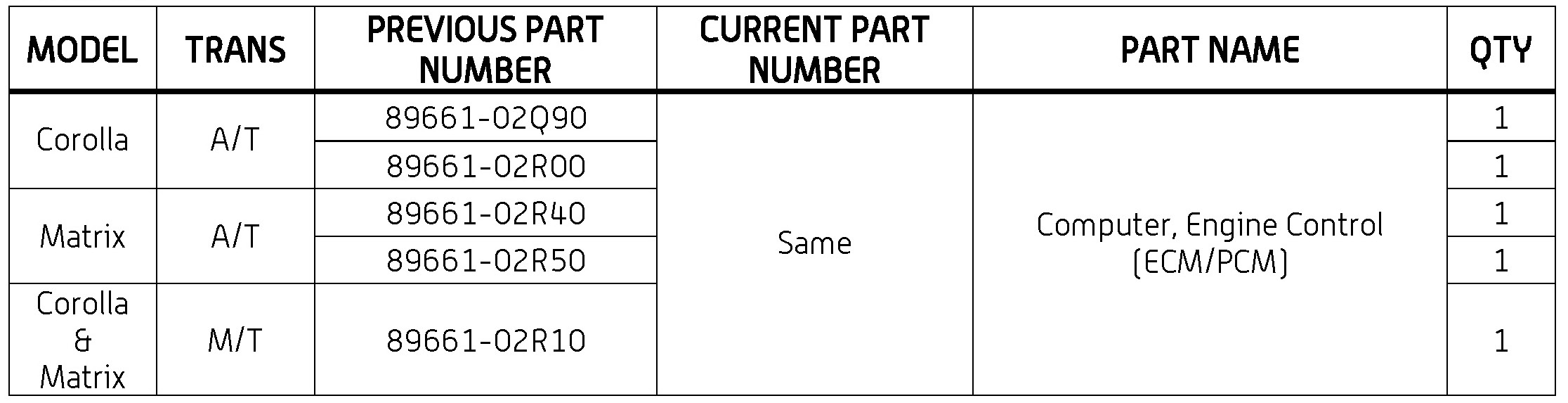

PARTS INFORMATION:






2005-2007 MY






2008 MY

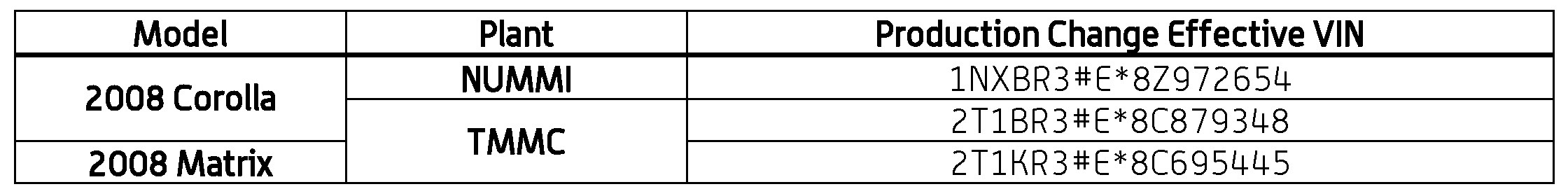

PRODUCTION CHANCE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

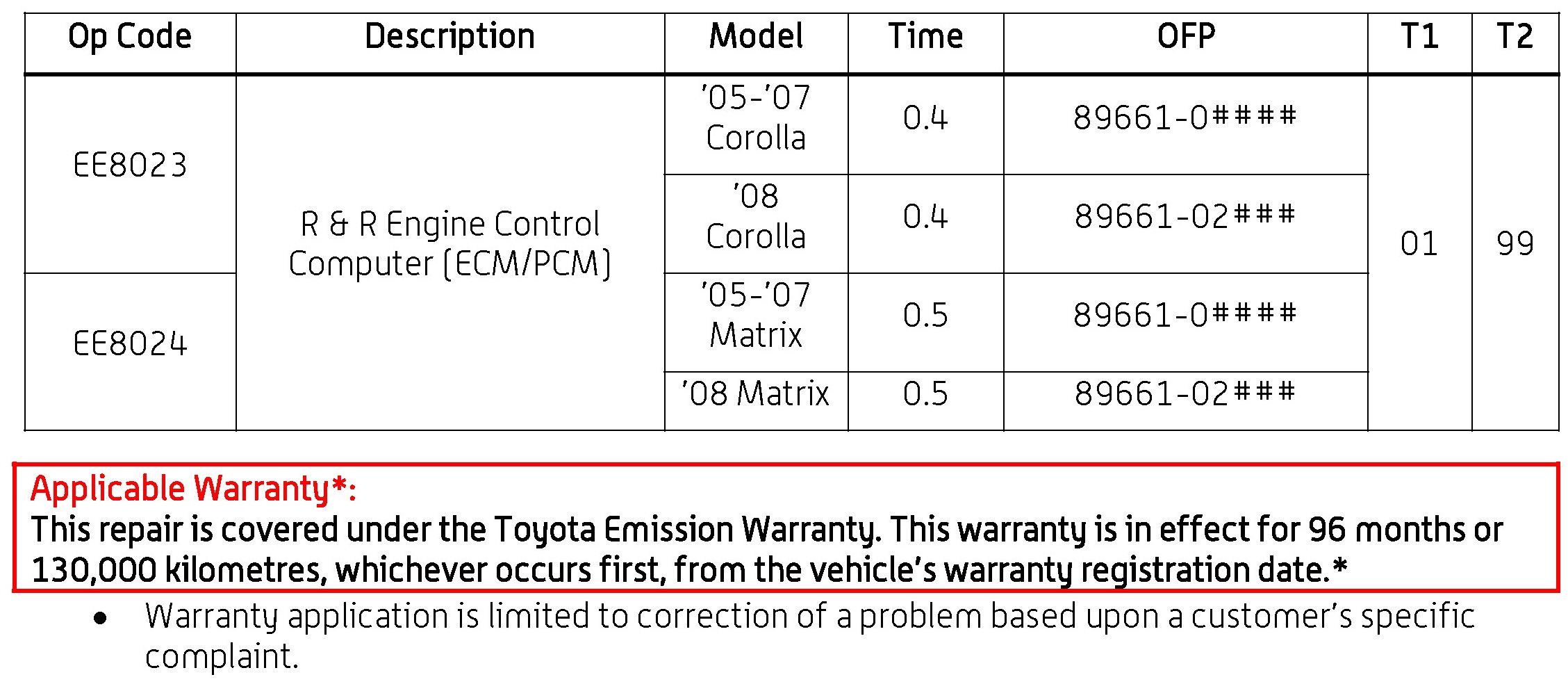

WARRANTY:






REQUIRED SSTs:

REPAIR PROCEDURE:

1. Confirm that the condition matches the TSB criteria in the Introduction and that NO other faults are present in the related systems.
2. Replace the ECM (PCM).

Refer to the Repair Manual within E-TAS / TIS library:

COROLLA & MATRIX
- Division: Toyota
- Model: Corolla or Matrix
- Year: 2005
- Service Category: Engine/Hybrid System
- Section: Engine Control
- Keyword: ECM (1ZZ-FE/2ZZ-GE): Replacement

- Division: Toyota
- Model: Corolla or Matrix
- Year: 2006 or 2007 or 2008
- Service Category: Engine/Hybrid System
- Section: Engine Control
- Keyword: 1ZZ-FE Engine Control System: ECM Removal

- Division: Toyota
- Model: Corolla or Matrix
- Year: 2006 or 2007 or 2008
- Service Category: Engine/Hybrid System
- Section: Engine Control
- Keyword: ECM (1ZZ-FE/2ZZ-GE): Installation

3. Register the VIN into the replacement ECM [PCM].

Refer to the Repair Manual within E-TAS / TIS library:

COROLLA & MATRIX
- Division: Toyota
- Model: Corolla or Matrix
- Year: 2005
- Service Category: Engine/Hybrid System
- Section: Engine Control
- Keyword: SFI System [1ZZ-FE]: Registration

- Division: Toyota
- Model: Corolla or Matrix
- Year: 2006 or 2007 or 2008
- Service Category: Engine/Hybrid System
- Section: Engine Control
- Keyword: 1ZZ-FE Engine Control System: SFI System: Registration

4. Confirm the repair.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
