E.F.I ECU Relay
E.F.I ECU Relay
INSPECT E.F.I ECU RELAY

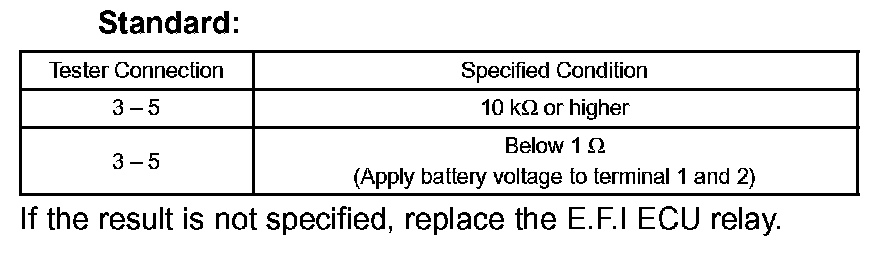

Check the resistance.

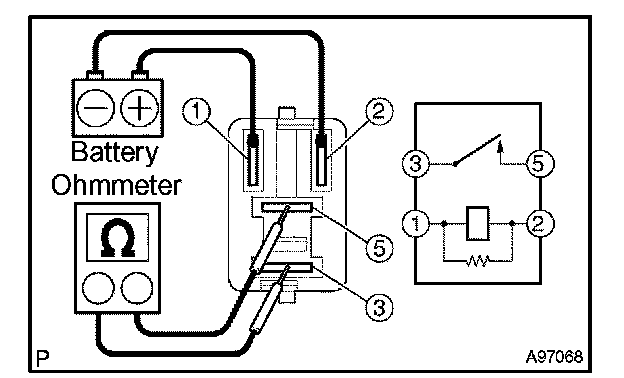

Using an ohmmeter, measure the resistance between the terminals.
