E.F.I. Circuit Opening Relay Assy

INSPECT E.F.I. CIRCUIT OPENING RELAY ASSEMBLY

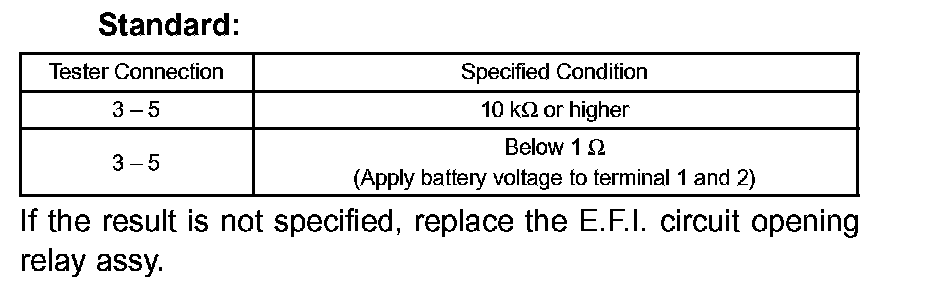

Check the resistance.

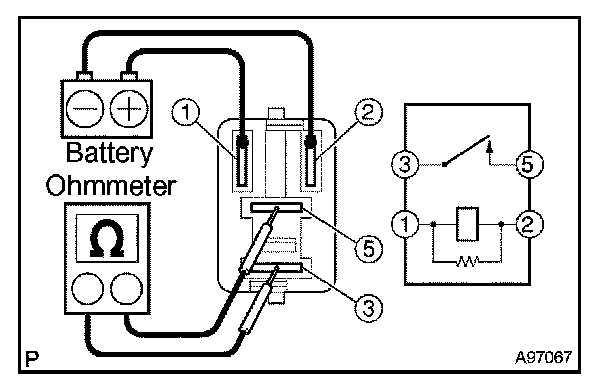

Using an ohmmeter, measure the resistance between the terminals.
