System Specifications

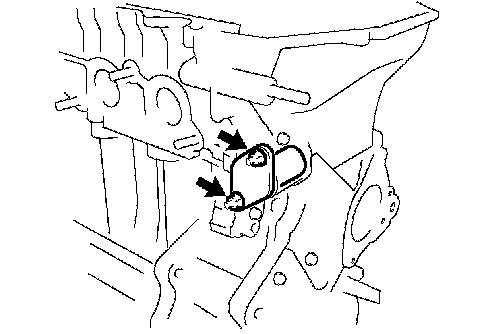

TIMING CHAIN TENSIONER




Install the chain tensioner with the 2 nuts.
Torque: 9.0 Nm (92 kgf-cm, 80 inch lbs.)

CRANKSHAFT PULLEY
Torque: 138 Nm (1,407 kgf-cm, 102 ft. lbs.)

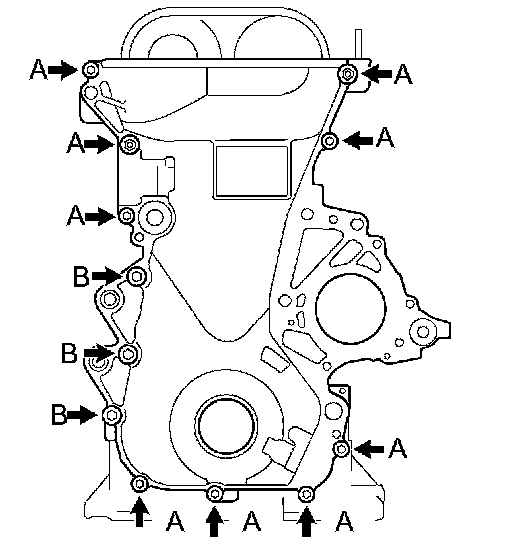

TIMING CHAIN COVER




Install the timing chain cover with the 10 bolts and 2 nuts.
Torque:
13 Nm (133 kgf-cm, 10 ft. lbs.) for bolt A and nut A
18.5 Nm (189 kgf-cm, 14 ft. lbs.) for bolt B

Using a torx wrench socket (E8), install the stud bolt.
Torque: 9.5 Nm (97 kgf-cm, 84 inch lbs.)
