Home
>>
Toyota
>>
2006
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Powertrain Management
>>
Ignition System
>>
System Specifications
System Specifications

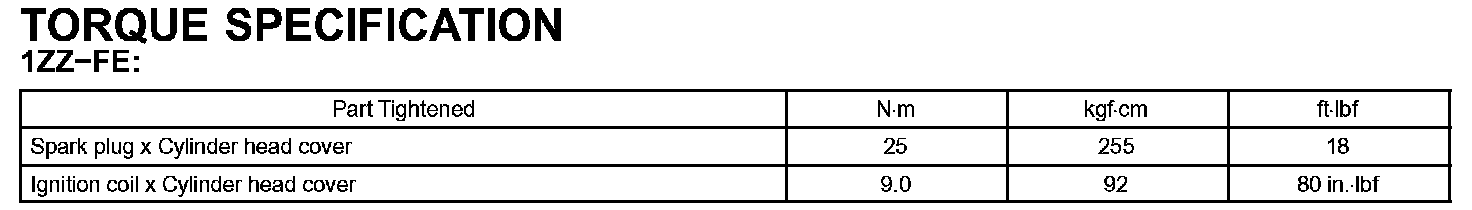

Ignition-Torque Specification:
