ABS System Malfunction

ABS SYSTEM MALFUNCTION

CIRCUIT DESCRIPTION

The skid control ECU outputs DTCs when a speed sensor malfunction occurs or there is an open in the stop lamp switch assy circuit of the ABS system. If the ABS system has a malfunction, the tire pressure warning system will not function.

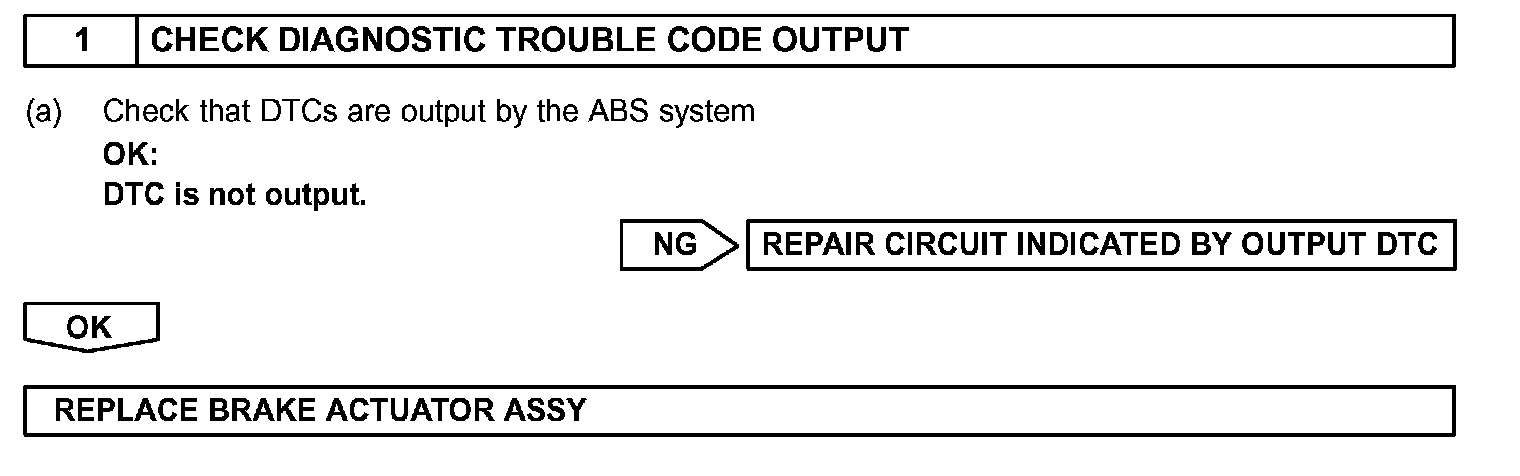

Step 1:




INSPECTION PROCEDURE
