Clutch: Testing and Inspection

CLUTCH SYSTEM (MTM)

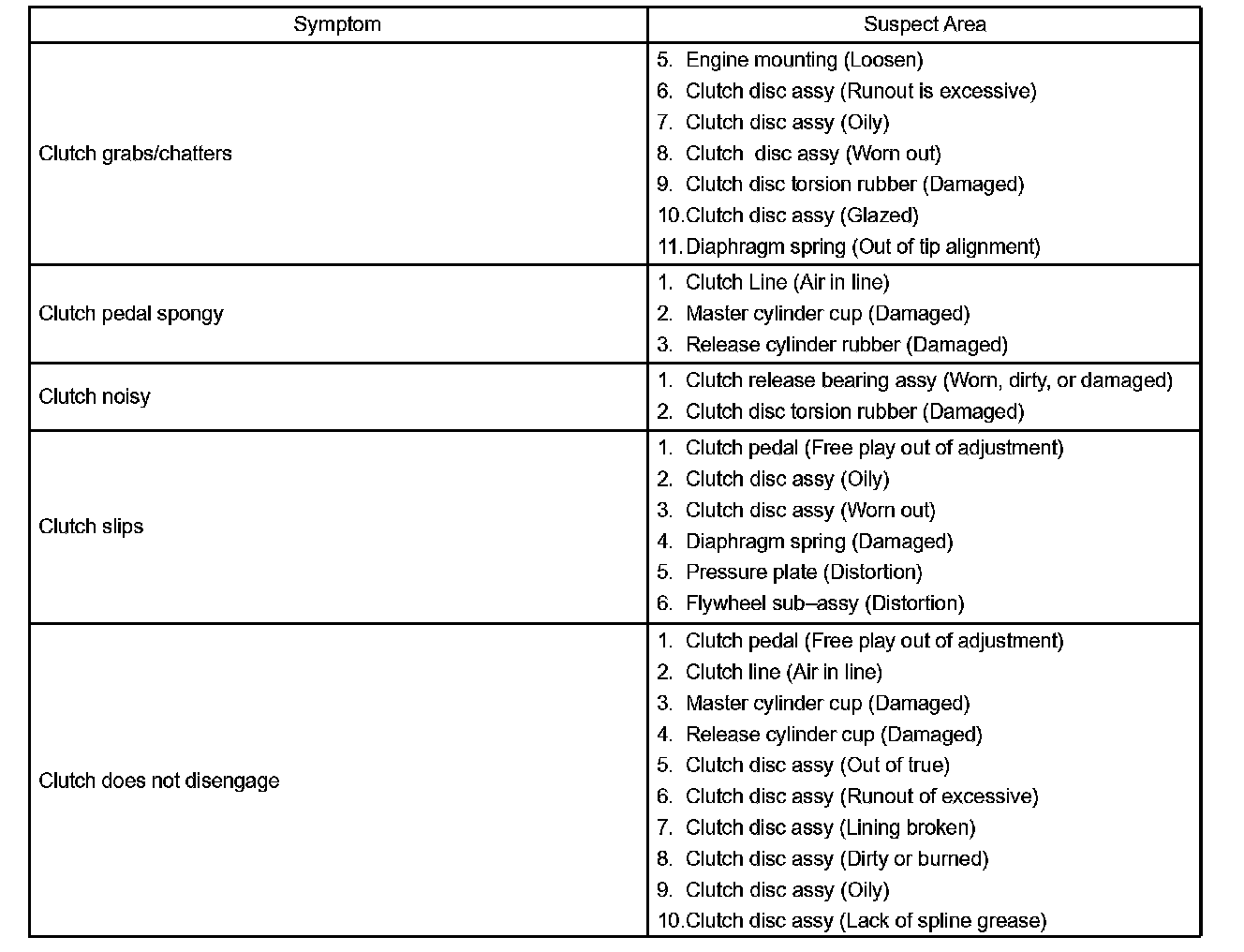

PROBLEM SYMPTOMS TABLE





HINT: Use the table to help determine the cause of the problem. The numbers indicate the priority of the likely causes of the problem. Check each part in order. If necessary, replace these parts.
