System Specifications

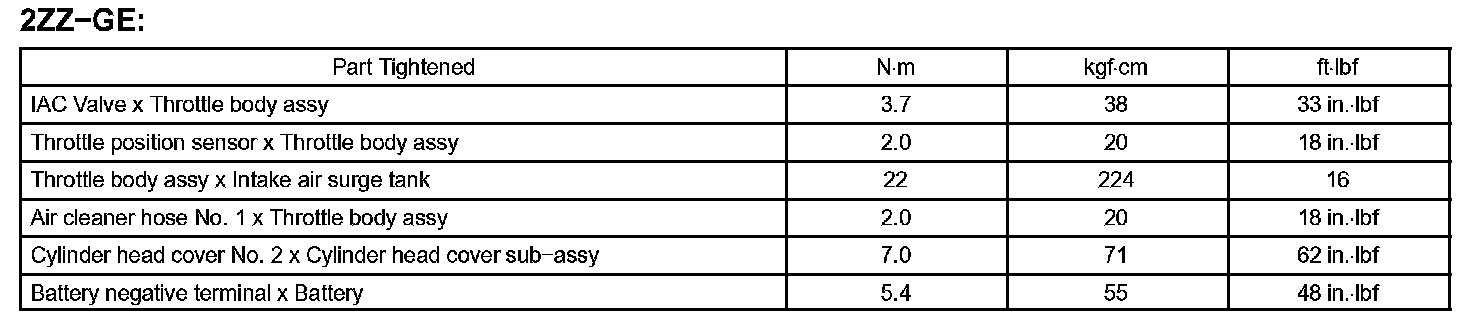

Engine Control System-Torque Specification:



Engine Control System-Torque Specification:
