System Diagram

AUTOMATIC TRANSAXLE UNIT

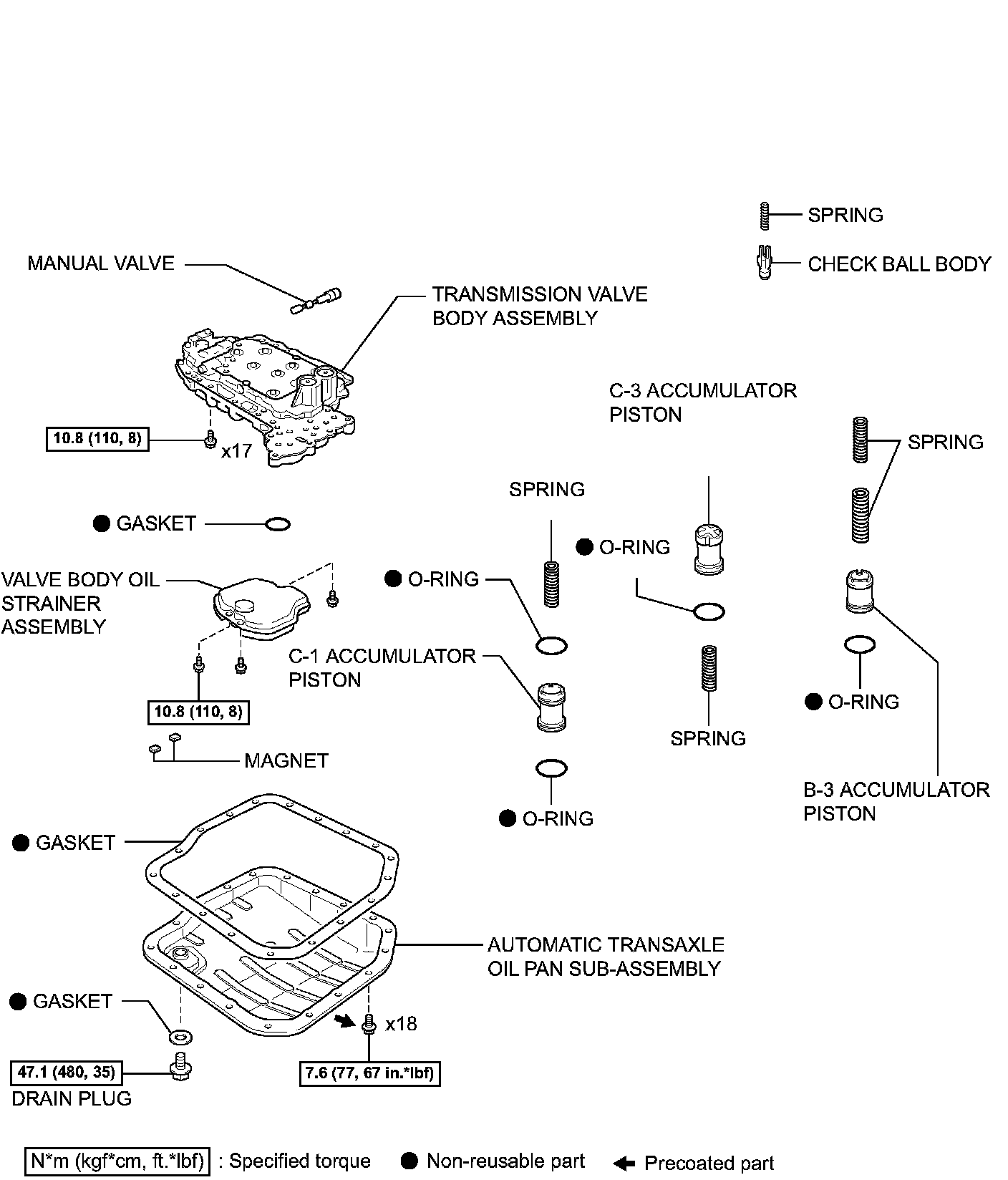

COMPONENTS:

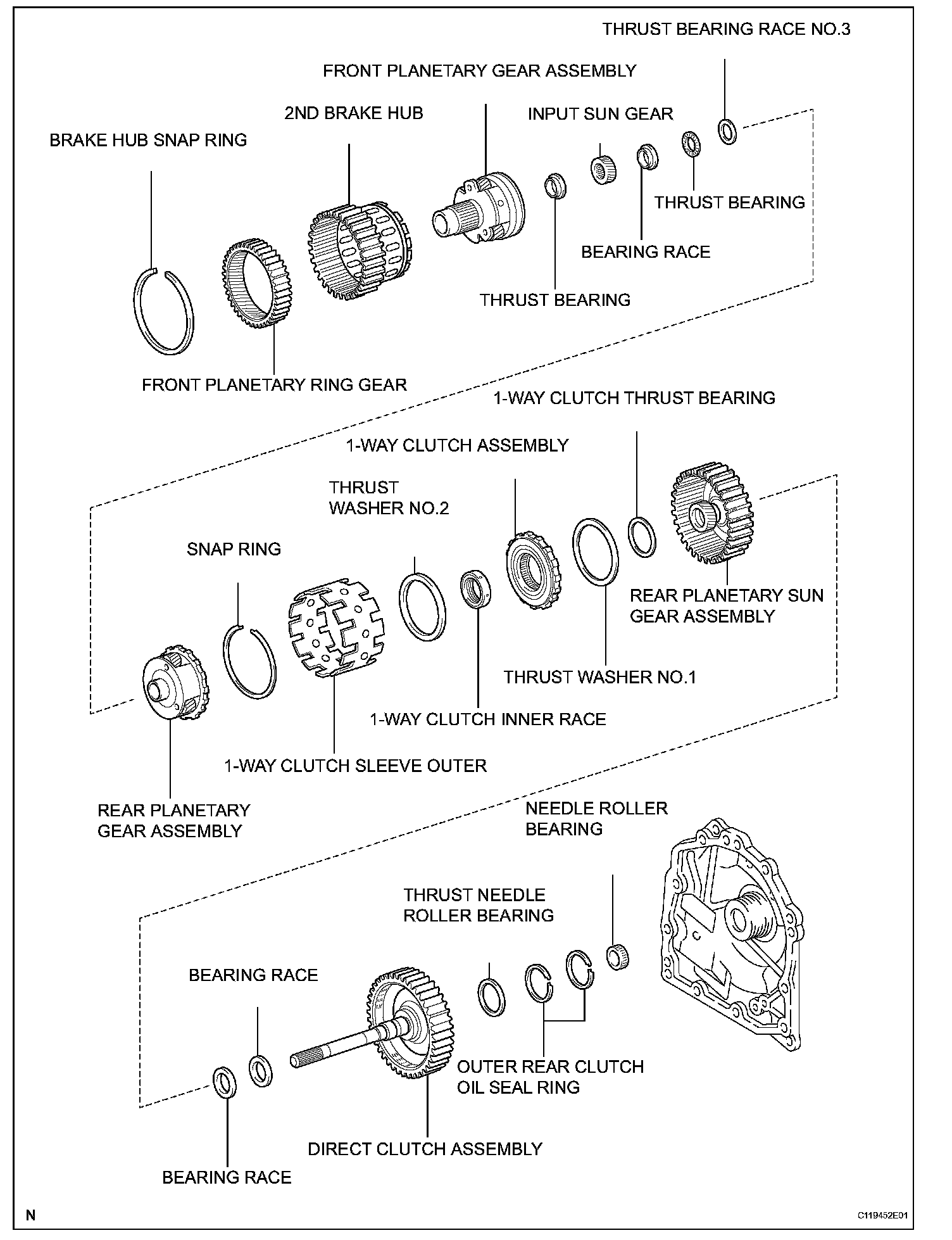

COMPONENTS:

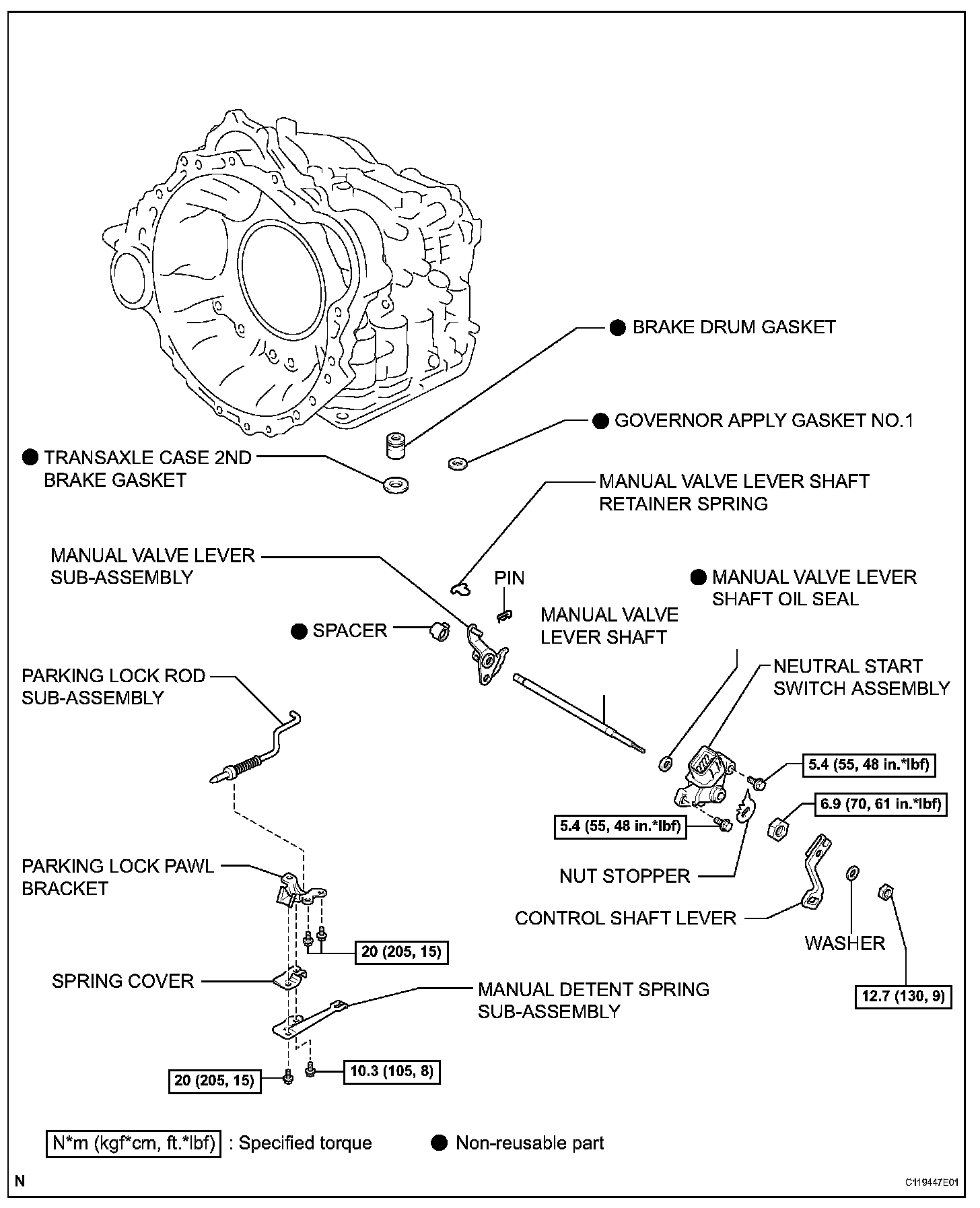

COMPONENTS:

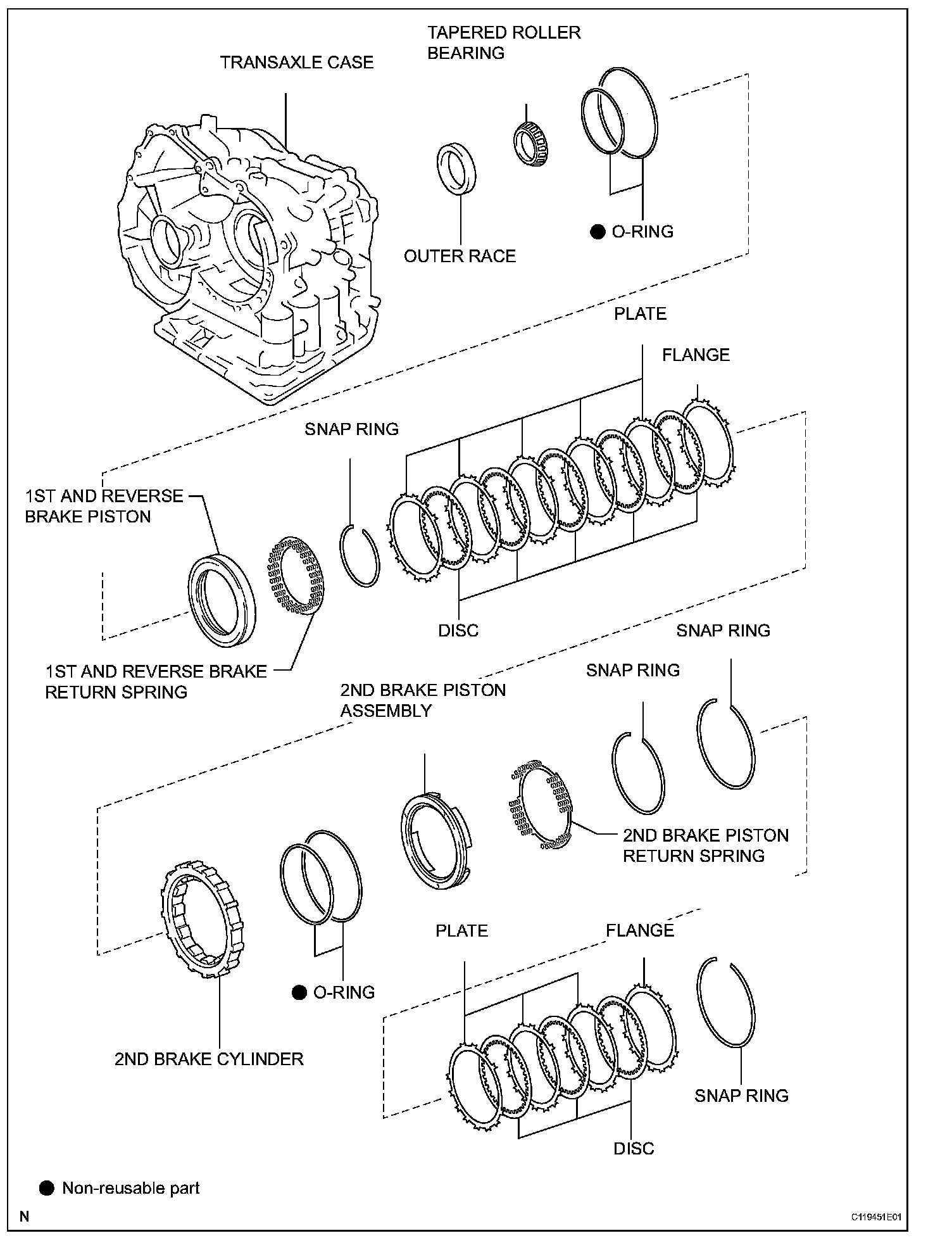

COMPONENTS:

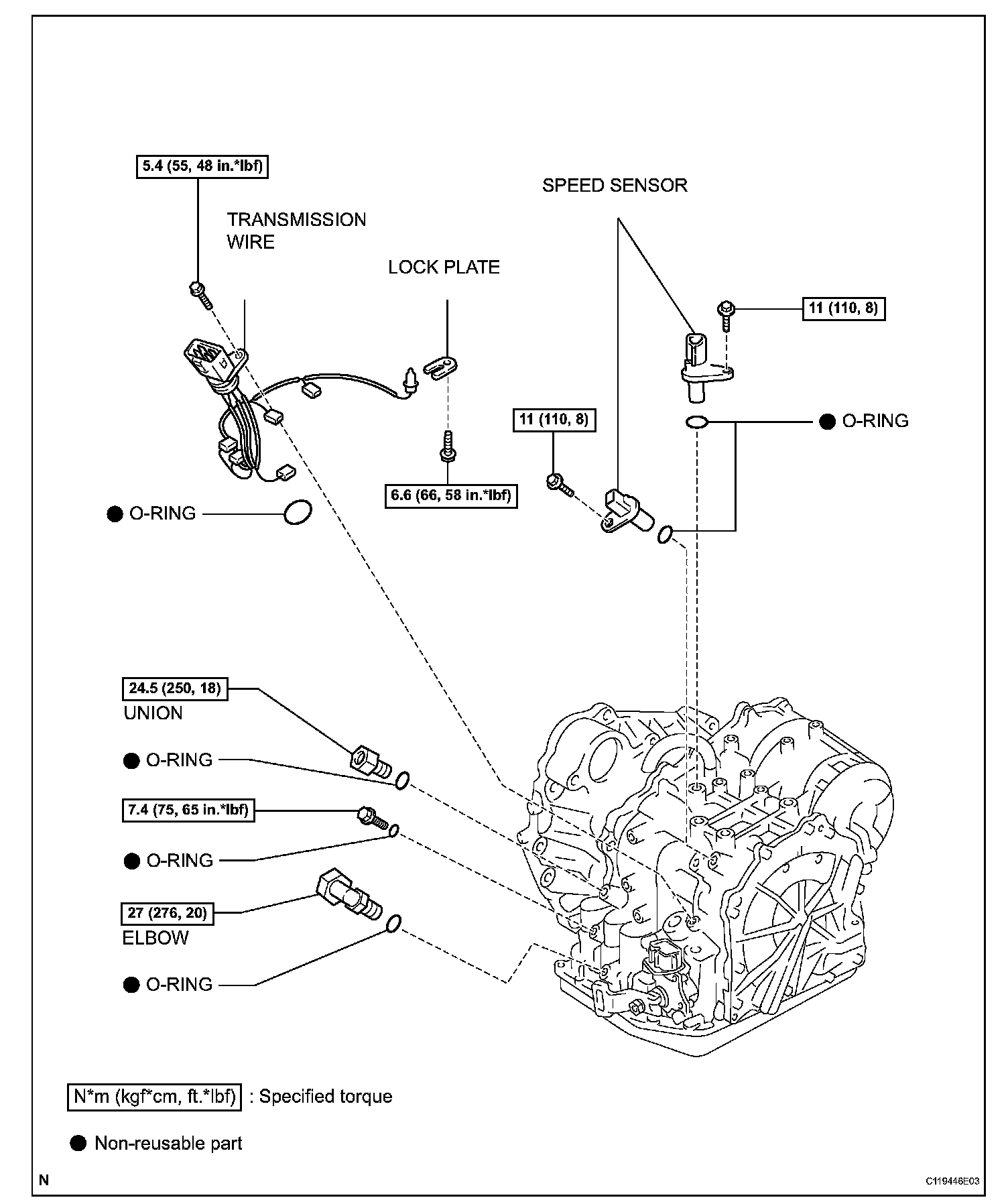

COMPONENTS:

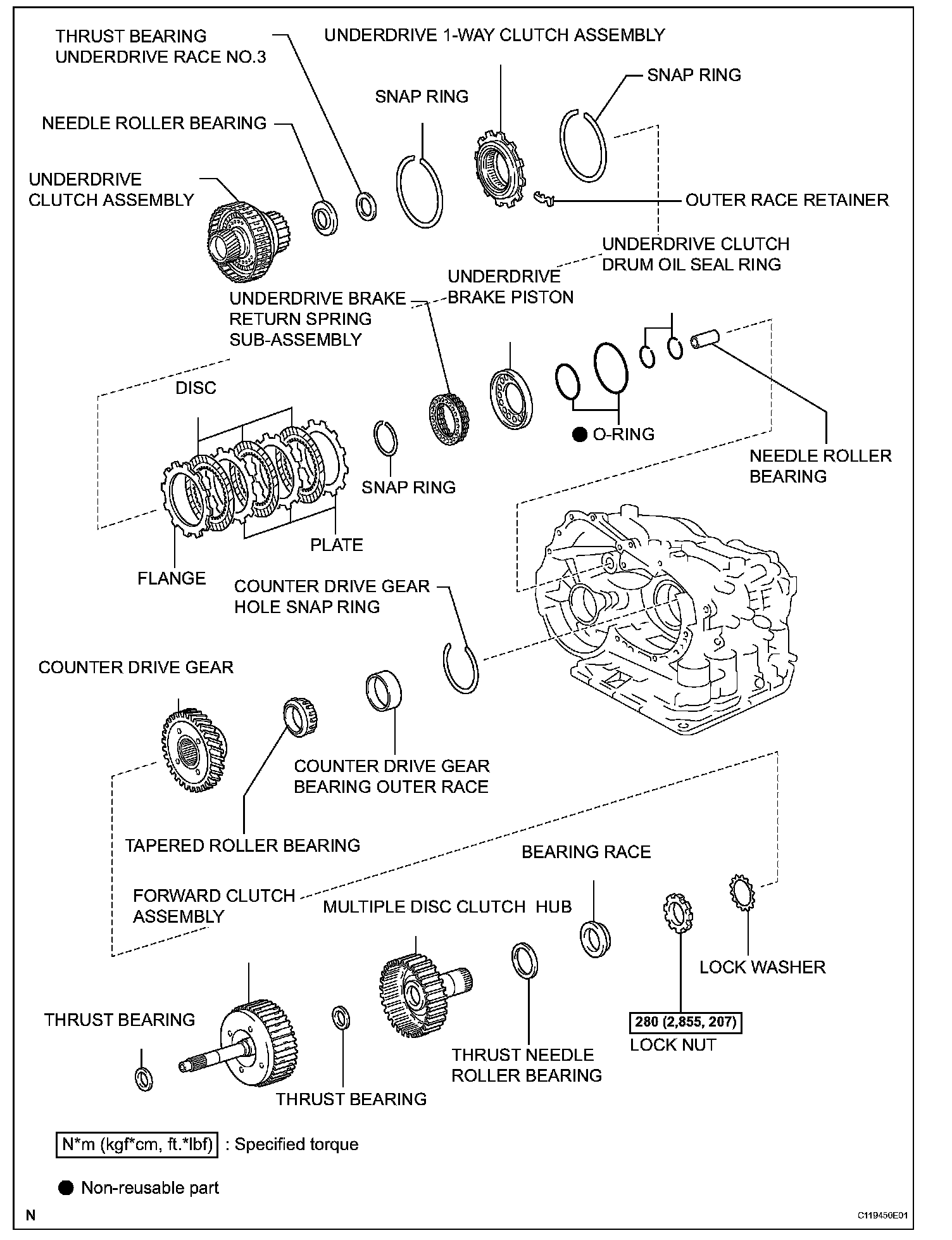

COMPONENTS:




COMPONENTS:
