Electronic Brake Control Module

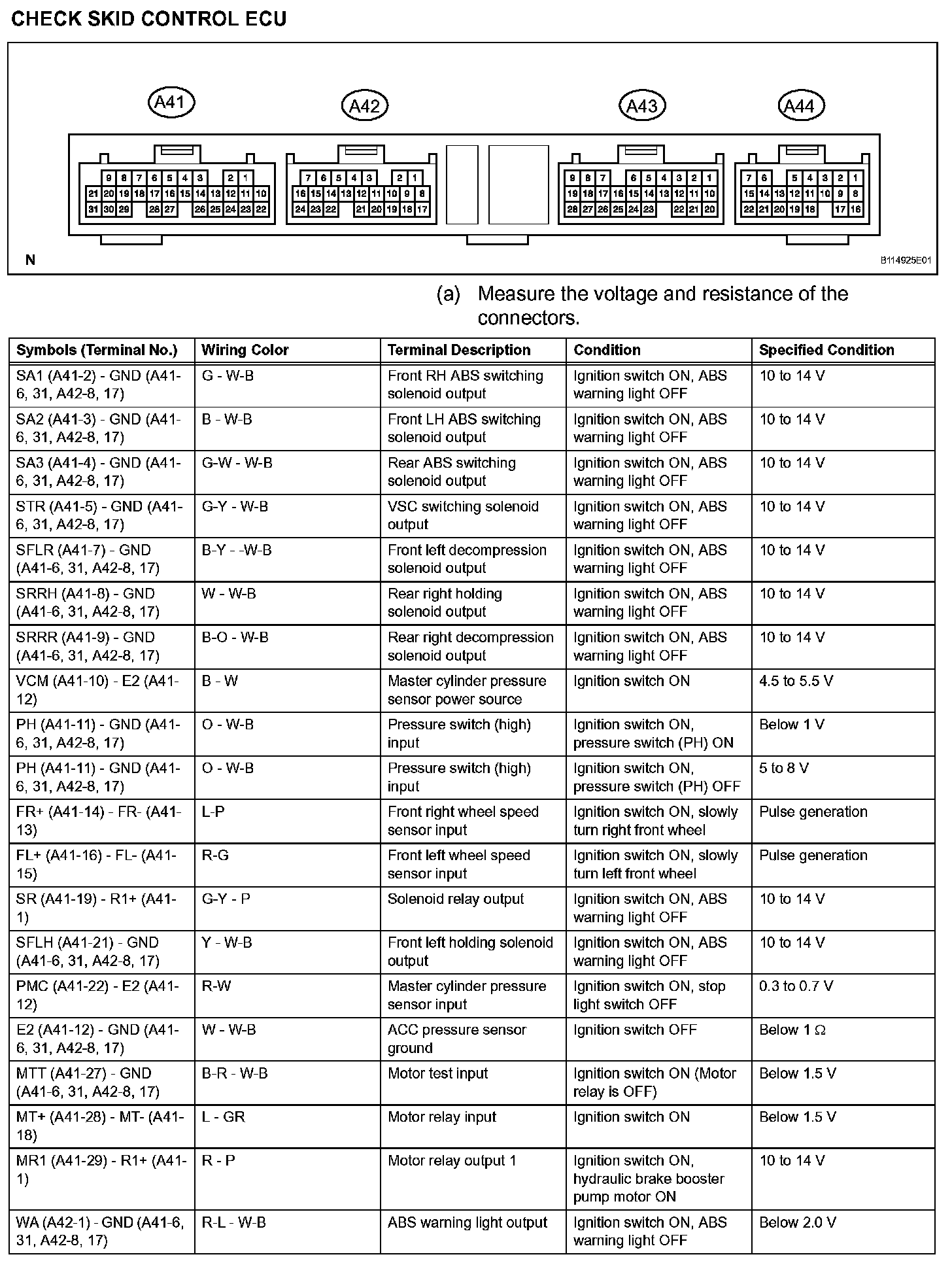

Terminals Of Control Module/Pinouts - Check Skid Control ECU (Part 1):

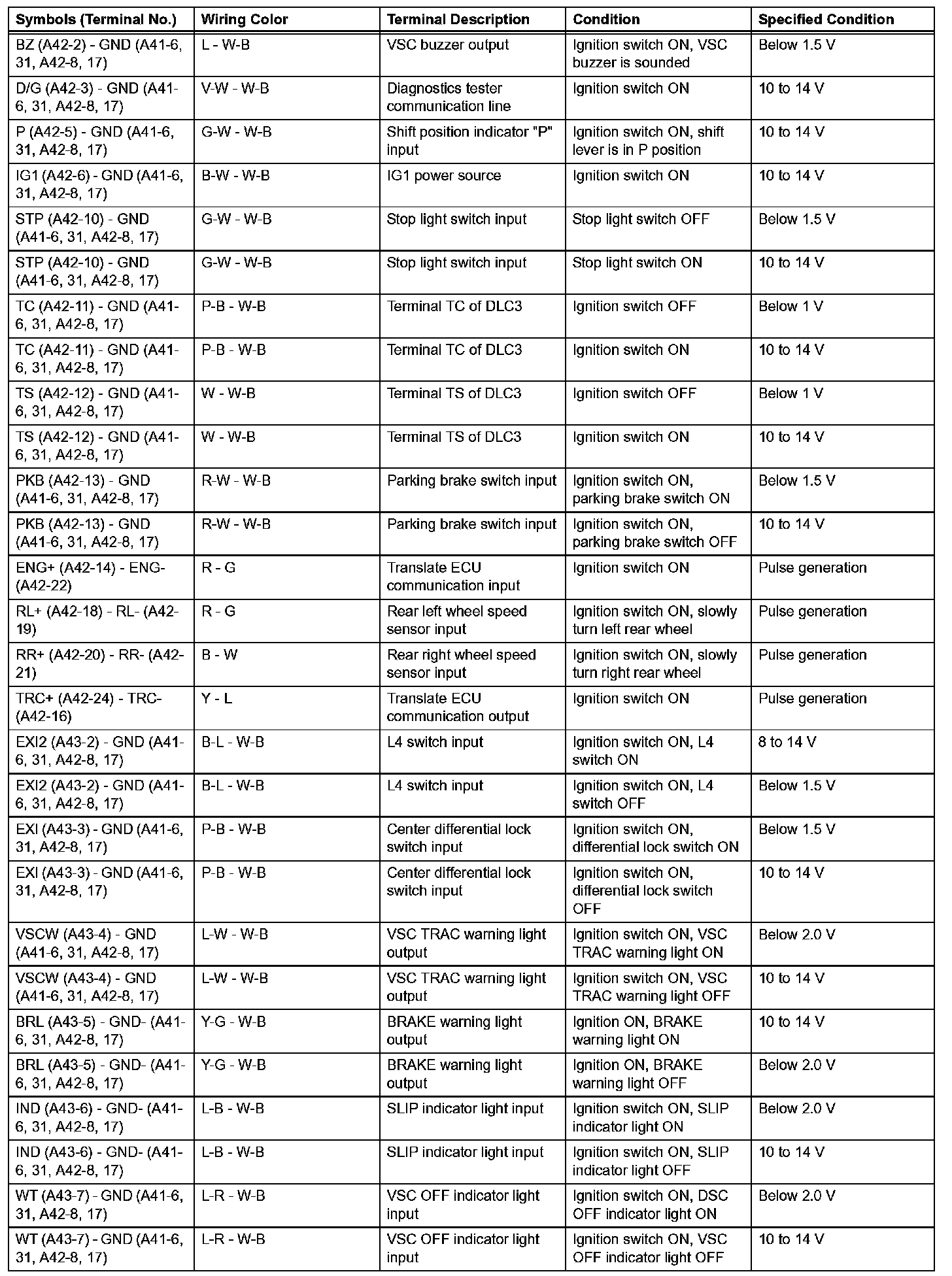

Terminals Of Control Module/Pinouts - Check Skid Control ECU (Part 2):

Terminals Of Control Module/Pinouts - Check Skid Control ECU (Part 3):

Terminals Of Control Module/Pinouts - Check Translate ECU:
