Housing Assembly HVAC

Front Cooling Unit:

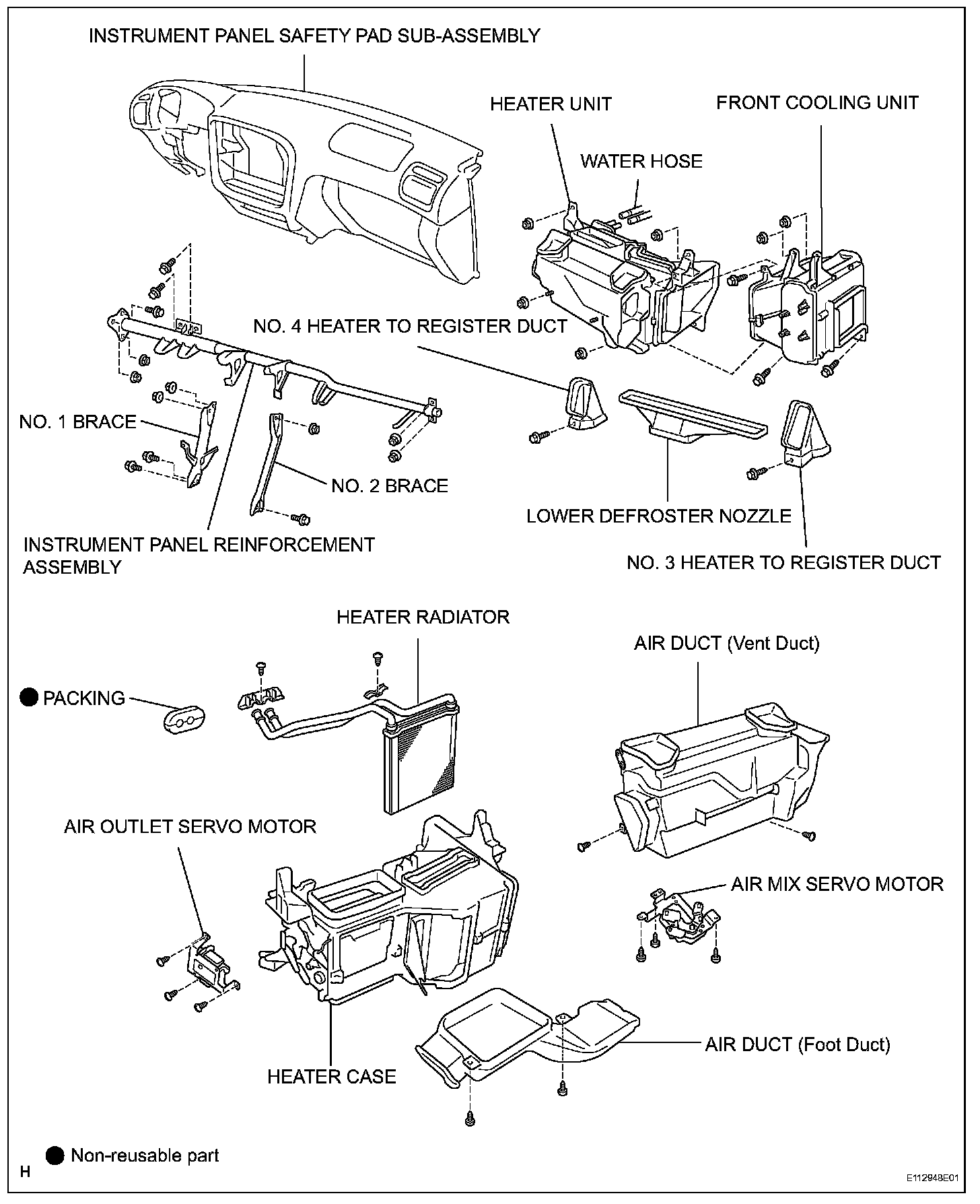

Front Heater Unit:

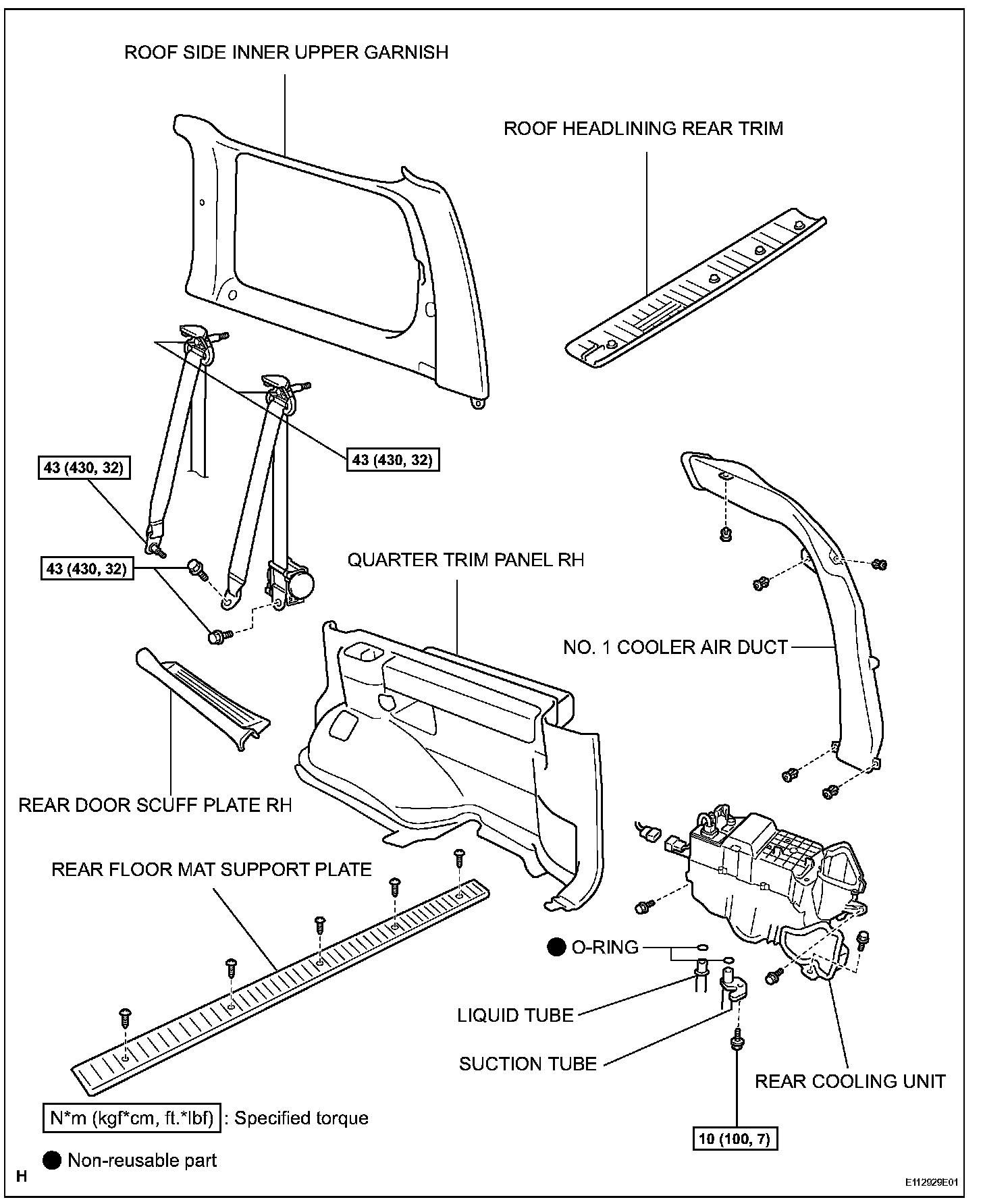

Rear Cooling Unit (Part 1):



Rear Cooling Unit (Part 2):



Rear Heater Unit (Part 1):



Rear Heater Unit (Part 2):

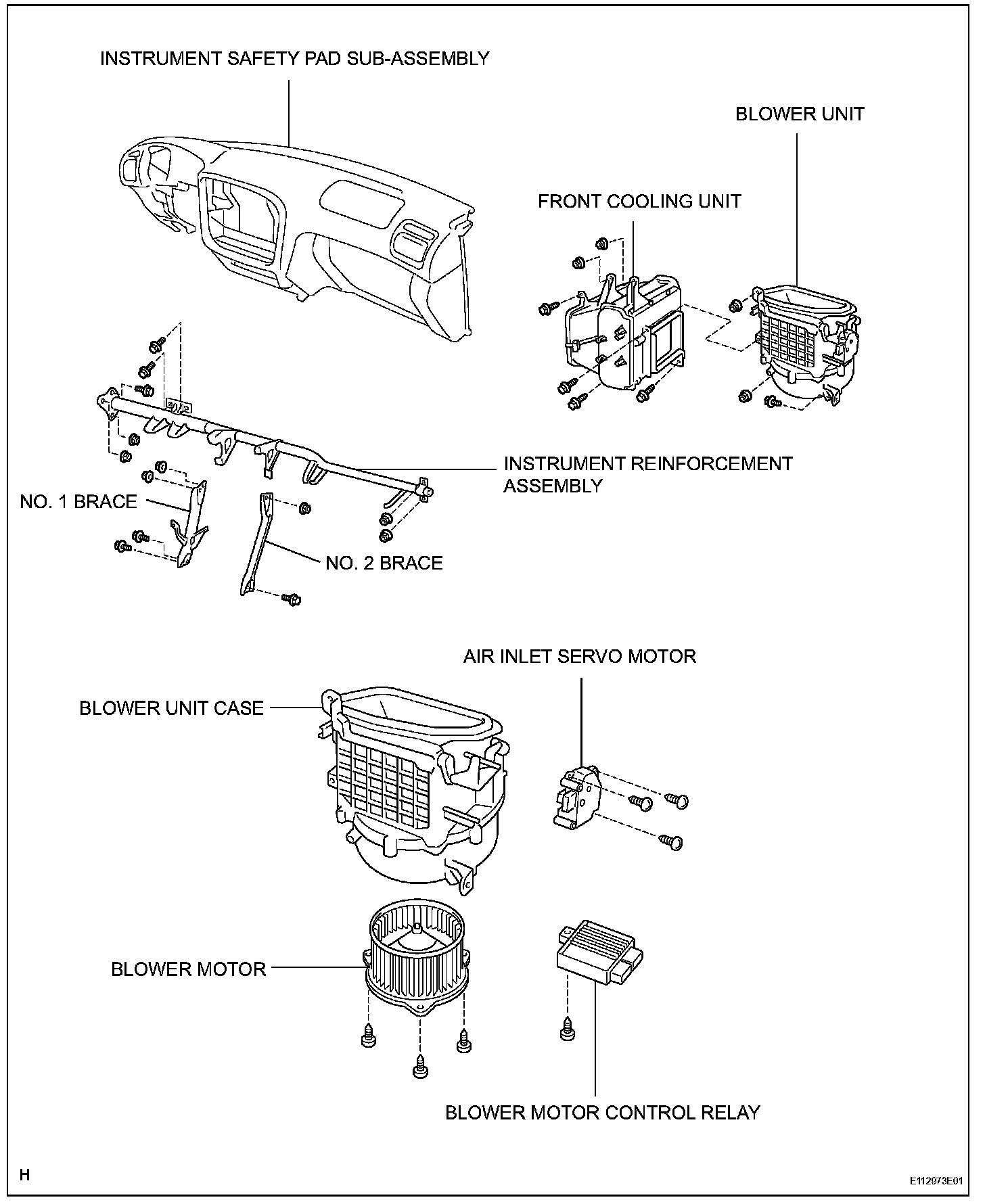

Blower Unit:
