System Diagram

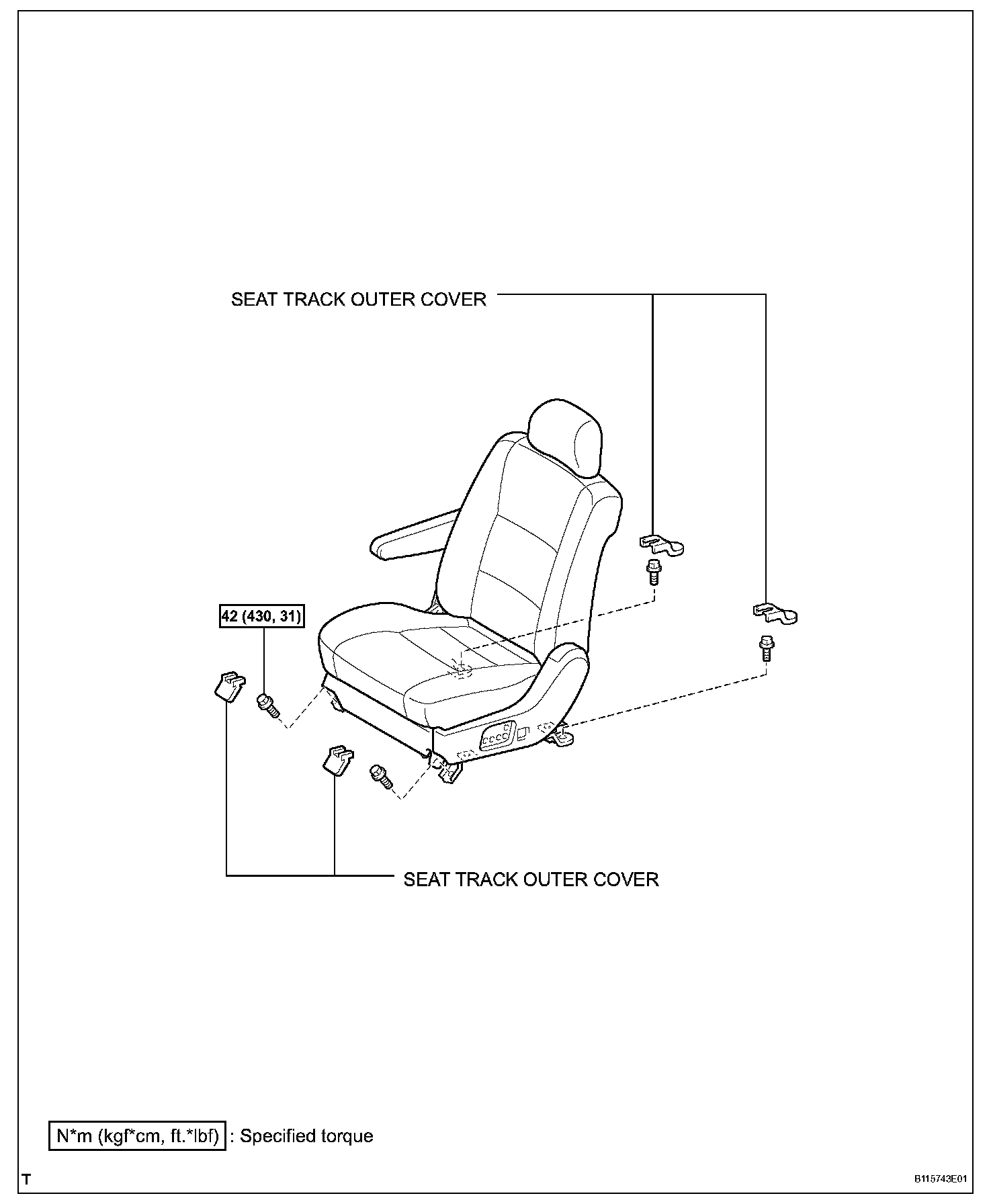

Front Seat Assembly:

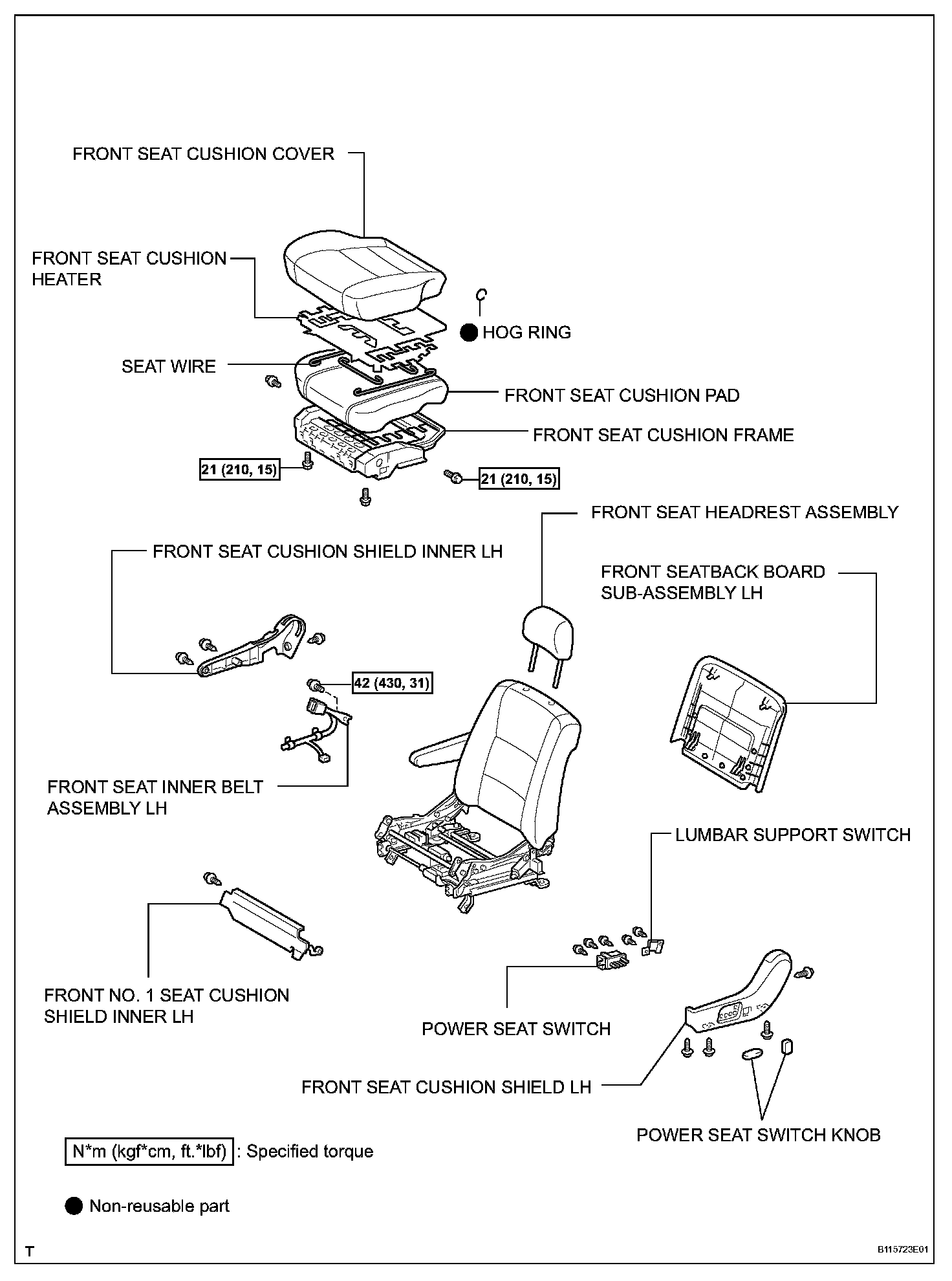

Front Seat Assembly:

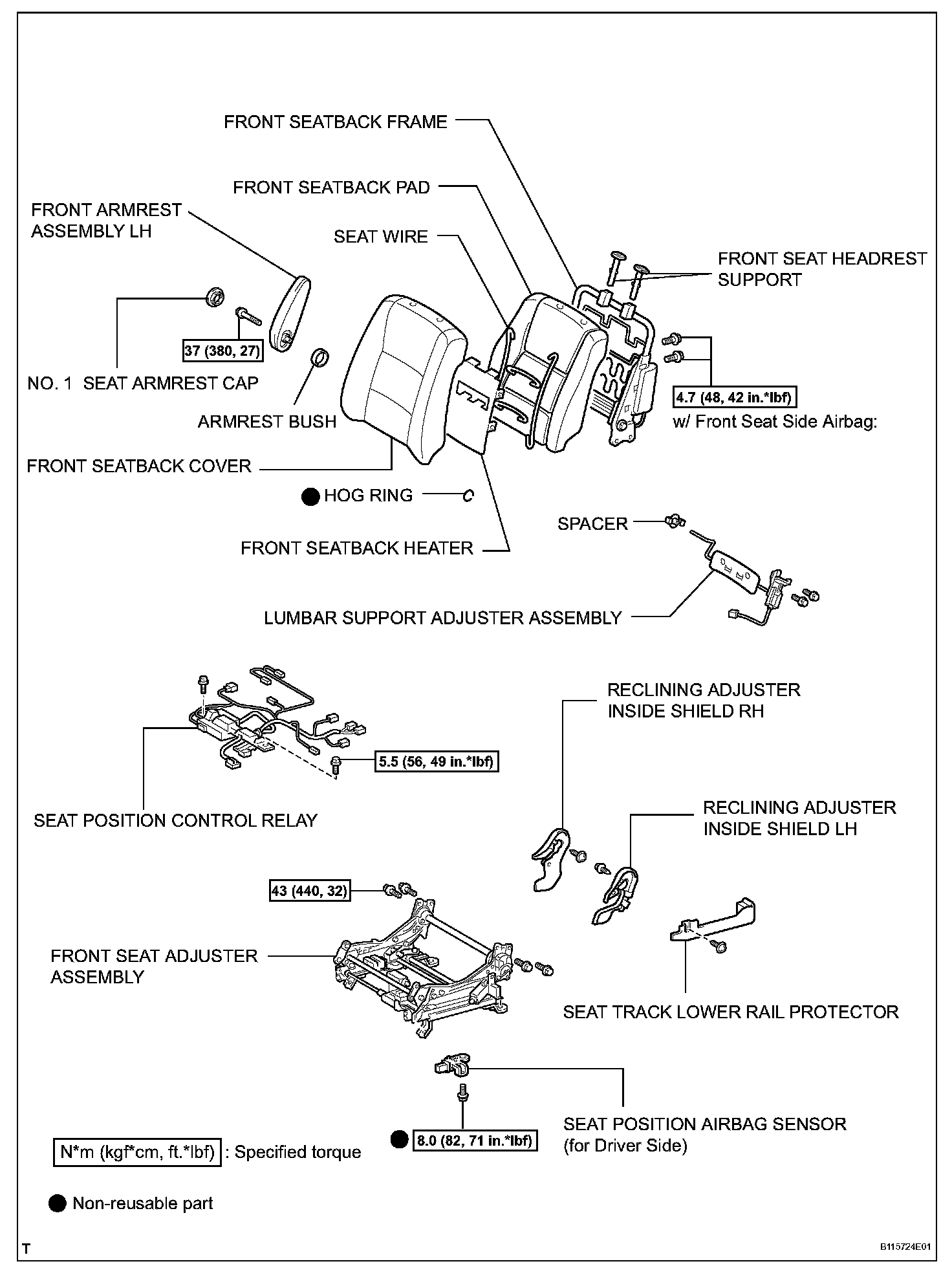

Front Seat Assembly:

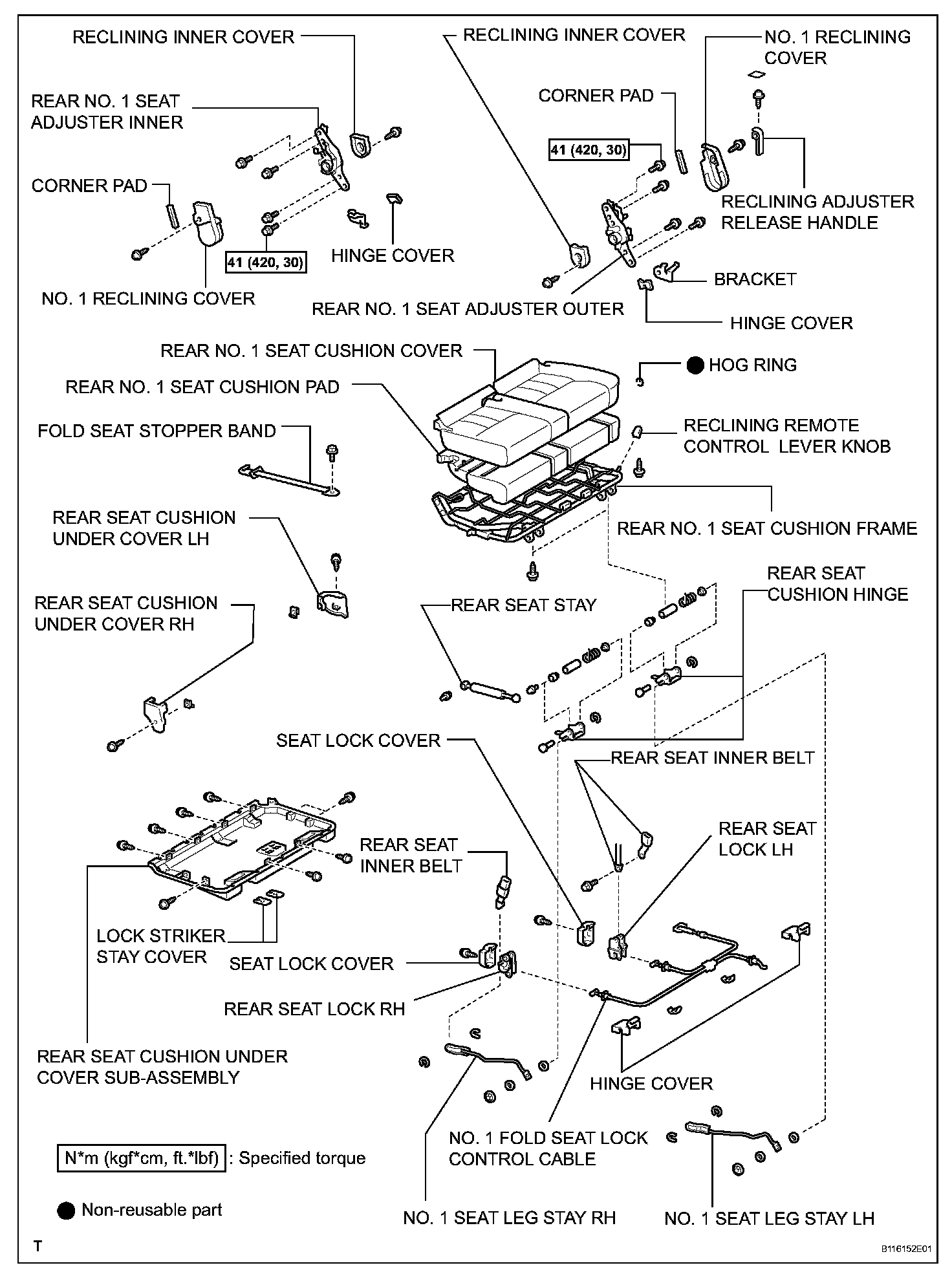

Rear No.1 Seat Assembly (For LH Side):

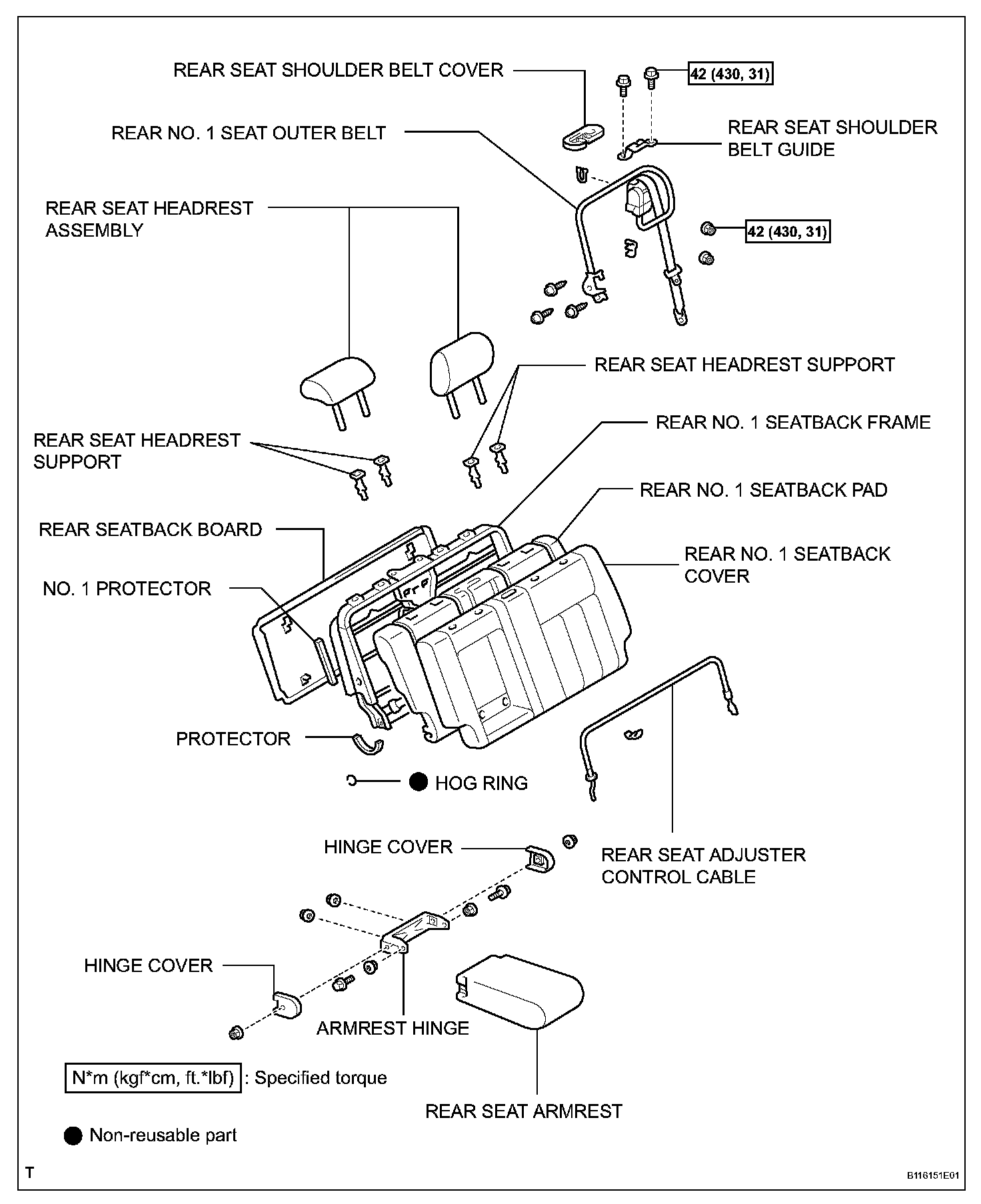

Rear No.1 Seat Assembly (For LH Side):

Rear No.1 Seat Assembly (For RH Side):

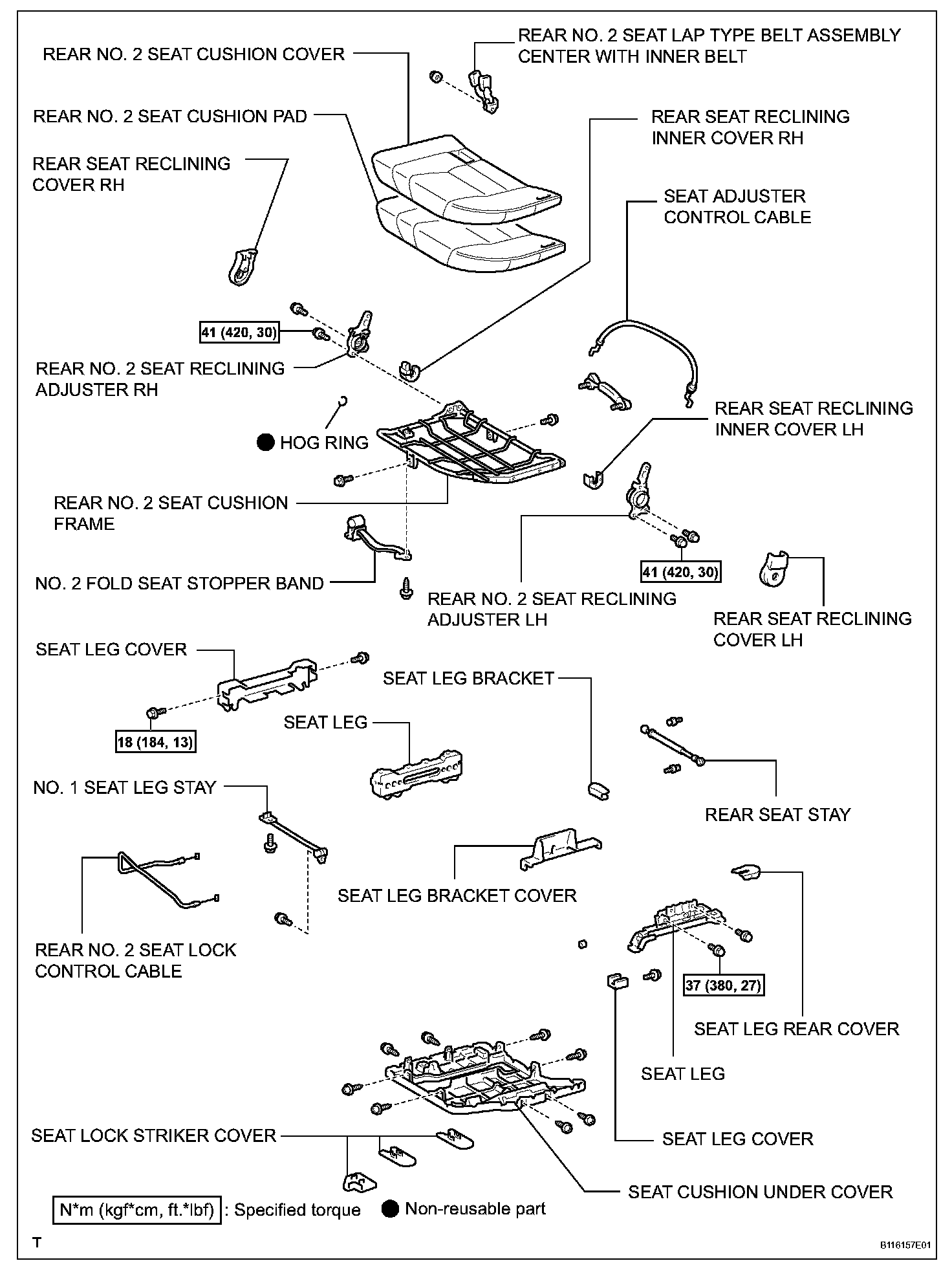

Rear No.2 Seat Assembly:

Rear No.2 Seat Assembly:

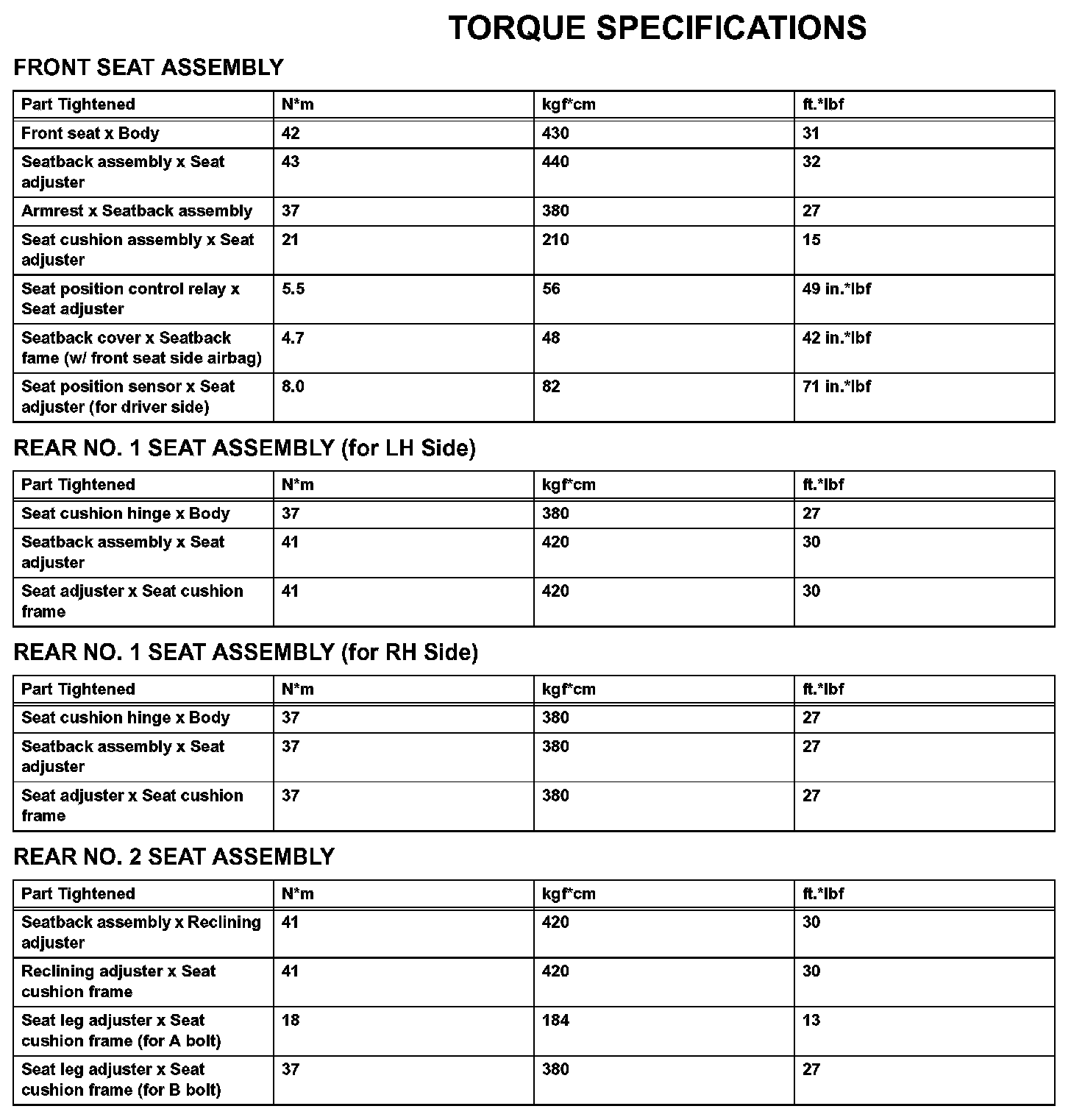

Seat-Torque Specifications:
