Compressor Speed Sensor: Testing and Inspection

CHECK COMPRESSOR LOCK SENSOR

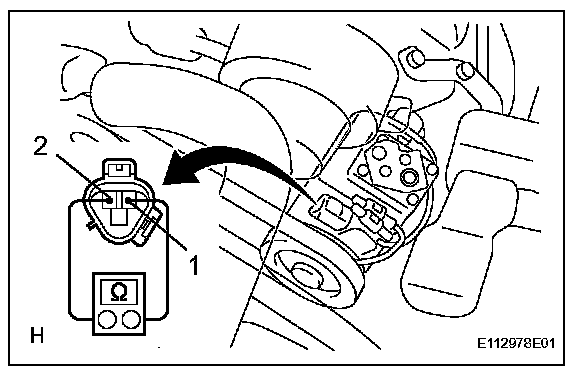

a. Disconnect the connector.

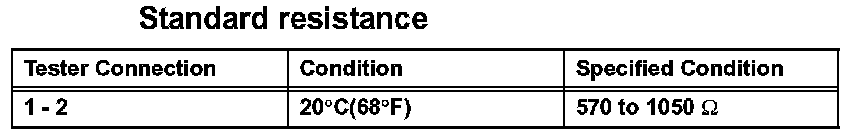

b. Measure the resistance of the sensor.
If the result is not as specified, replace the compressor.
