Disassembly and Reassembly

DISASSEMBLY

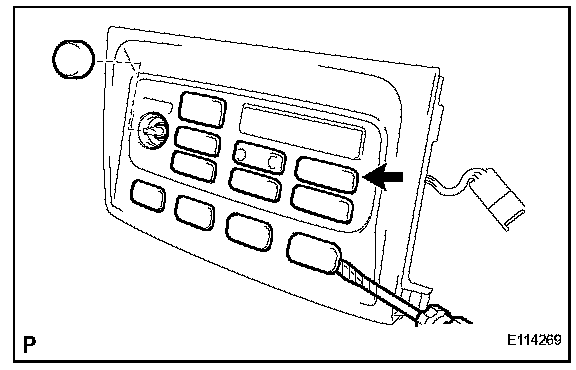

1. REMOVE CONTROL KNOB (w/ Navigation System)
a. Using a screwdriver, pull out the knobs.

HINT: Tape the screwdriver tip before use.




2. REMOVE INTEGRATION CONTROL PANEL (w/ Navigation System)

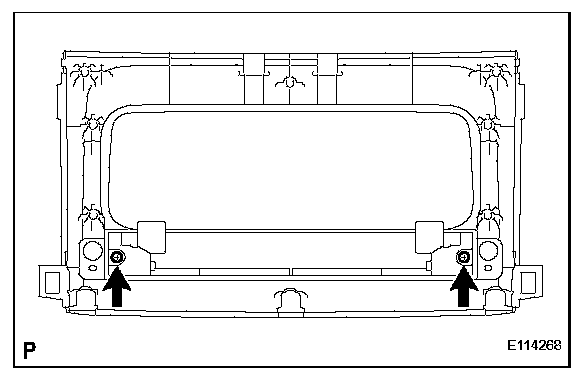

a. Remove the 2 screws.




b. Remove the screw and board.




3. REMOVE INTEGRATION CONTROL HOUSING (w/ Navigation System)

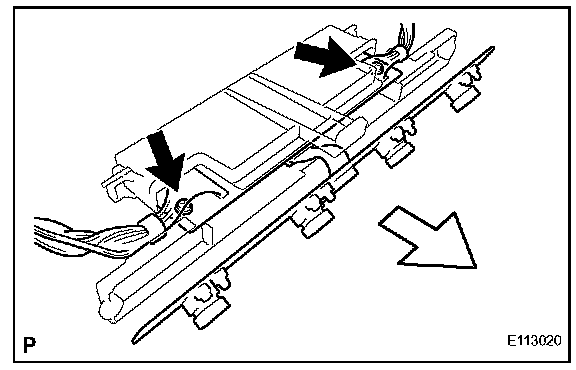

a. Disconnect the connector clamps.
b. Remove the 2 screws and pull out the board from the integration control housing.
c. Using a screwdriver, pull out the knobs.

HINT: Tape the screwdriver tip before use.

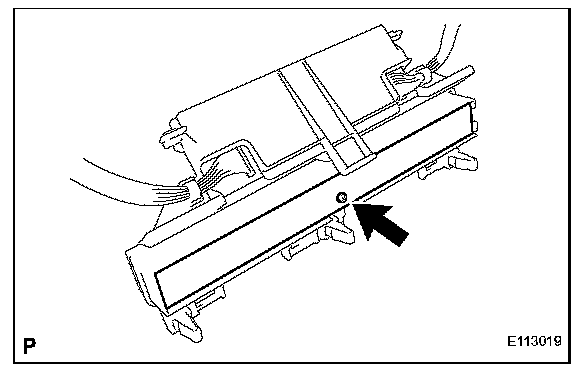

d. Remove the nut.




4. REMOVE HEATER CONTROL KNOB (w/o Navigation System)

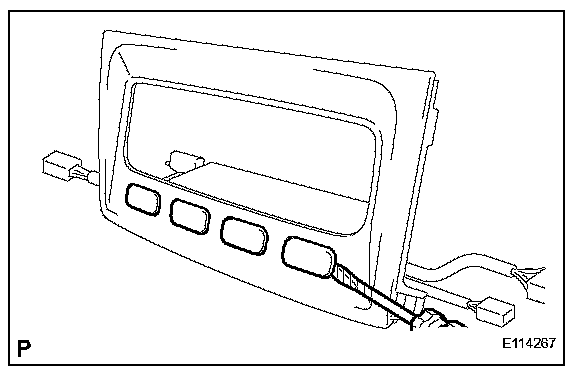

a. Using a screwdriver, pull out the knobs.

HINT: Tape the screwdriver tip before use.




5. REMOVE HEATER CONTROL PANEL (w/o Navigation System)

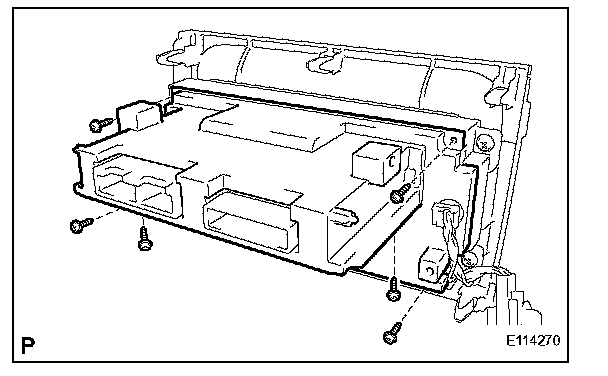

a. Remove the 6 screws and pull out the A/C amplifier.




6. REMOVE HEATER CONTROL HOUSING (w/o Navigation System)

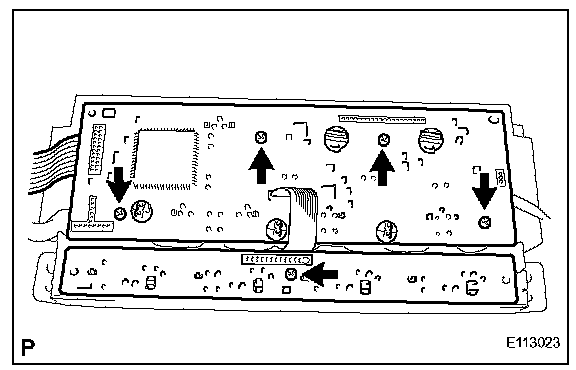

a. Remove the 5 screws and board from heater control housing.

REASSEMBLY
Reassembly is in the reverse order of disassembly
