Connector Locations
Connector Locations

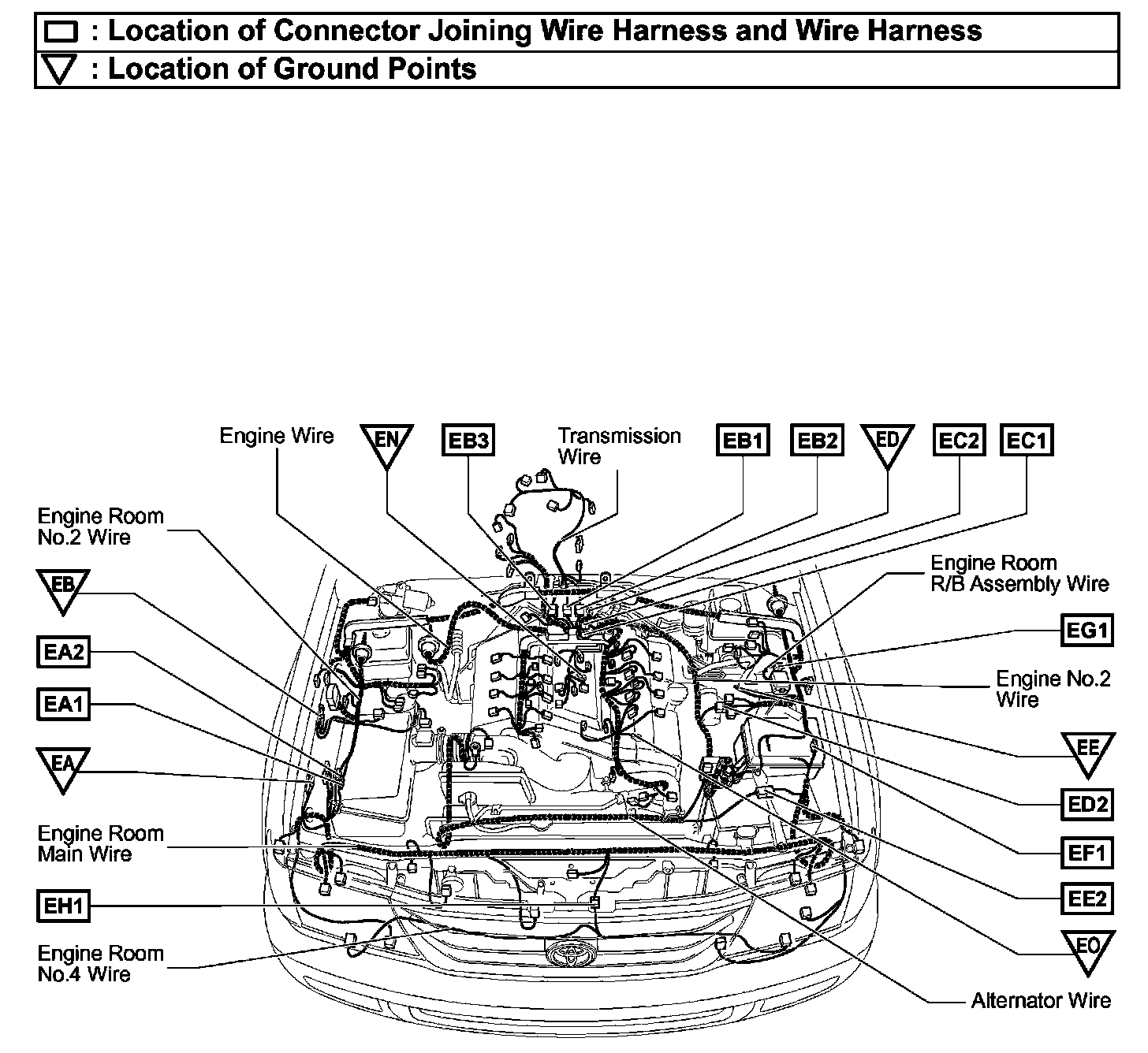

EA1 - EH1, EA - EO:
IA2 - IT1:

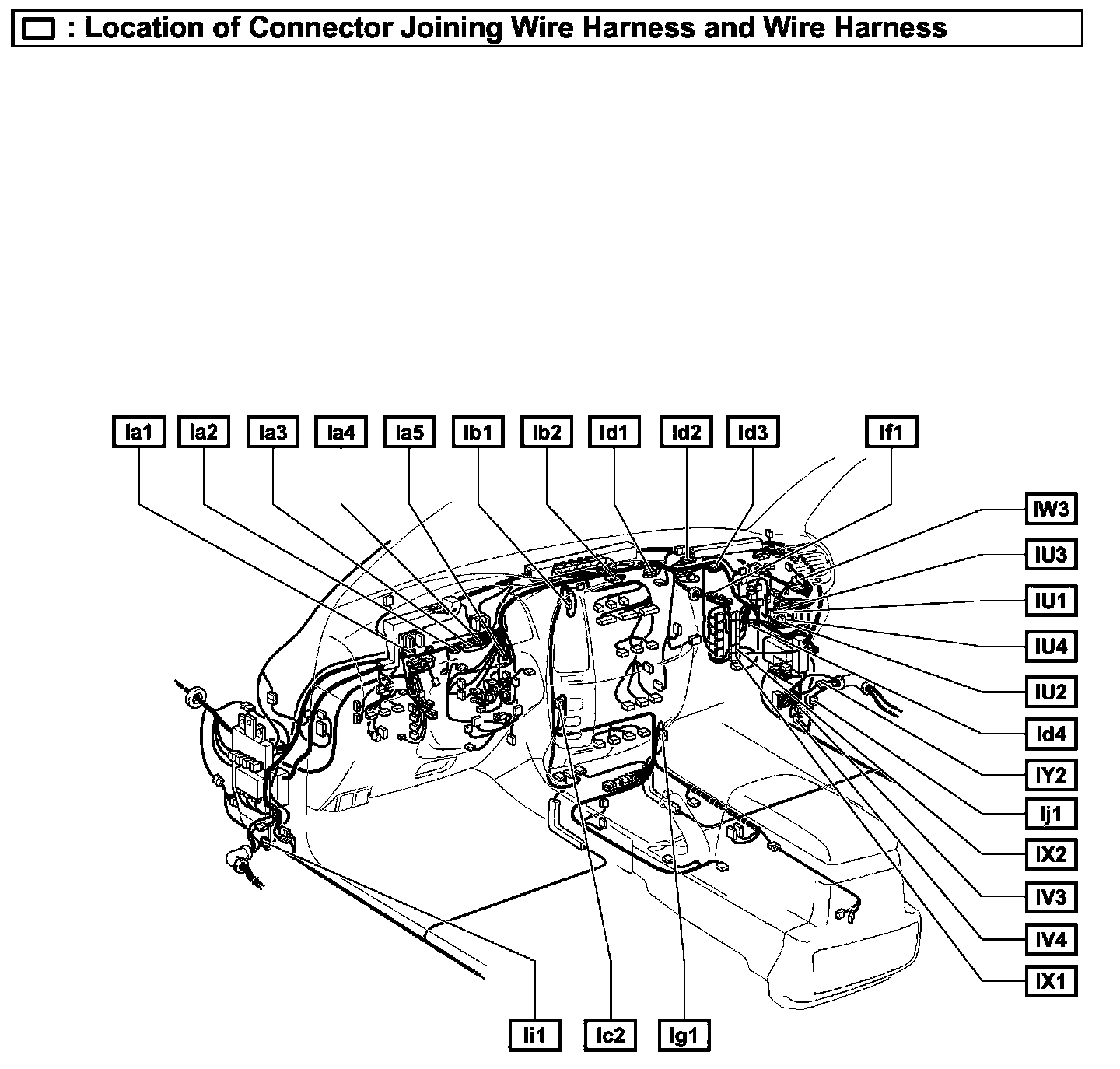

La1 - Lj1, IU1 - IY2:

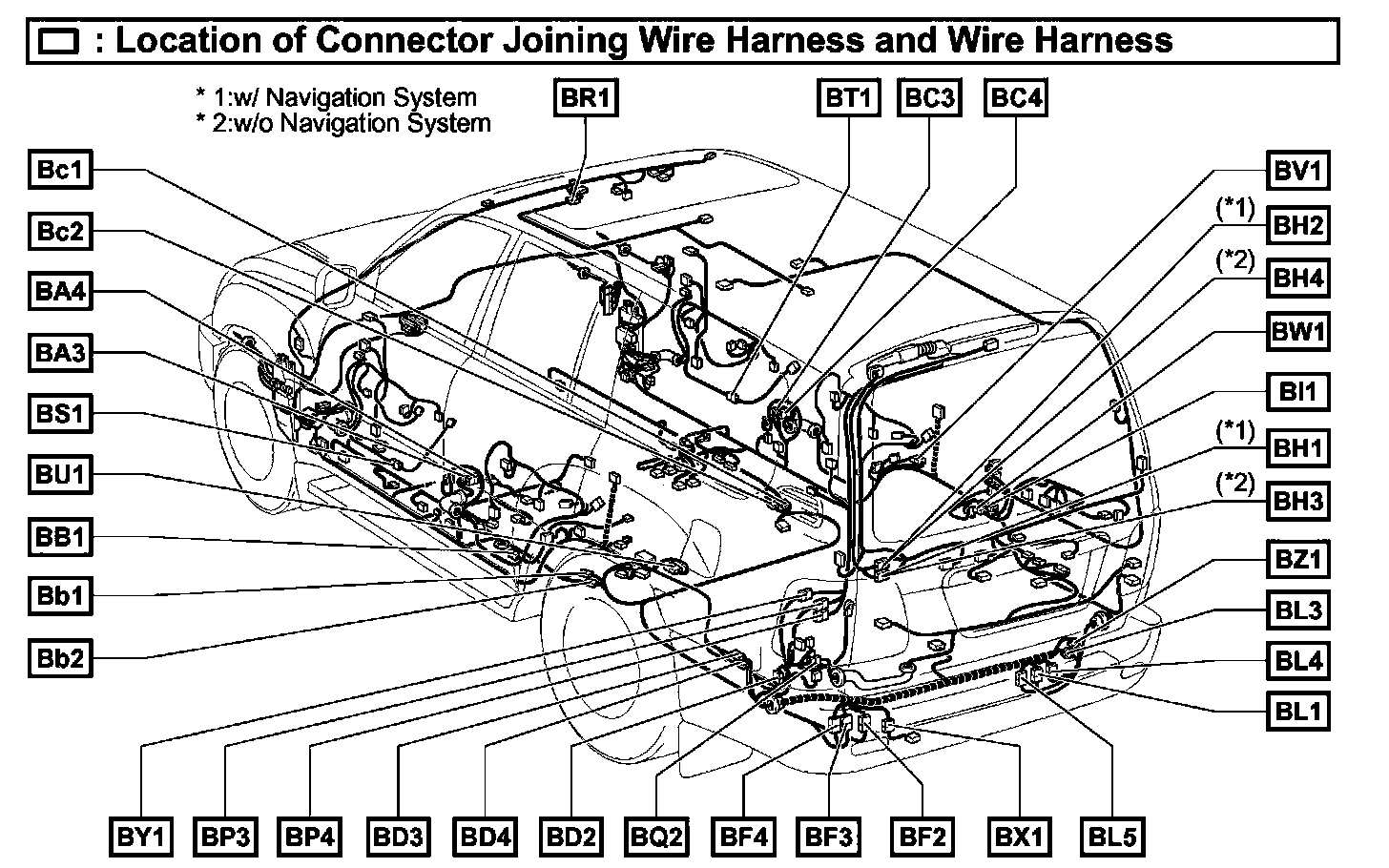

Bb1 - Bc2, BA3 - BZ1:

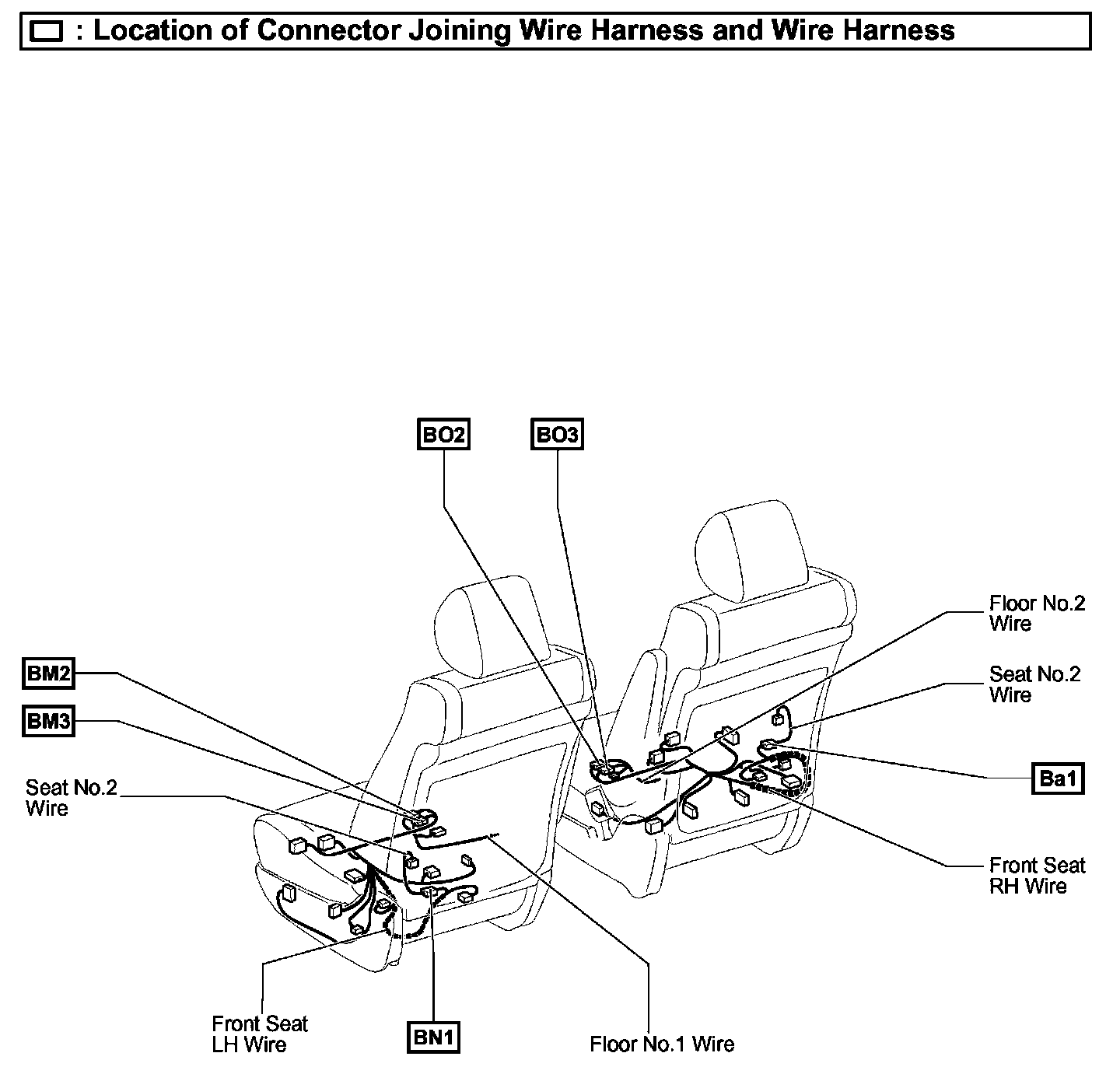

Ba1, BM2 - BO3:
