Fuse Block: Locations

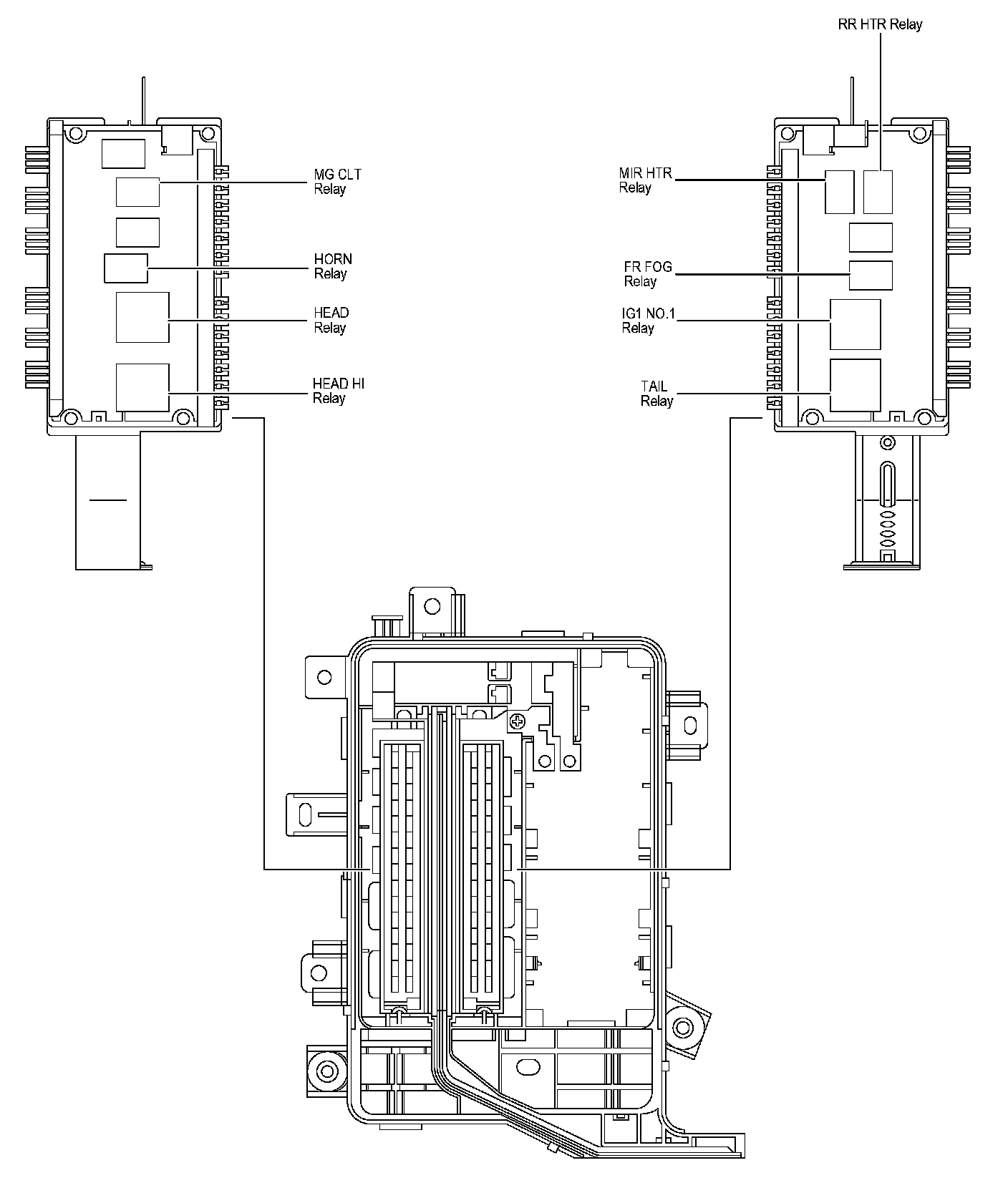

Engine Room R/B Left:

Engine Room R/B Left:

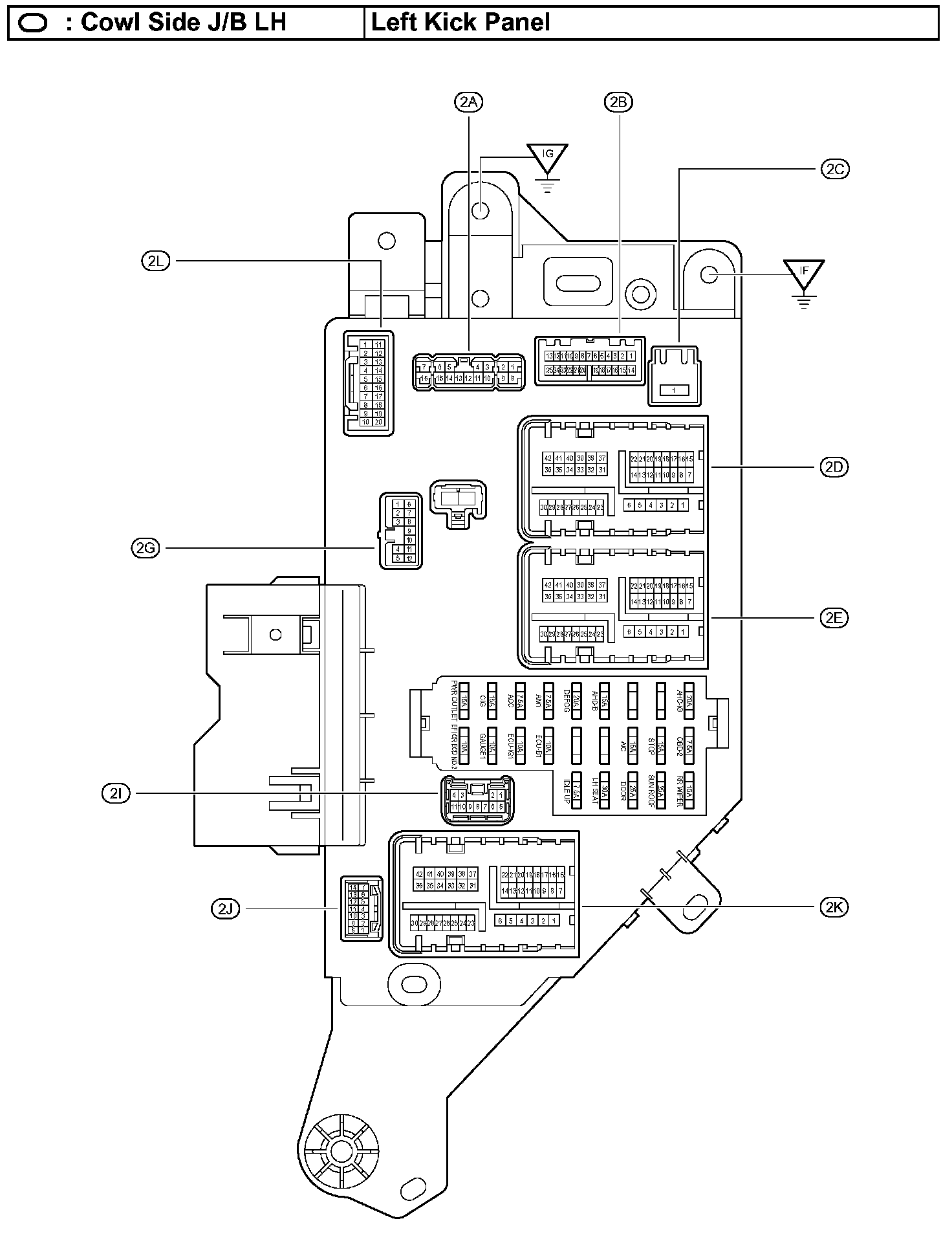

Cowl Side J/B Left Kick Panel:

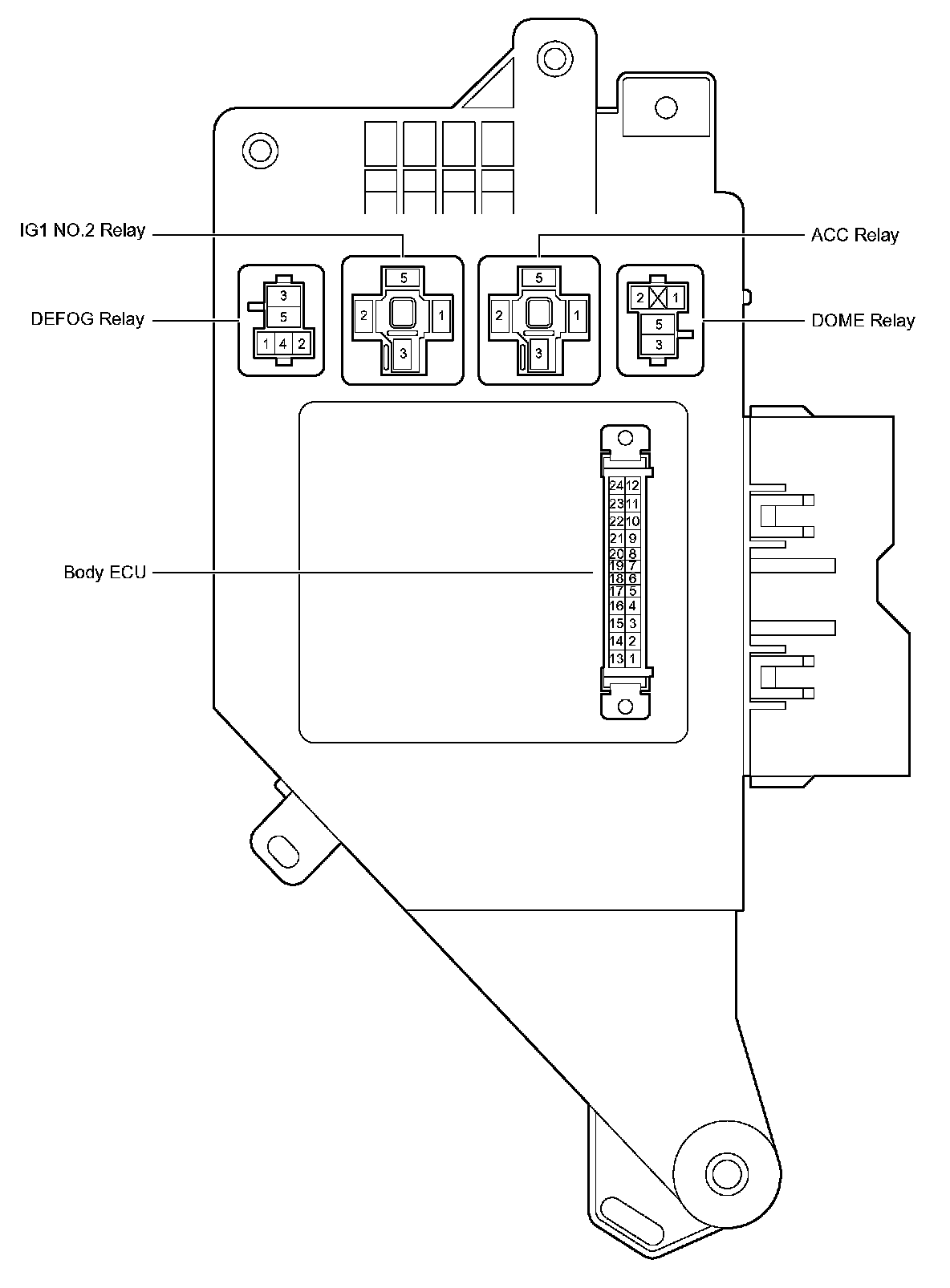

Cowl Side J/B Left Kick Panel:

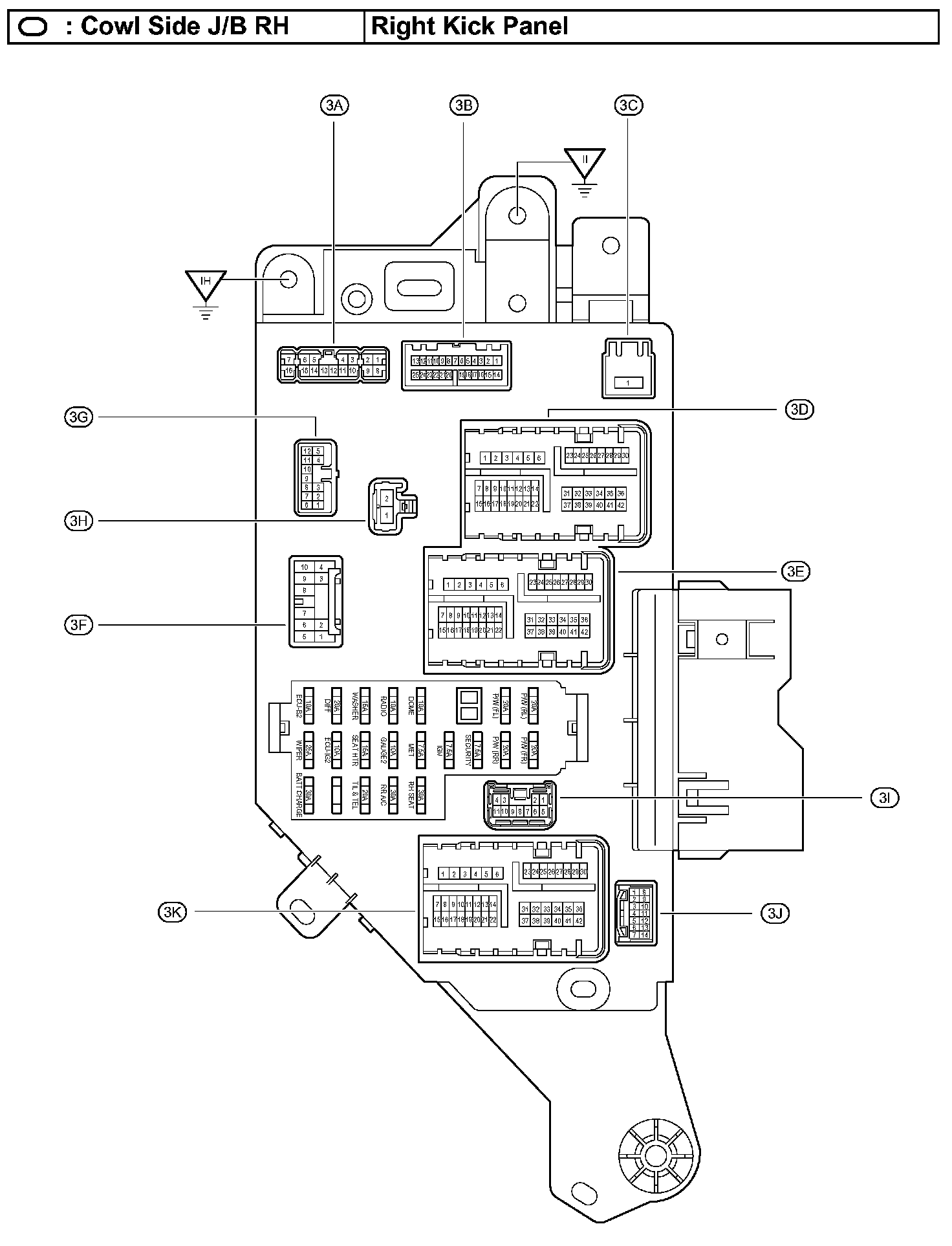

Cowl Side J/B Right Kick Panel:

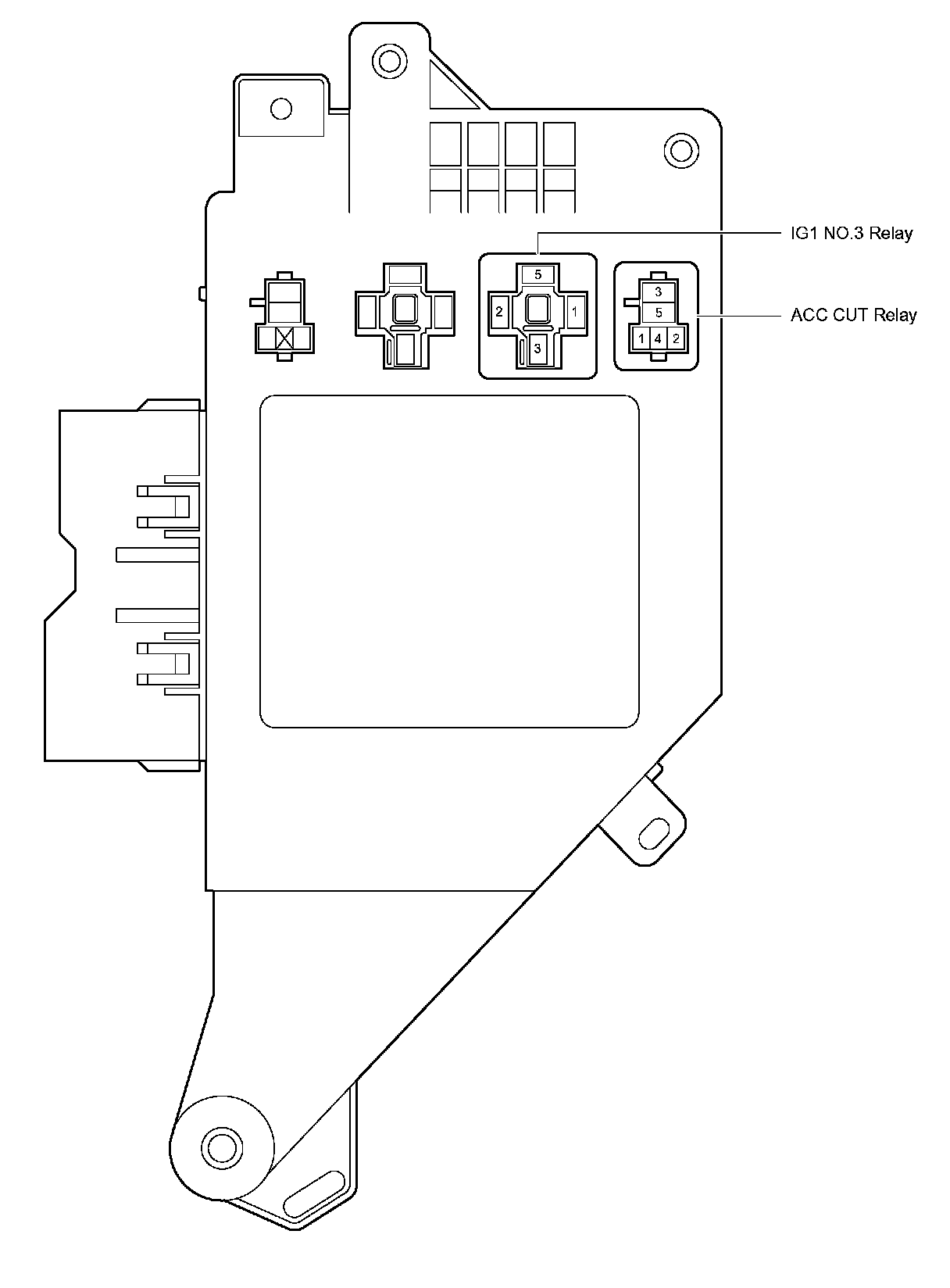

Cowl Side J/B Right Kick Panel:

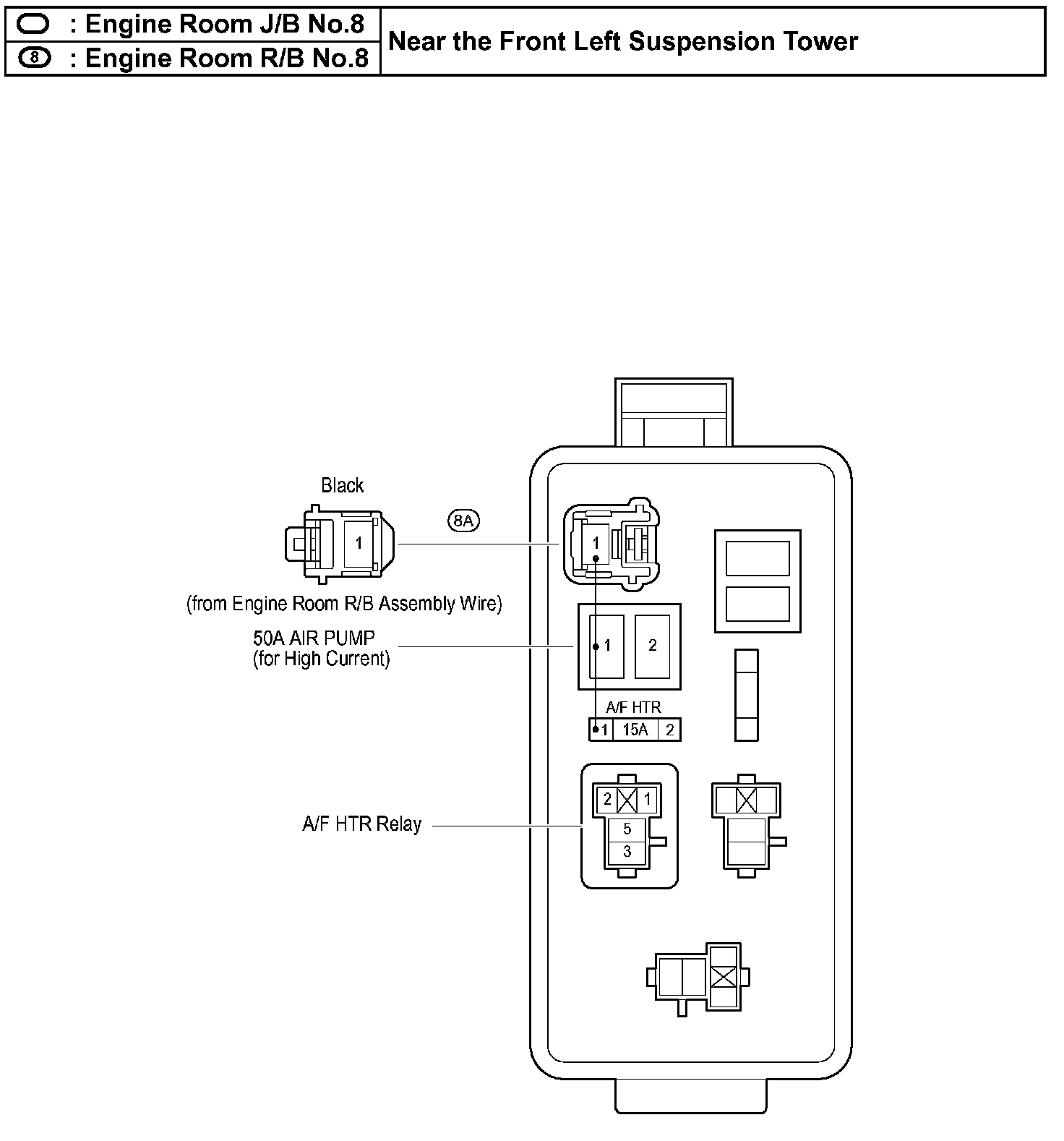

Engine Room R/B 8:

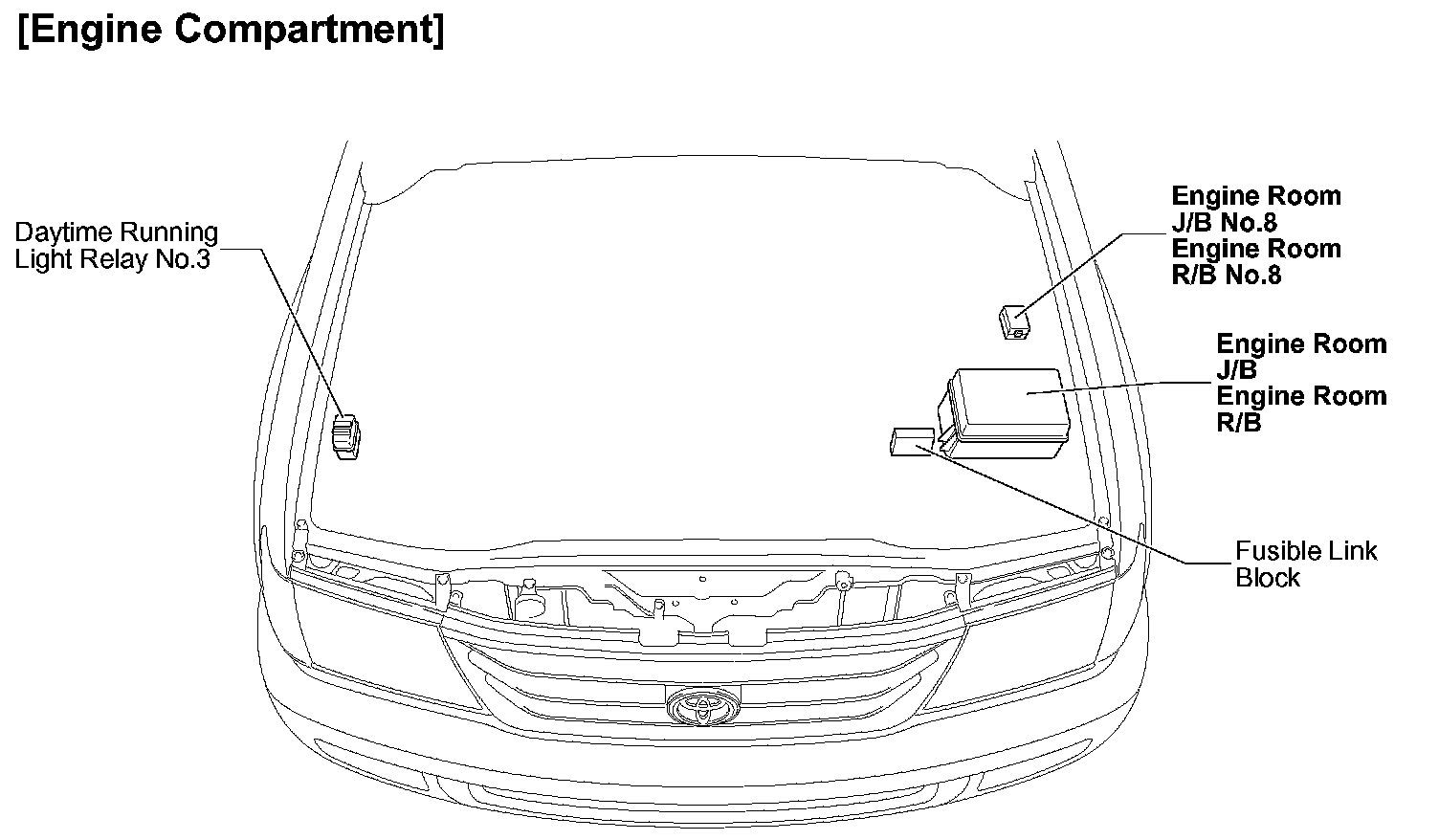

Engine Compartment:

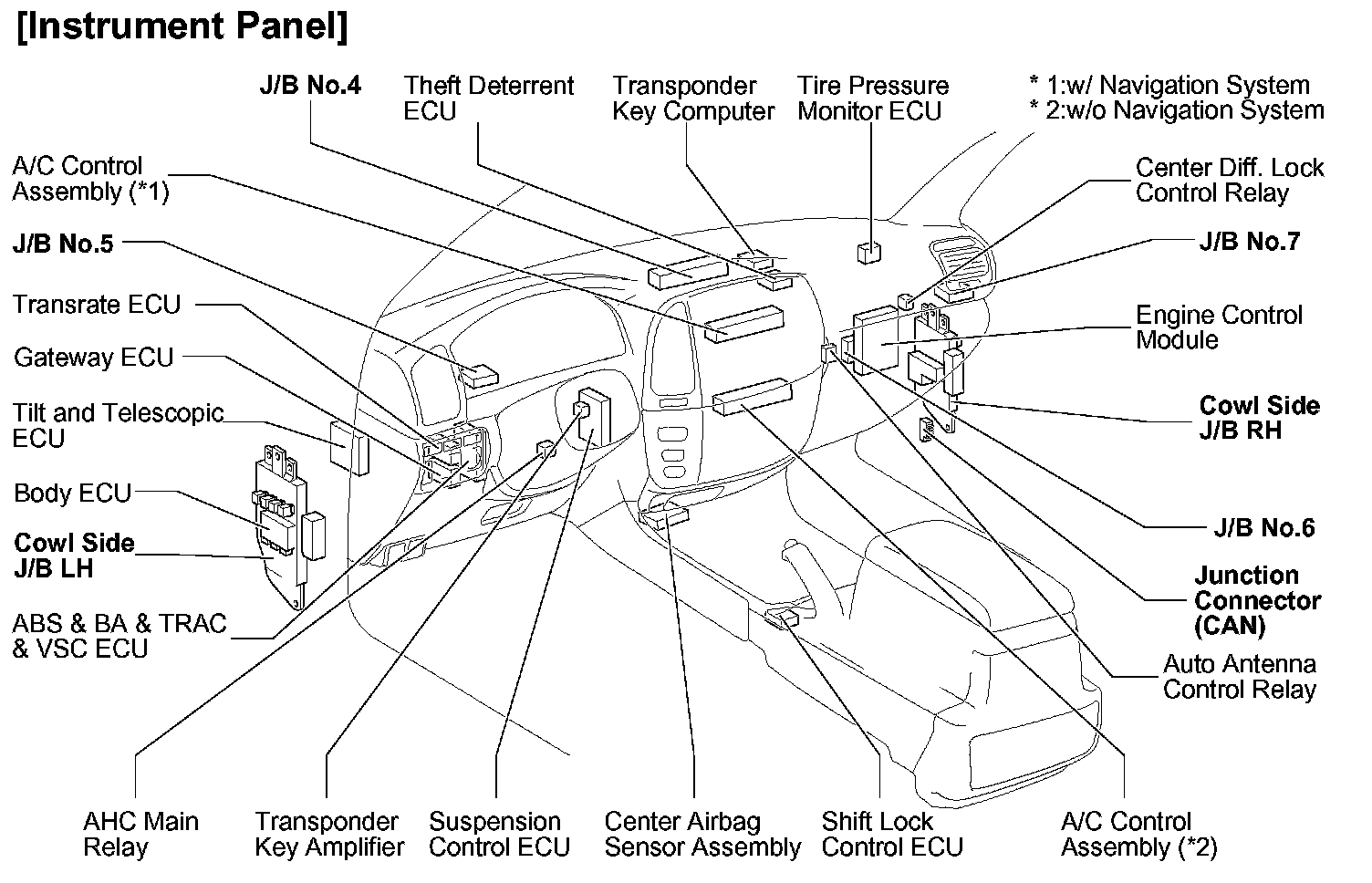

Instrument Panel:

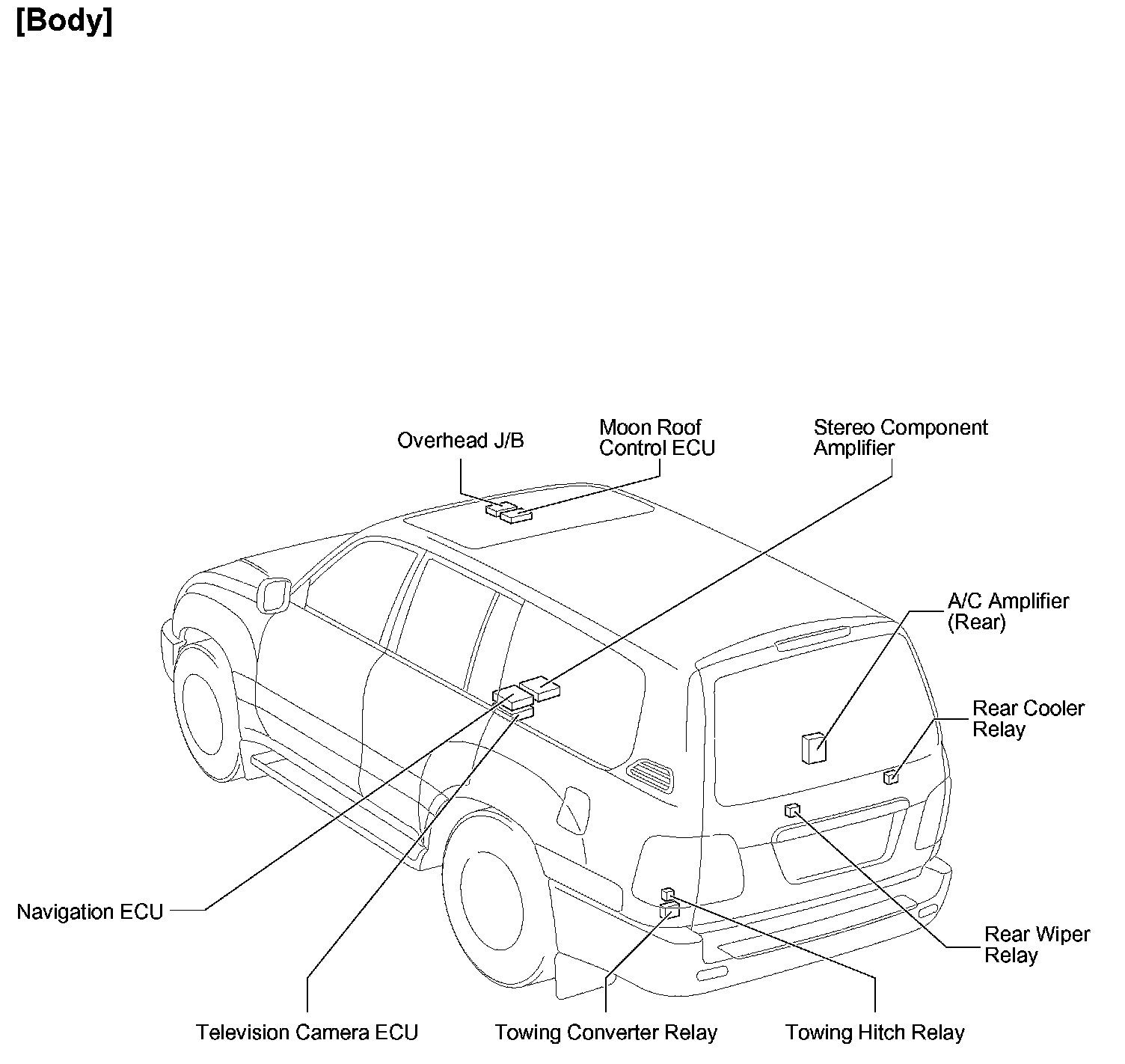

Body:
