Home >> Toyota >> 2006 >> Landcruiser V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

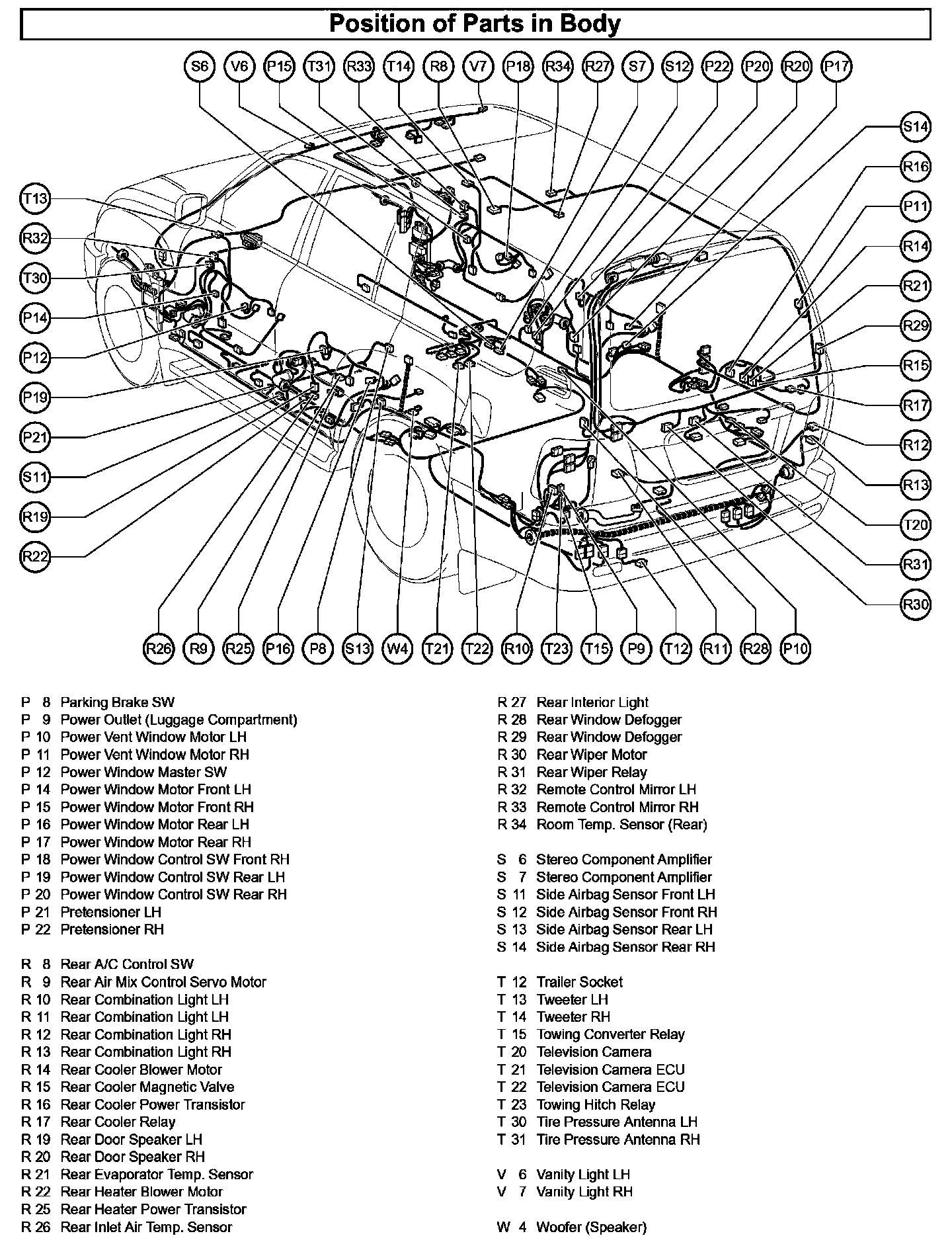

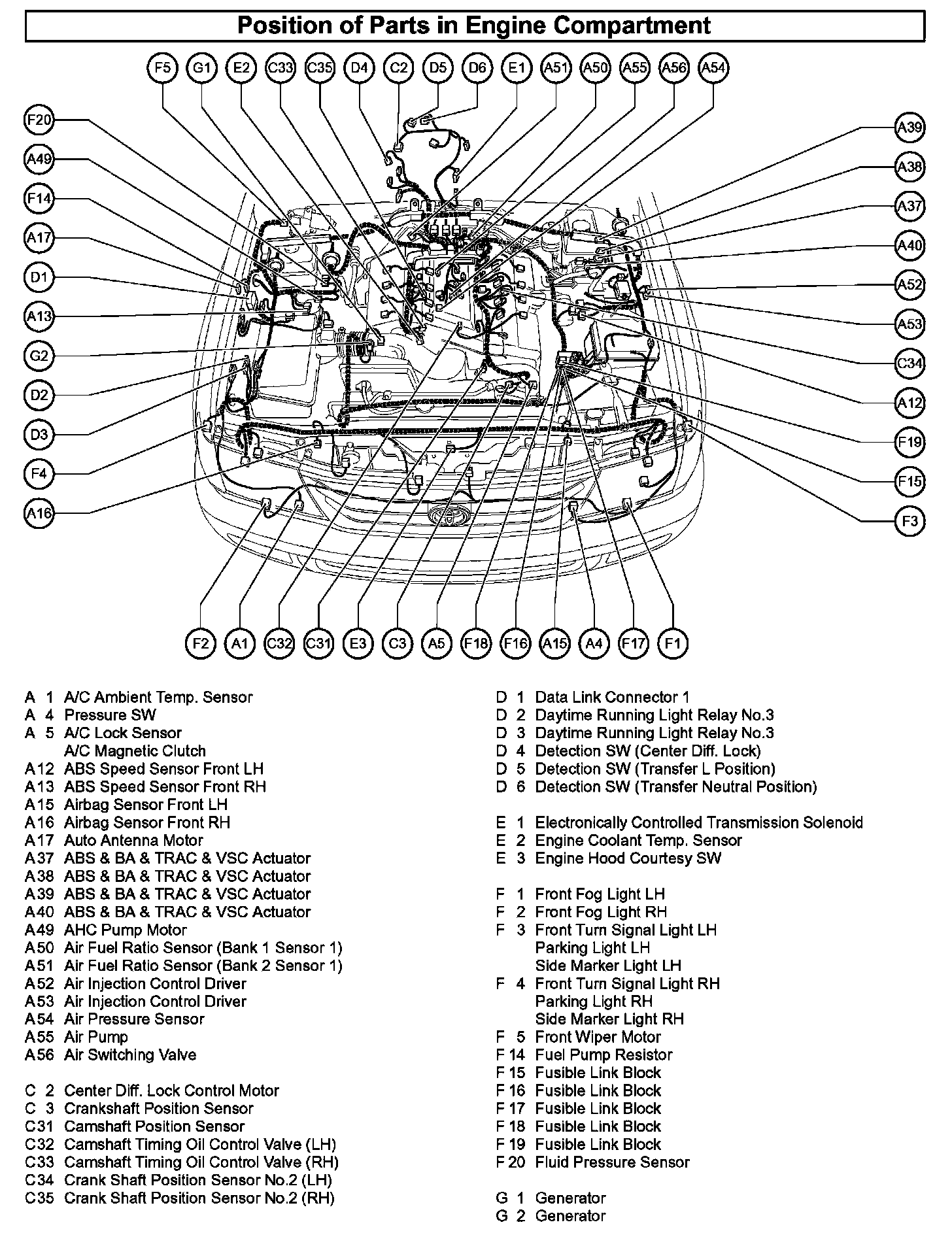

Data Link Connector: Locations

ABS - Pr:



Pa - Wo:



Wiper And Washer System:
