CAN Communication System

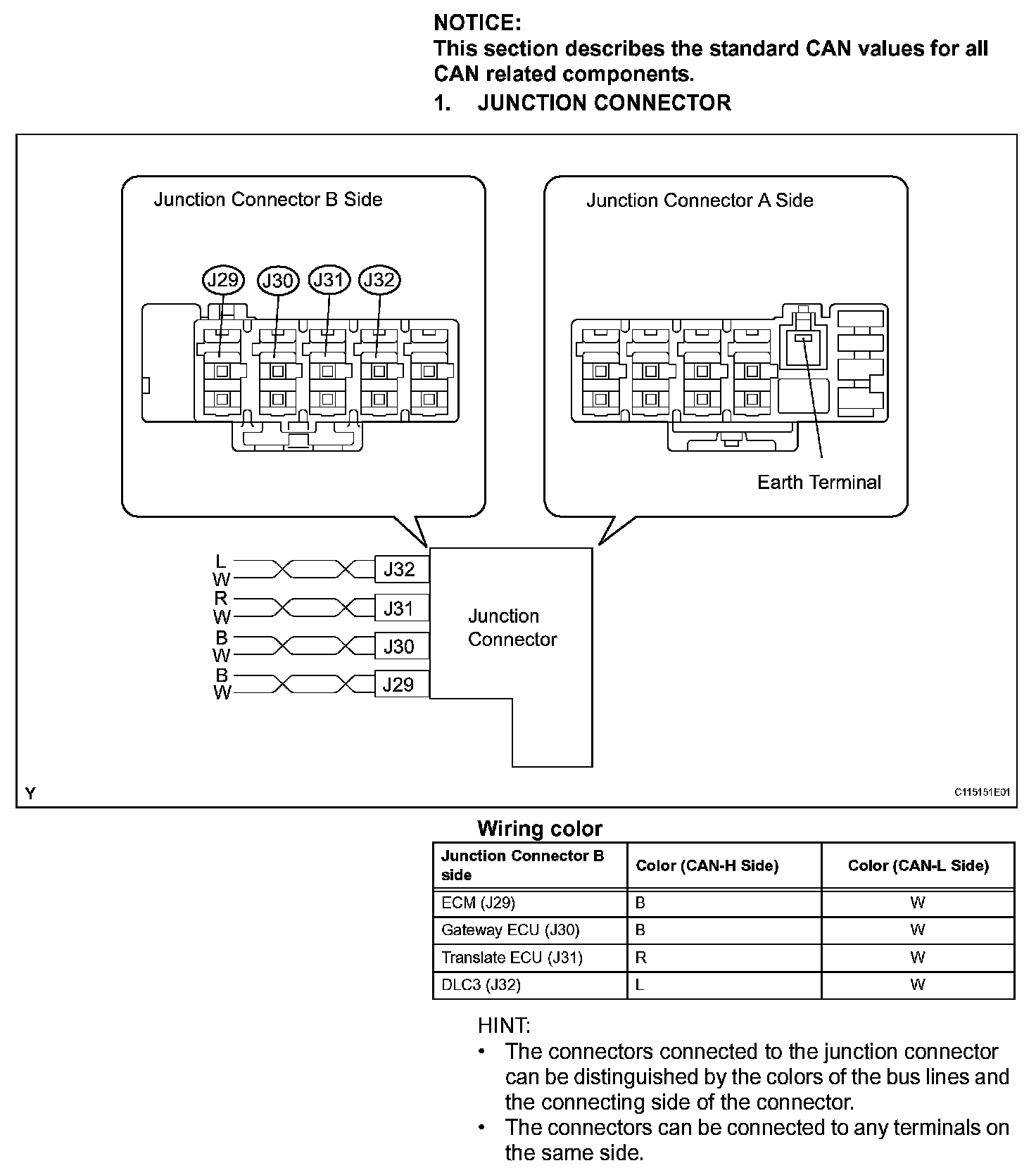

Terminals Of Control Module/Pinouts-Junction Connector:

Terminals Of Control Module/Pinouts-Terminals Of Connectors For Junction Connector:

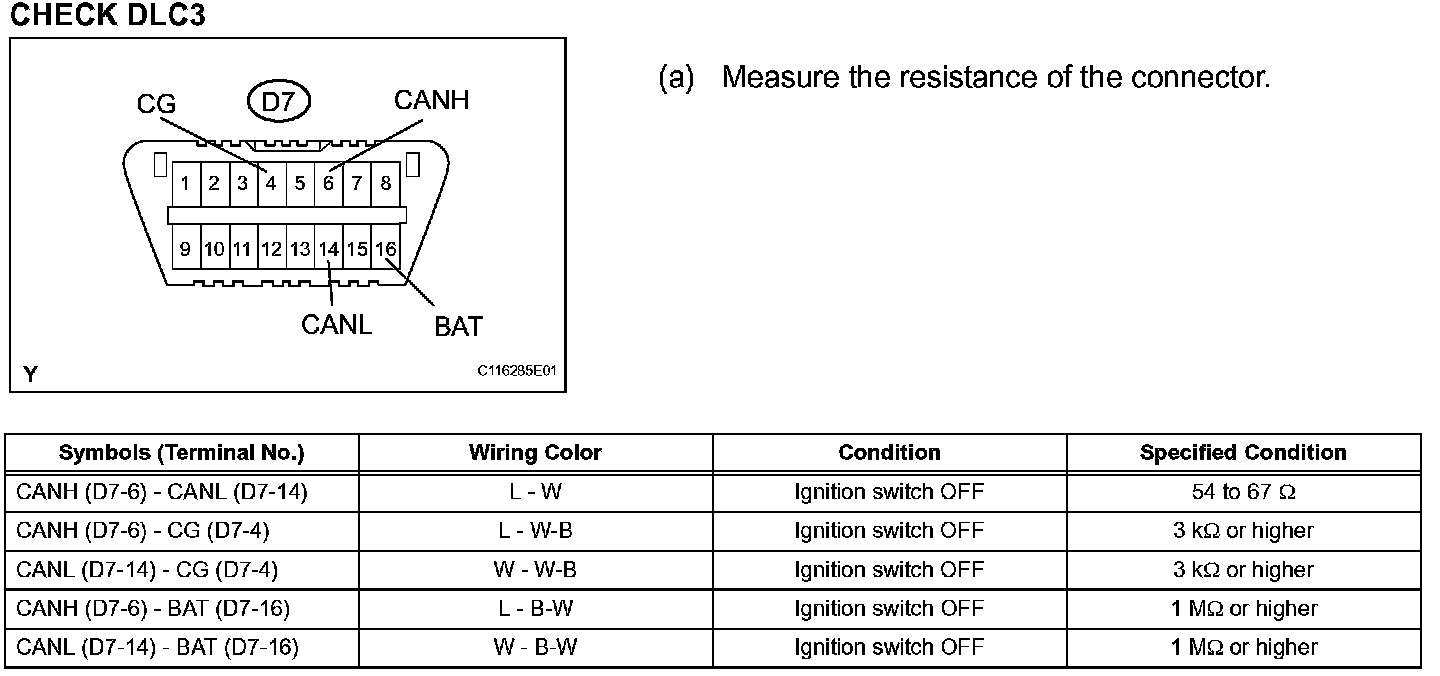

Terminals Of Control Modules/Pinouts-Check DLC3:

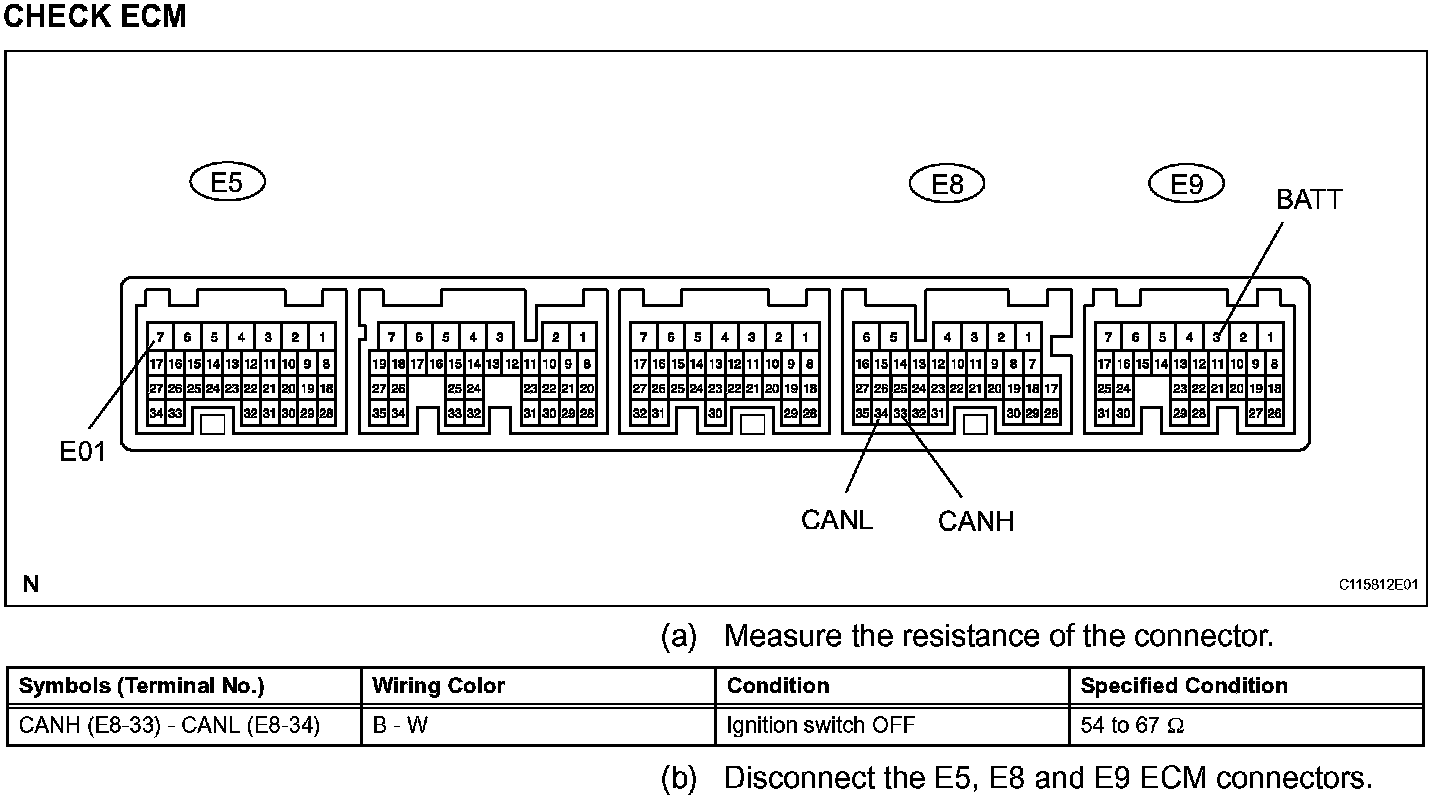

Terminals Of Control Modules/Pinouts-Check ECM (Part 1):

Terminals Of Control Modules/Pinouts-Check ECM (Part 2):

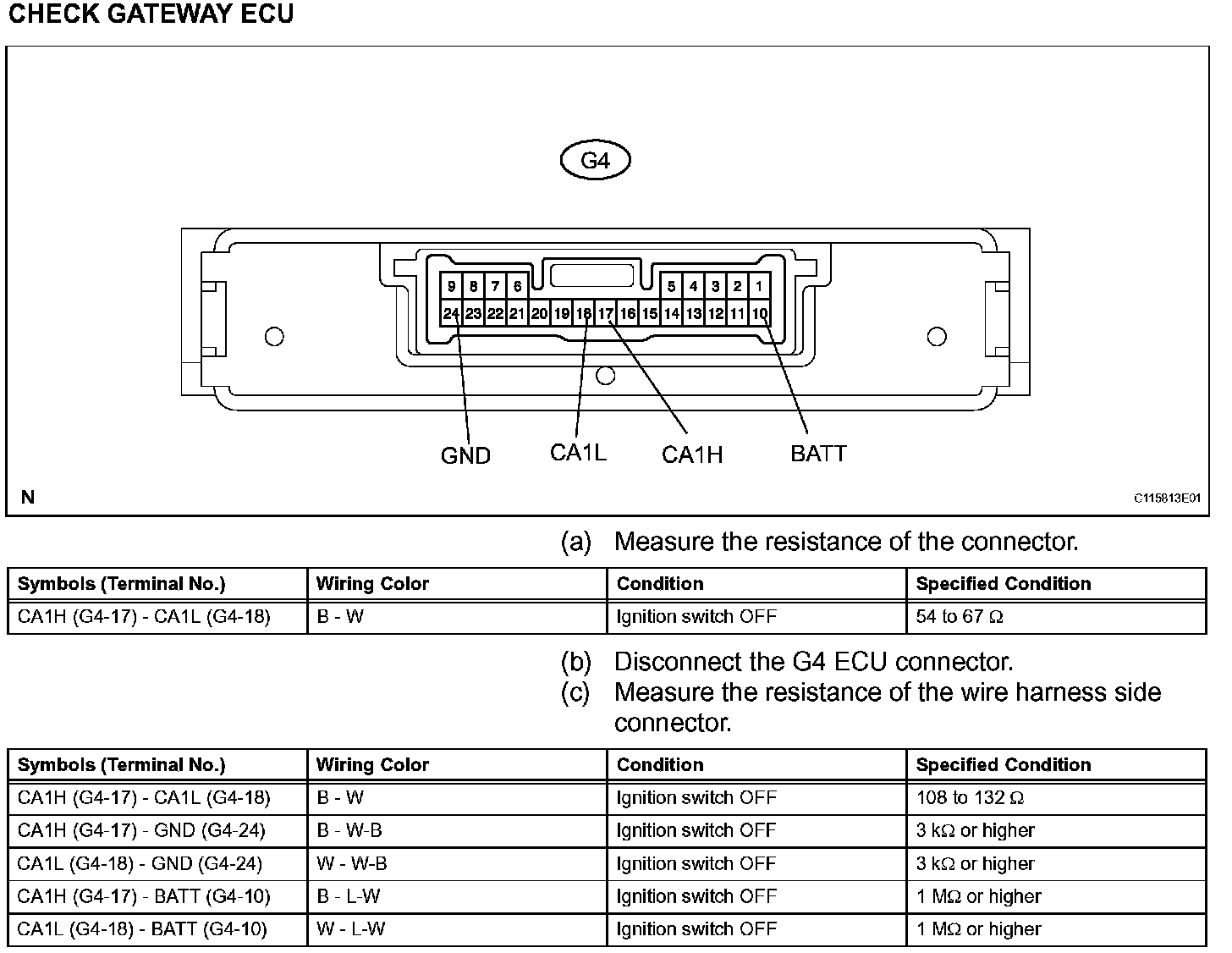

Terminals Of Control Modules/PInouts-Check Gateway ECU:

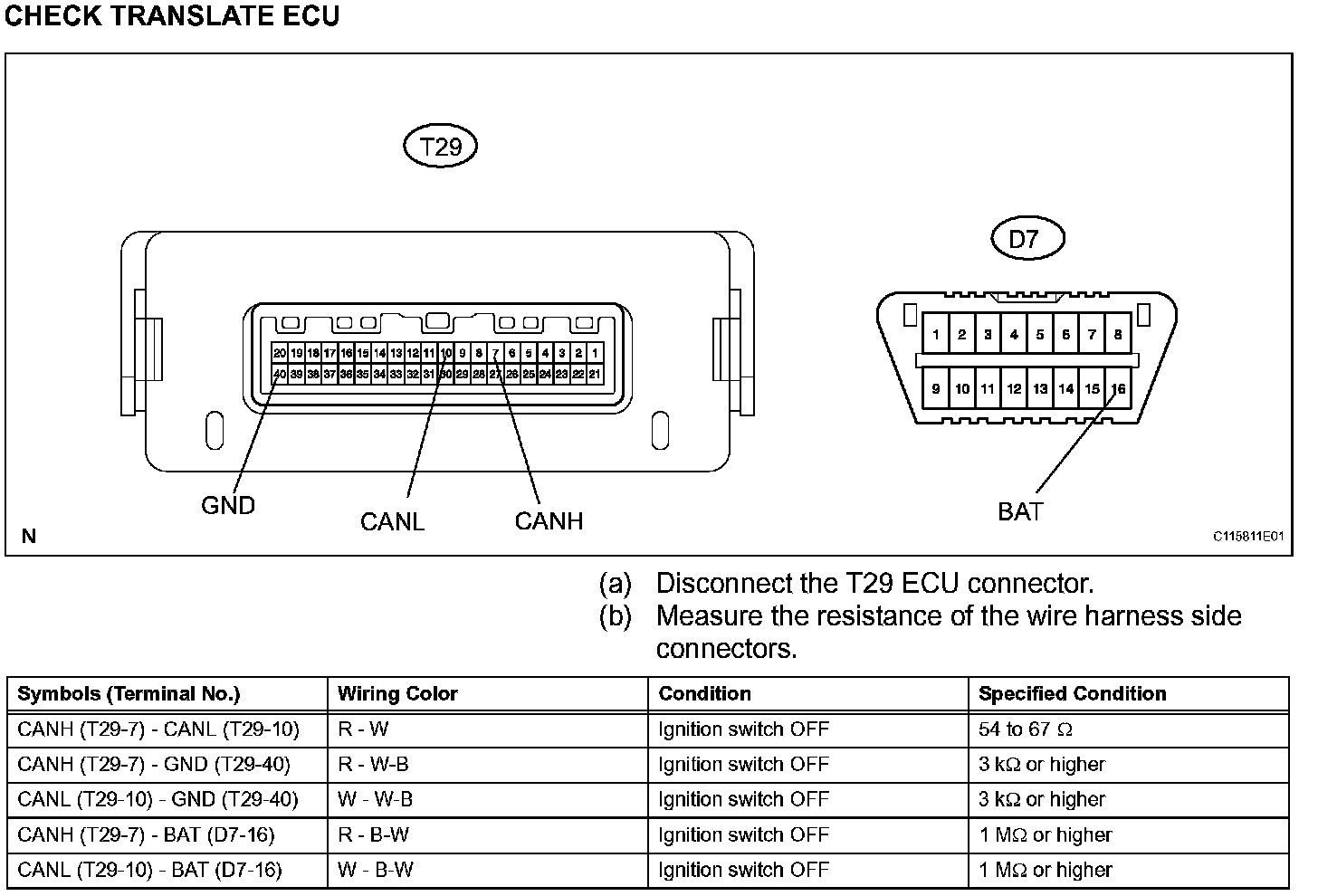

Terminals Of Control Modules/Pinouts-Check Translate ECU:
