Ignition Timing: Testing and Inspection

CHECK IGNITION TIMING
a) When using the intelligent tester:

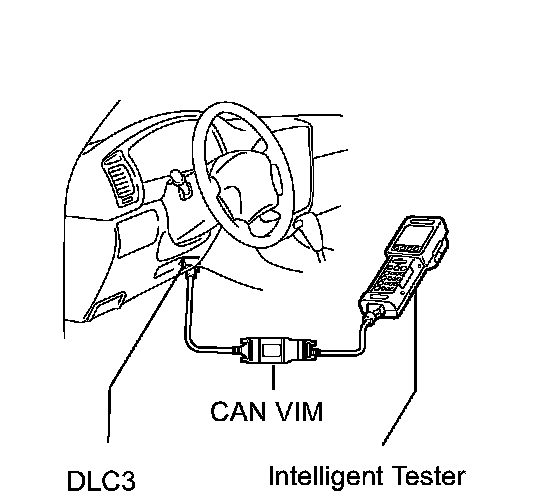

1) Connect the intelligent tester to the DLC3.

HINT: Refer to the intelligent tester operator's manual for further details.

Standard ignition timing: 5 to 15° BTDC @ idle (Shift lever on N)
2) Disconnect the intelligent tester from the DLC3.





b) When not using the intelligent tester:
1) Remove the V-bank cover.

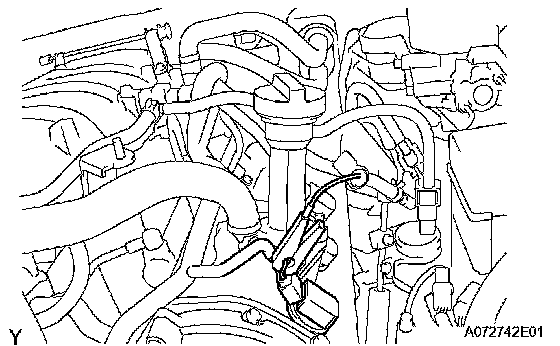

2) Connect the tester probe of a timing light to the wire of the ignition coil connector for the No. 1 cylinder.





3) Using SST, connect the tachometer probe to terminal TAC of the DLC3.
SST 09843-18030

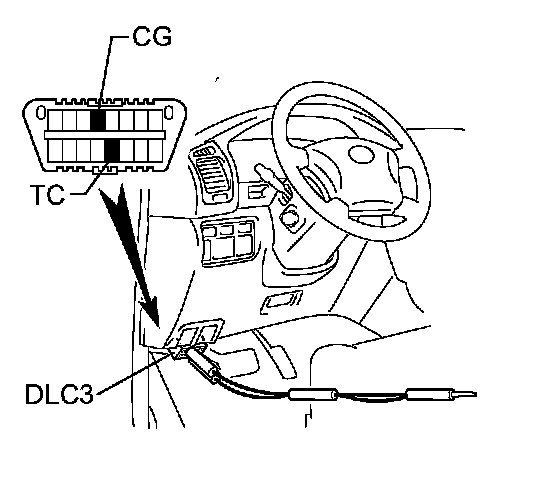

4) Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040

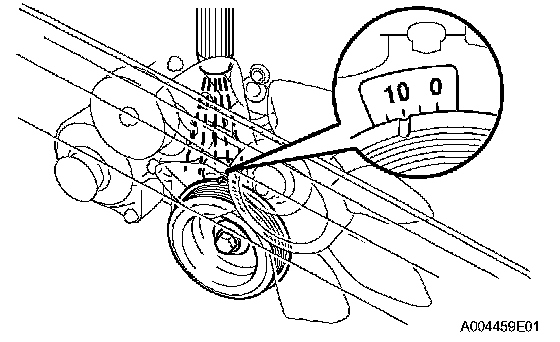

5) Using the timing light, check the ignition timing.
Standard ignition timing: 5 to 15° BTDC @ idle (Shift lever on N)
6) Remove the SST from the DLC3.
7) Disconnect the timing light from the engine.
8) Install the V-bank cover.
