Speed Sensor Inspection

INSPECTION

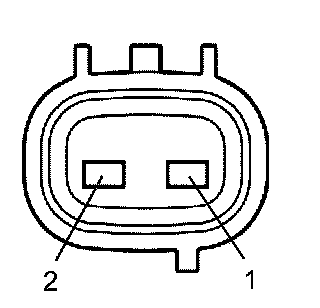

1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)





a) Disconnect the sensor connector from the transmission.
b) Measure the resistance of the sensor.

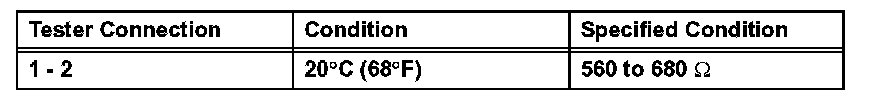

Standard Resistance:

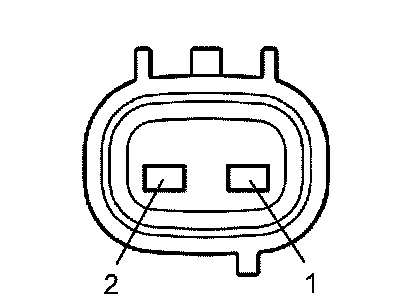

2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
a) Disconnect the sensor connector from the transmission.
b) Measure the resistance of the sensor.

Standard Resistance:
