Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor

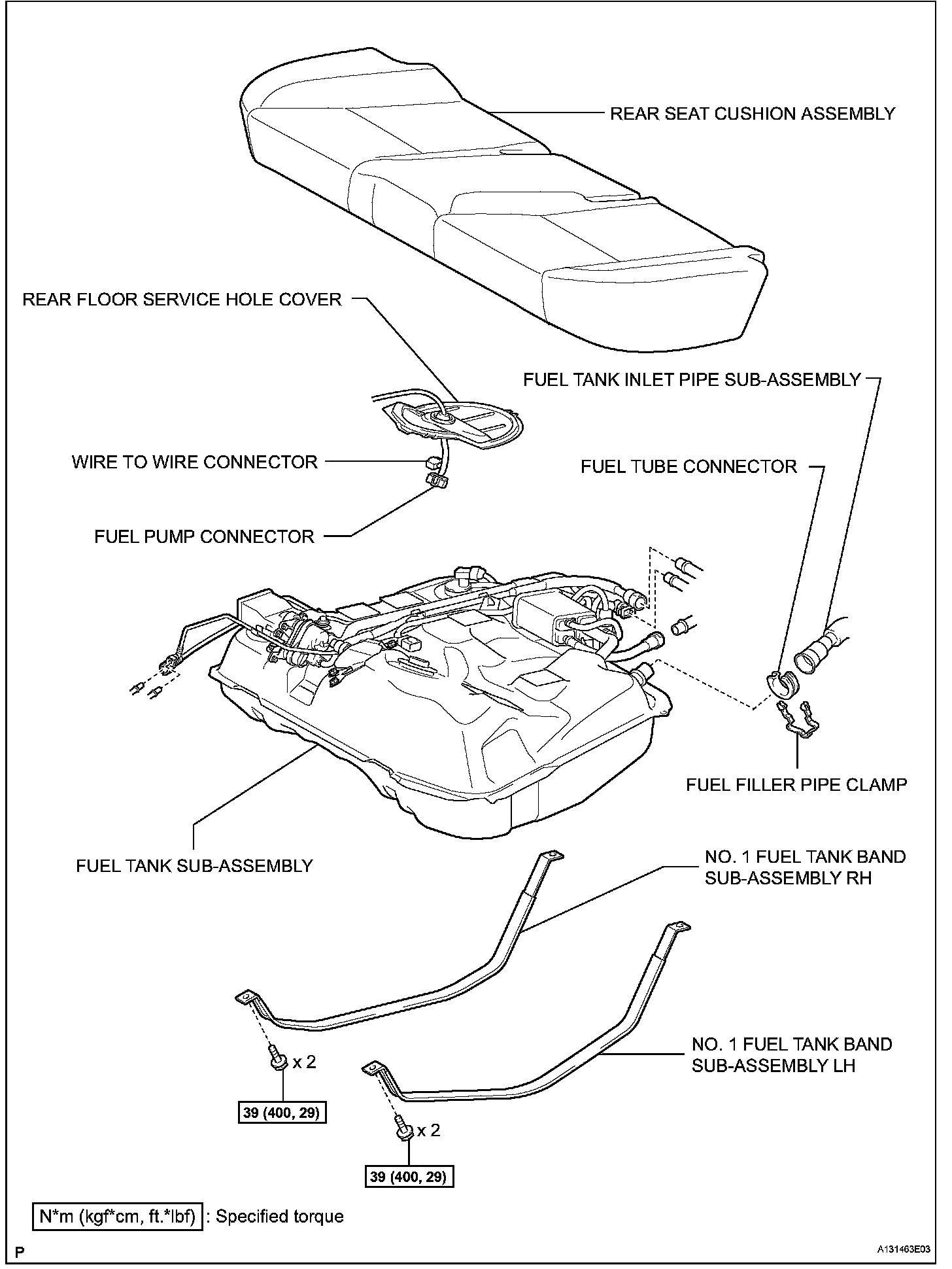

Fuel Tank Pressure Sensor:
Fuel Tank Pressure Sensor:

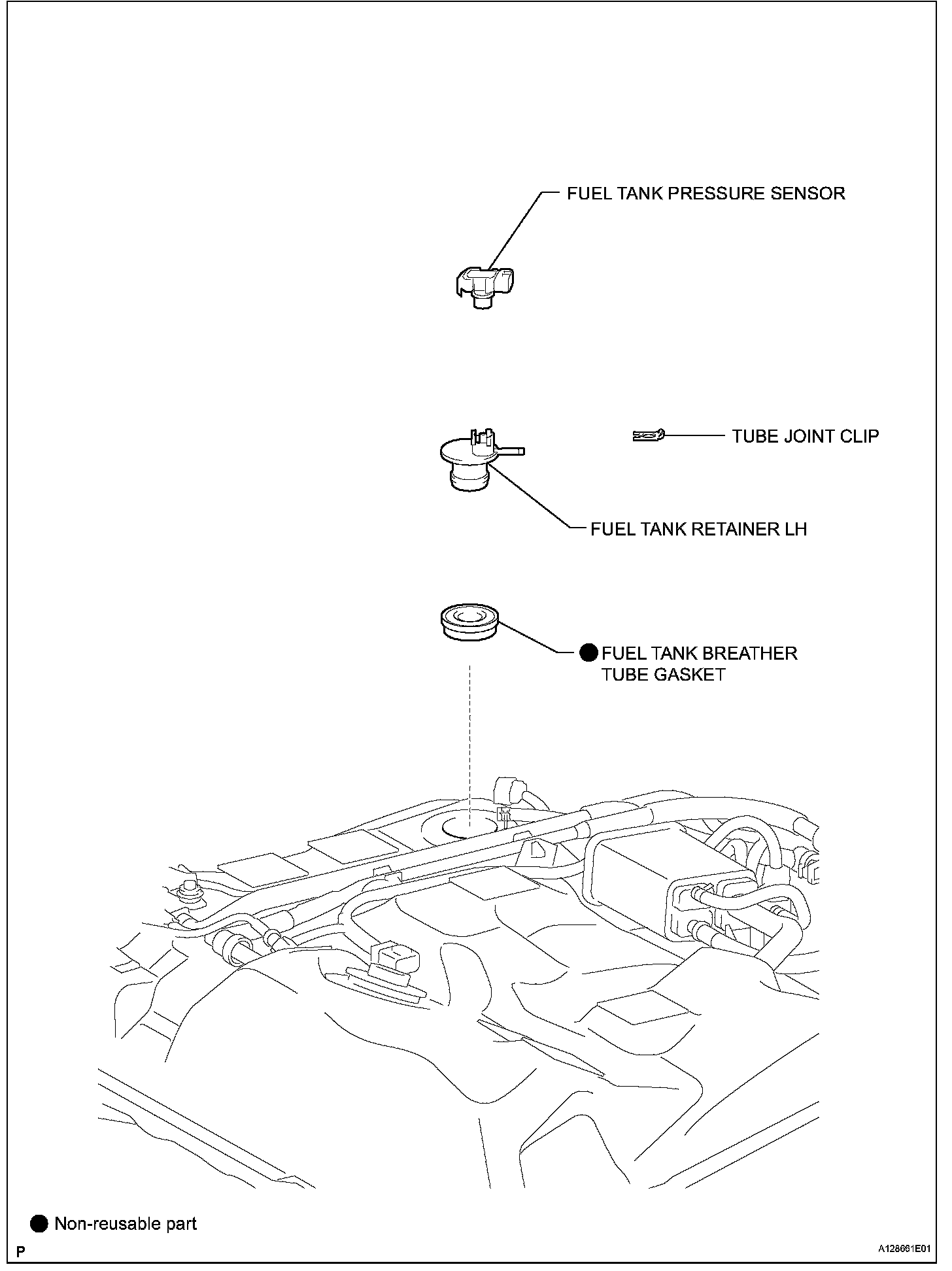

Fuel Tank Pressure Sensor:
