Accelerator Pedal Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL ROD

NOTE:
- Do not remove the accelerator pedal position sensor from the accelerator pedal.

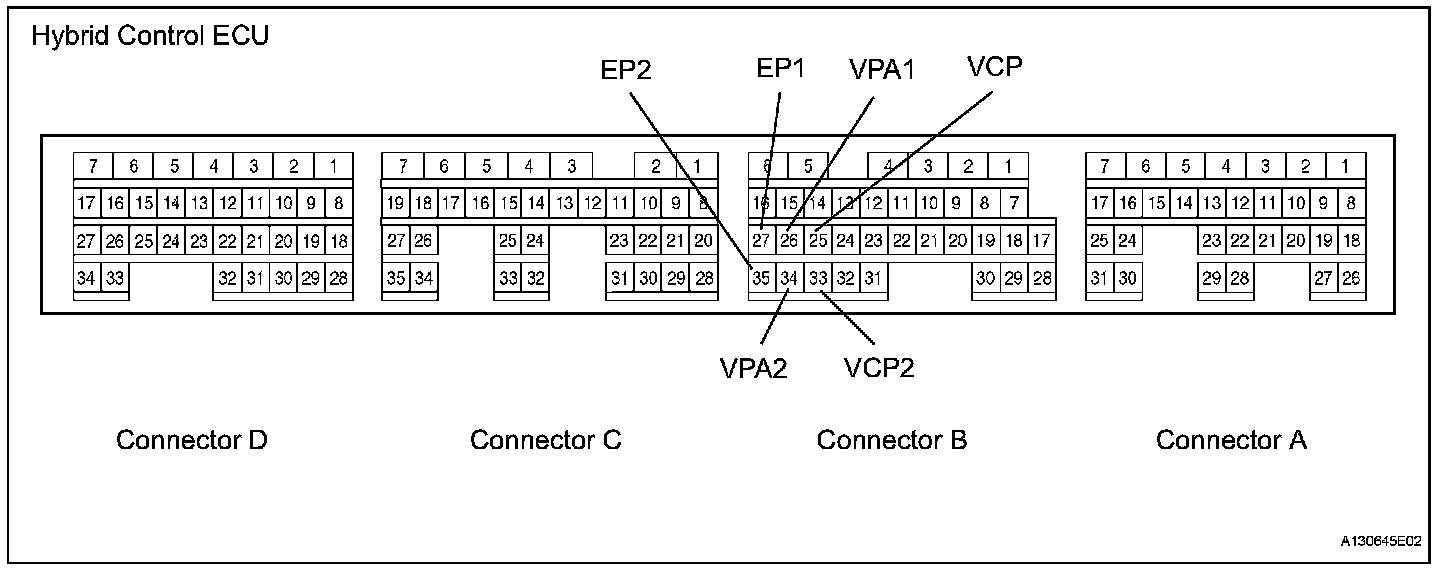

- Perform the inspection on the hybrid vehicle control ECU side of the connector.

a. Turn the power switch ON (IG).

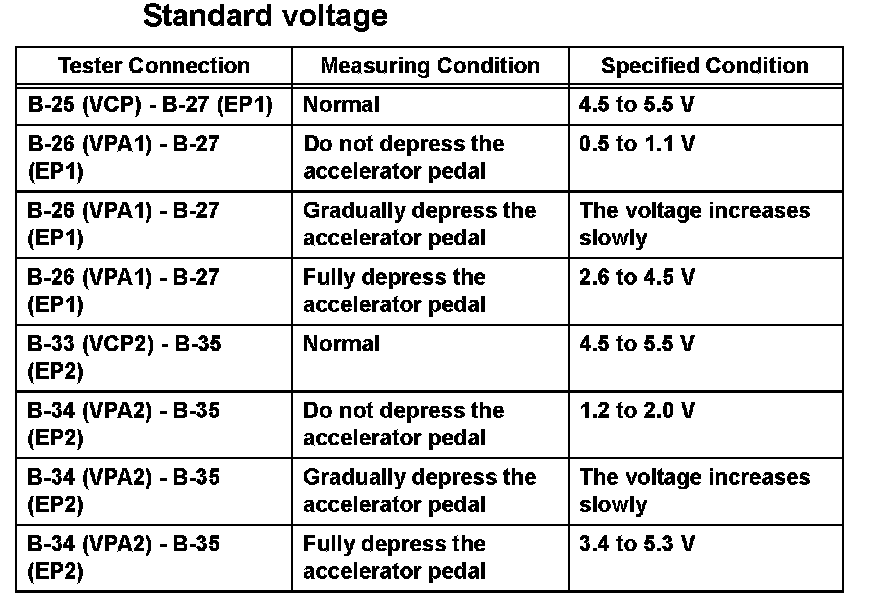

b. Using a voltmeter, measure the voltage between the terminals.

If the standards are not met, replace the accelerator pedal rod.
