Engine Temperature Sensor: Testing and Inspection

ENGINE COOLANT TEMPERATURE SENSOR

INSPECTION







1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

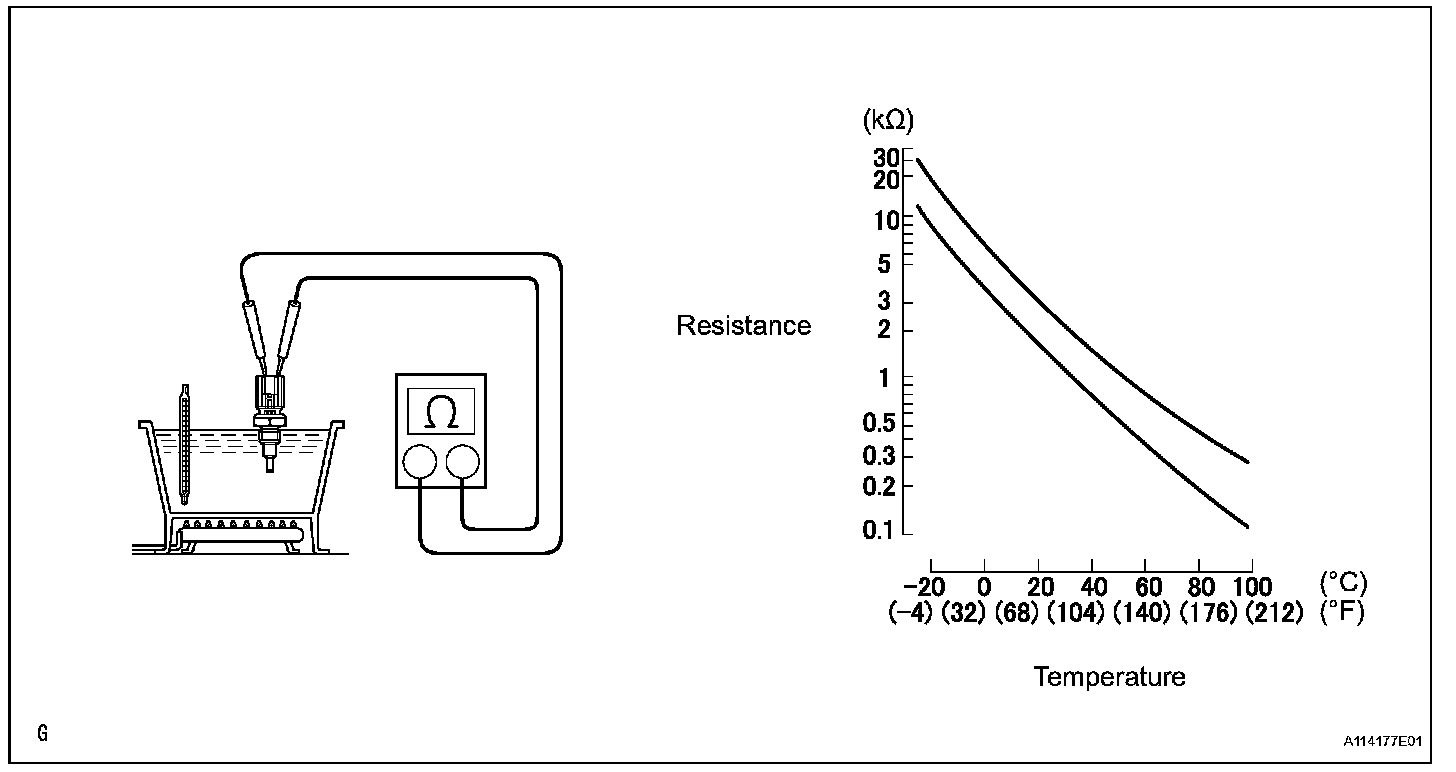

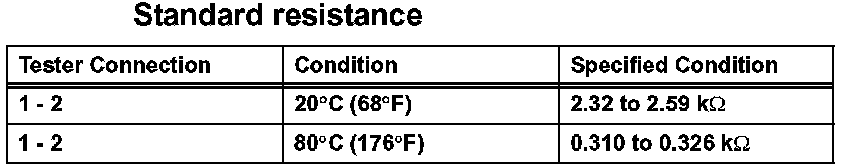

a. Measure the resistance of the sensor.

NOTE: If checking the sensor in water, be careful not to allow water to contact the terminals. After checking, dry the sensor.

If the result is not as specified, replace the engine coolant temperature sensor.
