System Specifications

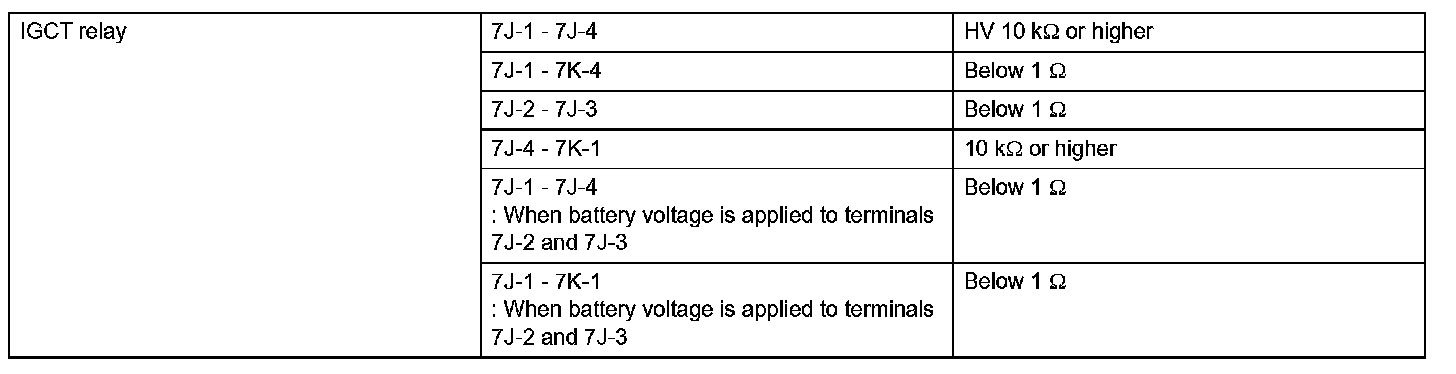

Hybrid Vehicle Control-Service Data (Part 1):

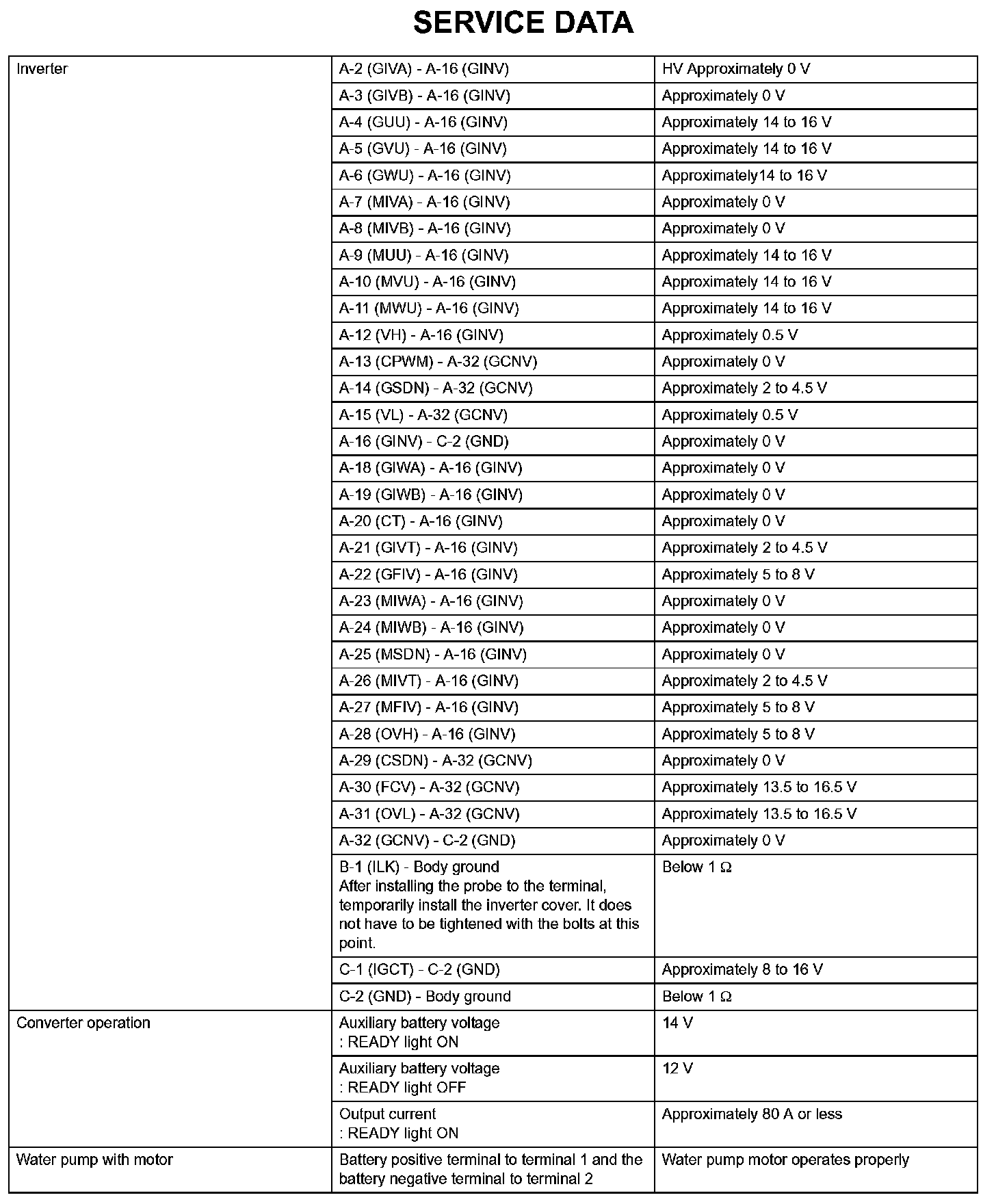

Hybrid Vehicle Control-Service Data (Part 2):
