Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Hybrid Drive Systems
>>
System Specifications
System Specifications

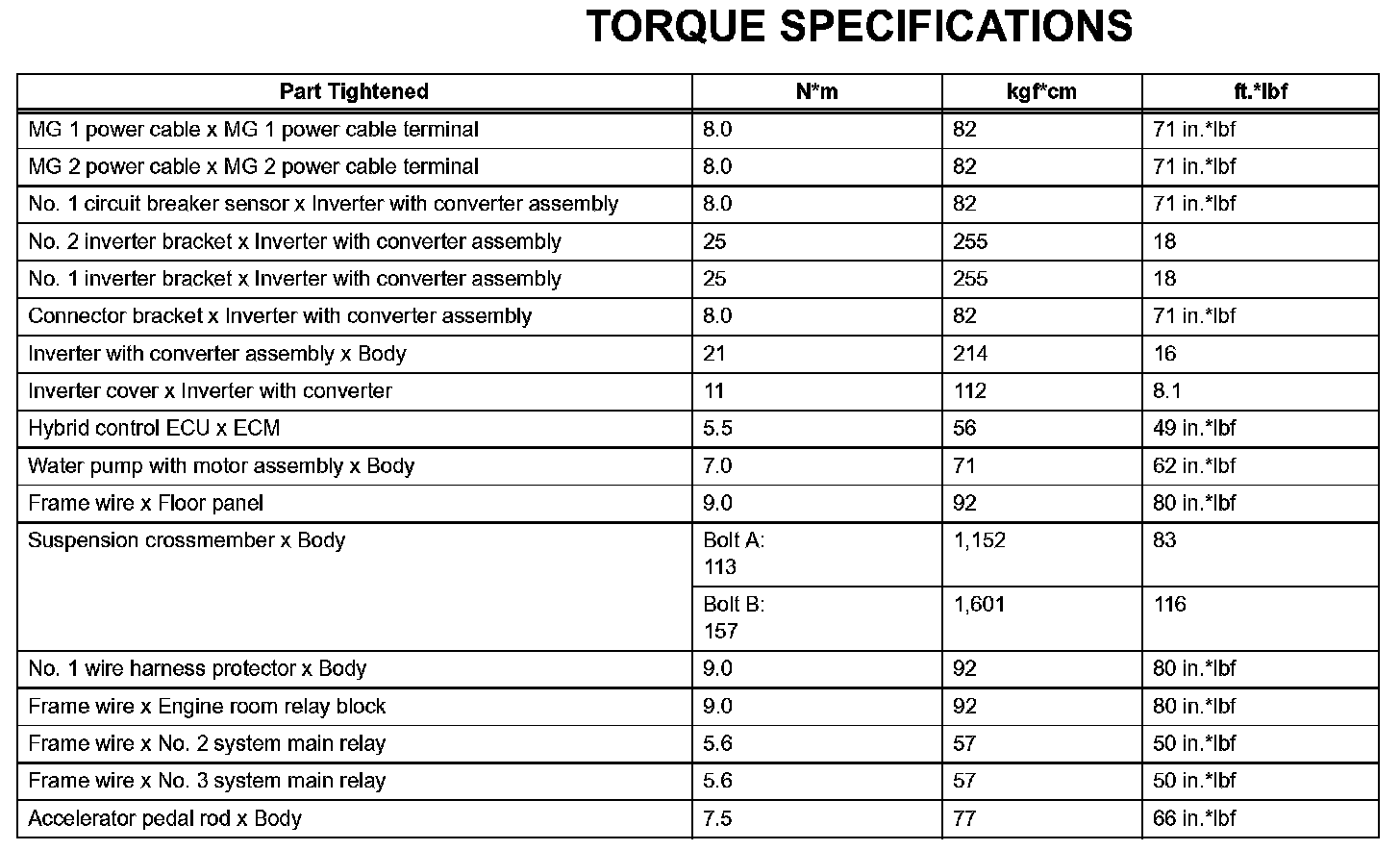

Hybrid Vehicle Control-Torque Specifications:
