Key Slot

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

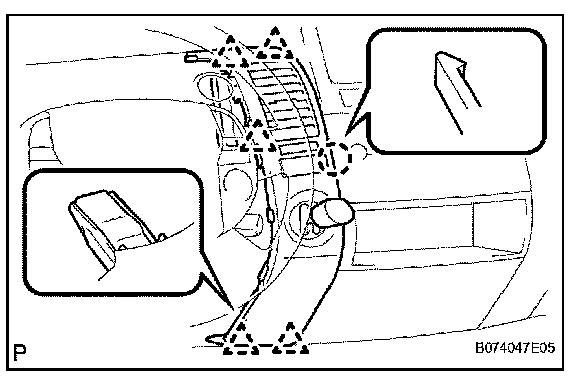

2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY




a. Detach the claw and 5 clips.
b. Disconnect the connector and remove the instrument panel register.

3. REMOVE KEY SLOT
a. Remove the 2 screws and key slot.

INSTALLATION

1. INSTALL KEY SLOT
a. Install the key slot with the 2 screws.

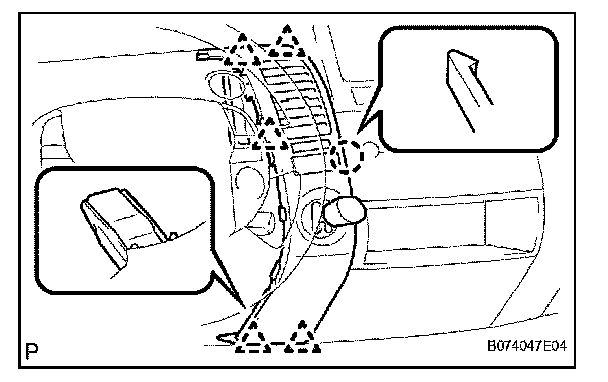

2. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

a. Connect the connector.
b. Attach the claw and 5 clips to install the instrument panel register.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
