Cruise Control Switch Circuit
Cruise Control Switch CircuitDESCRIPTION
This circuit sends signals to the ECM depending on the cruise control switch condition. The battery supplies positive (+) battery voltage to the cruise control switch. Then terminal CCS of the ECM receives the voltage according to the switch condition.

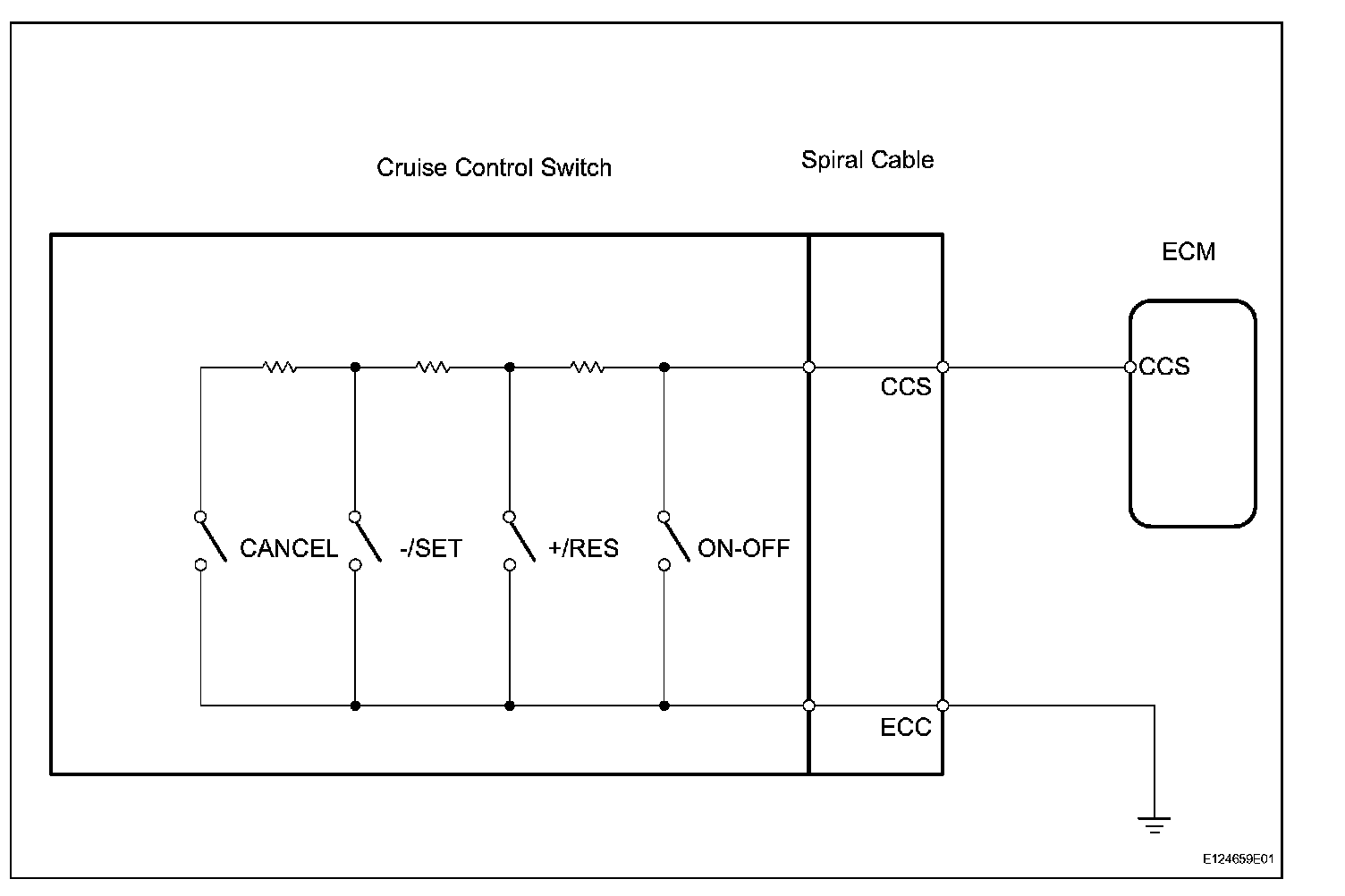

Wiring Diagram:

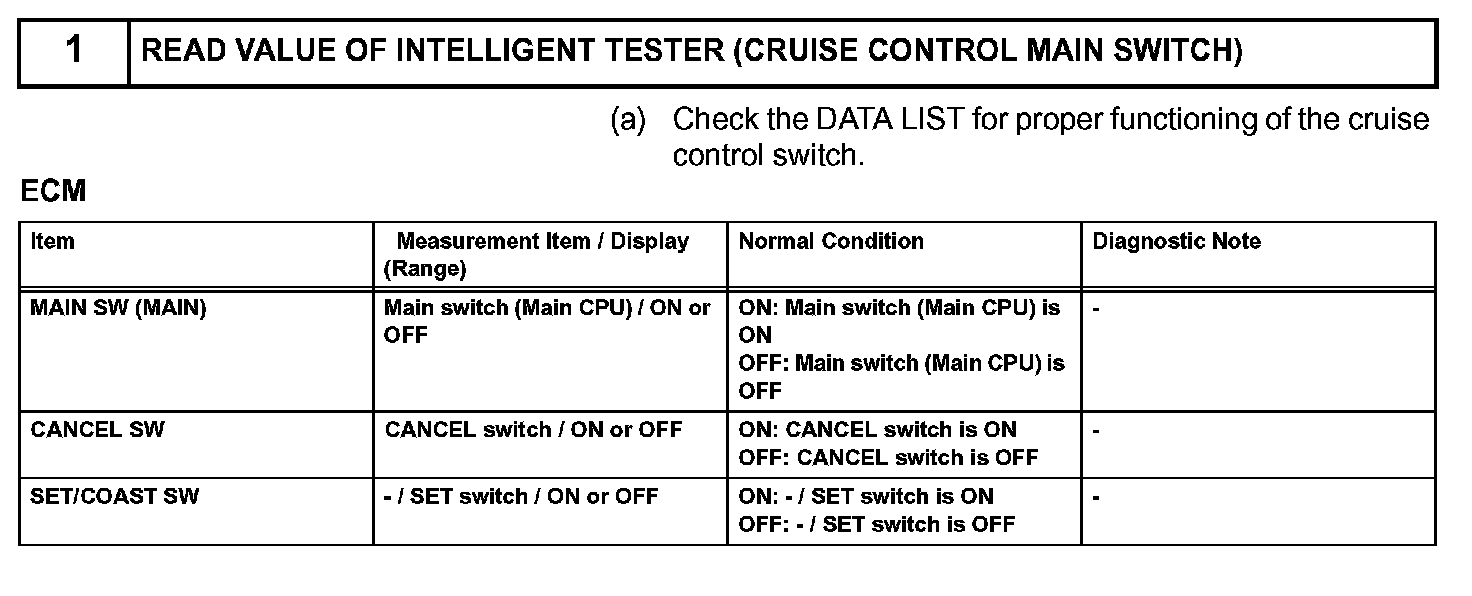

Step 1:

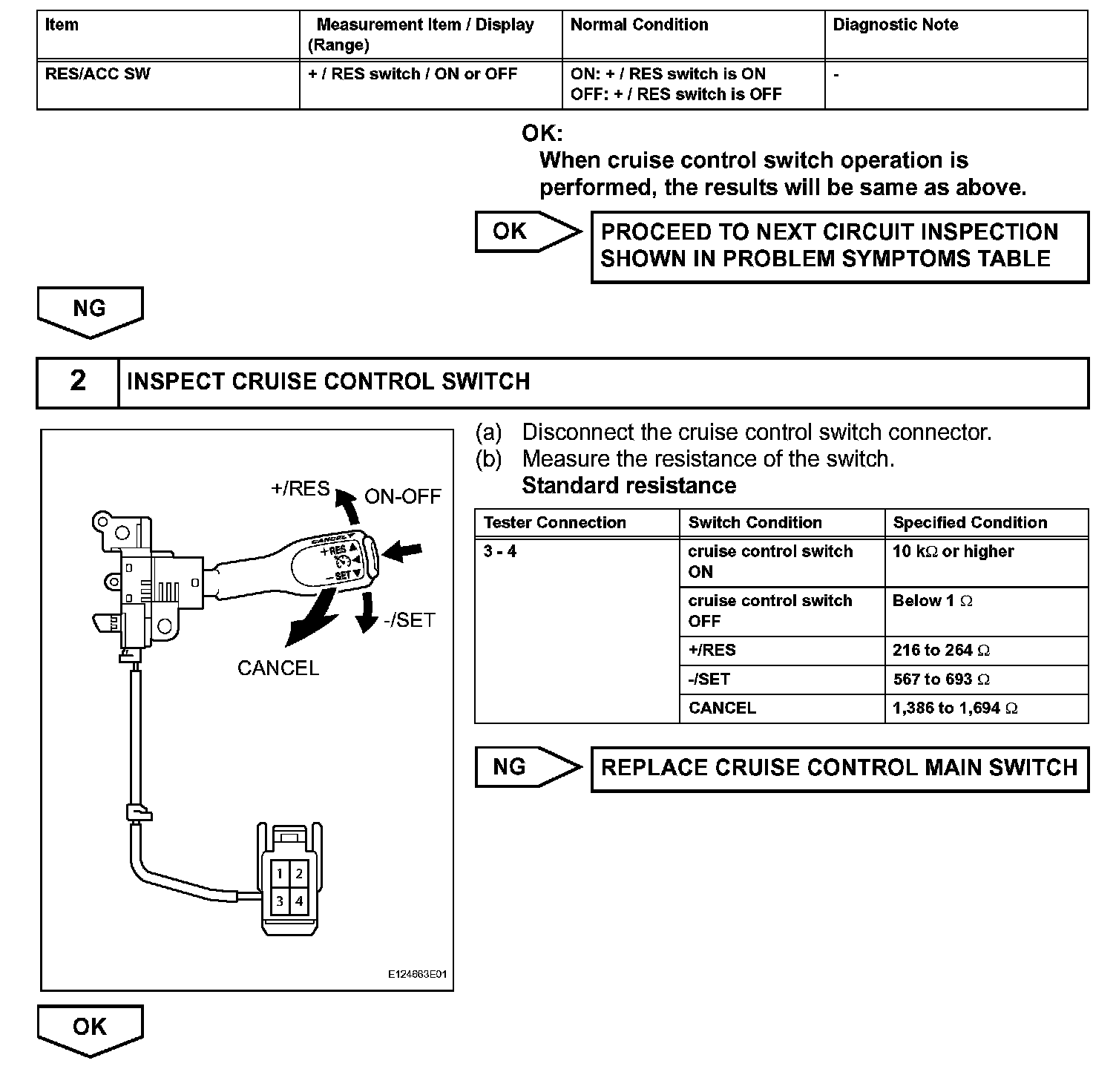

Step 1(Continued)-2:

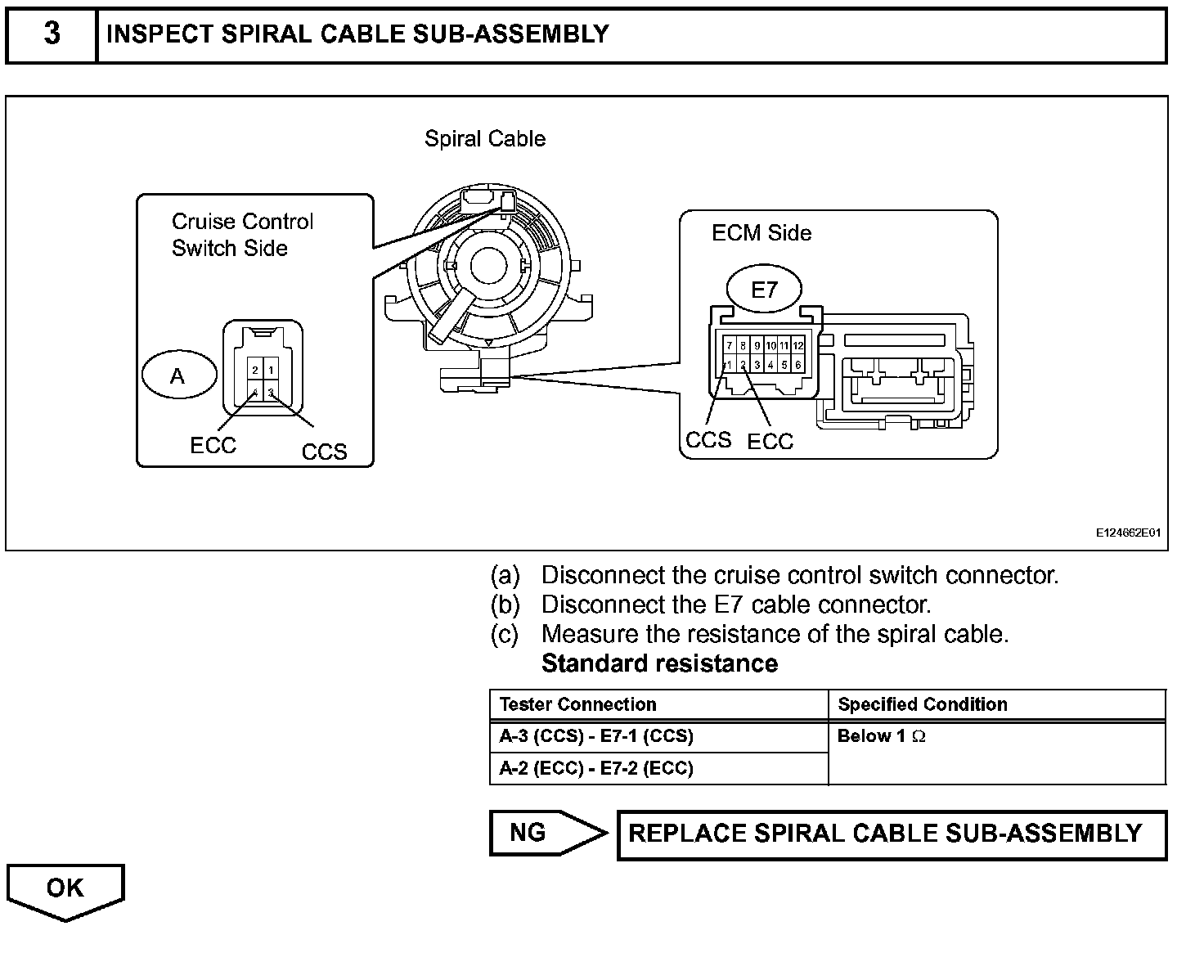

Step 3:

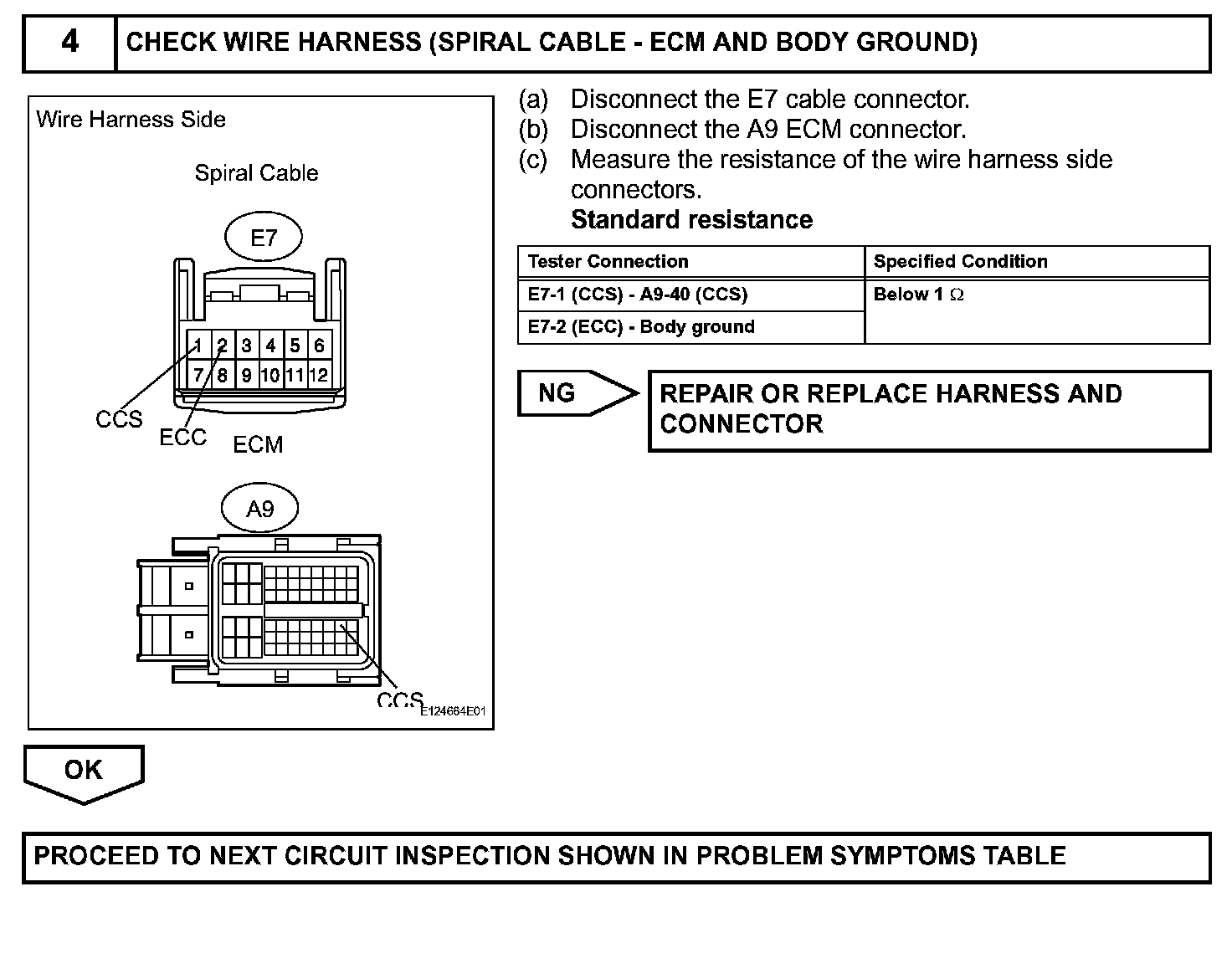

Step 4:
INSPECTION PROCEDURE
