System Diagram

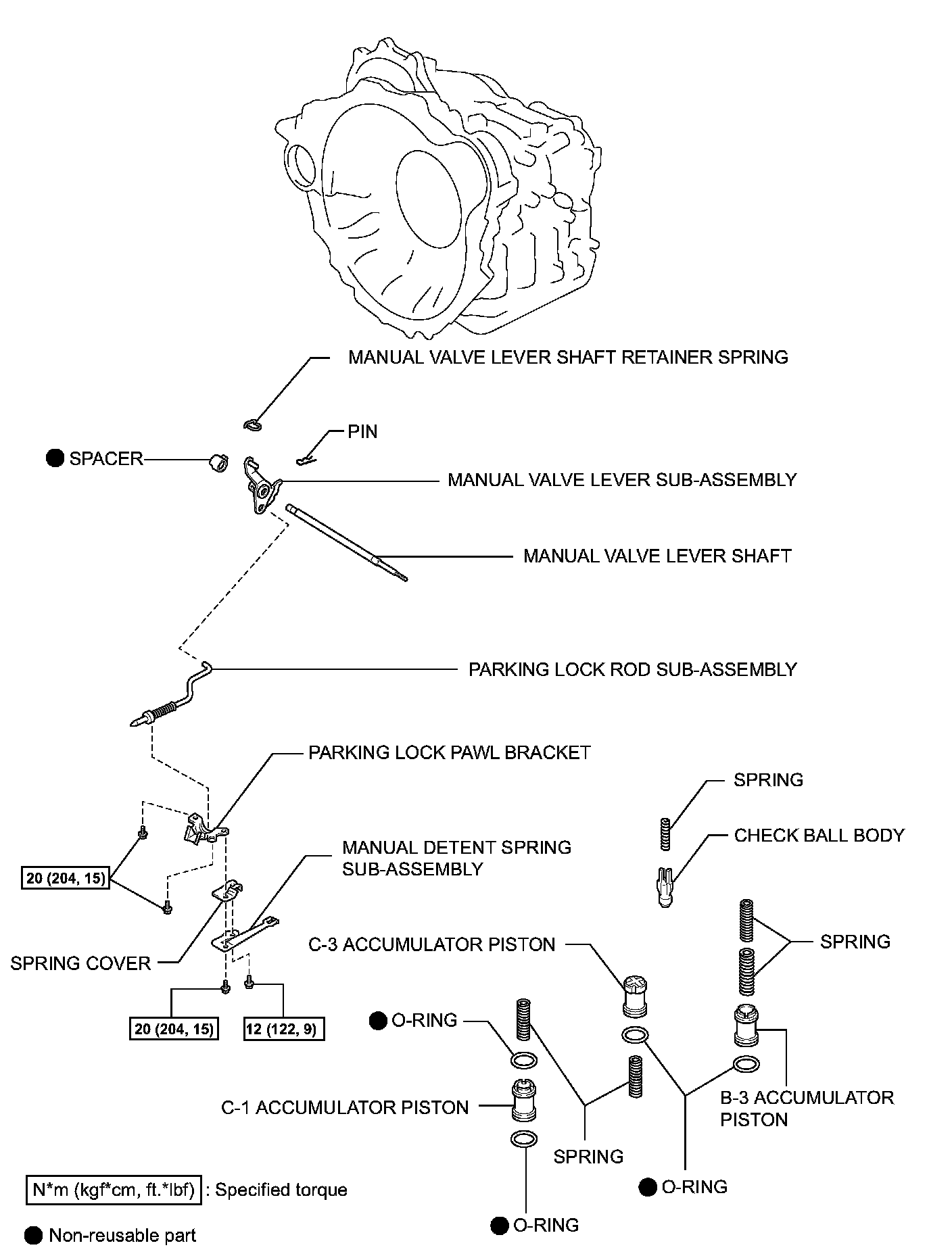

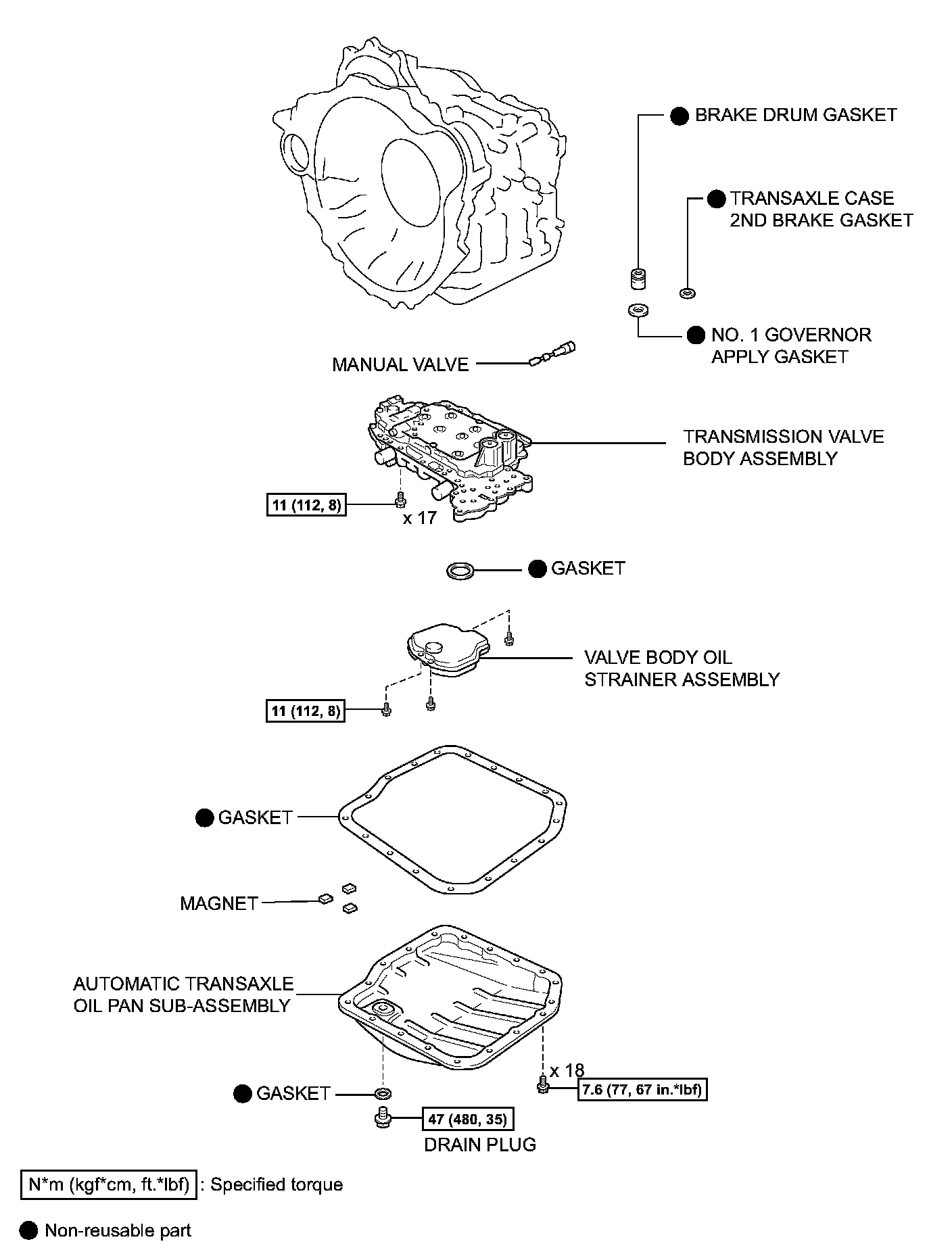

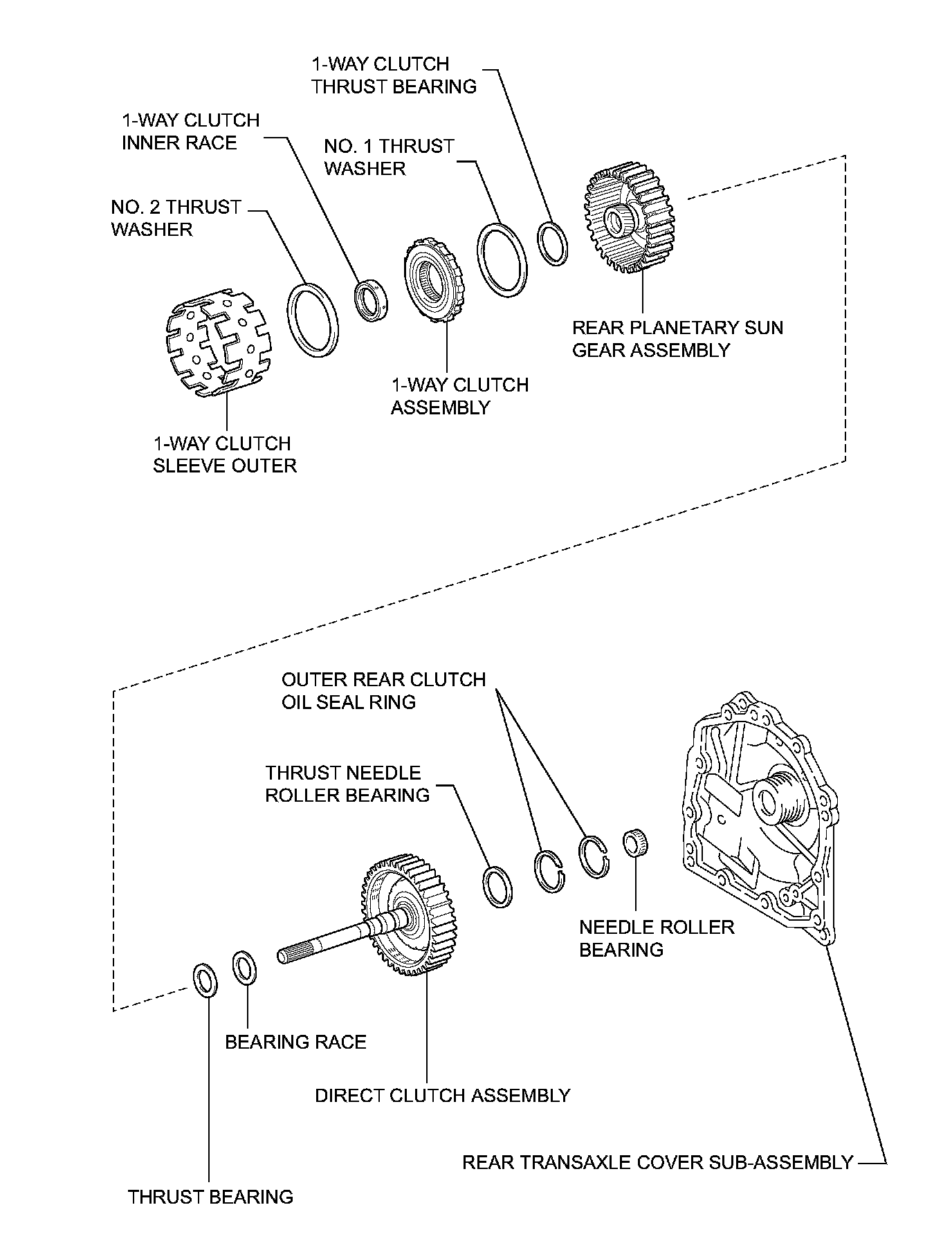

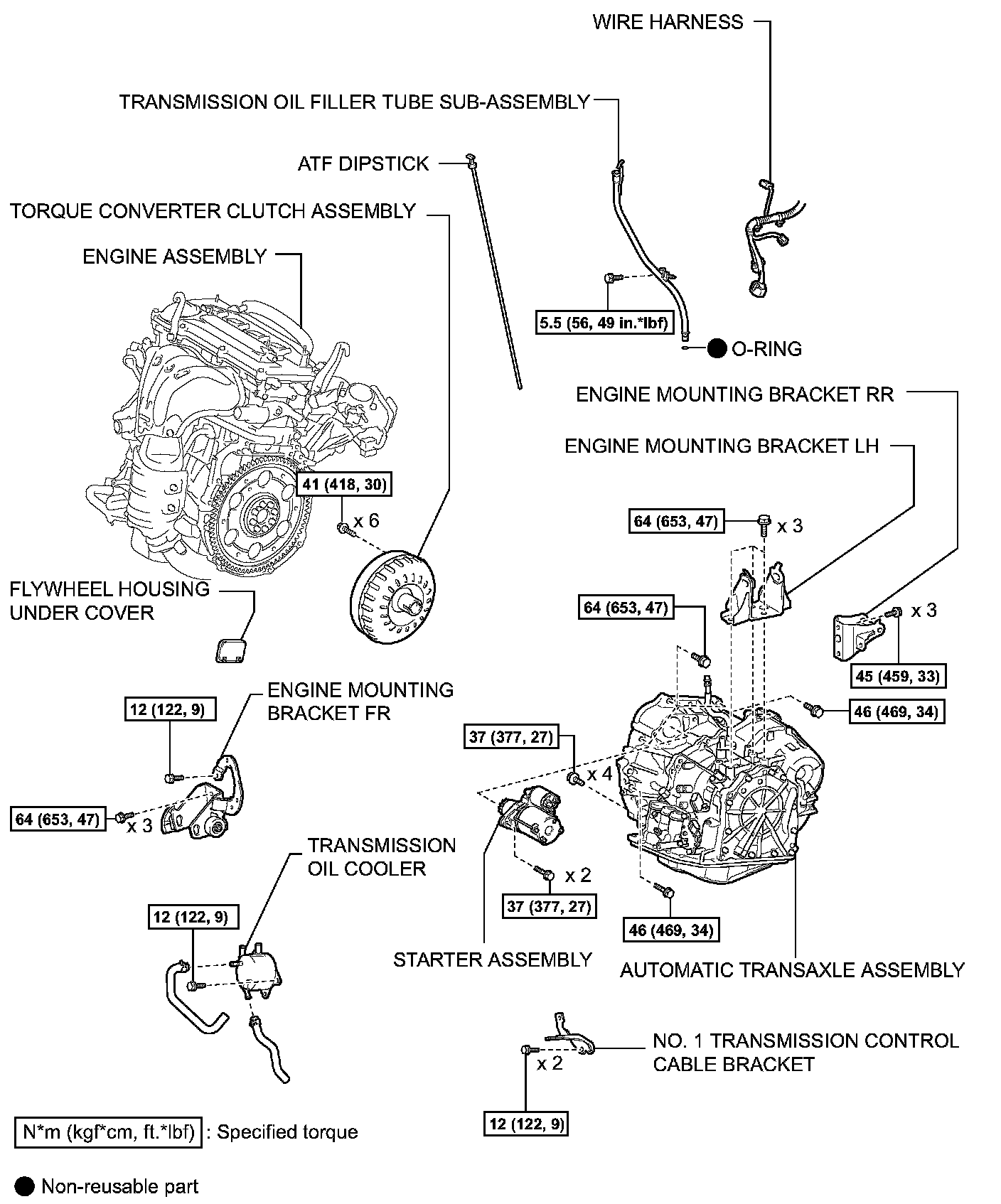

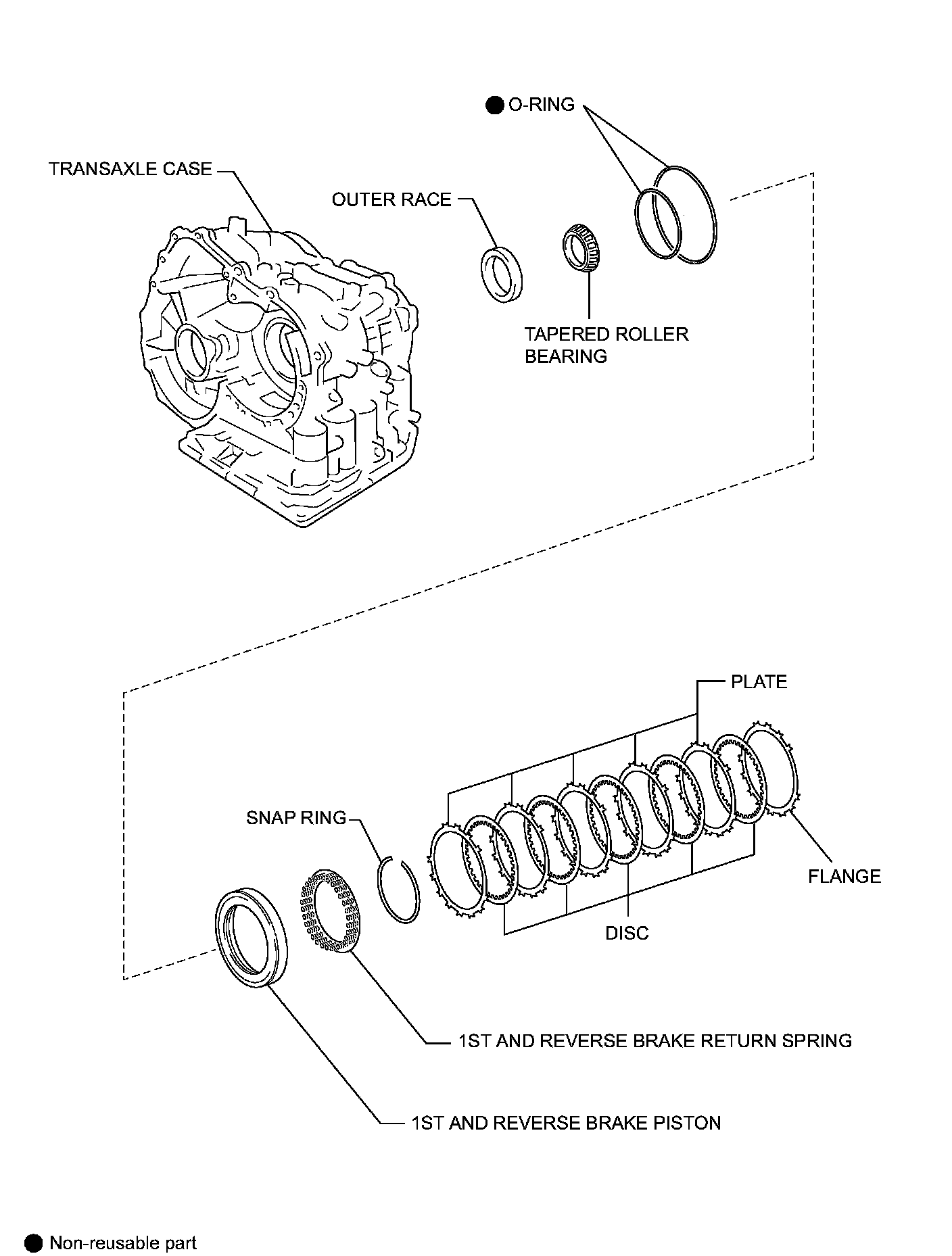

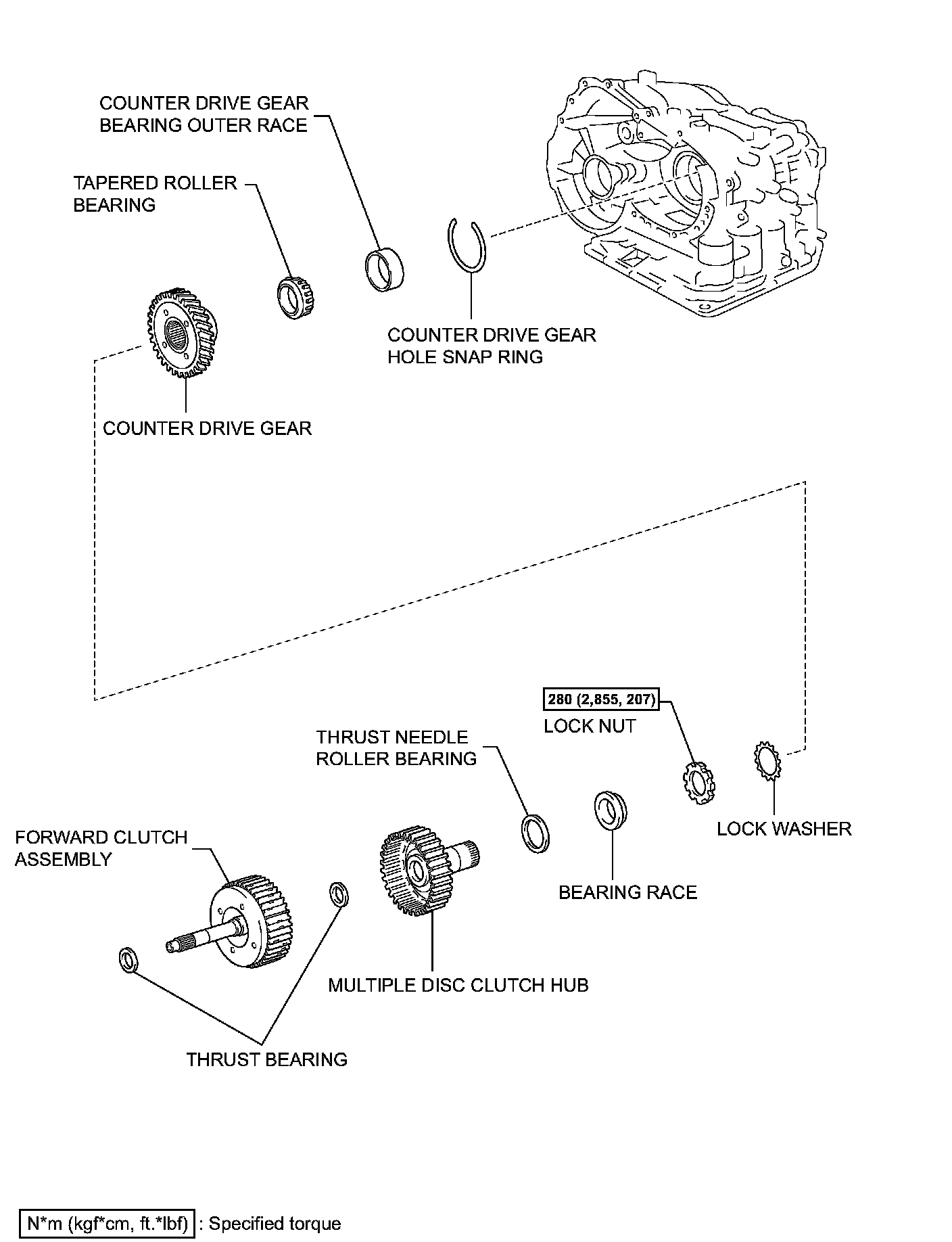

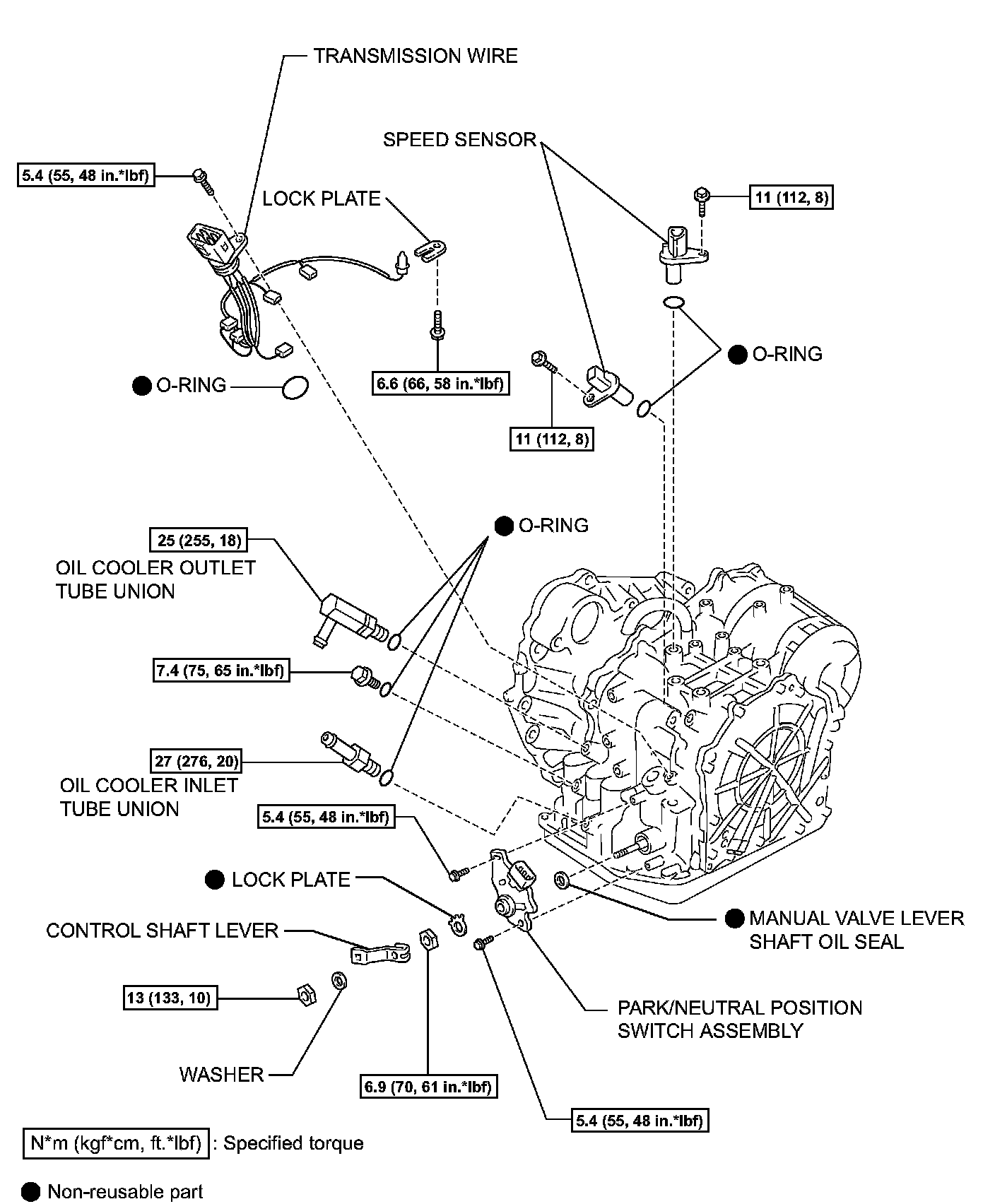

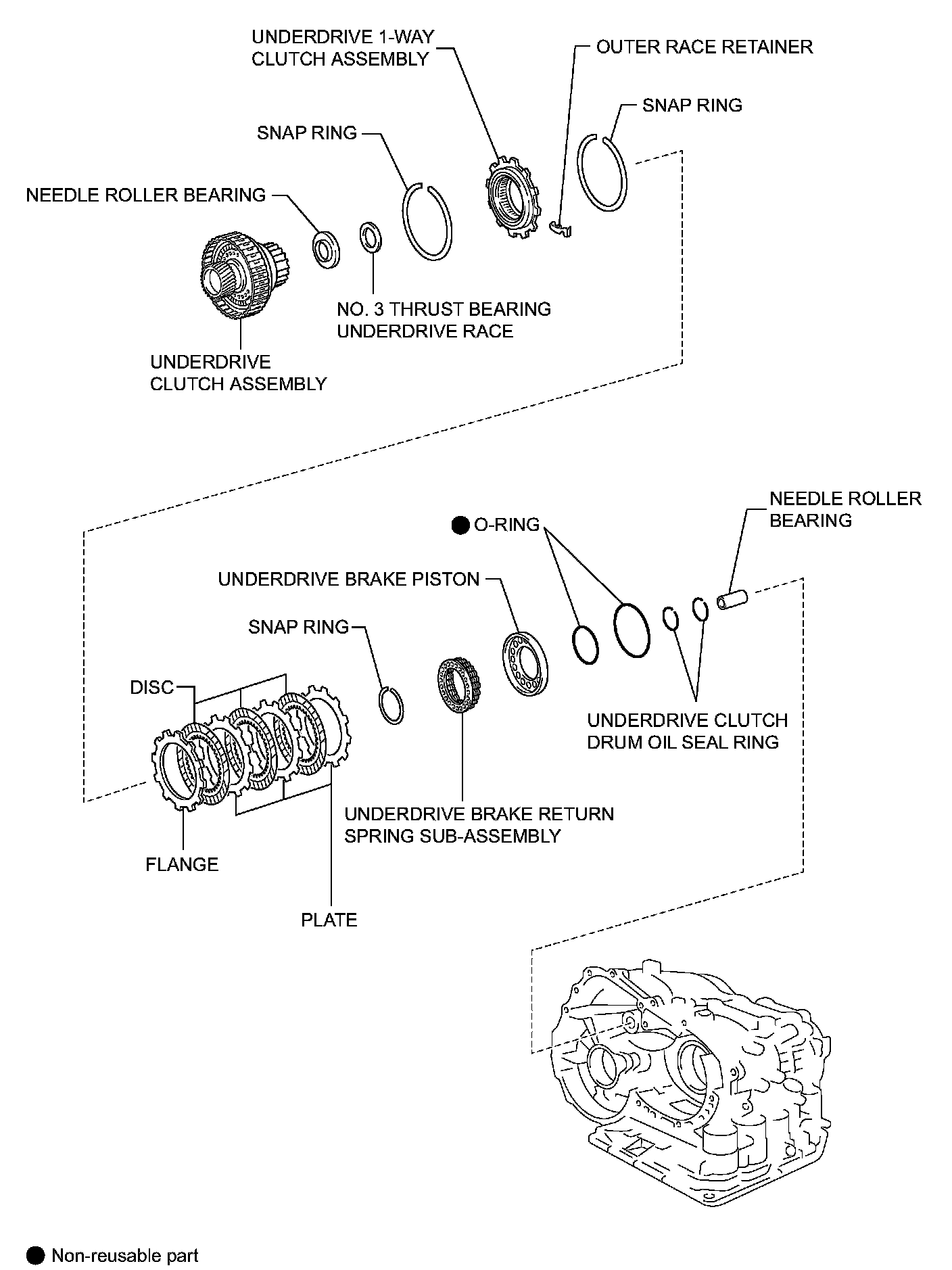

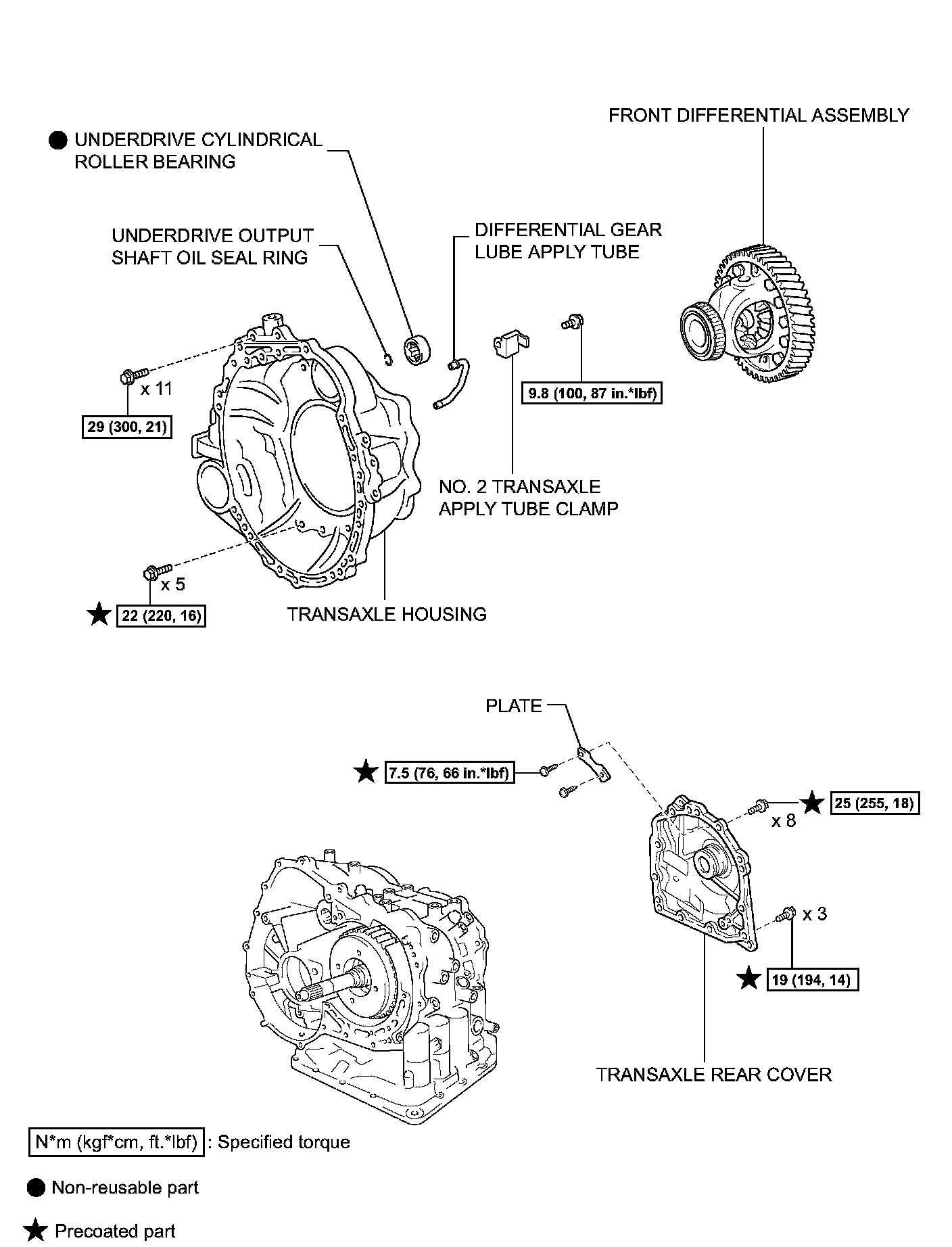

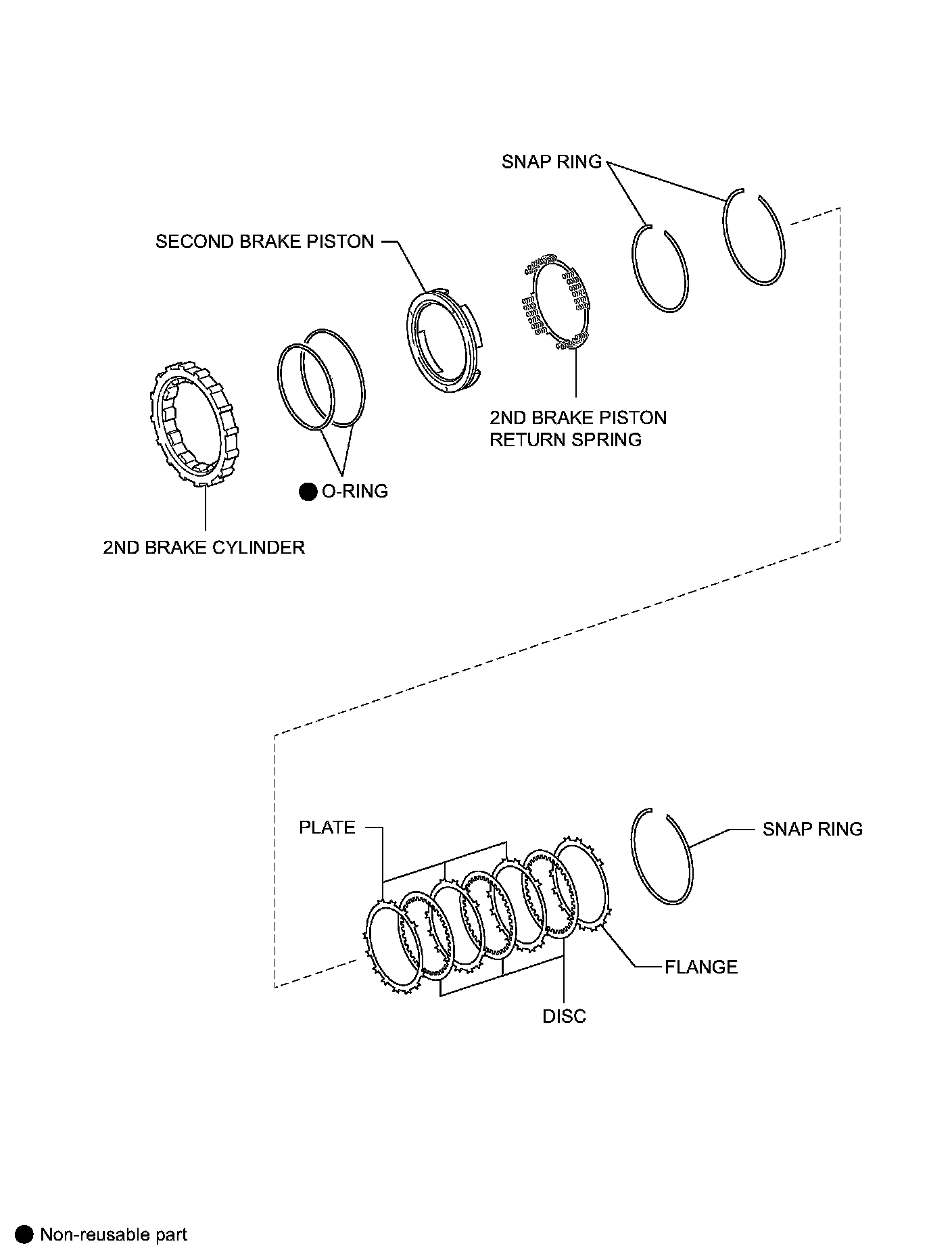

AUTOMATIC TRANSAXLE UNIT

Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:




Components:
