Fuse Block: Locations

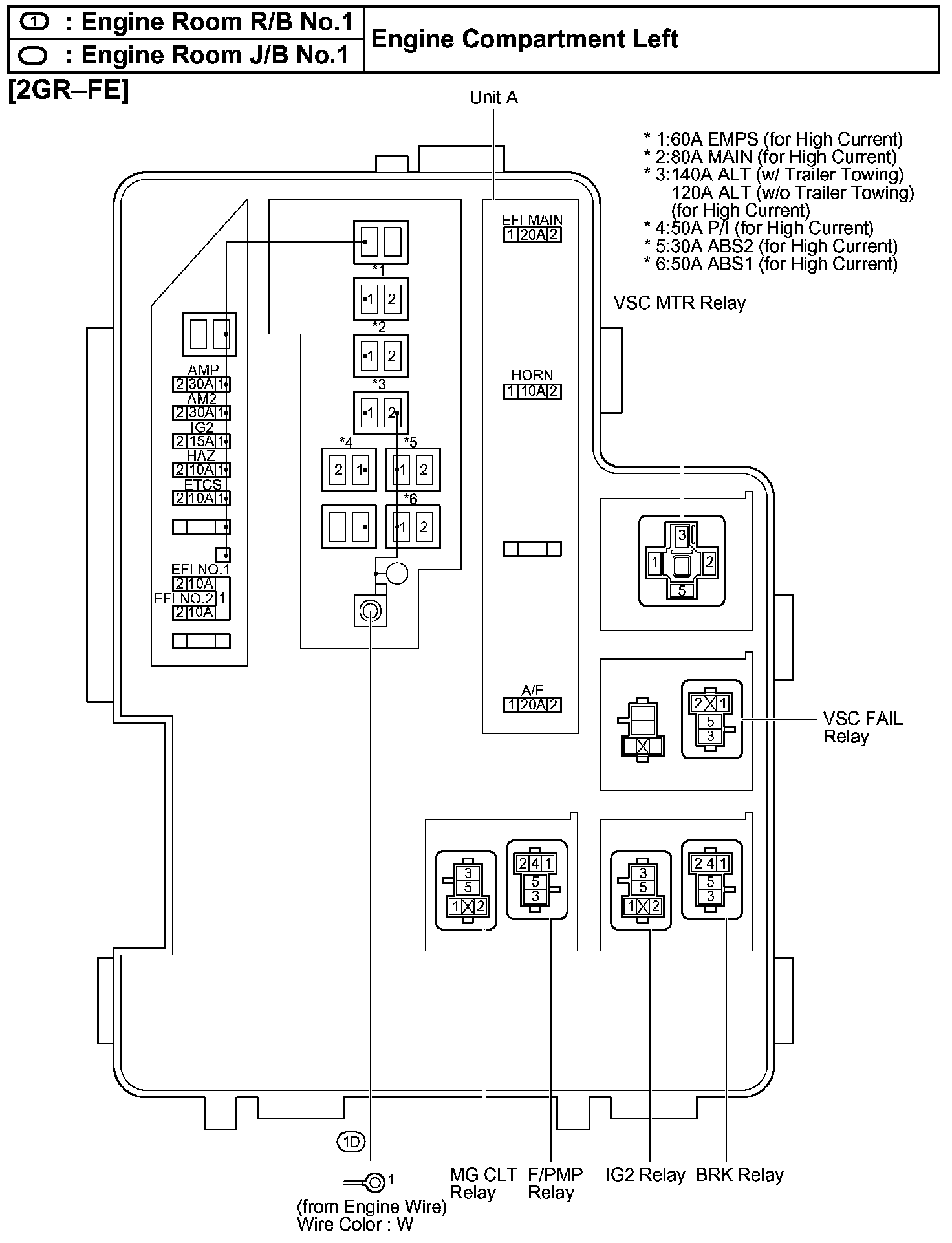

Engine Room R/B 1 - 2GR-FE Engine:

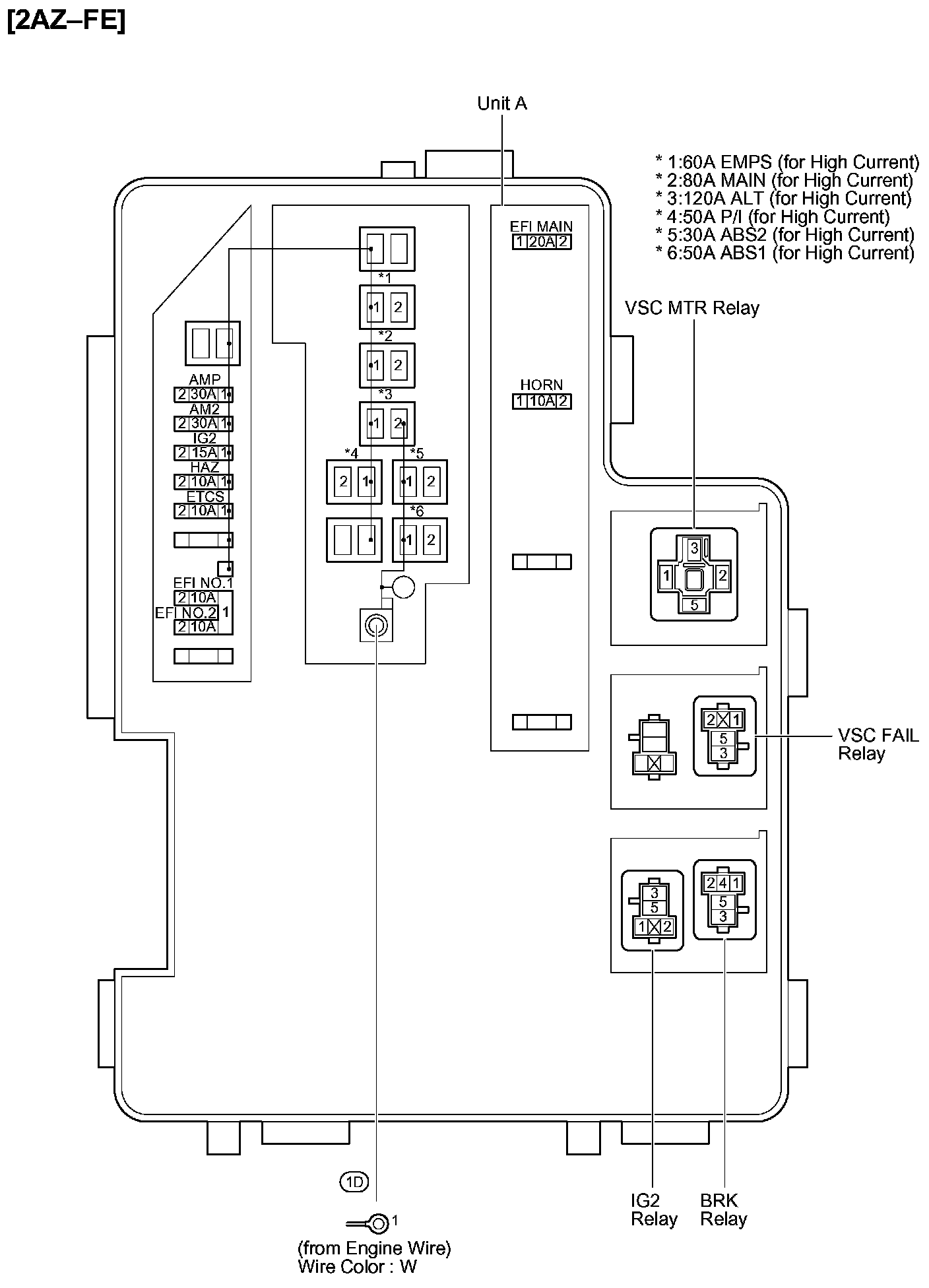

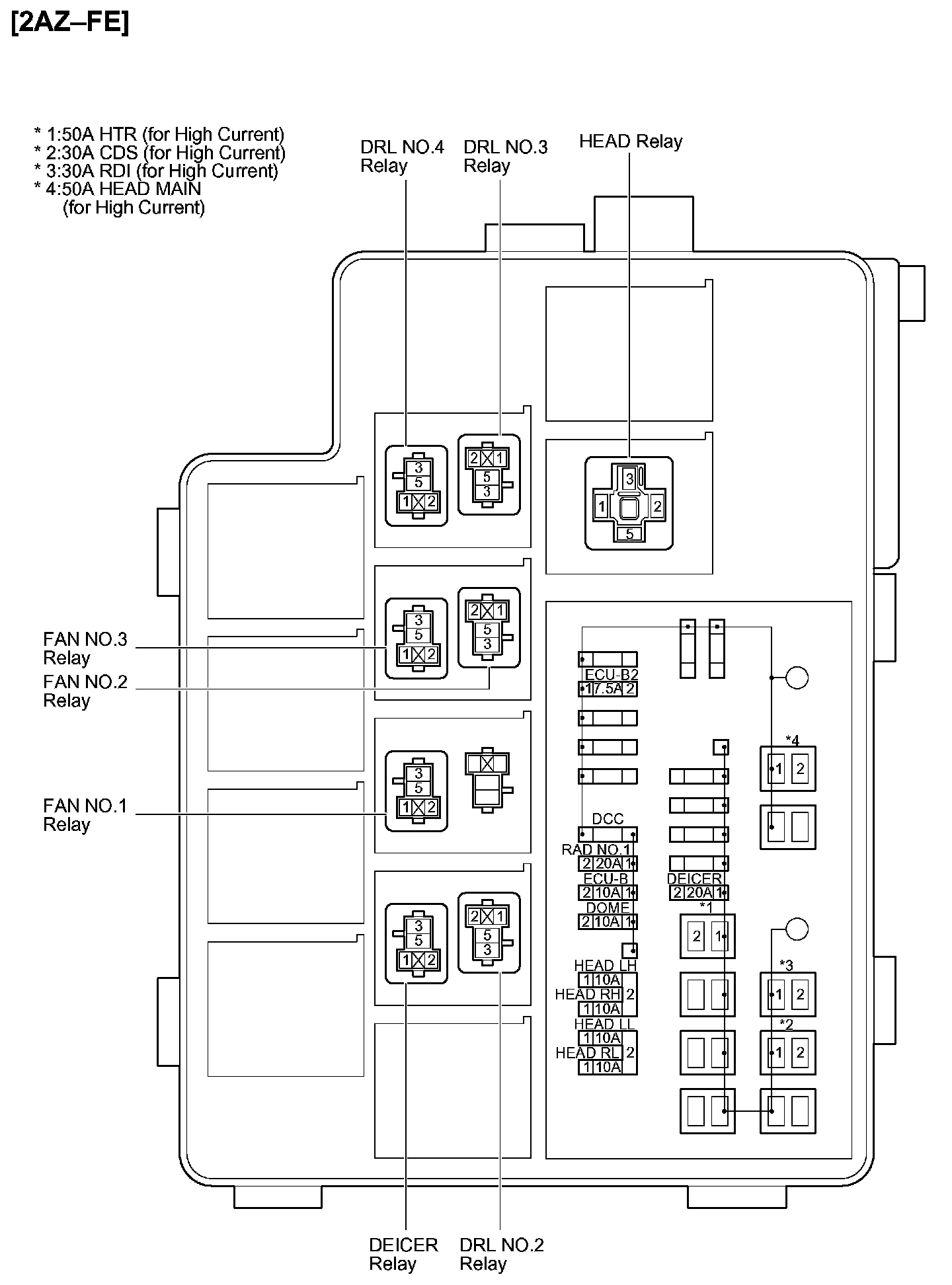

Engine Room R/B 1 - 2AZ-FE Engine:

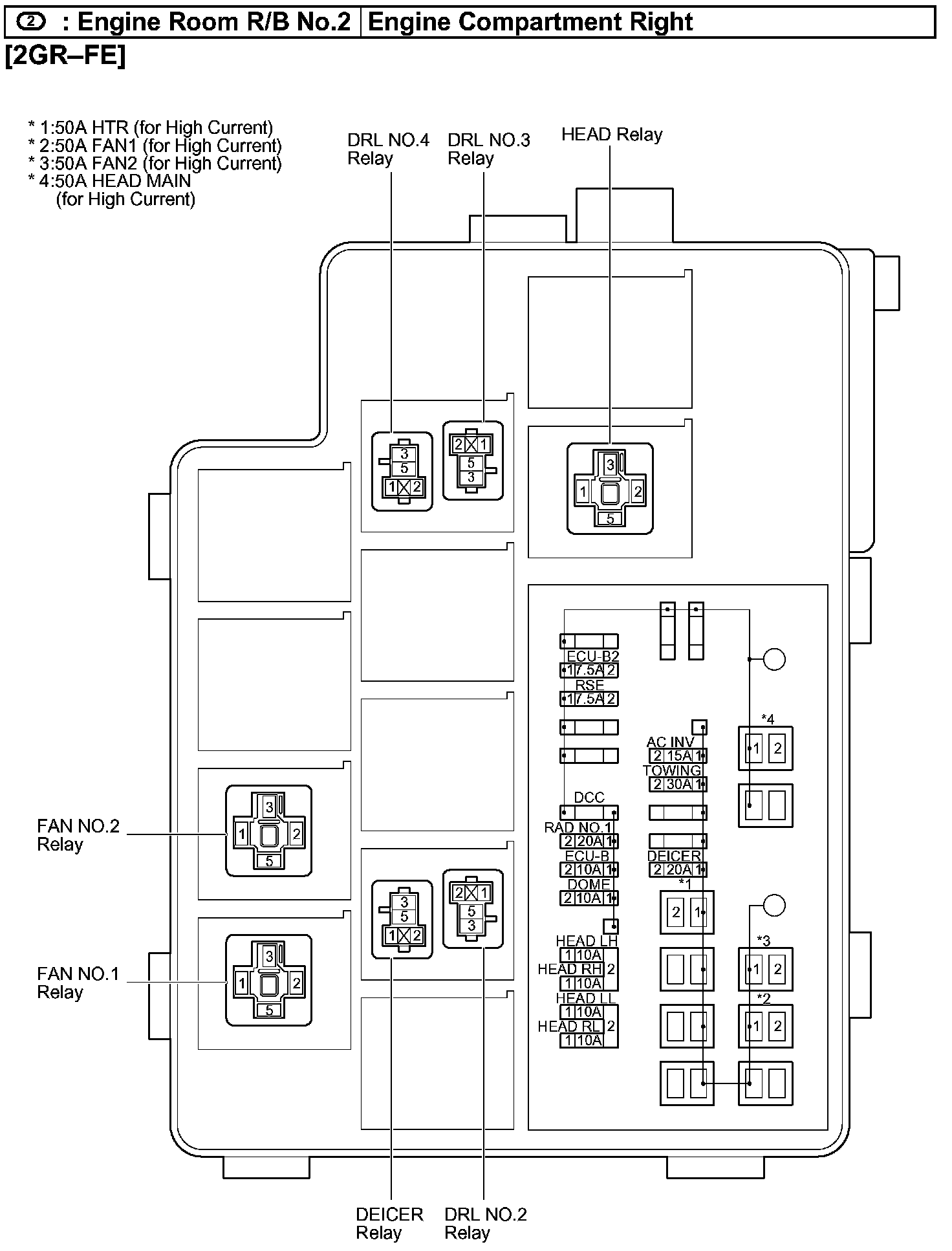

Engine Room R/B 2 - 2GR-FE Engine:

Engine Room R/B 2 - 2AZ-FE Engine:

Cowl Side R/B 5:

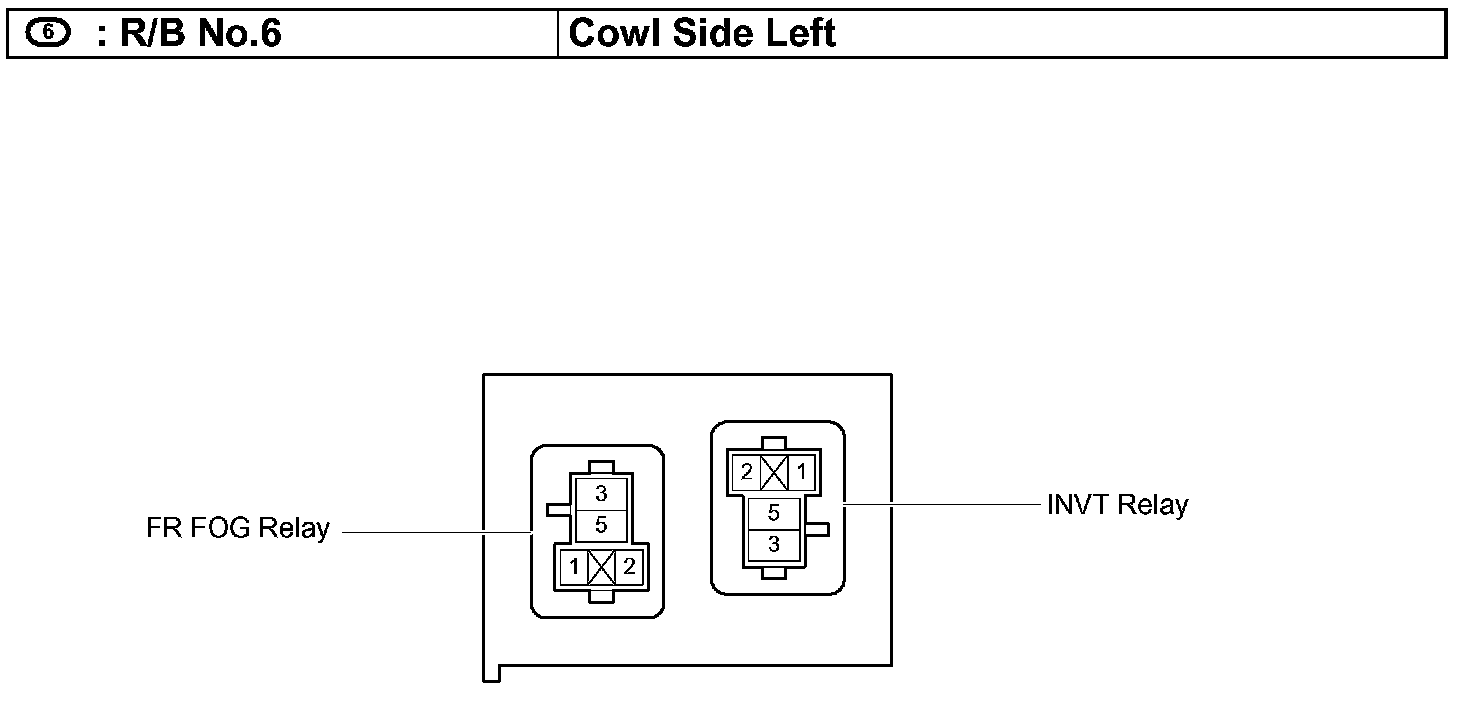

Cowl Side R/B 6:

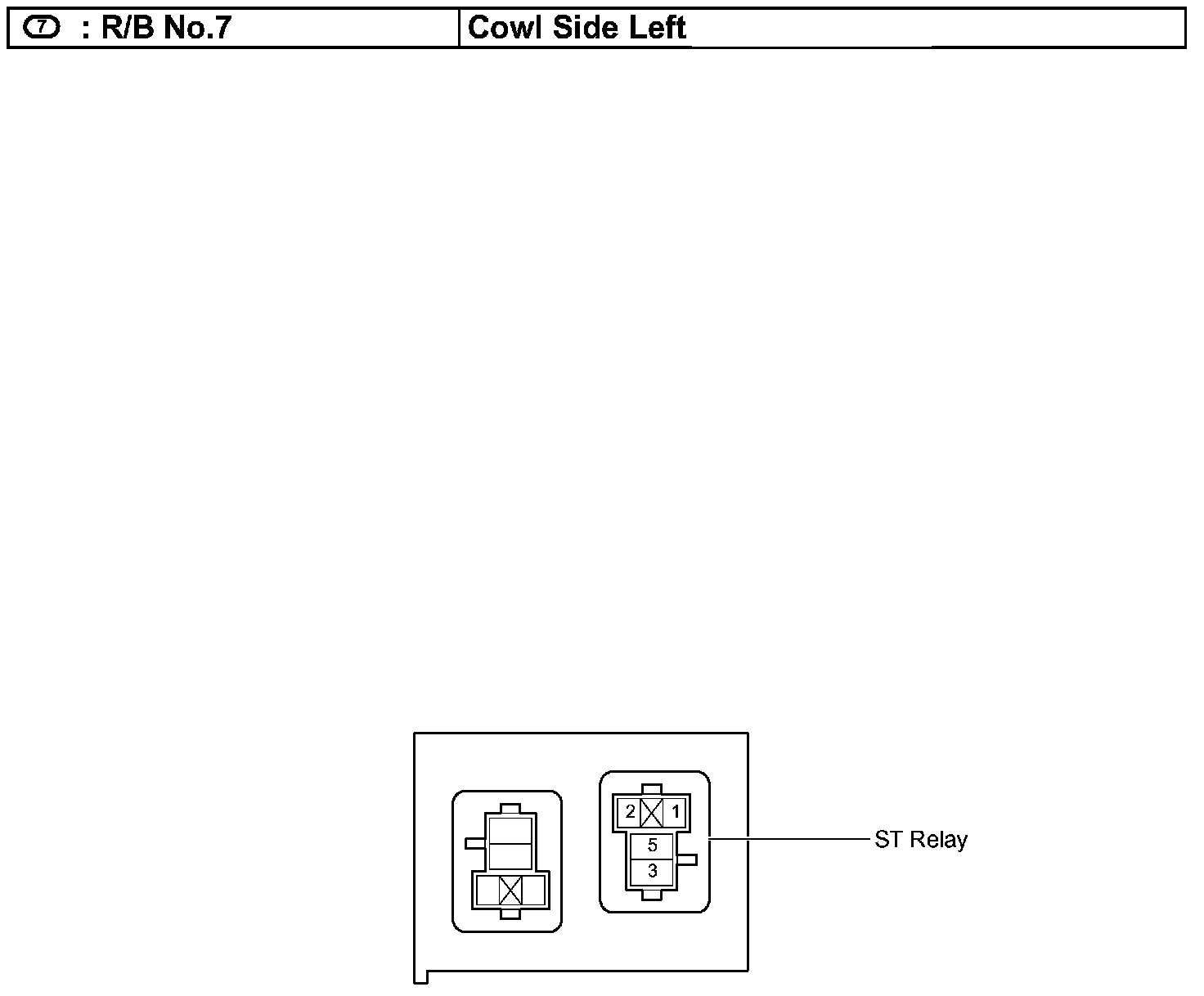

Cowl Side R/B 7:

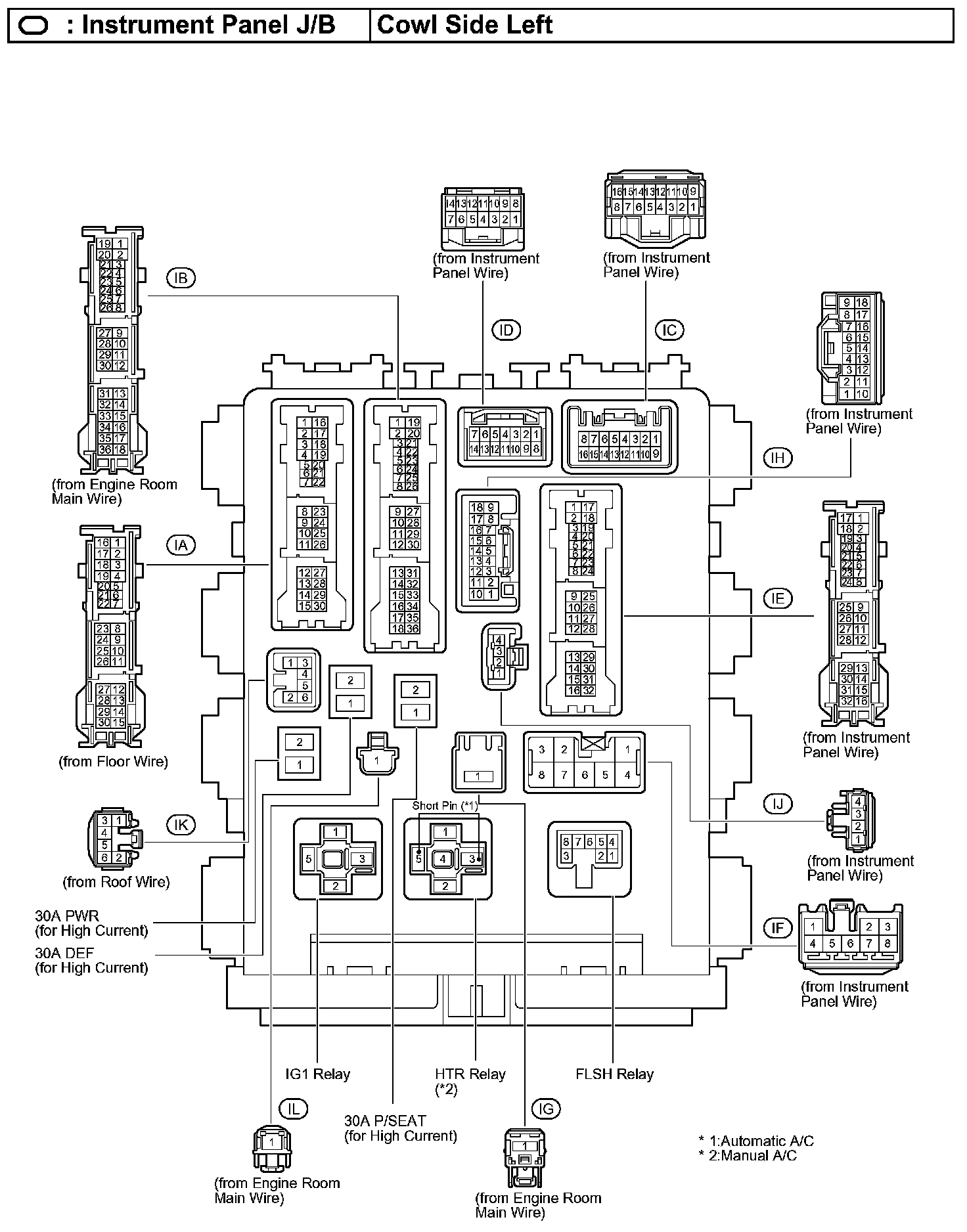

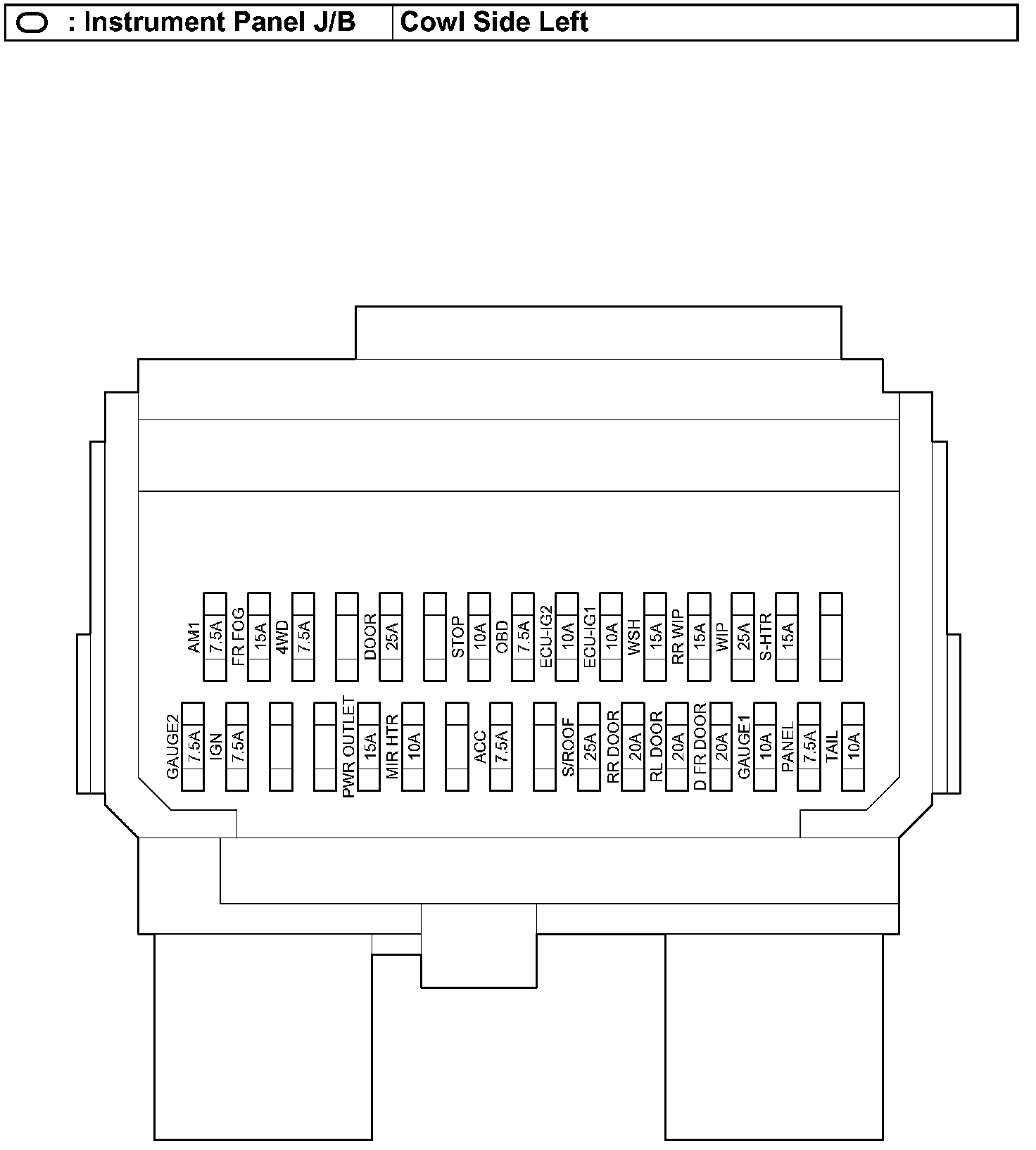

Instrument Panel J/B:

Instrument Panel J/B:

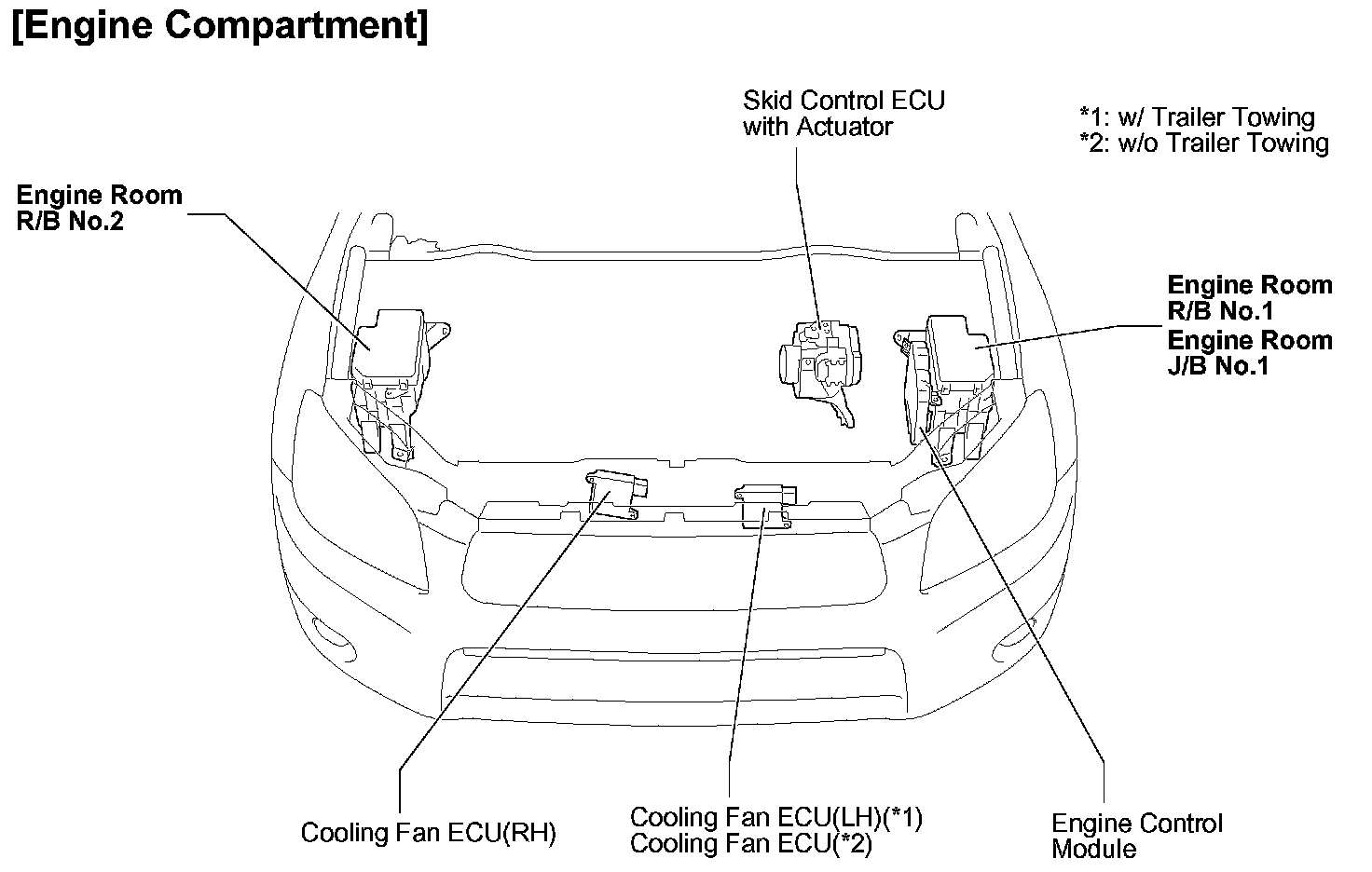

Engine Compartment:

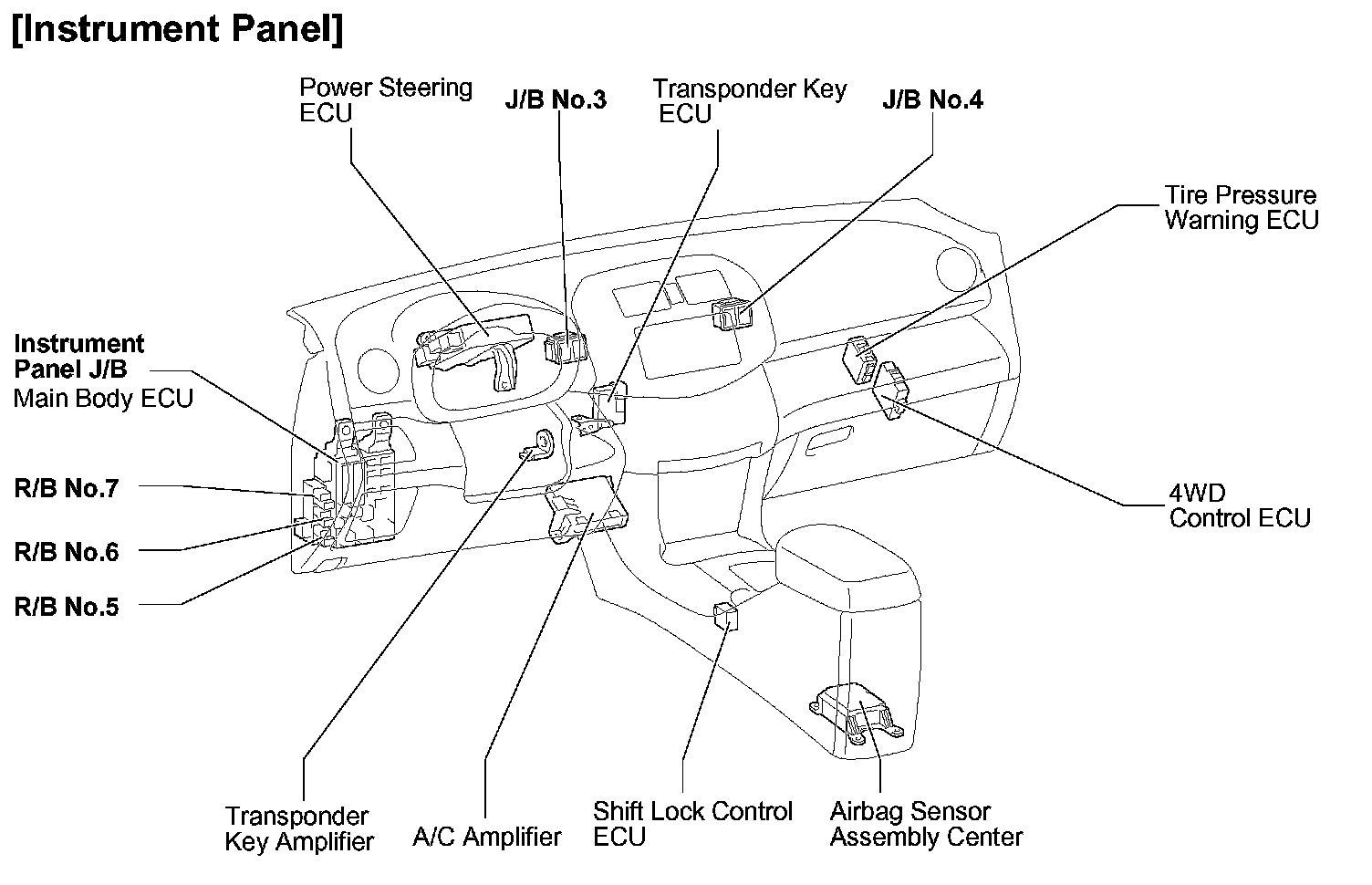

Instrument Panel:

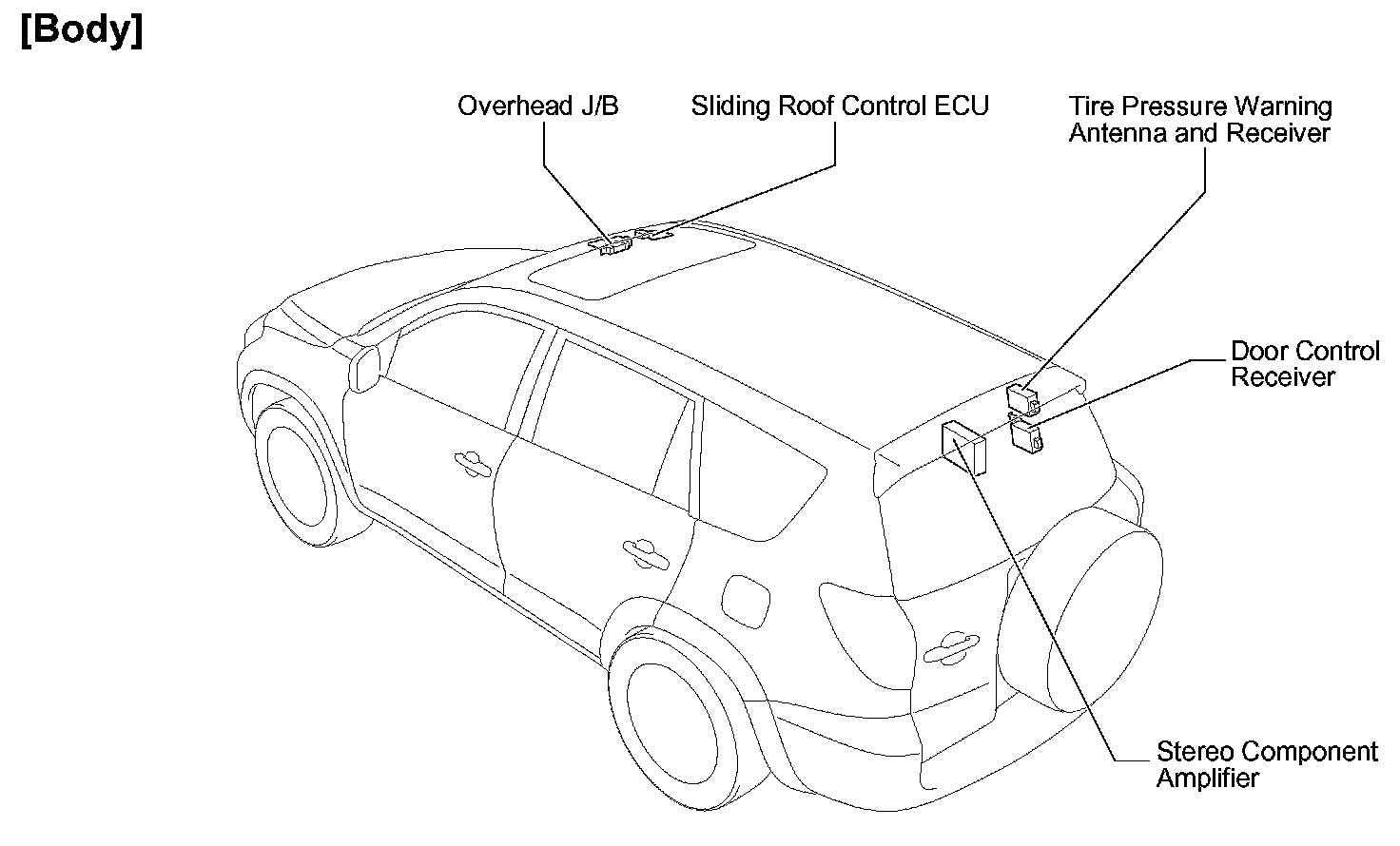

Body:
