Camshaft Position Sensor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE NO. 1 ENGINE COVER
3. REMOVE AIR CLEANER CAP
4. REMOVE CAMSHAFT POSITION SENSOR

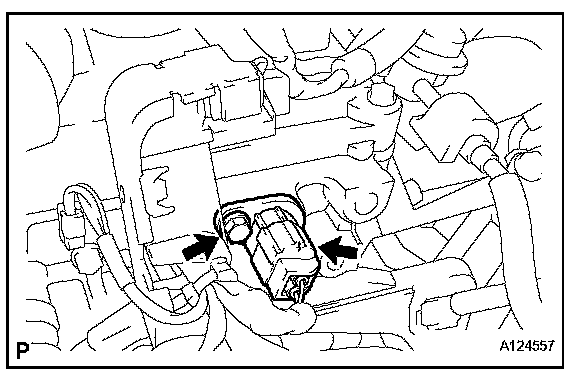

a. Disconnect the sensor connector.
b. Remove the bolt and sensor.
INSTALLATION
1. INSTALL CAMSHAFT POSITION SENSOR

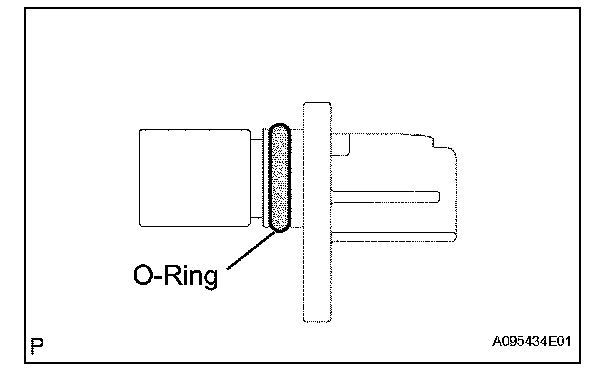

NOTE: Make sure that the O-ring is not cracked or jammed when installing it.
a. Apply a light coat of engine oil to the O-ring of the sensor.

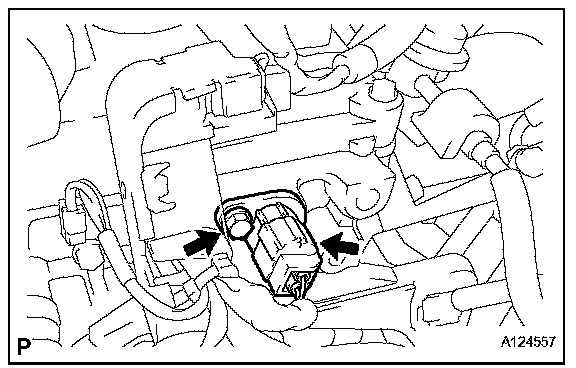

b. Install the sensor with the bolt.
Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
c. Connect the sensor connector.
2. INSTALL AIR CLEANER CAP
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. CHECK FOR ENGINE OIL LEAKAGE
5. INSTALL NO. 1 ENGINE COVER
