Pinout Values and Diagnostic Parameters

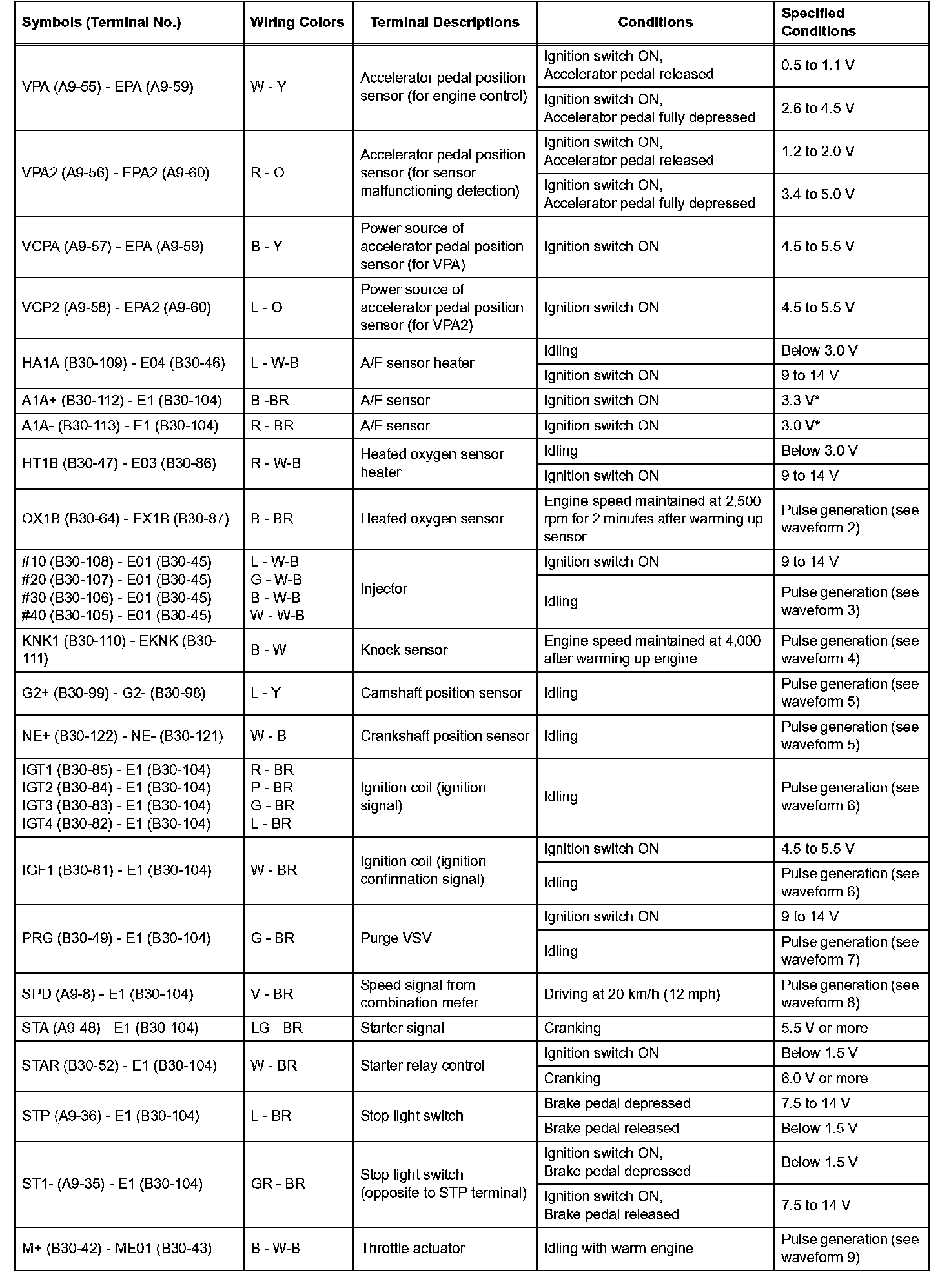

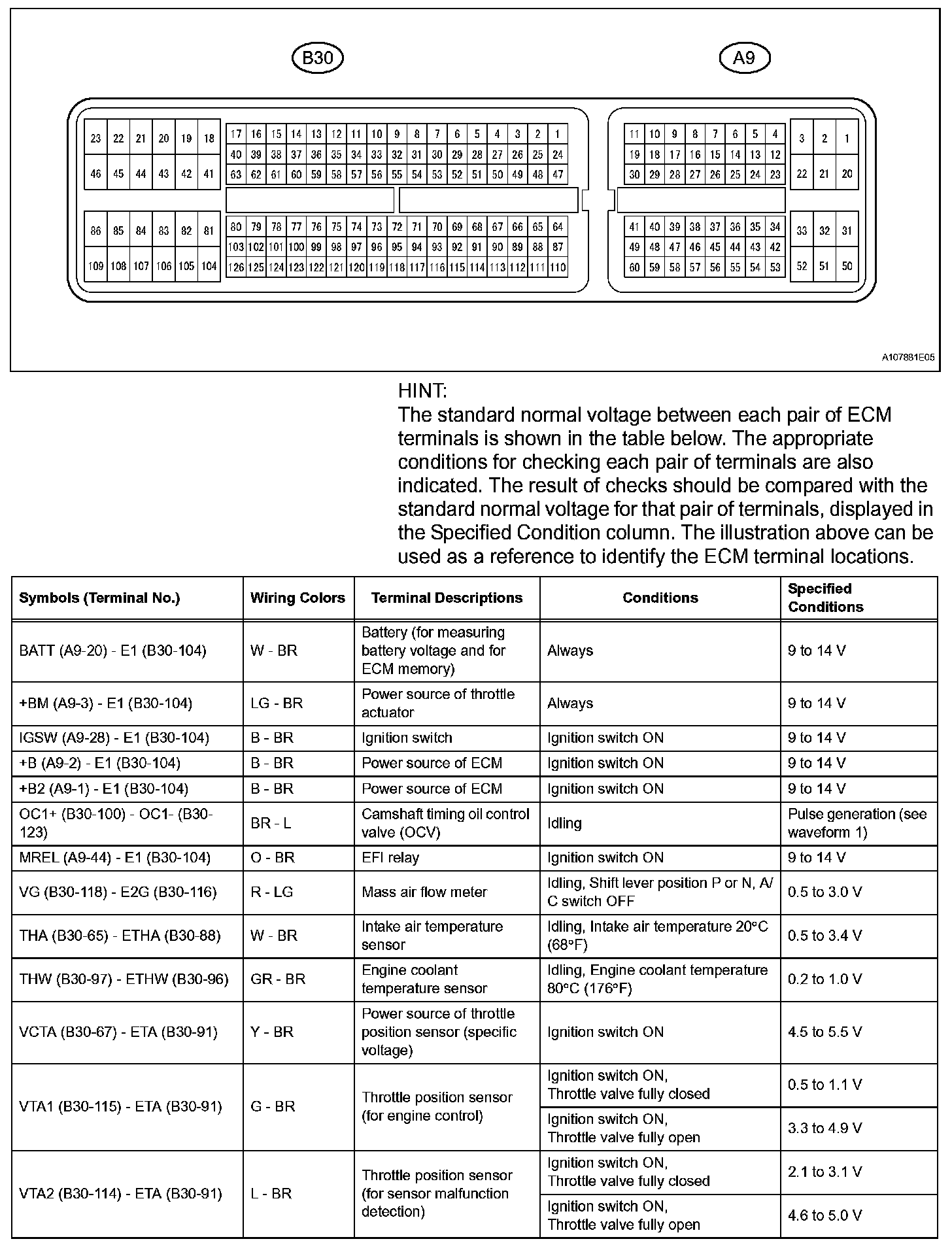

Terminals Of ECM/Pinouts (Part 1):

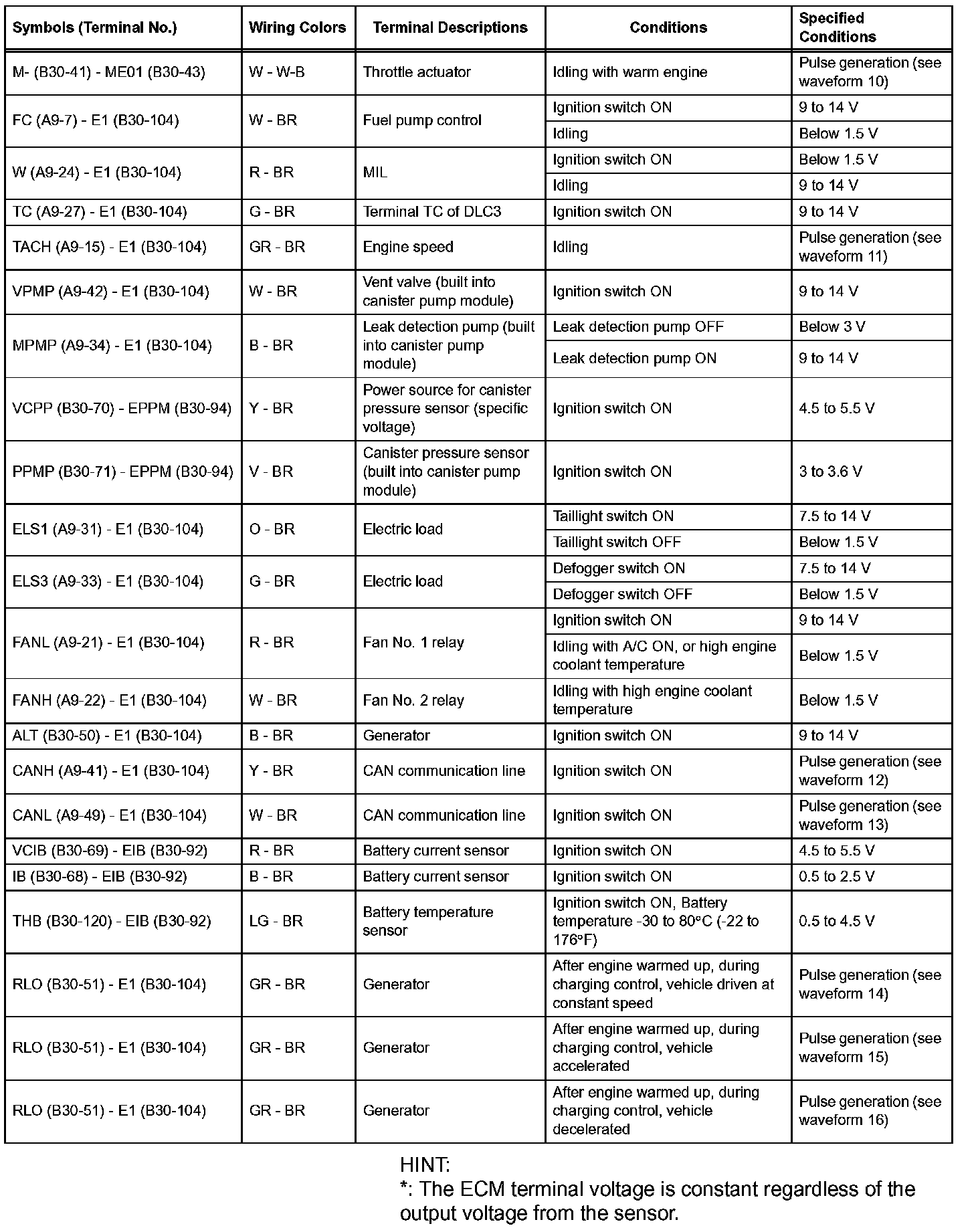

Terminals Of ECM/Pinouts (Part 2):

Terminals Of ECM/Pinouts (Part 3):

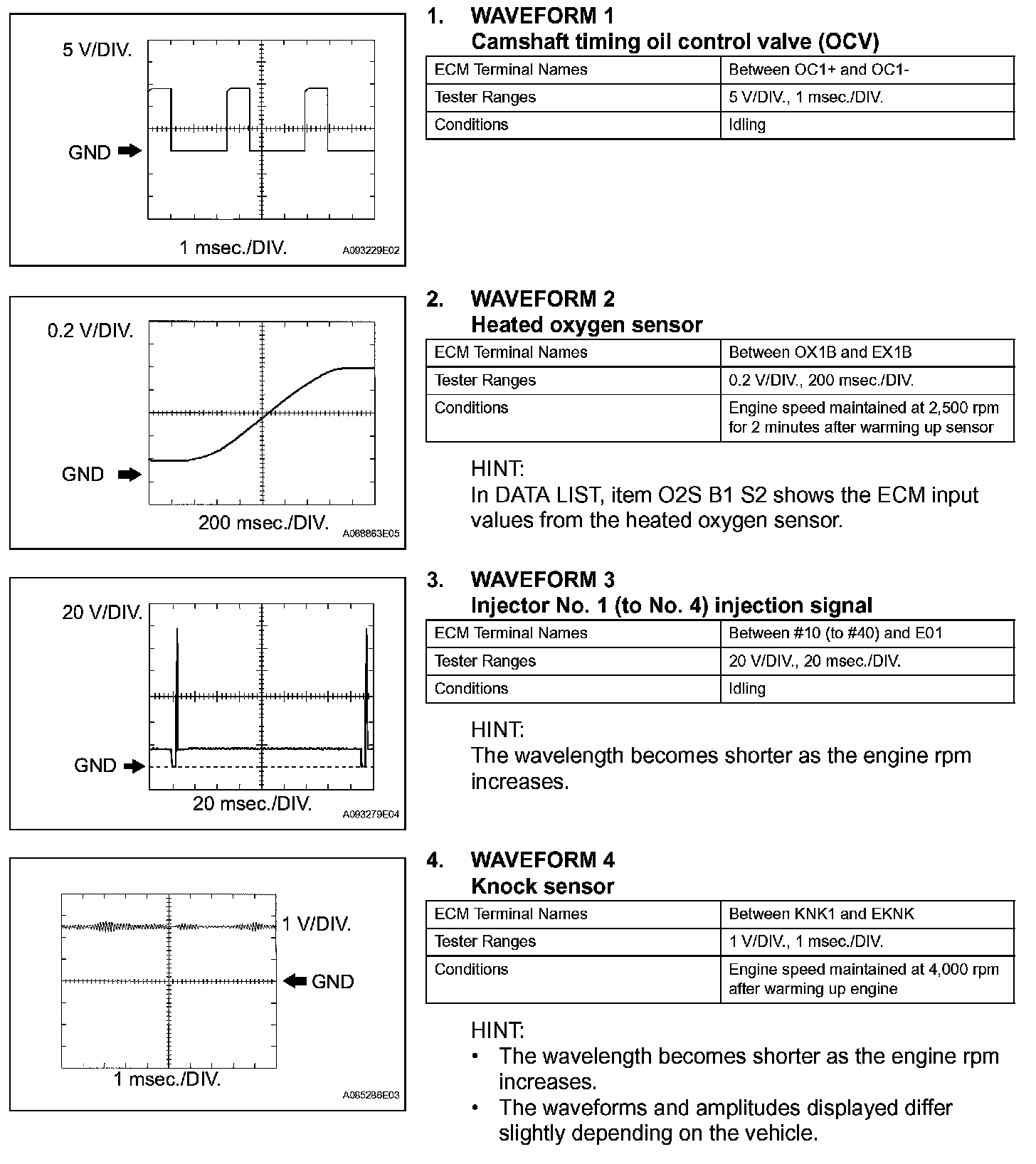

Oscilloscope Wave Forms (Part 1):

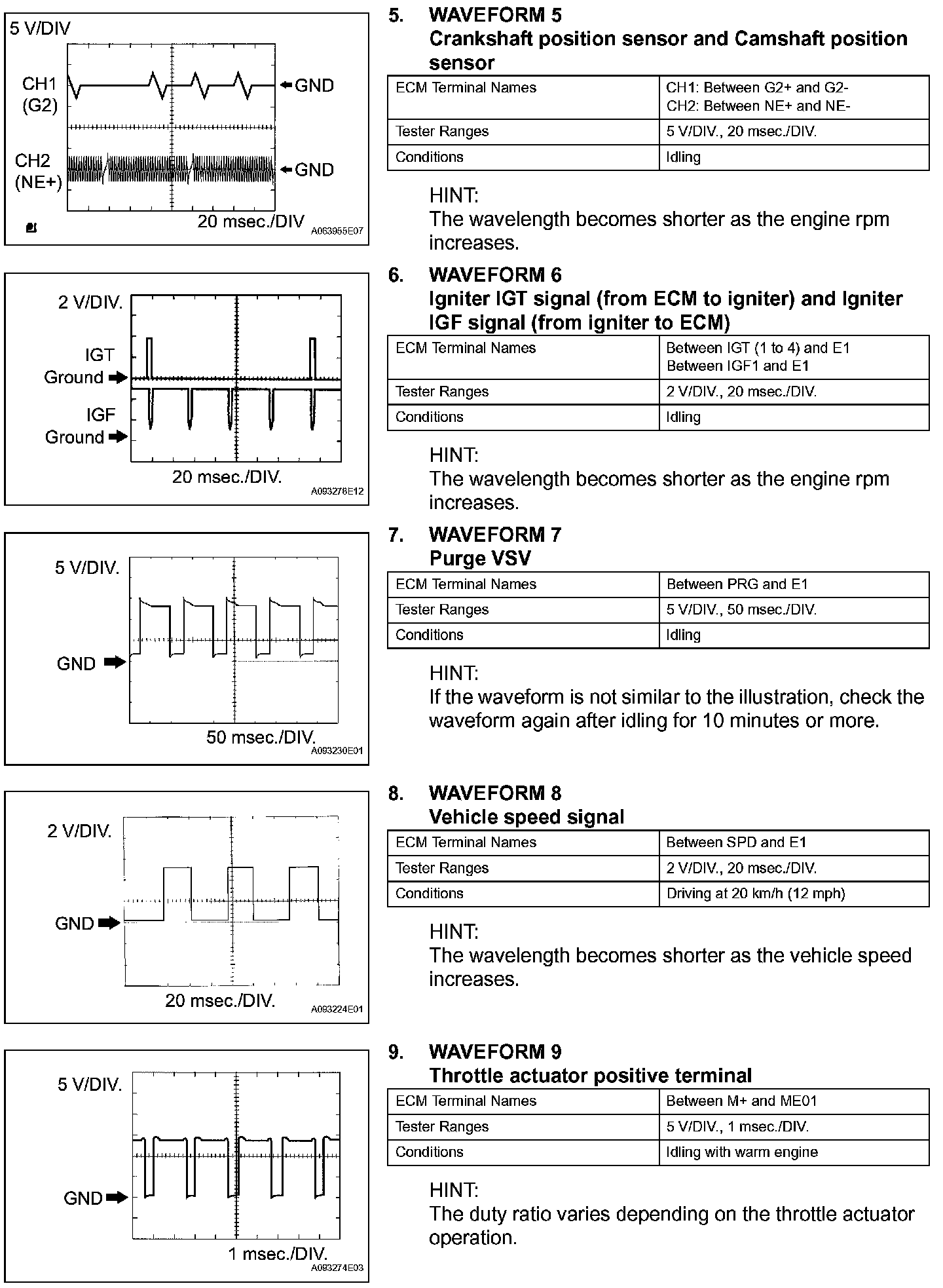

Oscilloscope Wave Forms (Part 2):

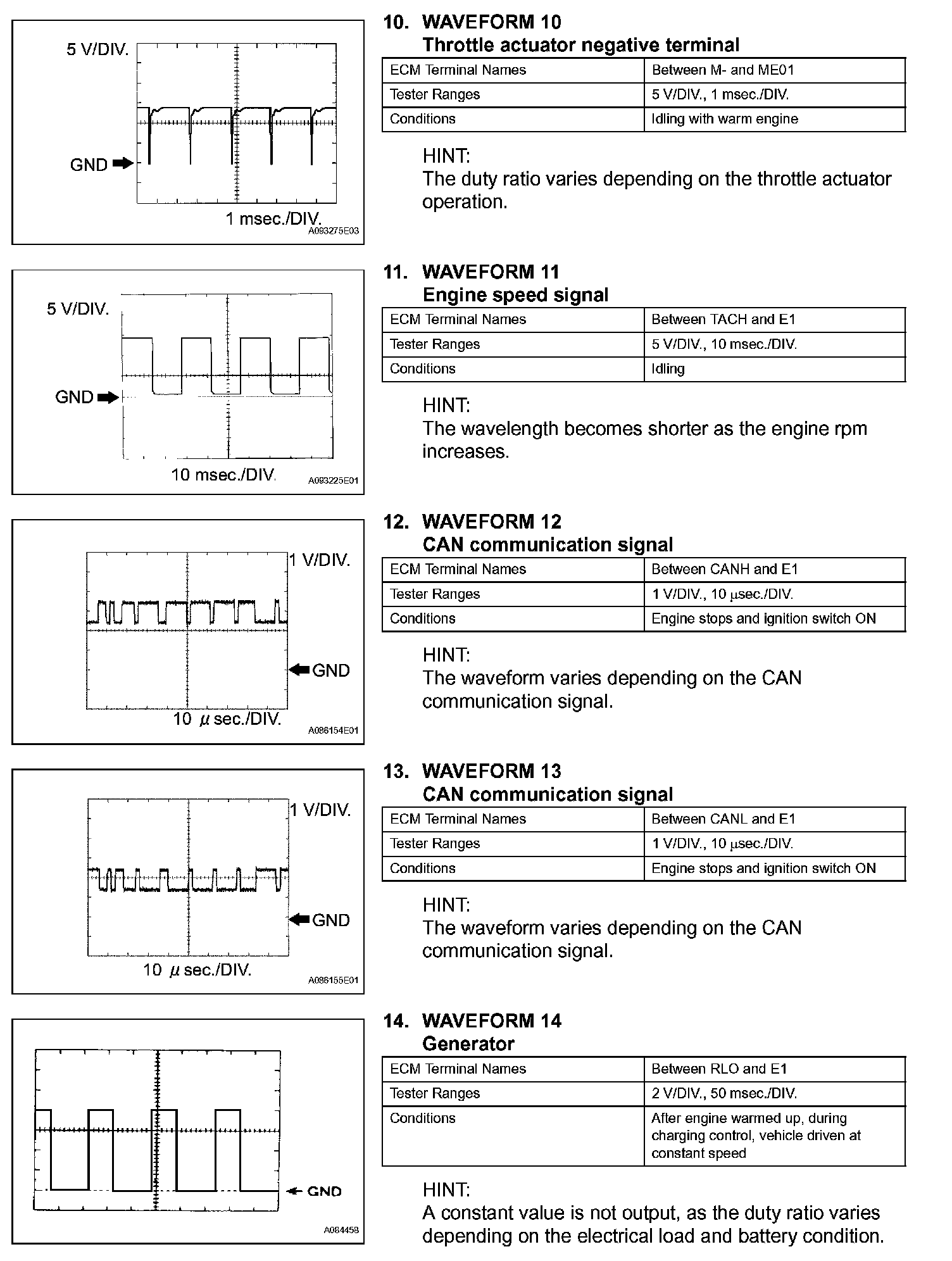

Oscilloscope Wave Forms (Part 3):

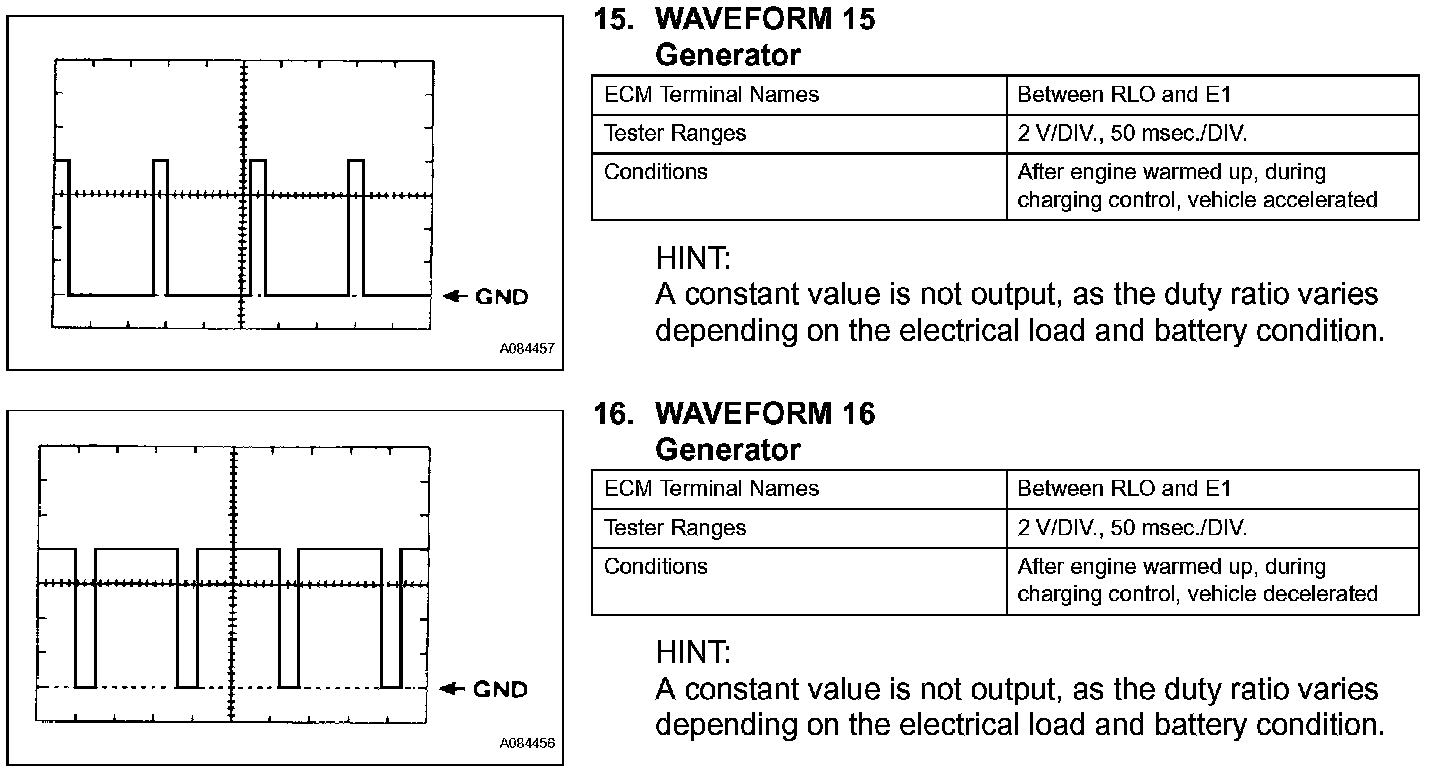

Oscilloscope Wave Forms (Part 4):
