Transmission Position Sensor/Switch: Testing and Inspection
PARK / NEUTRAL POSITION SWITCHINSPECTION

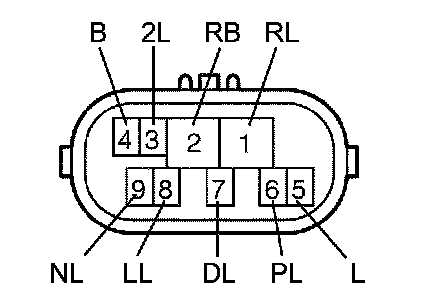

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a. Measure the resistance of the switch when the shift lever is moved to each position.

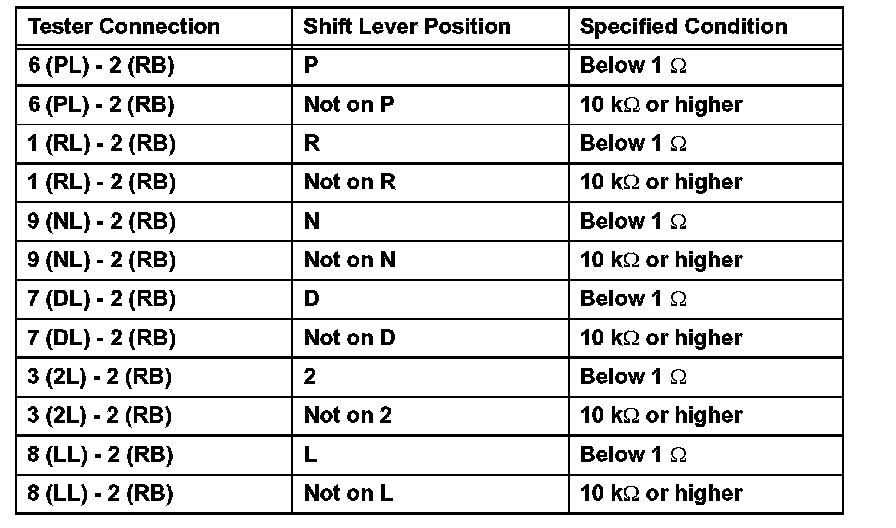

Standard Resistance:
