Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

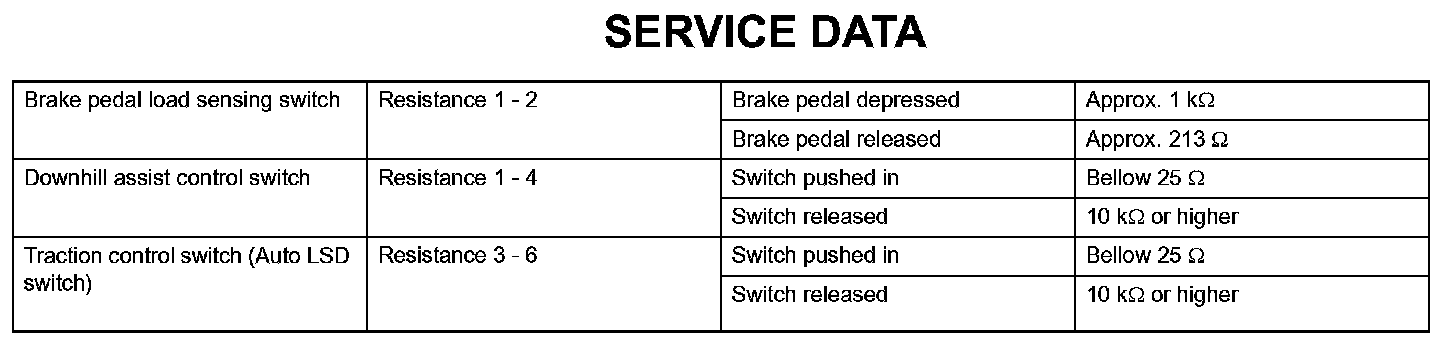

Brake Control-Service Data:
