Timing Cover
Timing Cover
Timing Chain

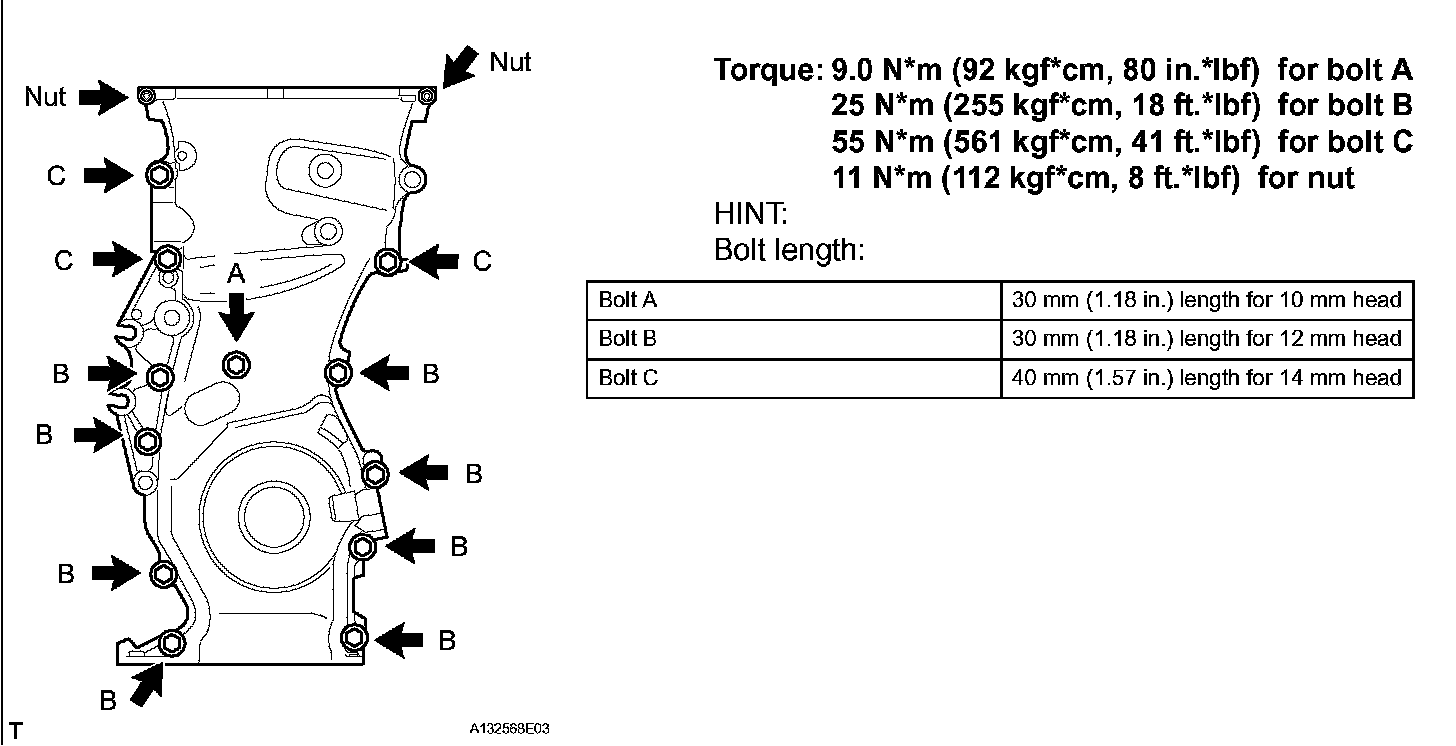

Cover Bolts And Nuts
Crankshaft Pulley Bolt
180 Nm (1,835 kgf-cm, 133 ft. lbs.)
