Power Seat Control Module: Locations

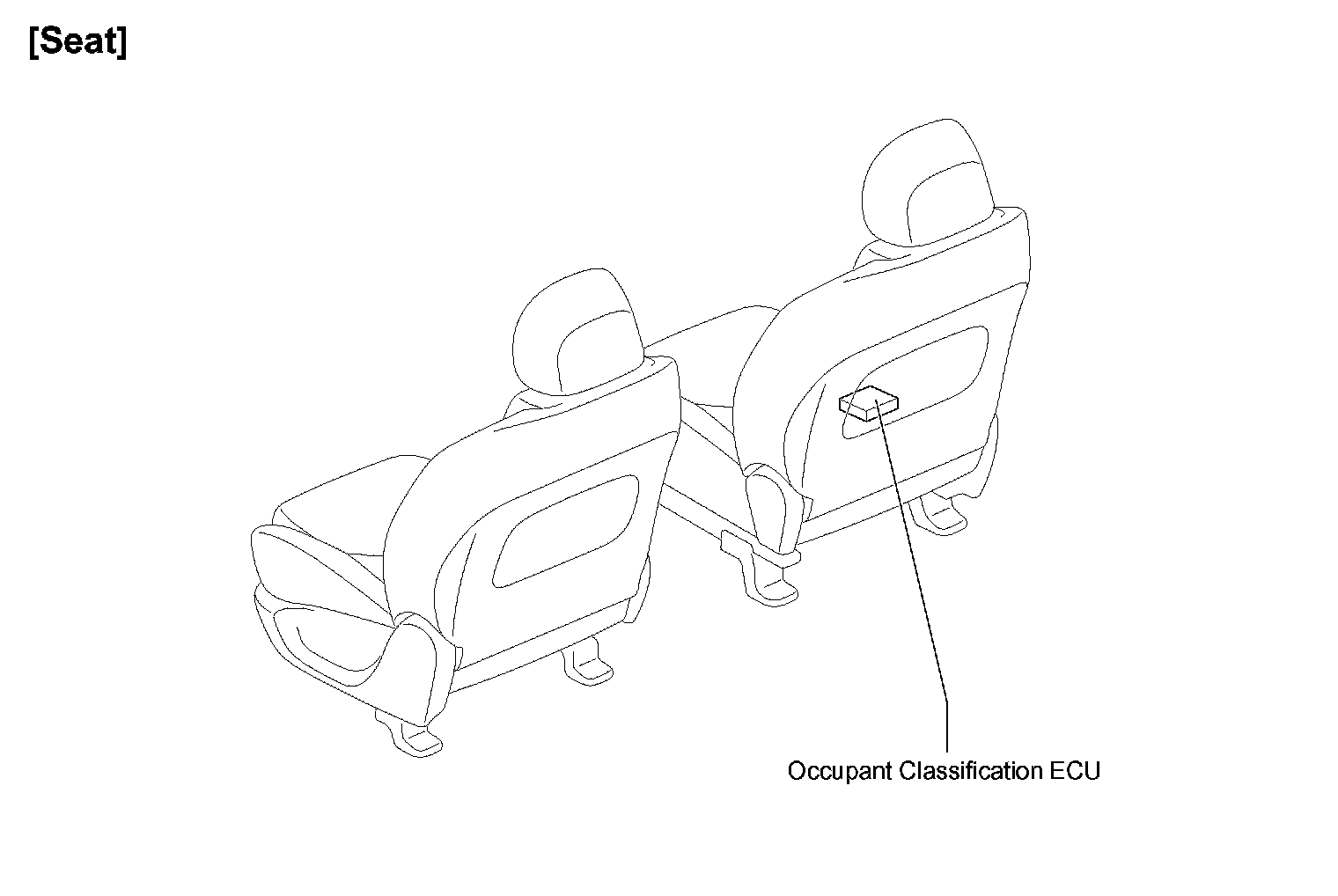

Seat:



Fr - Si:

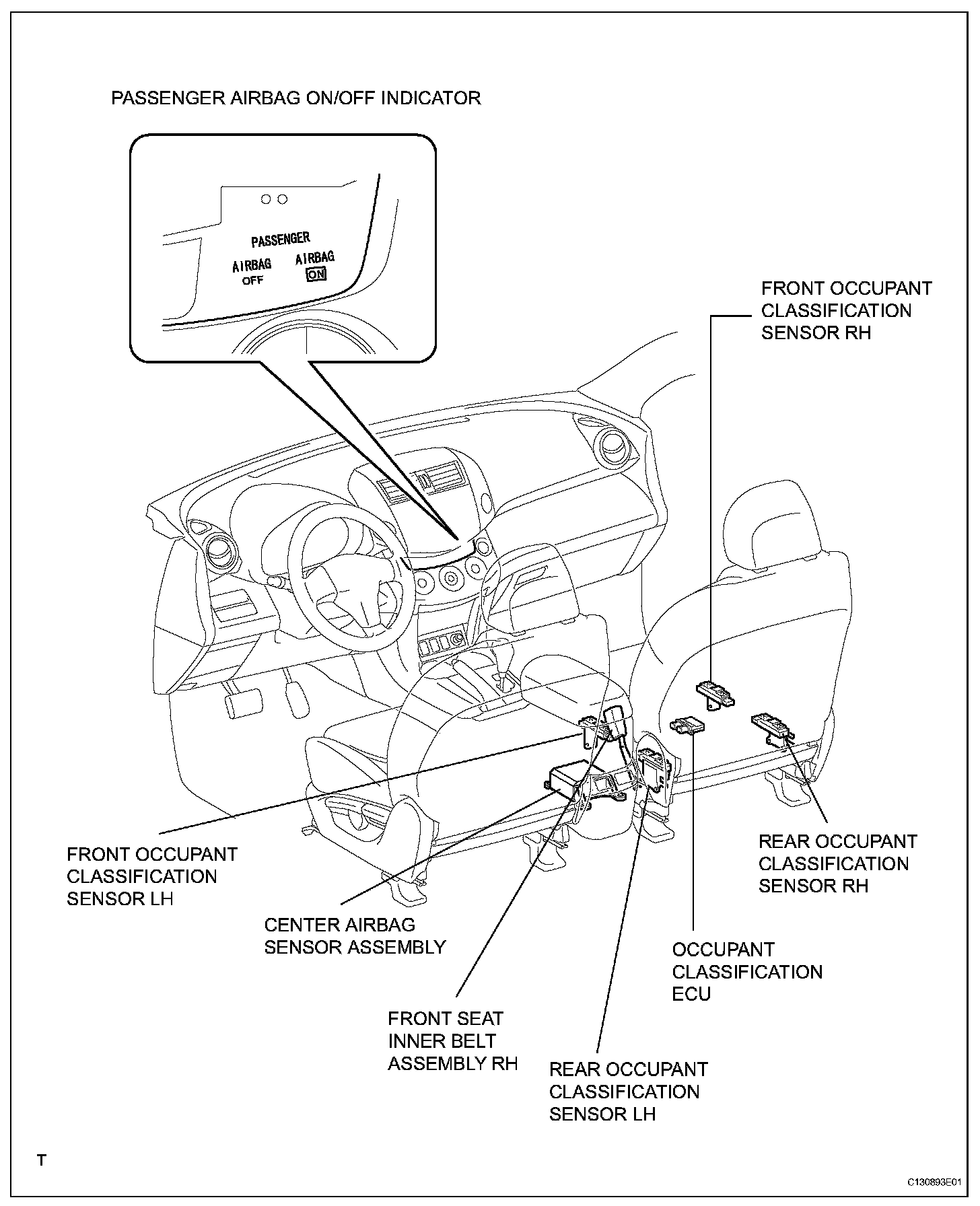

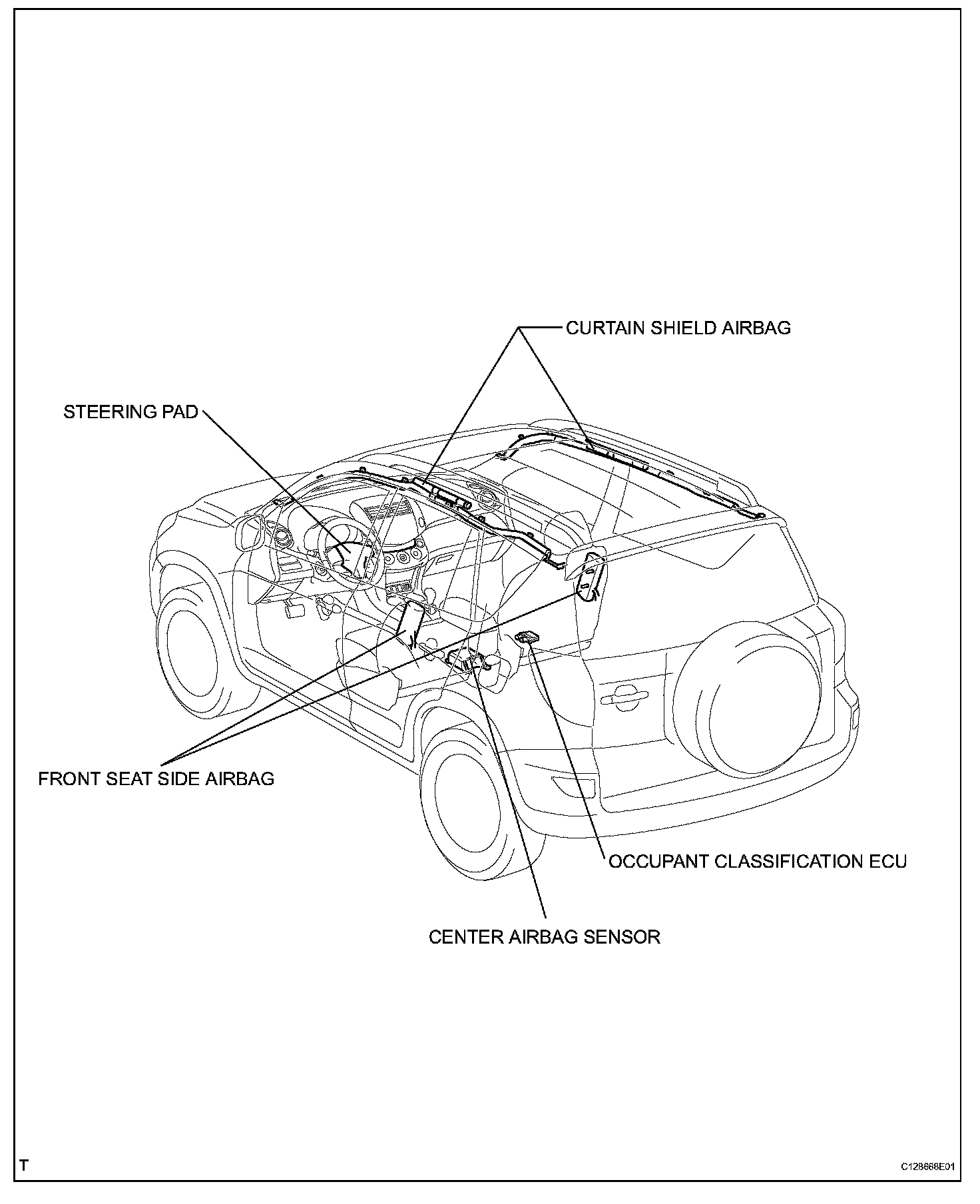

Airbag System:

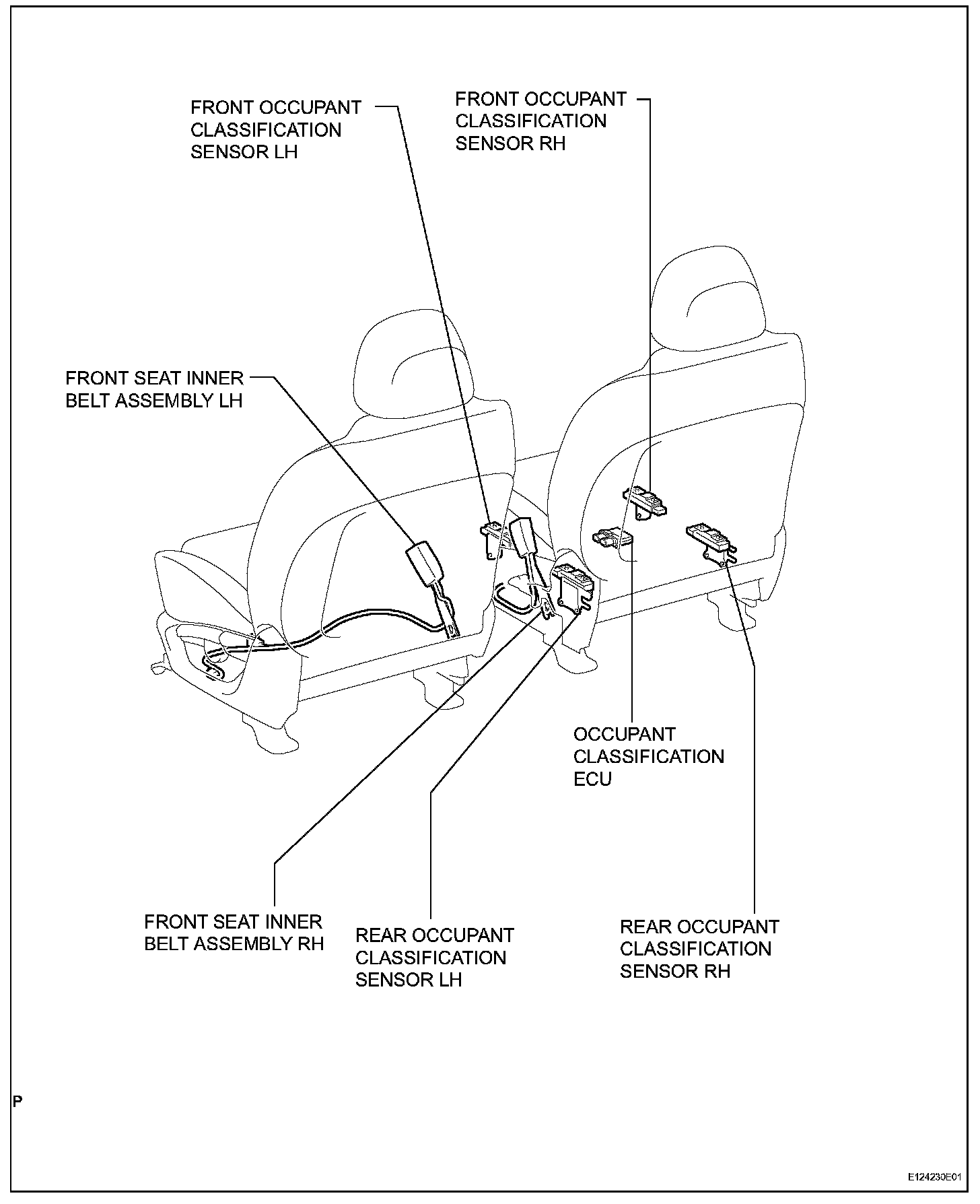

Occupant Classification System:



Meter/Gauge System:
