Cruise Control Switch: Testing and Inspection
INSPECTION
1.

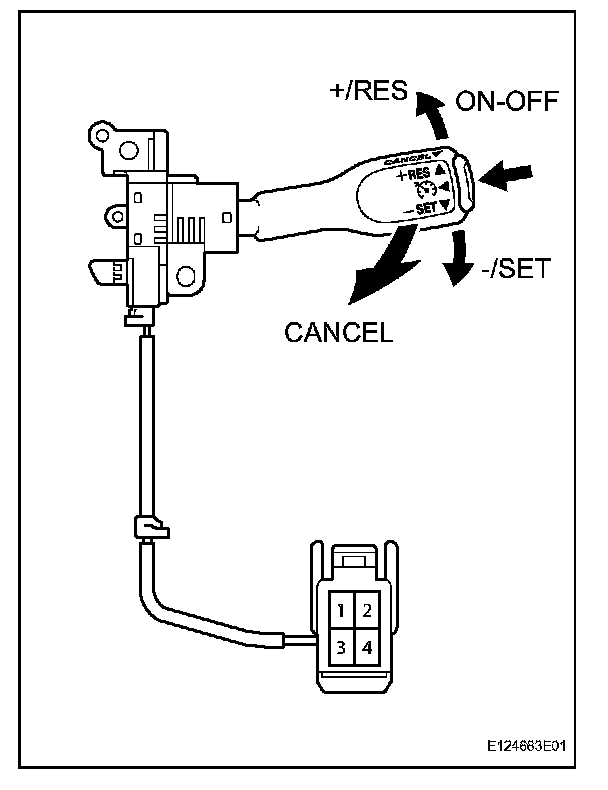

INSPECT CRUISE CONTROL MAIN SWITCH
a.

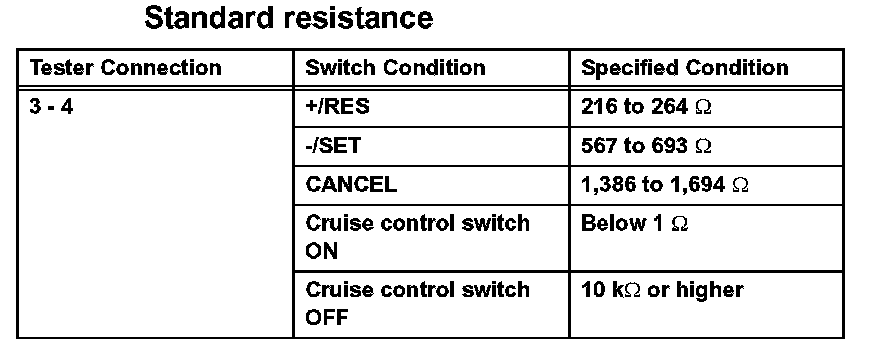

Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
