System Diagram
System Diagram

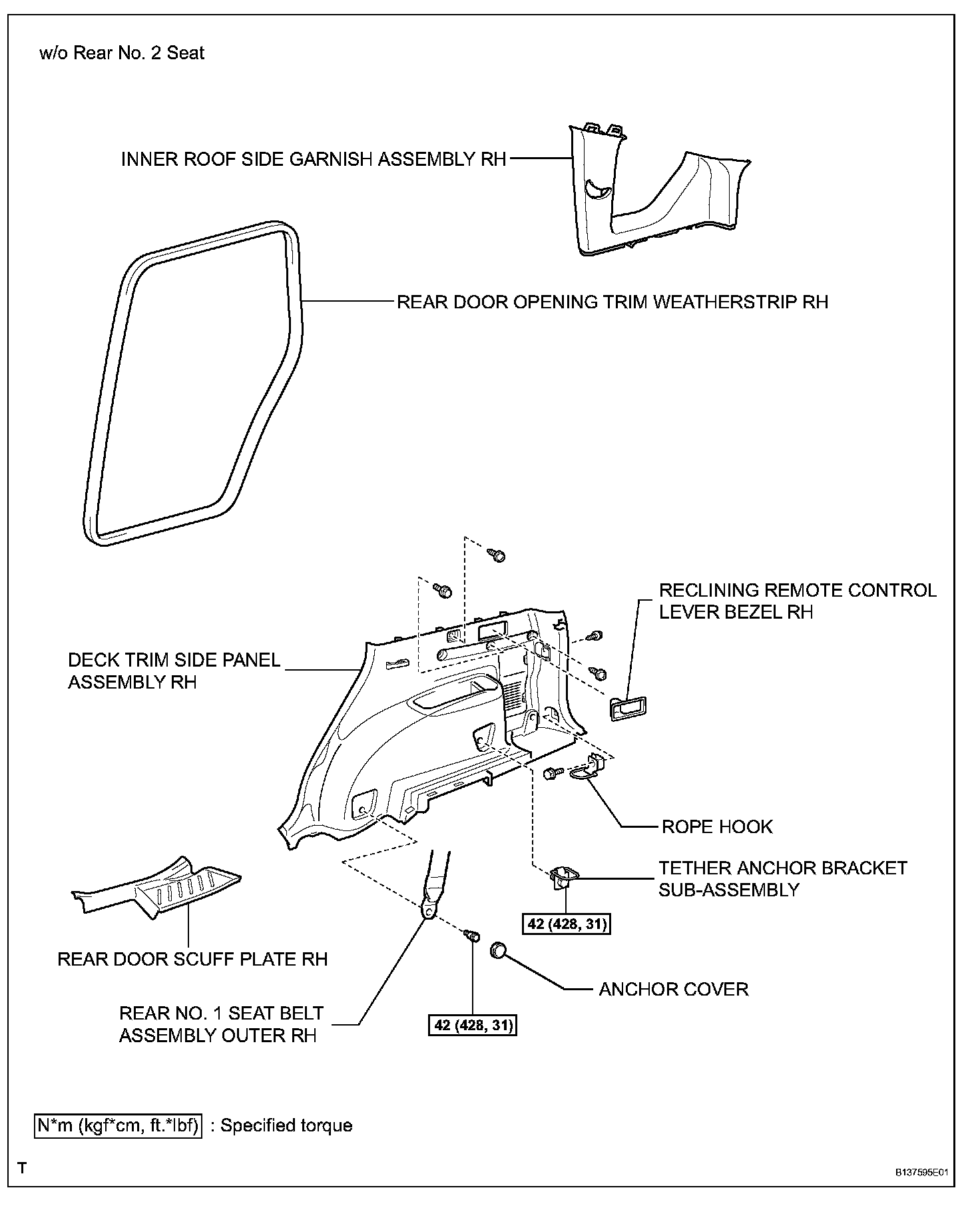

Door Control Receiver:

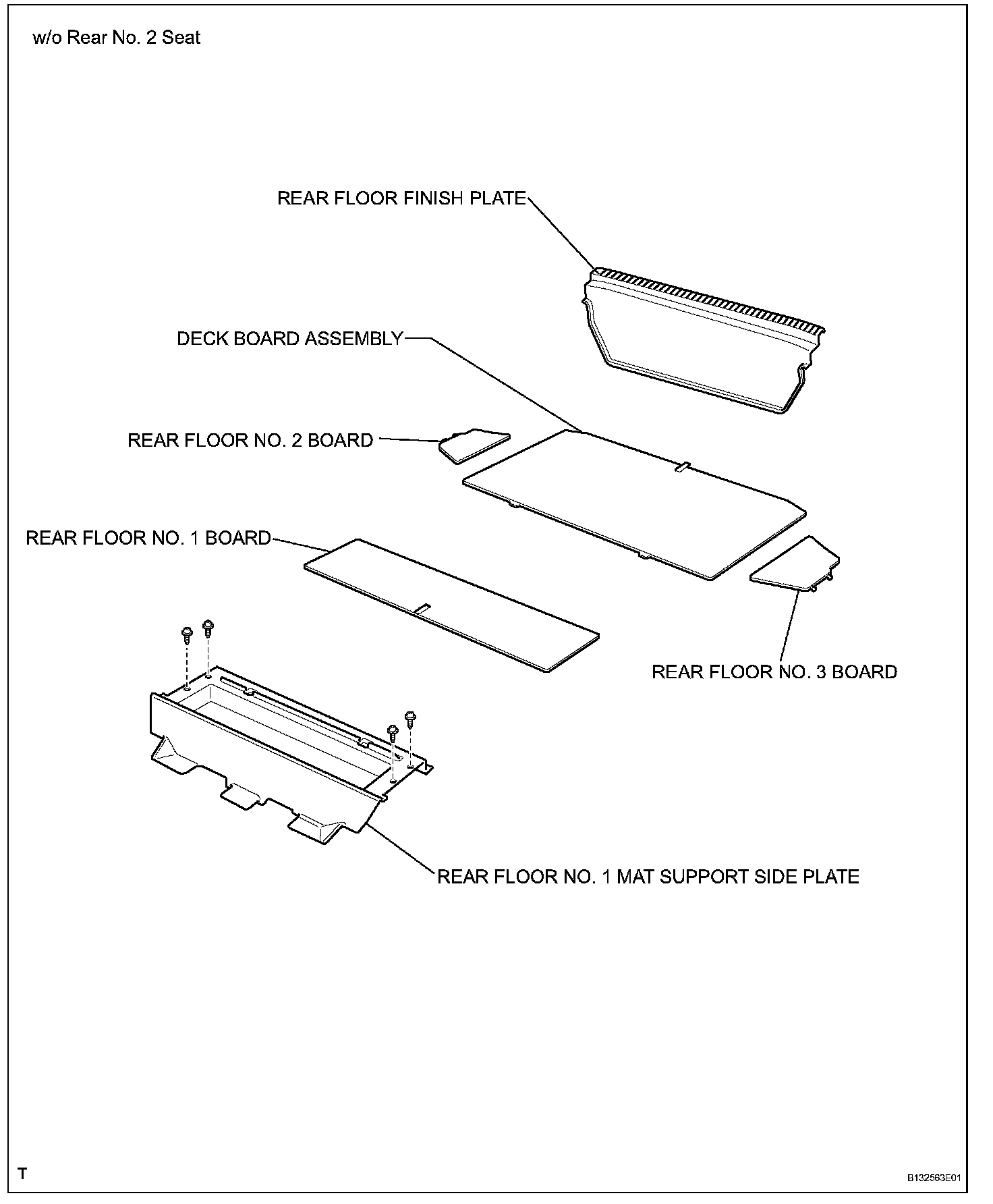

Door Control Receiver:

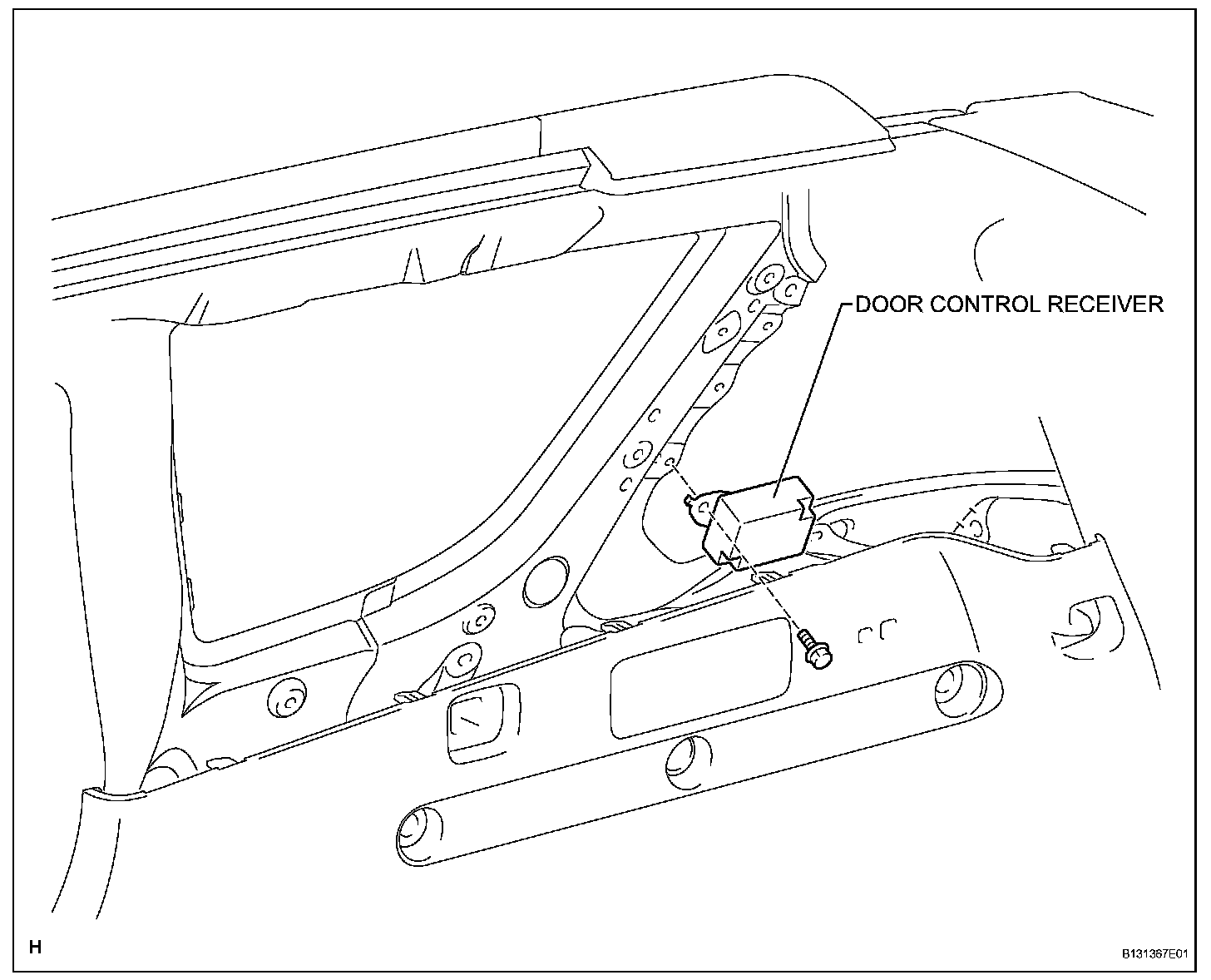

Door Control Receiver:

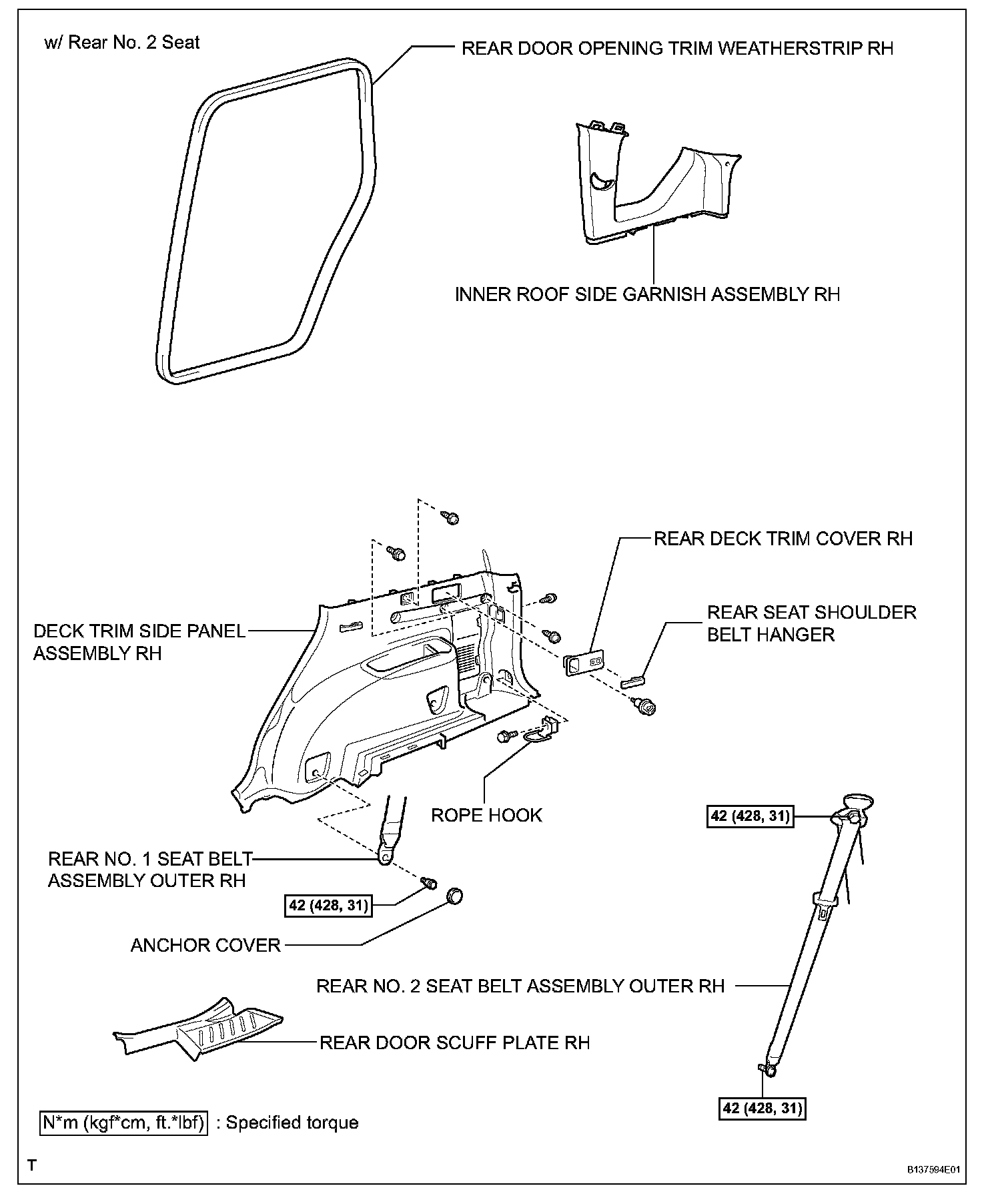

Door Control Receiver:
Door Control Receiver:
