Heating and Air Conditioning: Service and Repair
AIR CONDITIONING AMPLIFIERREMOVAL

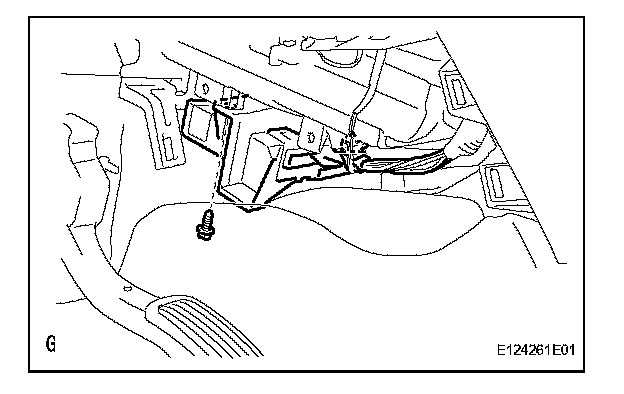

1. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Detach the clamp.
b. Disconnect the connector.
c. Remove the screw and A/C amplifier.
INSTALLATION

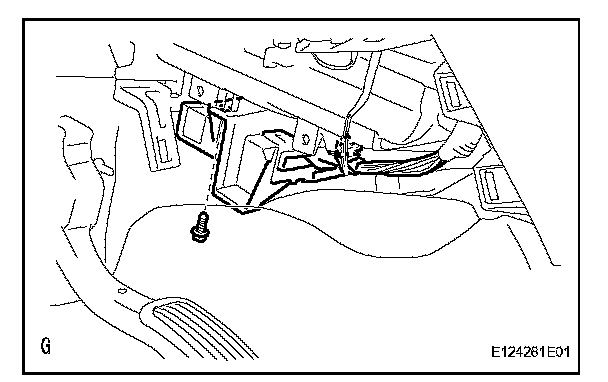

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Install the A/C amplifier with the screw.
b. Connect the connector.
c. Attach the clamp.
