Air Flow Meter/Sensor: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

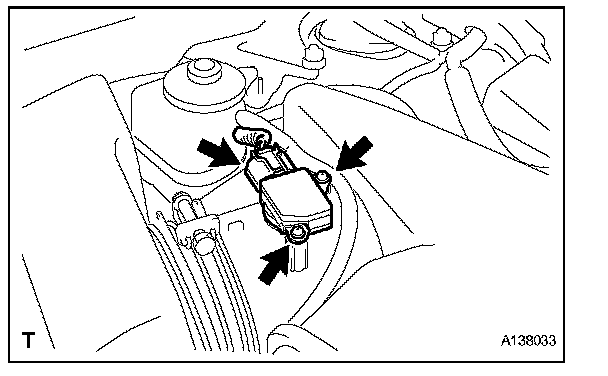

2. REMOVE MASS AIR FLOW METER

a. Disconnect the mass air flow meter connector.
b. Remove the 2 screws and mass air flow meter.

INSTALLATION

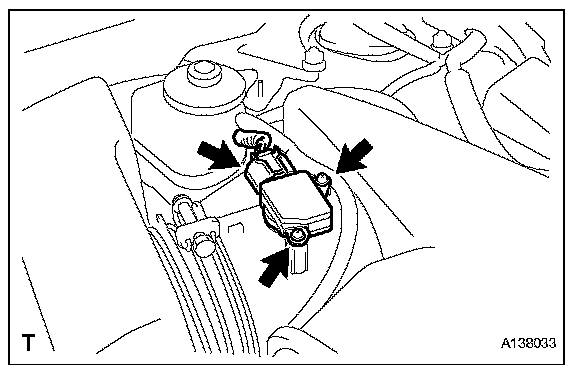

1. INSTALL MASS AIR FLOW METER

a. Install the mass air flow meter with the 2 screws.

NOTE: Make sure that the O-ring is not cracked or jammed when installing it.

b. Connect the mass air flow meter connector.

2. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
