Battery Current Sensor: Testing and Inspection
BATTERY CURRENT SENSORON-VEHICLE INSPECTION
1. CHECK BATTERY CURRENT SENSOR ASSEMBLY

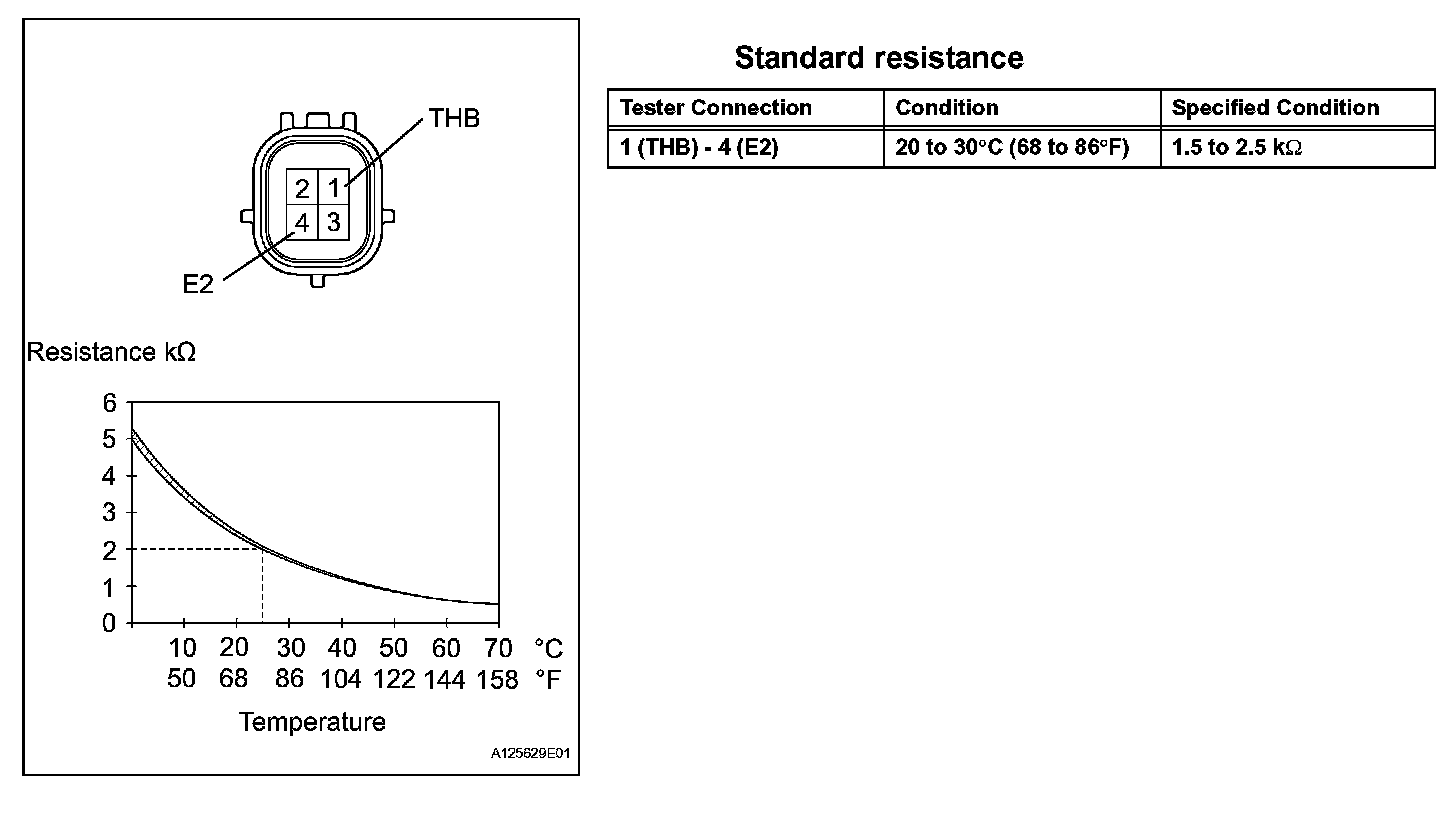

a. Measure the resistance of the sensor.
If the result is not as specified, replace the sensor assembly.

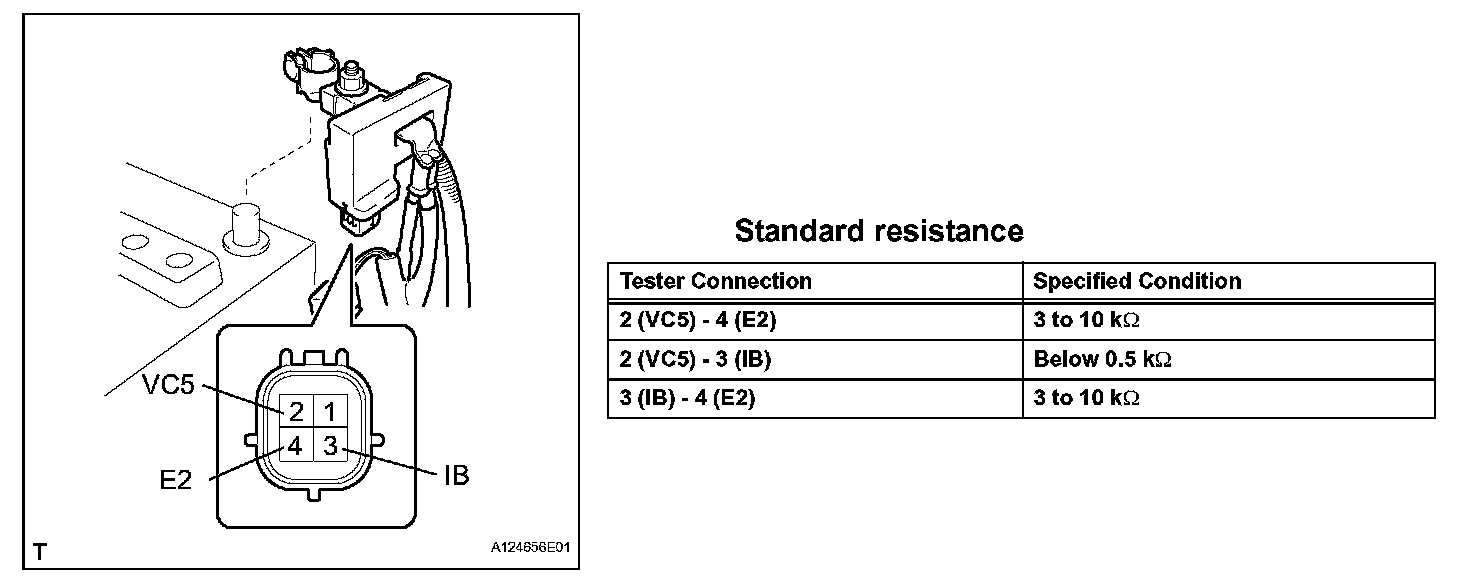

b. Measure the resistance of the sensor.
If the result is not as specified, replace the sensor assembly.
