Ignition Coil: Service and Repair

REMOVAL
1. REMOVE ENGINE ASSEMBLY
a. Remove the engine.

2. REMOVE INTAKE AIR SURGE TANK ASSEMBLY




3. REMOVE IGNITION COIL
a. Disconnect the 6 ignition coil connectors.

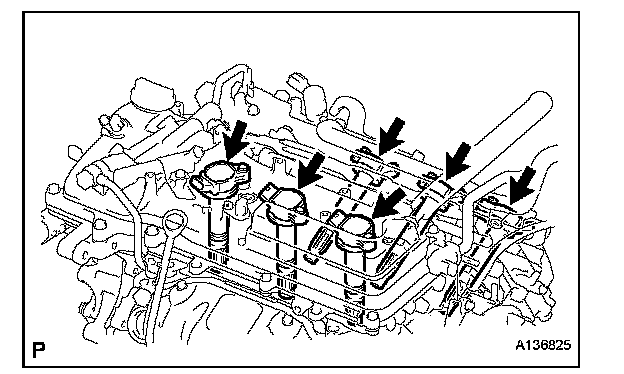

b. Remove the 6 bolts and 6 ignition coils.

INSTALLATION




1. INSTALL IGNITION COIL
a. Install the 6 ignition coils with the 6 bolts.

Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

b. Connect the 6 ignition coil connectors.

2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
3. INSTALL ENGINE ASSEMBLY
a. Install the engine.
