System Specifications

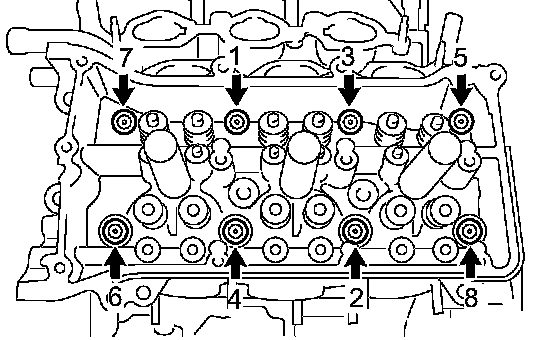

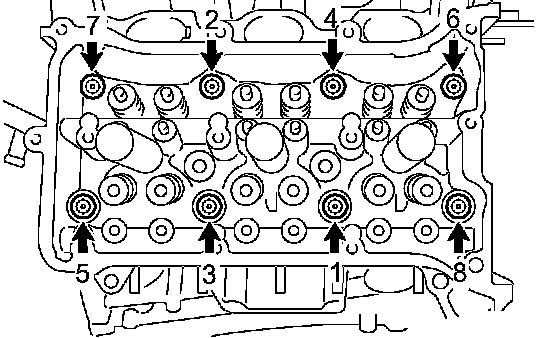

Cylinder Head Bolts

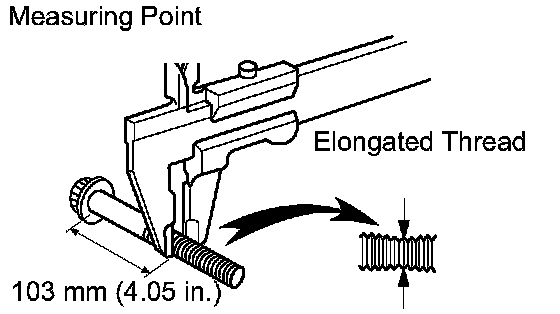

Minimum outside diameter 10.70 mm (0.4213 inch)
If the diameter is less than the minimum, replace the cylinder head bolt.








First pass 36 Nm (367 kgf-cm, 27 ft. lbs.) in several steps
Second pass Tighten 90°
Third pass Tighten 90°

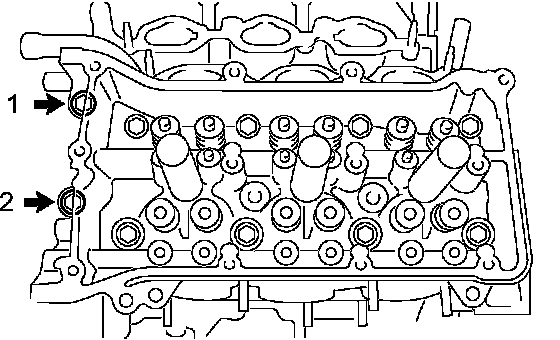

Final pass: Bolts 1 & 2 30 Nm (306 kgf-cm, 22 ft. lbs.)

Intake manifold bolts & nuts 21 Nm (214 kgf-cm, 15 ft. lbs.) in several passes

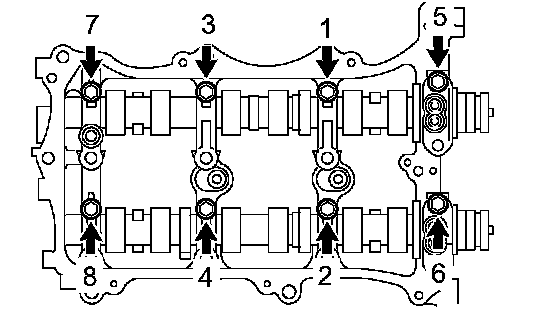

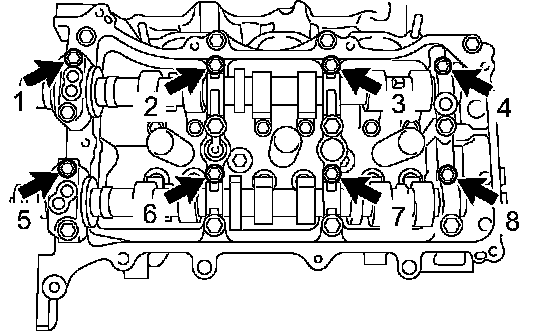

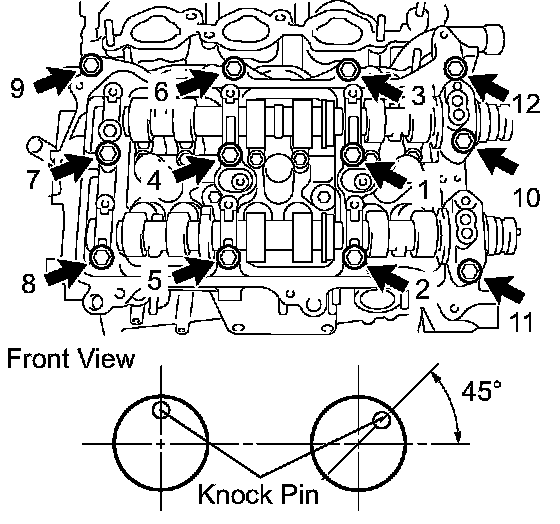

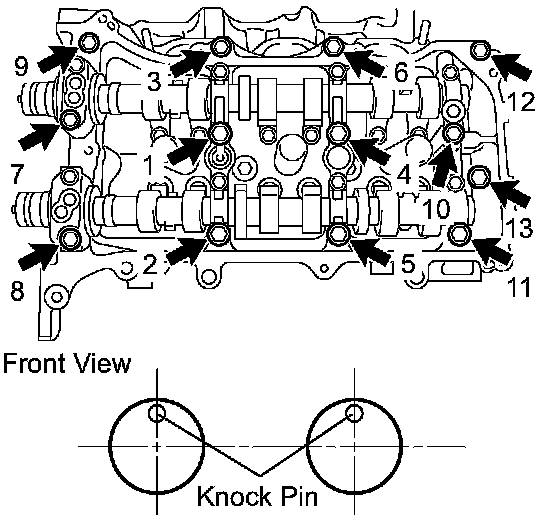

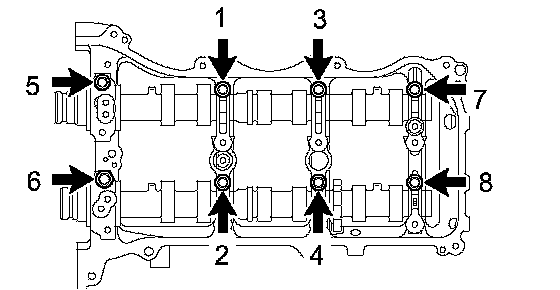

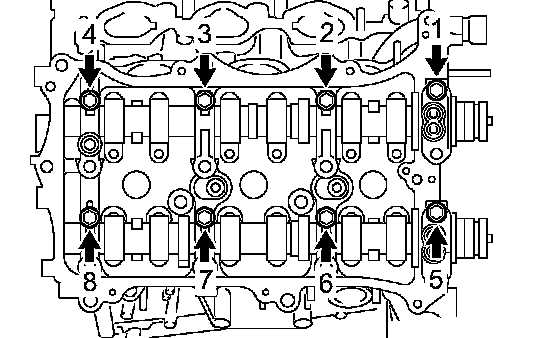

Camshaft Bearing Cap Bolts








First pass 10 Nm (102 kgf-cm, 7 ft. lbs.)








Second pass 28 Nm (286 kgf-cm, 21 ft. lbs.)








Final pass 16 Nm (163 kgf-cm, 12 ft. lbs.)

Crankshaft Main Bearing Cap Bolts





Lower bolts
First pass 61 Nm (622 kgf-cm, 45 ft. lbs.)
Final pass Tighten 90°





Side bolts
Bolt length:
Bolt A 45 mm (1.77 inch)
Except Bolt A 30 mm (1.18 inch)
Torque 52 Nm (530 kgf-cm, 38 ft. lbs.)

Connecting Rod Cap Bolts





Diameter
Standard 7.2 to 7.3 mm (0.283 to 0.287 inch)
Maximum 7.0 mm (0.276 inch)
Torque
First pass 25 Nm (255 kgf-cm, 18 ft. lbs.)
Final pass Tighten 90°

Crankshaft pulley bolt 250 Nm (2,549 kgf-cm, 184 ft. lbs.)

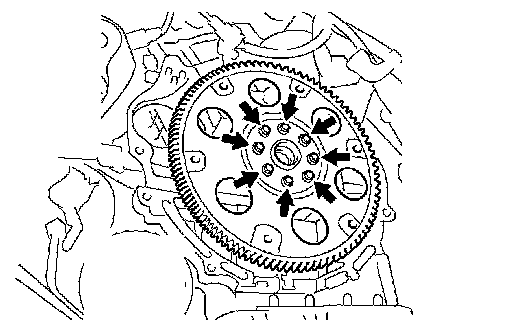

Flex Plate Bolts





Do not reuse the bolts.

Torque 178 Nm (1,815 kgf-cm, 132 ft. lbs.)

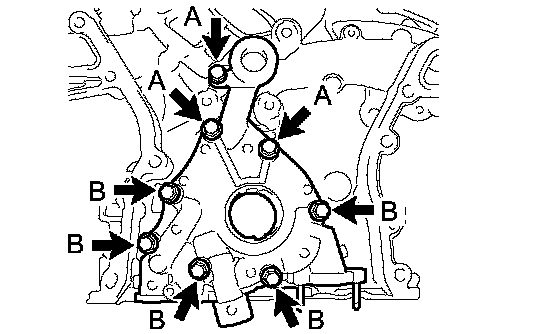

Oil Pump Bolts





Bolt length:
Bolt A 22 mm (0.87 inch)
Bolt B 40 mm (1.58 inch)

Torque 9.0 Nm (92 kgf-cm, 80 inch lbs.)

Exhaust manifold nuts 21 Nm (214 kgf-cm, 15 ft. lbs.)

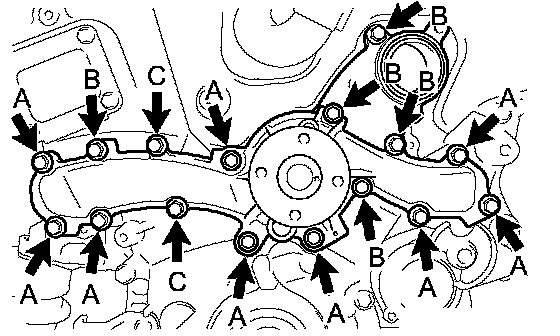

Water Pump Bolts





Be sure to replace the 2 C bolts with new ones or reuse them after applying adhesive.

Bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)
Bolts B & C 9.1 Nm (93 kgf-cm, 81 inch lbs.)
