System Specifications

Crankshaft pulley bolt 250 Nm (2,549 kgf-cm, 184 ft. lbs.)

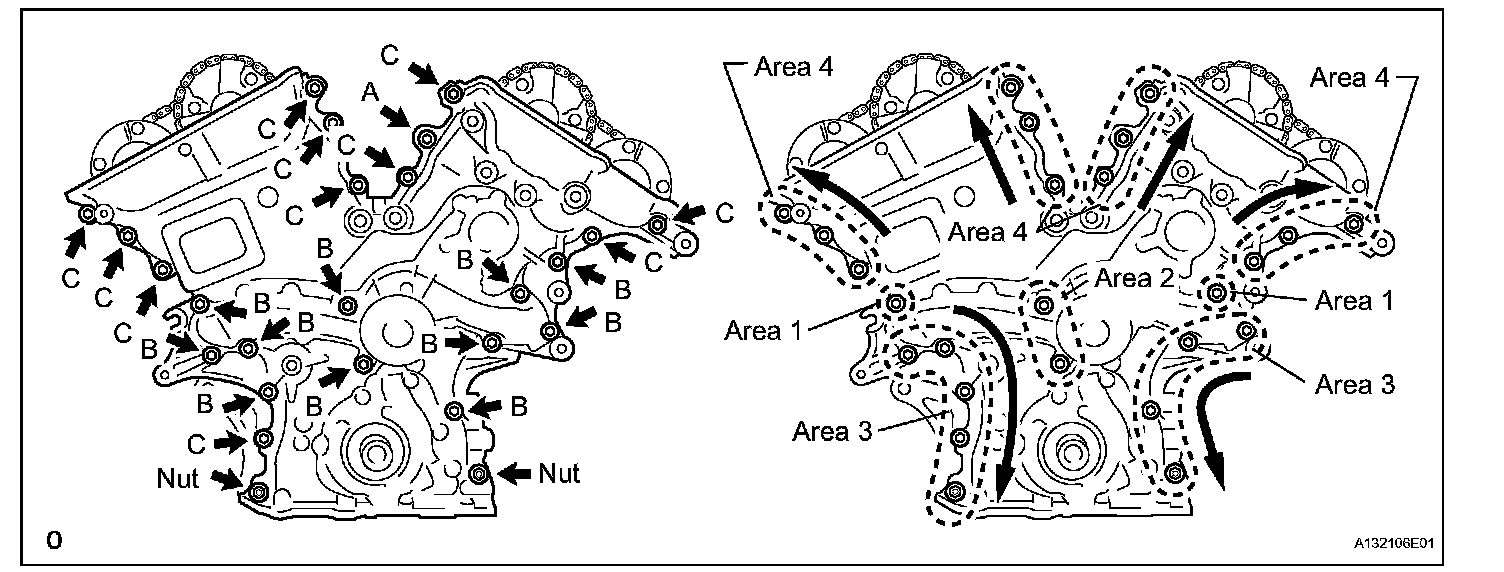

Timing Cover Bolts & Nuts





Bolt length:
Bolt A 40 mm (1.57 inch)
Bolt B 55 mm (2.17 inch)
Bolt C 25 mm (0.98 inch)

Torque:
First pass: Area 1, 2 bolt 21 Nm (214 kgf-cm, 15 ft. lbs.)
Second pass: Area 3 bolt, nut 21 Nm (214 kgf-cm, 15 ft. lbs.)
Third pass: Area 4 bolt A 43 Nm (438 kgf-cm, 32 ft. lbs.)
Final pass: Area 4 except bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)
