Replacement

REPLACEMENT




1. REPLACE GENERATOR DRIVE END FRAME BEARING

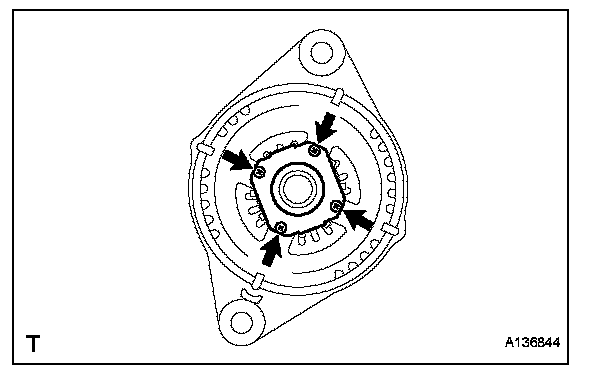

a. Remove the 4 screws and bearing retainer.

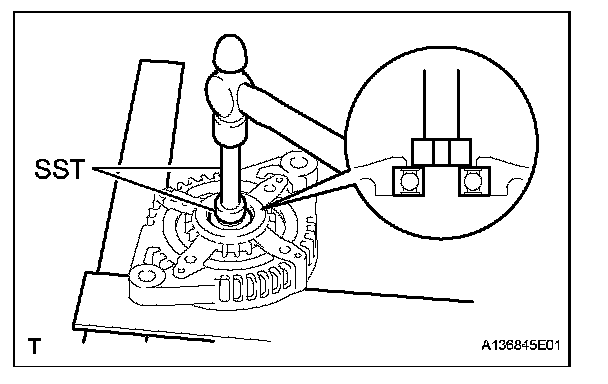

b. Using SST and a hammer, tap out the bearing.

SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

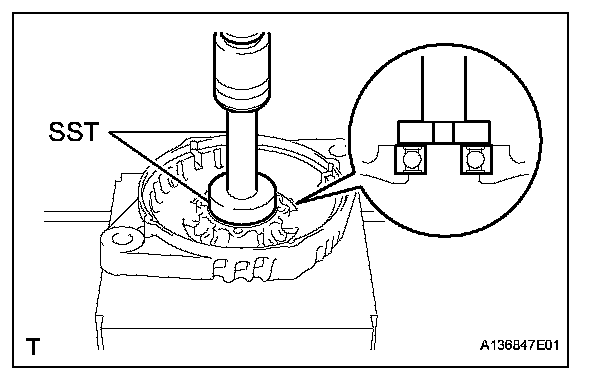

c. Using SST and a press, press in a new bearing.

SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)




d. Install the bearing retainer with the 4 screws.

Torque: 2.3 N.m (23 kgf.cm, 20 in.lbf)
