Ignition Switch: Testing and Inspection

INSPECTION







1. INSPECT IGNITION SWITCH ASSEMBLY

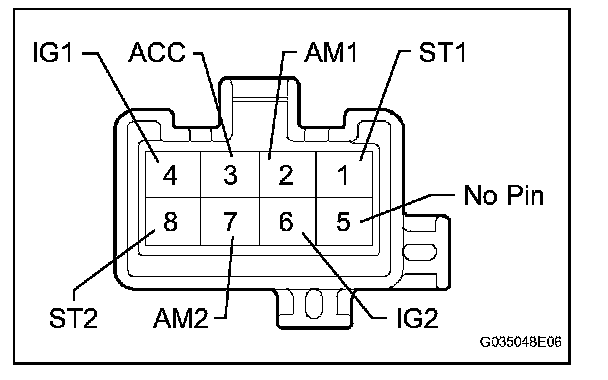

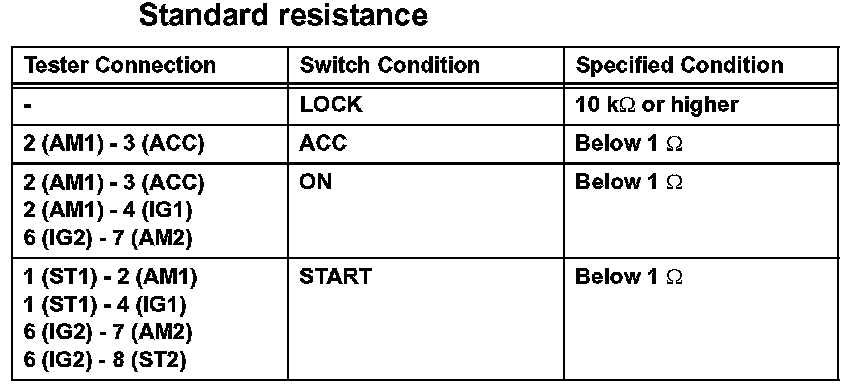

a. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
