Speed Sensor

SPEED SENSOR

INSPECTION

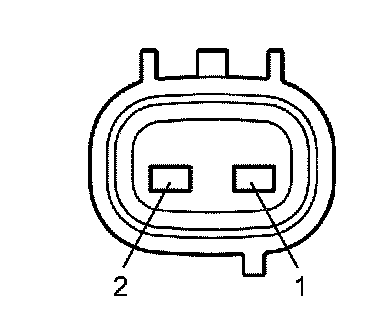

1. INSPECT SPEED SENSOR NT
Measure the resistance of the sensor.

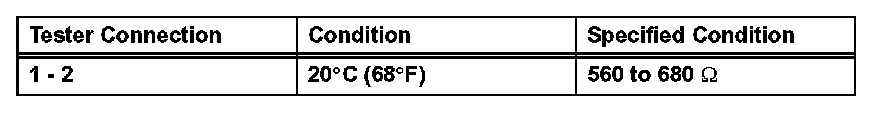

Standard Resistance:

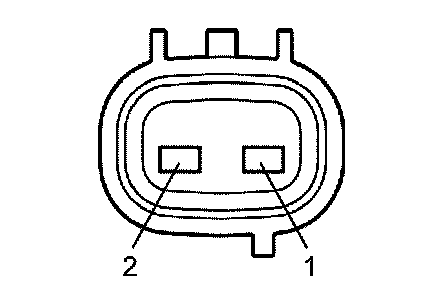

2. INSPECT SPEED SENSOR NC
Measure the resistance of the sensor.

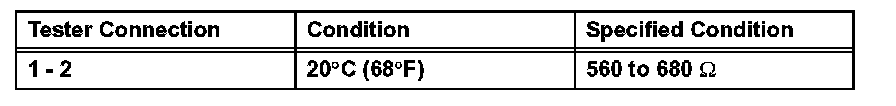

Standard Resistance:
