Home >> Toyota >> 2006 >> RAV4 4WD V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly

Differential Assembly

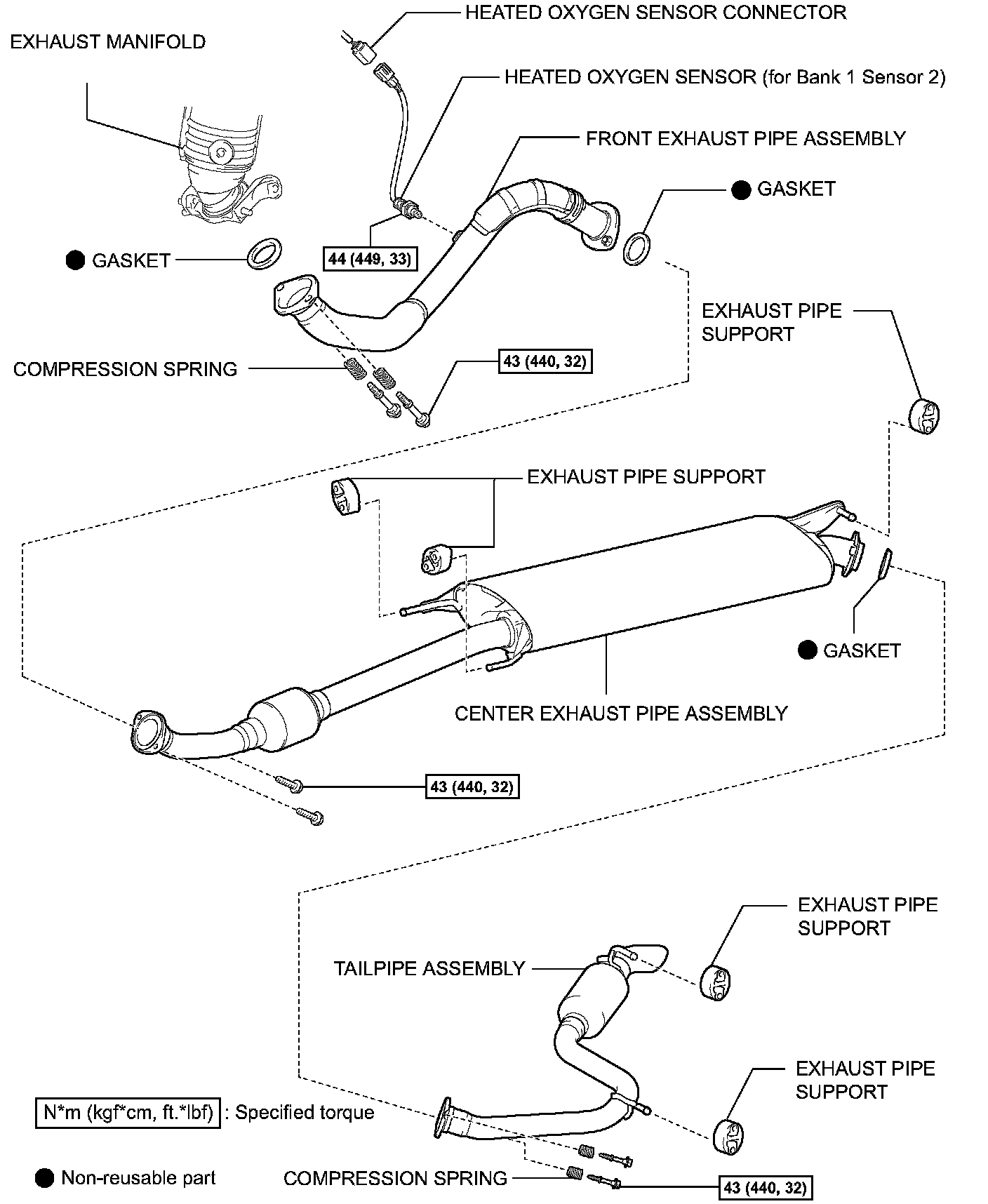

Components:

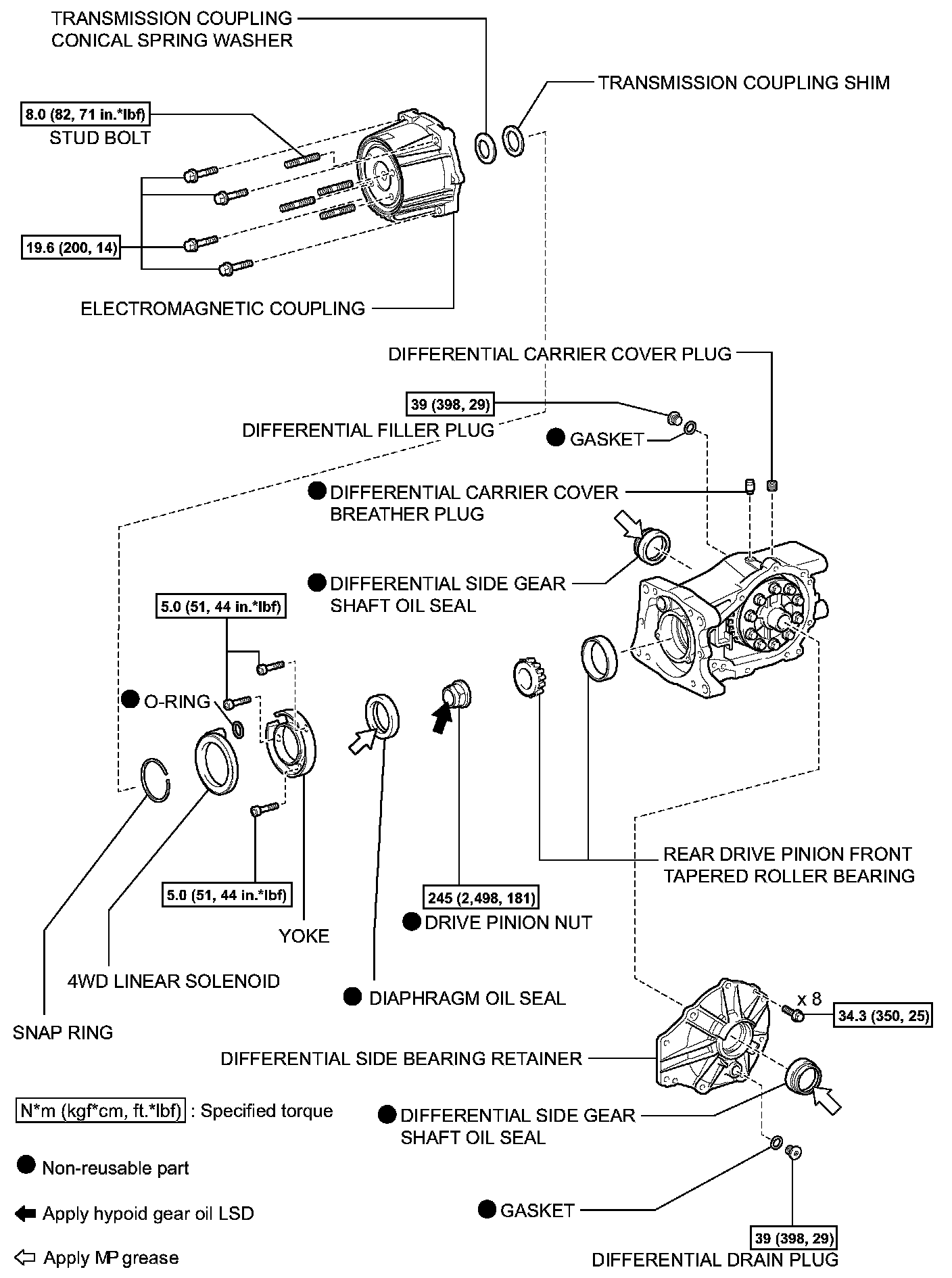

Components:

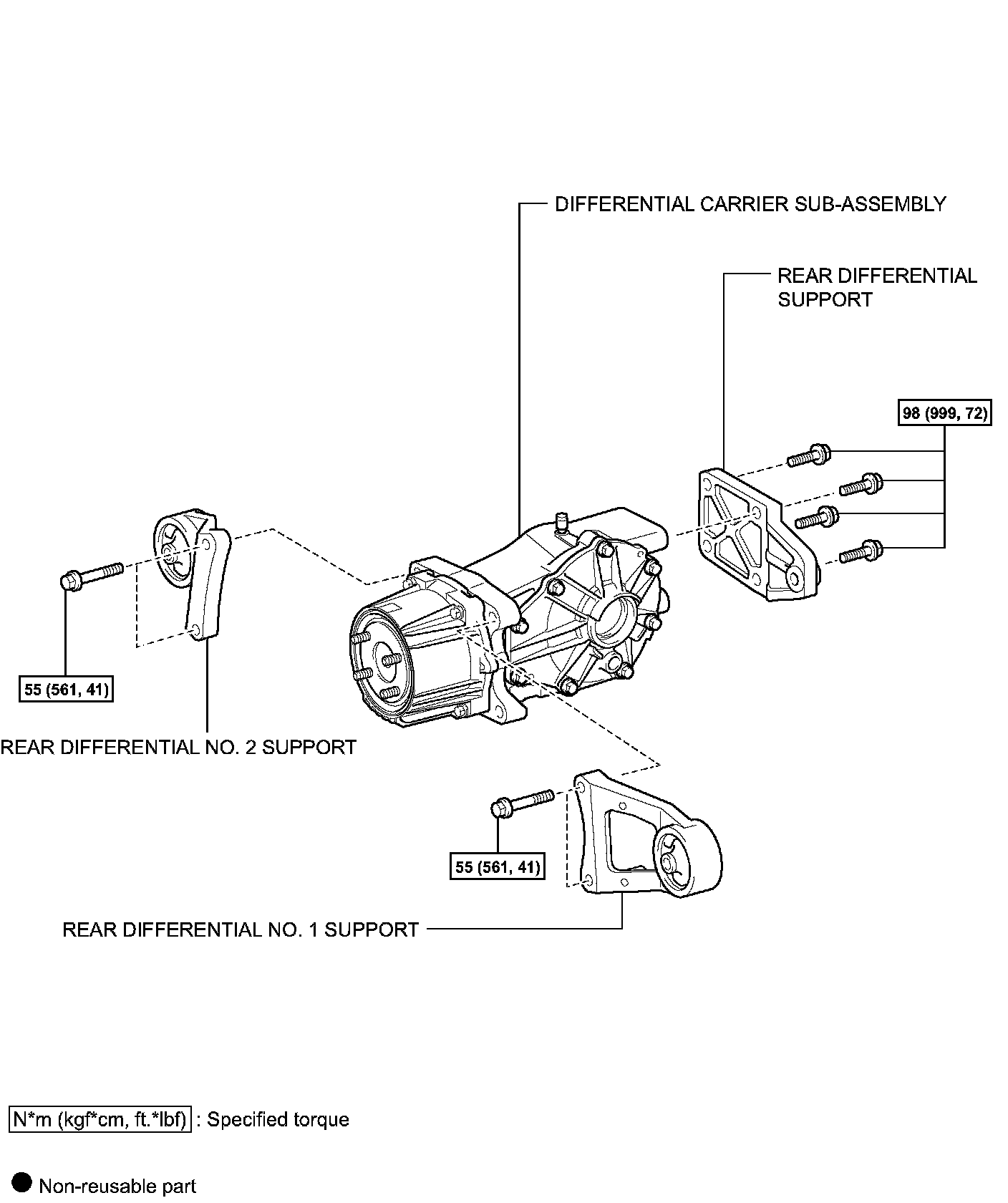

Components:

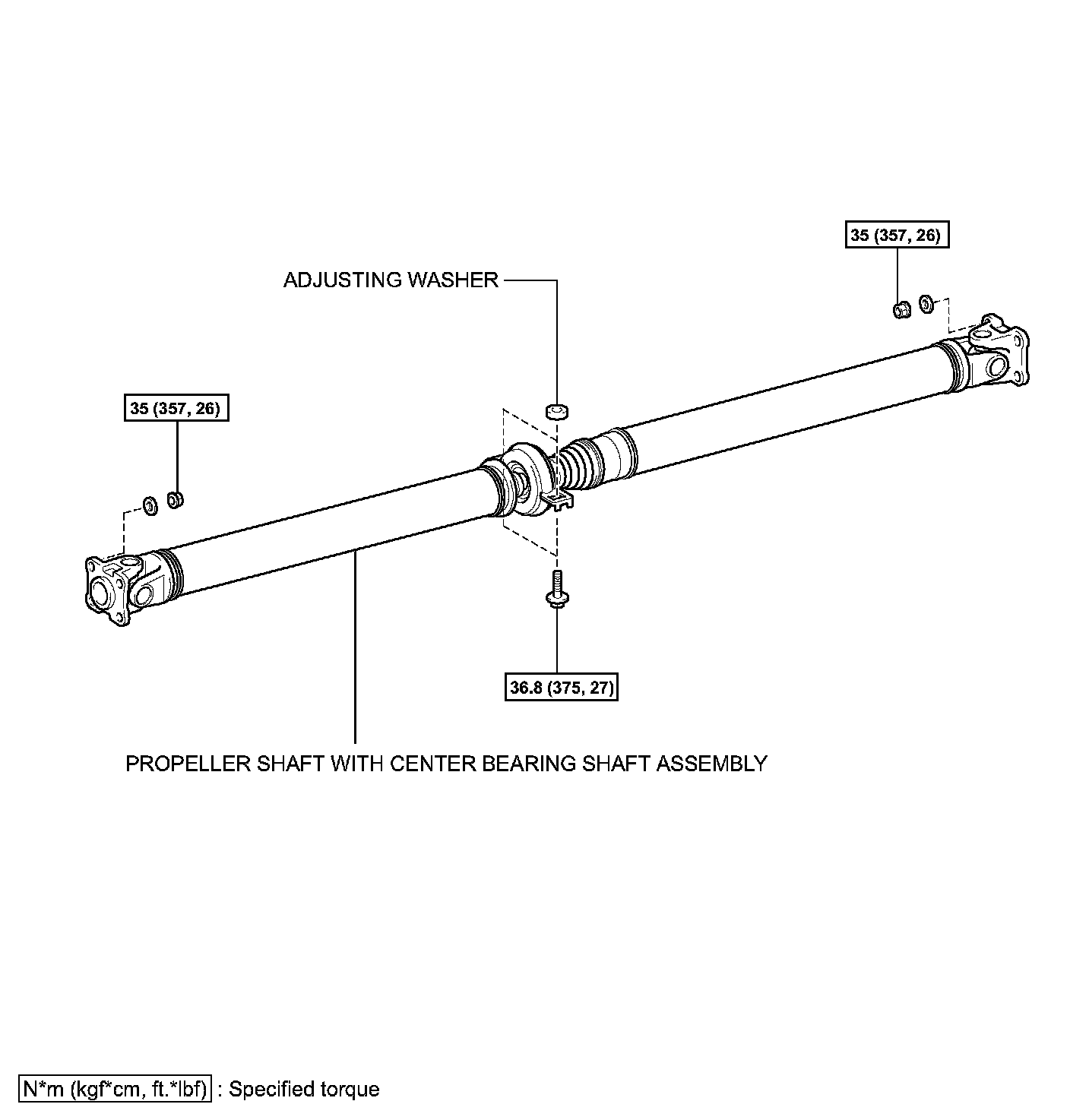

Components:

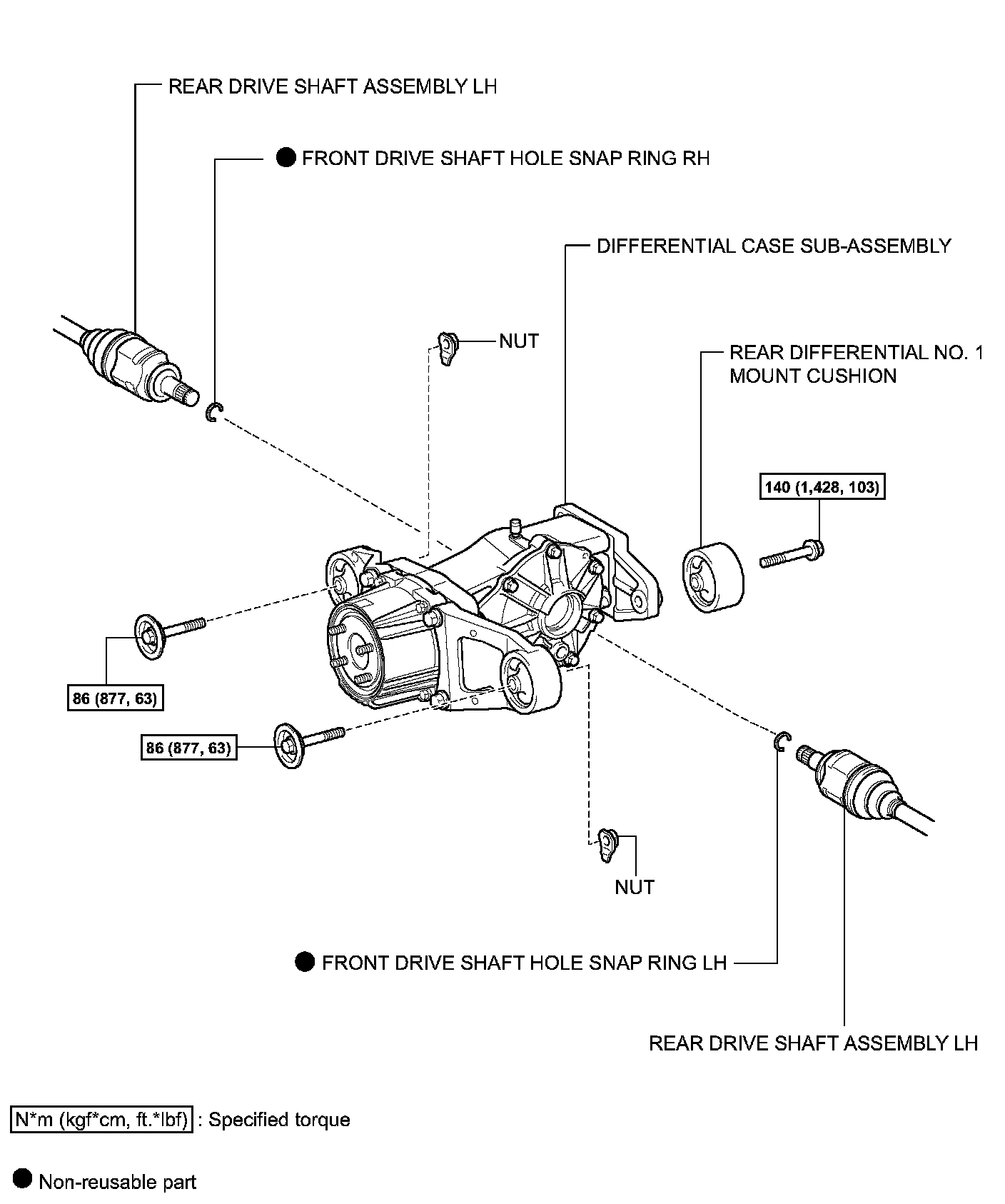

Components:

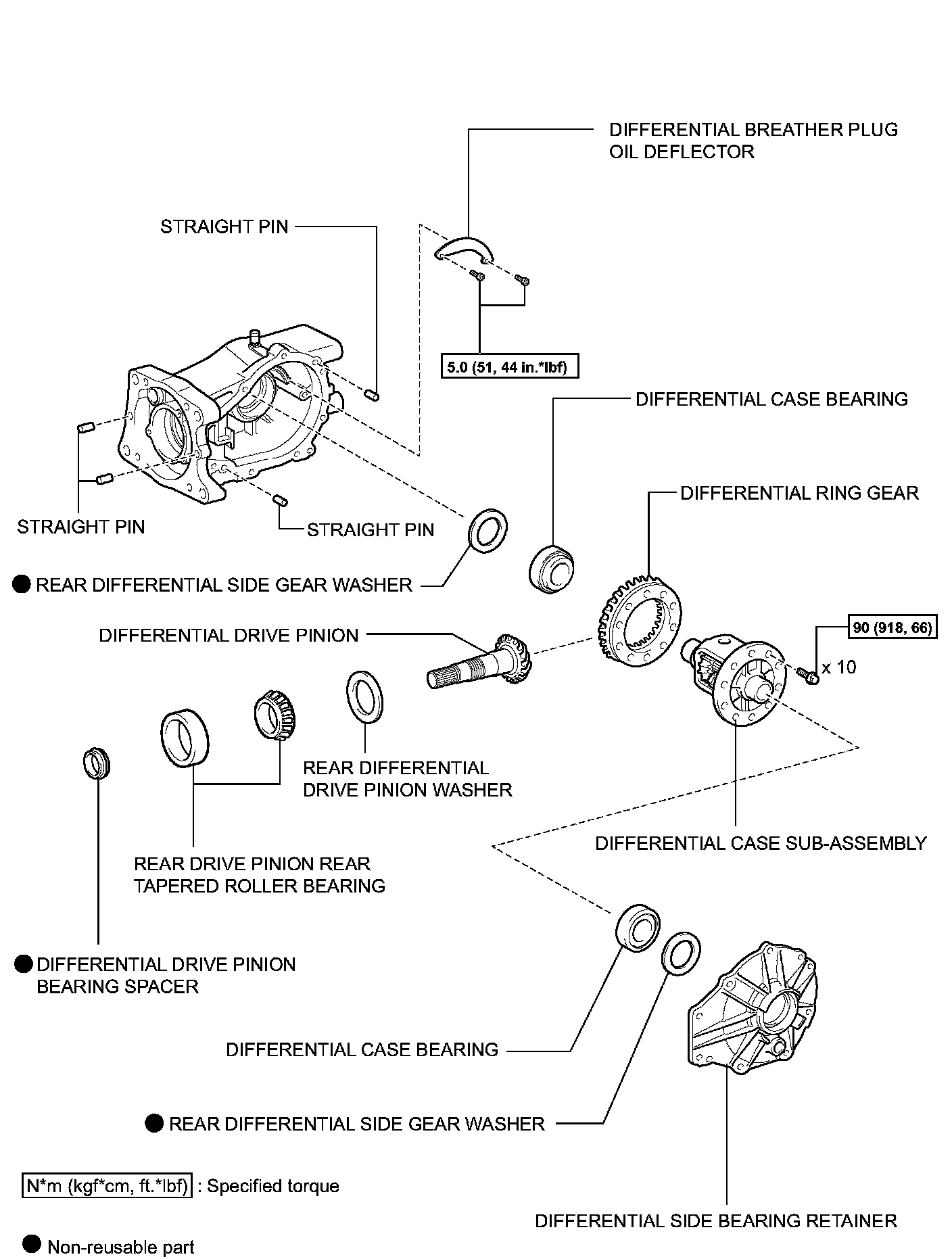

Components:
