Control Module: Service and Repair

4WD CONTROL ECU

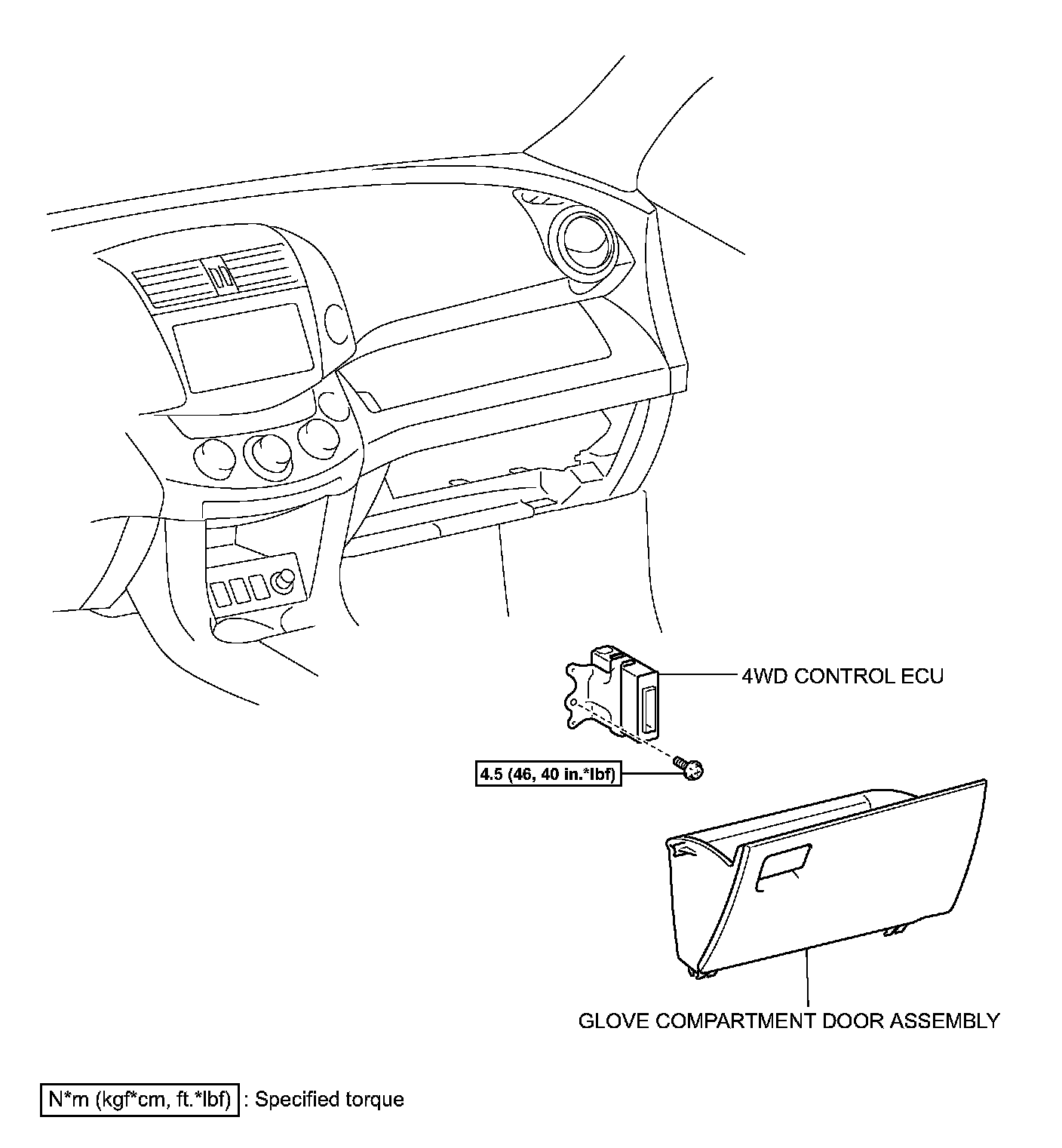

Components:

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

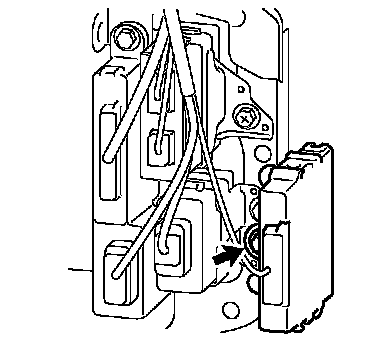

3. REMOVE 4WD CONTROL ECU
a. Disconnect the connector.
b. Remove the bolt and ECU.

INSTALLATION





1. INSTALL 4WD CONTROL ECU
a. Install the ECU with the bolt.
Torque: 4.5 Nm (46 kgf-cm, 40 inch lbs.)
b. Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
