Transfer Case
>>
Service Data
Service Data

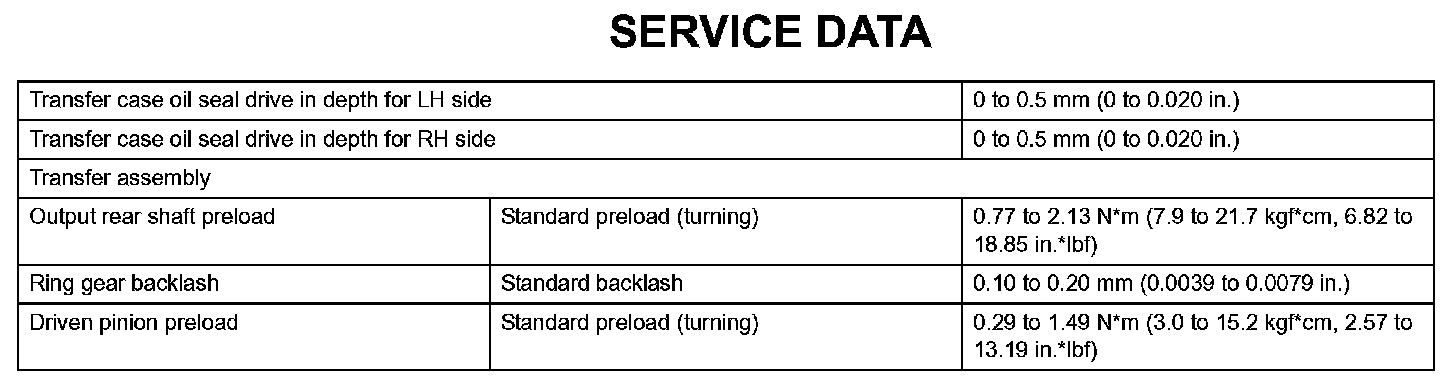

Transfer-Service Data (Part 1):

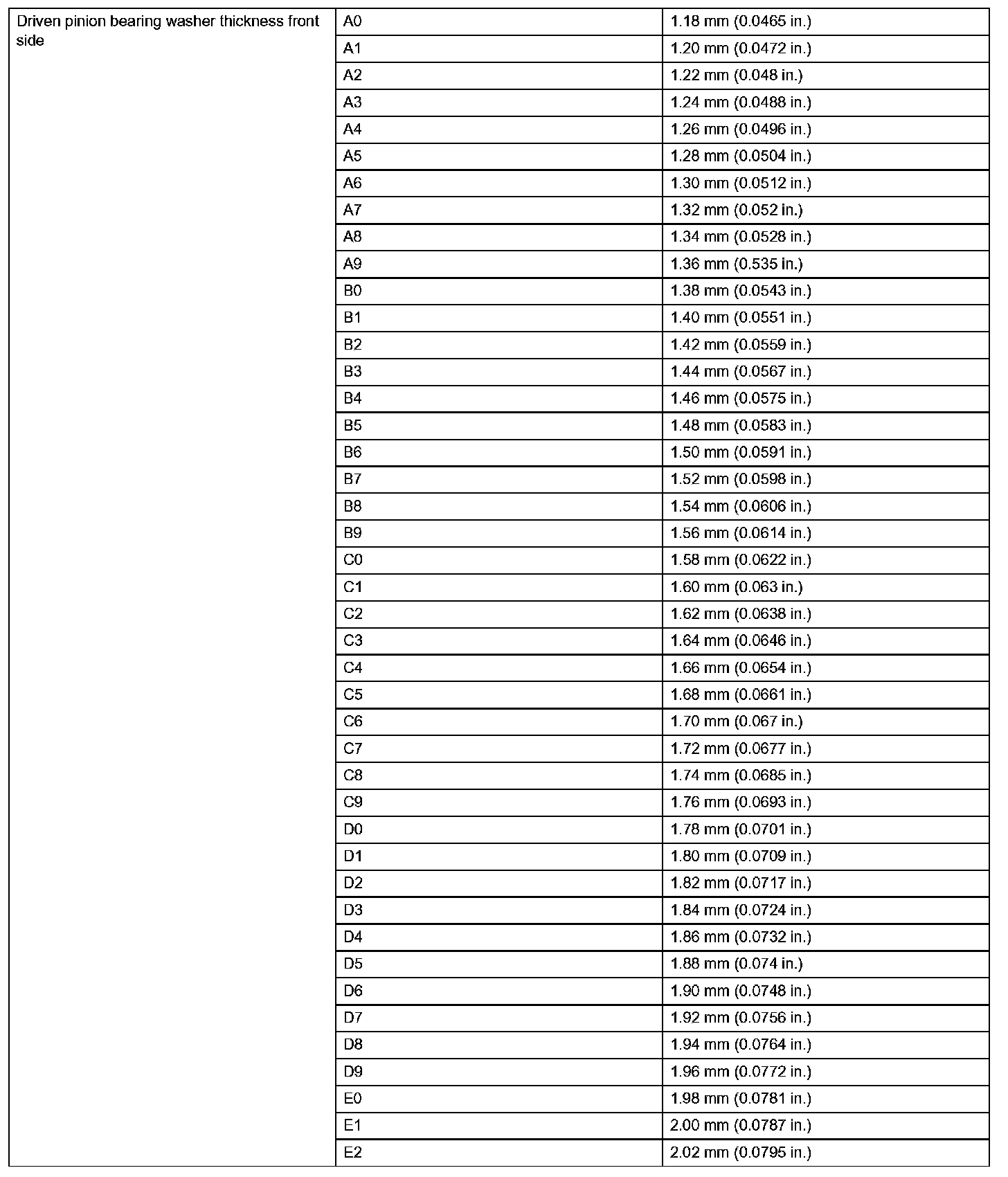

Transfer-Service Data (Part 2):

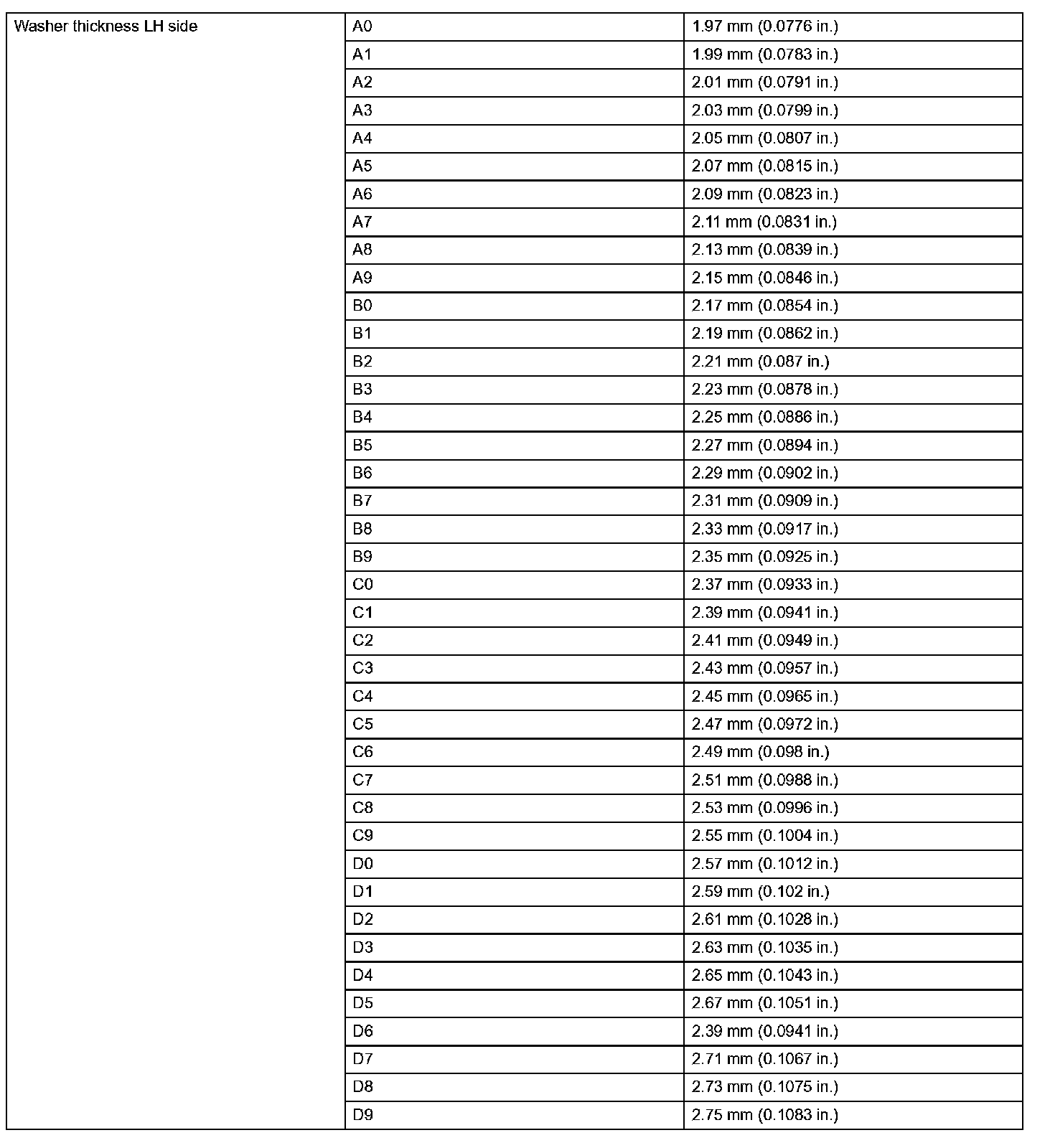

Transfer-Service Data (Part 3):
Transfer-Service Data (Part 4):
